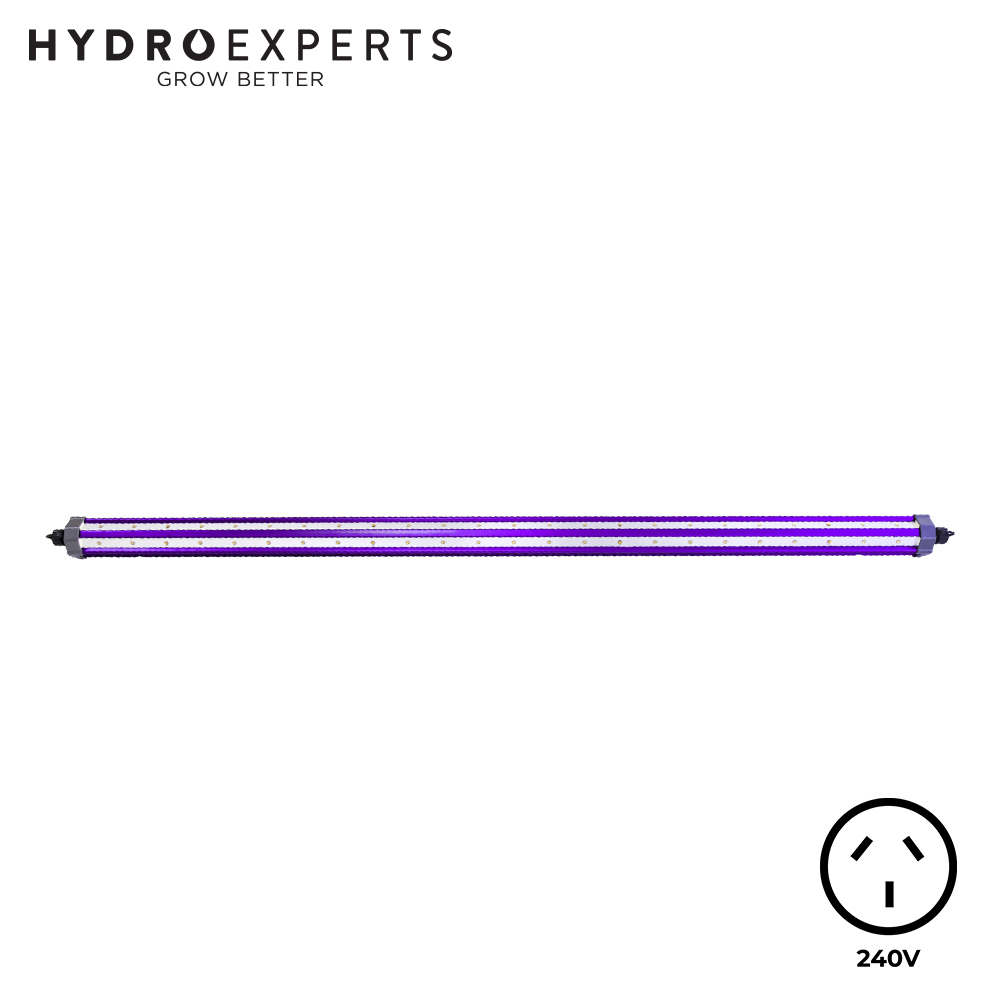

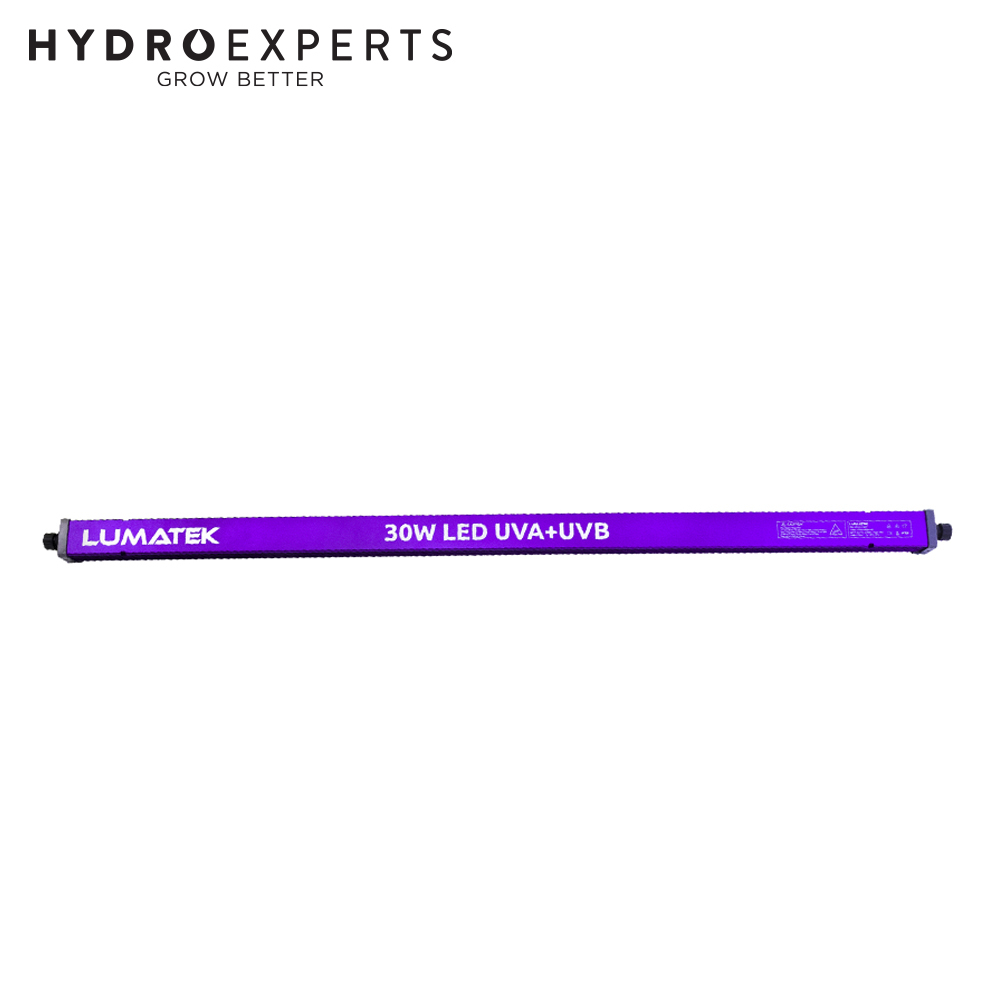

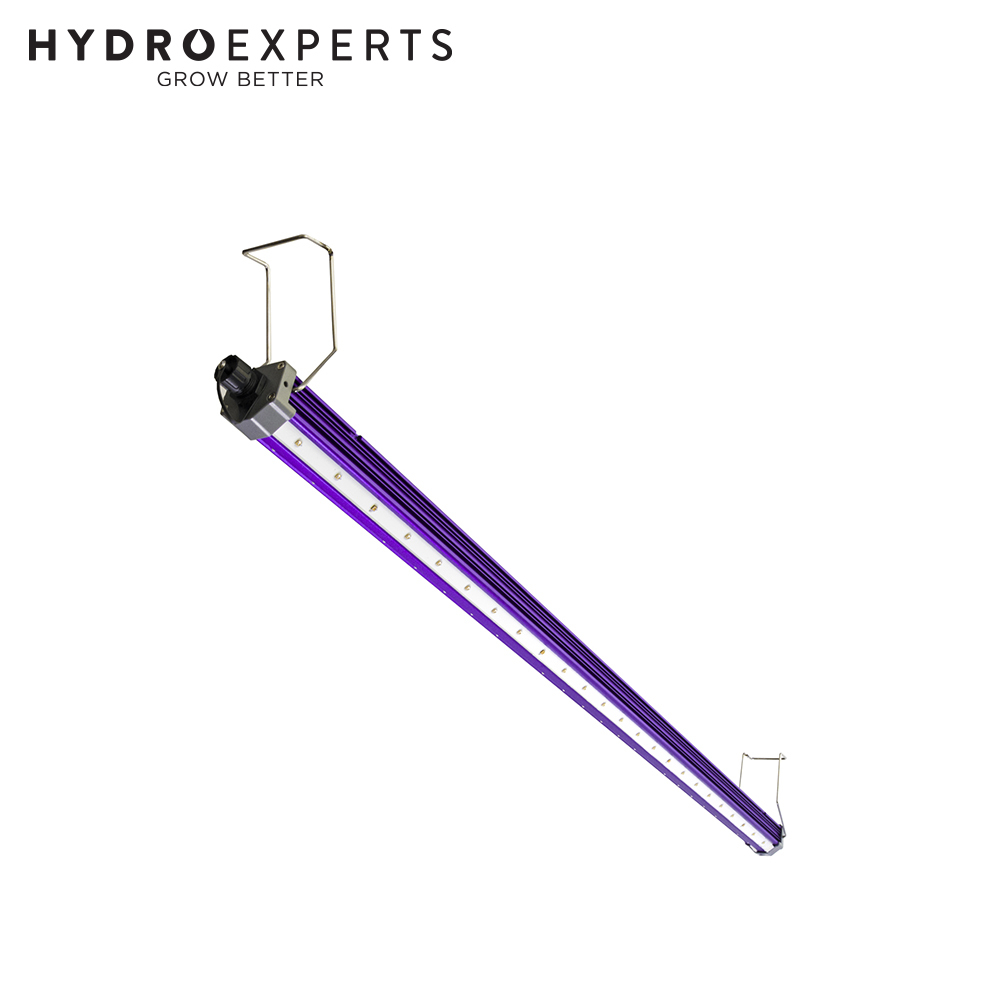

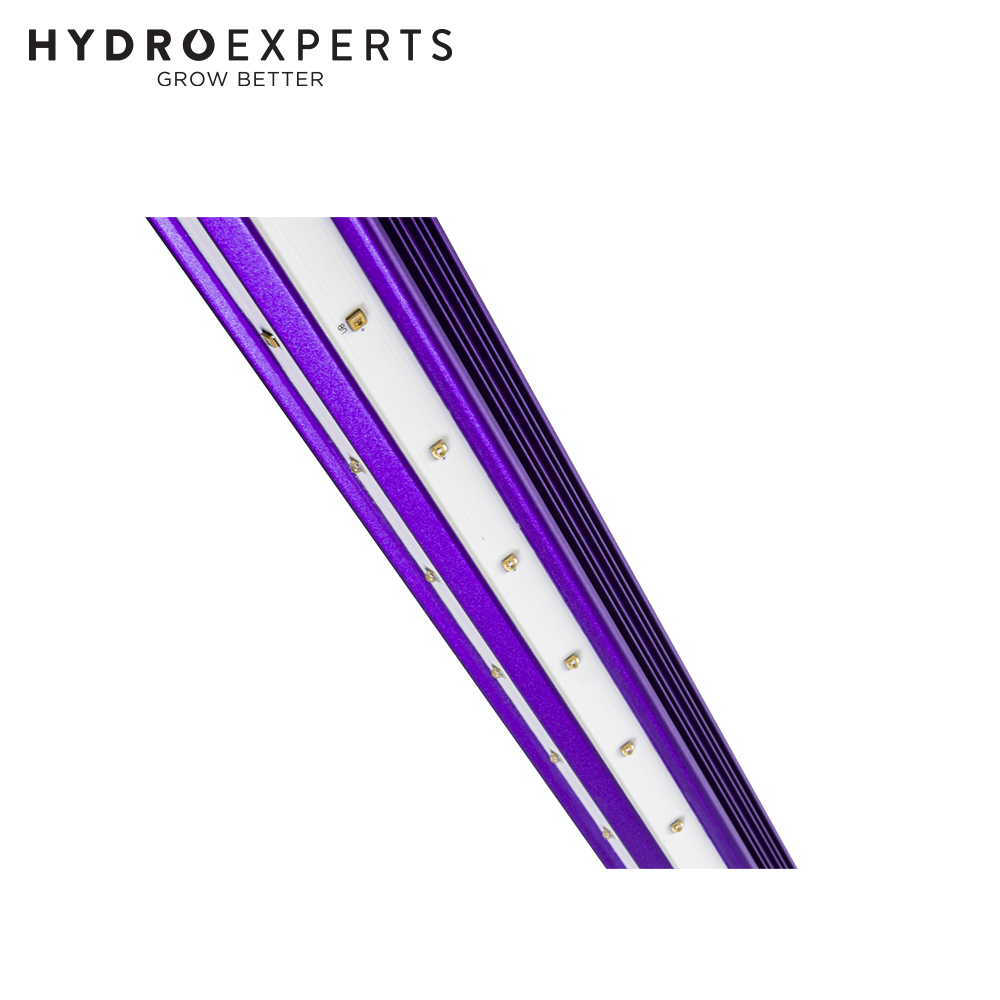

Lumatek Ultra Violet (UVA + UVB) Supplemental LED Grow Light Bar - 30W | IP65 | 100CM - LED Bar Only

The Lumatek 30W UV Supplemental Light LED Bar offers a Light Spectrum addition for growers who are looking to improve their crop’s quality through UV output inclusion during the Flowering grow stage. Designed to fit directly on the popular Lumatek Zeus LED fixtures, this unit has an independent power unit and can also be daisy-chainable.

Create a complete premium fruit or flower by using ultraviolet signalling on your grow. This technology is a powerful tool for growers that are interested to create a unique final crop, affecting its flavour, and smell and increasing by up to 30% the main substance to be extracted. It will also help to control mild formation with gentle UV-B doses and reduce the need for chemical interventions by the effect of UV-A.

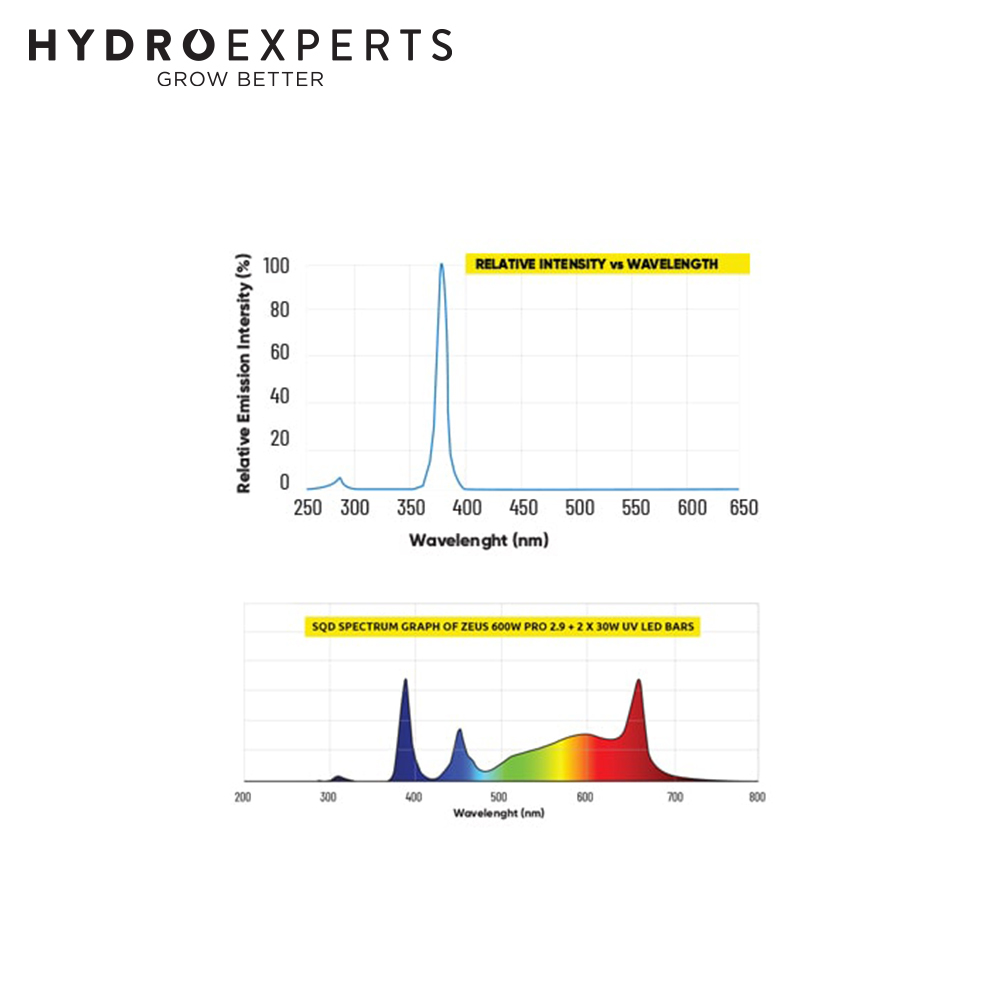

This unique fixture was specially designed to provide the ideal UV-B [280-315 nm] and UV-A [315-400 nm] radiation doses to your plants based on scientific support. A single fixture can provide 2.2 kJ/day (12 hours) of UV-B energy and 518 kJ/day (12 hours) of UV-A output. This translates to a fixture output of 100 mW of UV-B and 12000 mW of UVA. Lumatek ensures that this fixture does not produce UV-C radiation. Integrate this technology together with the Lumatek Zeus LED Range frames and follow the directives on our Grow Light Strategies.

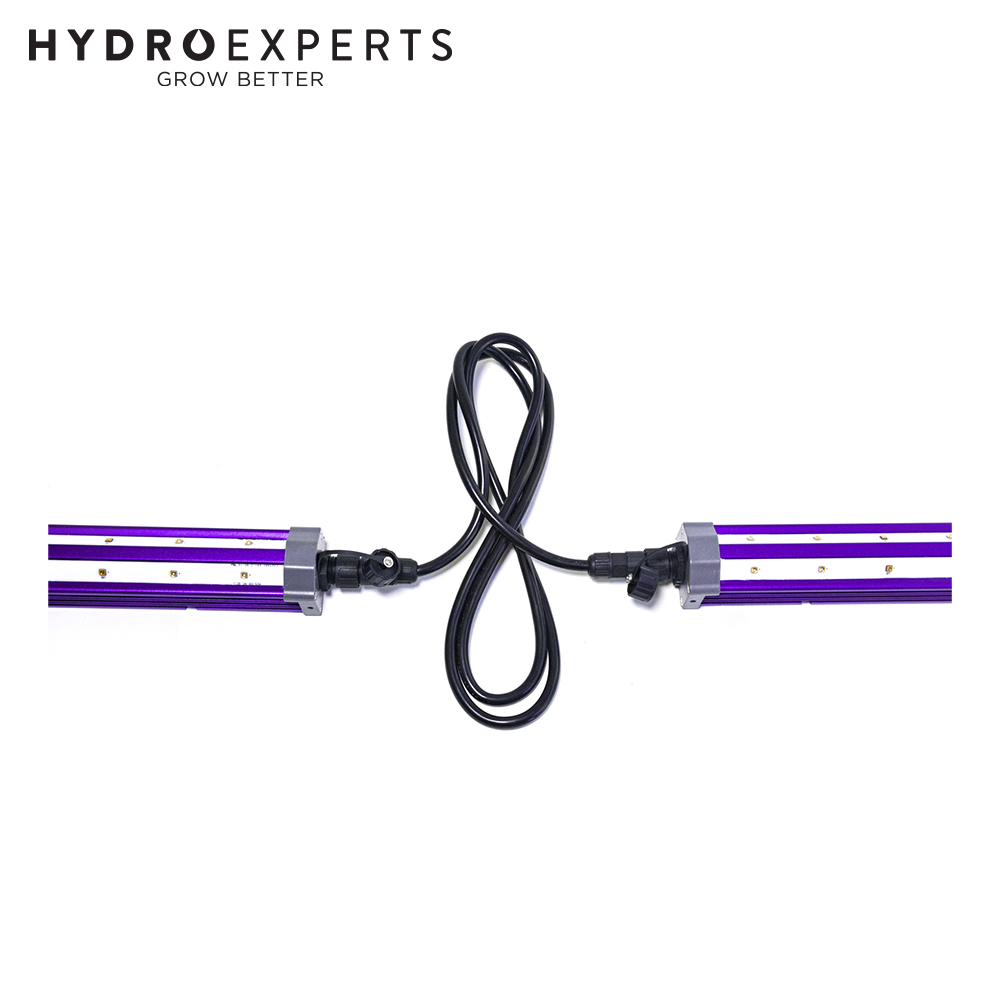

Daisy chain cable will allow you to easily connect several fixtures. To ensure unit performance, this LED bar has a single input and output socket for the Power Cable or Daisy Chain Cable depending on the use of that bar. For this reason, the Power (4m) and Daisy Chain (1.5m) cables are sold separately.

Recommended Coverage

The Lumatek 30W UV Supplemental LED Bar was designed to fit directly into the Zeus fixtures. To make sure you achieve the best light spread over the canopy, we recommend:

Integrate a minimum of 2 units of 30W UV Supplemental Light LED Bar, with:

• ZEUS 465W 2.6 | 1.2 x 1.2 m footprint
• ZEUS 600W 2.6 | 1.4 x 1.4 m footprint
• ZEUS 465W PRO 2.9 | 1.2 x 1.2 m footprint
• ZEUS 600W PRO 2.9 | 1.4 x 1.4 m footprint
• ZEUS 1000W Xtreme CO2 | 1.5 x 1.5 m footprint w/ CO2 Supplement

Integrate a minimum of 3 units of 30W UV Supplemental Light LED Bar, with:

• ZEUS 1000W PRO | 1.5 x 2.0 m footprint

Recommended UV-B + UV-A Radiation Application

Always mix the supplemental UVB + UVA radiation with the previously mentioned Lumatek Zeus Full Spectrum LED Range, starting from 12 hours photoperiod to less during the Flowering growth stage, at least 4 weeks before harvest.

For a good UV radiation spread, ensure to install the recommended minimum units and follow the distance to the canopy referred to on the Grow Light Strategies table.

If you notice plant damage, we recommend increasing the distance between the fixture and canopy or decreasing the UV light output delivered to your plants by reducing the photoperiodic time.

Precautions

The LUMATEK 30W UV Supplemental LED Bar is equipment that delivers UVB (near UV Erythemal) and UVA (near UV-black light) electromagnetic radiation spectrum with wavelengths from 280 to 400 nm.

To avoid any adverse effects on humans;

• Power off when installing or/and during the maintenance processes on your grow system. If powering off UV Bars is not possible, all exposed skin should be covered with opaque material and protective glasses are worn.
• Do not look directly at the light as the UVB radiation from the light fixture can damage eyes and skin.

Do not restrict the airflow across the fixtures to avoid any heat build-up which may reduce drastically the lifetime of your UV supplemental LED bars.

Do not put the UV Supplemental LED Bar in contact with any surface while still ON.

Only use on plants.
