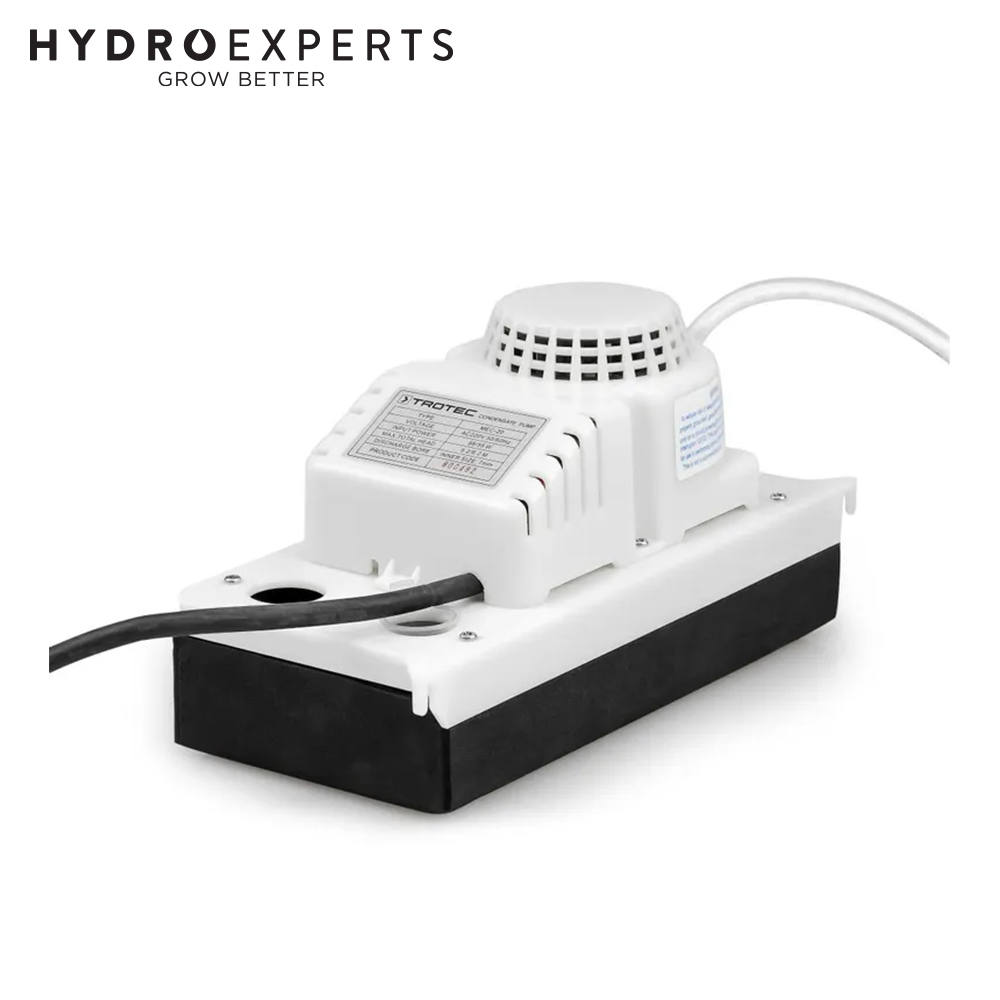

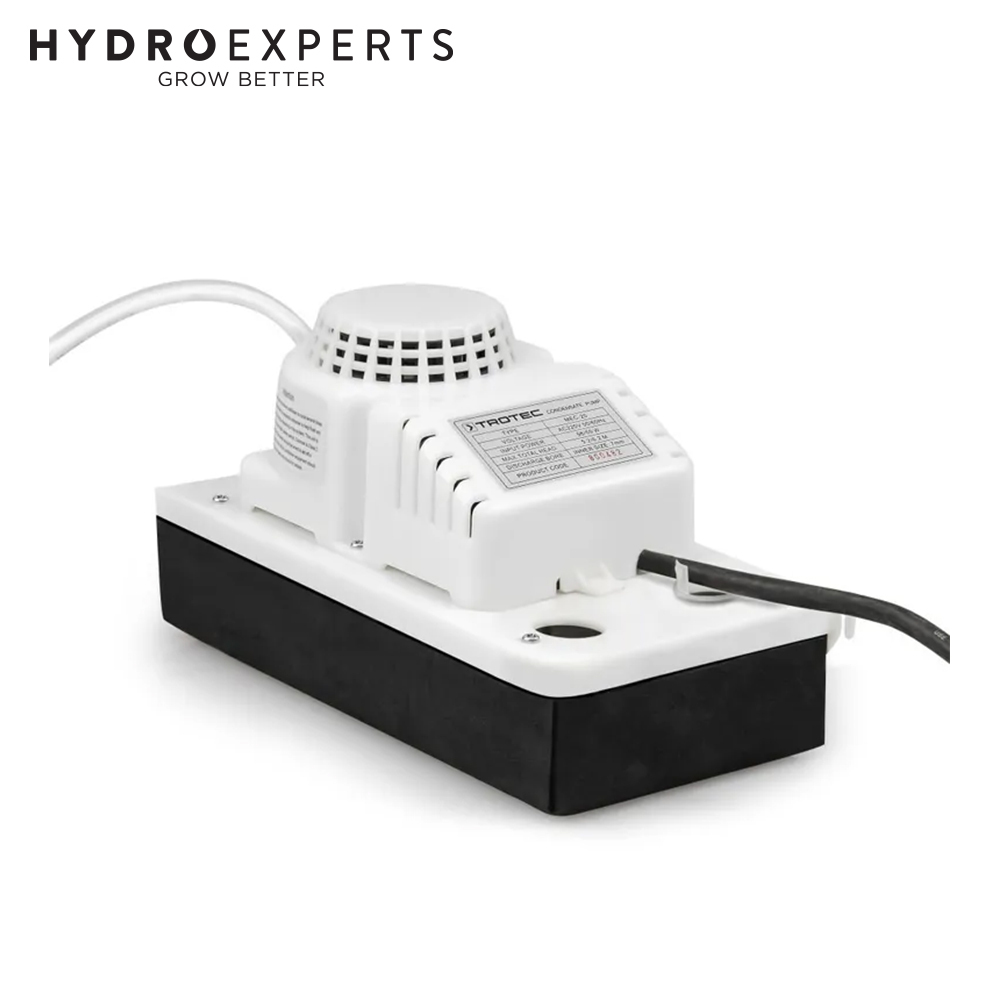

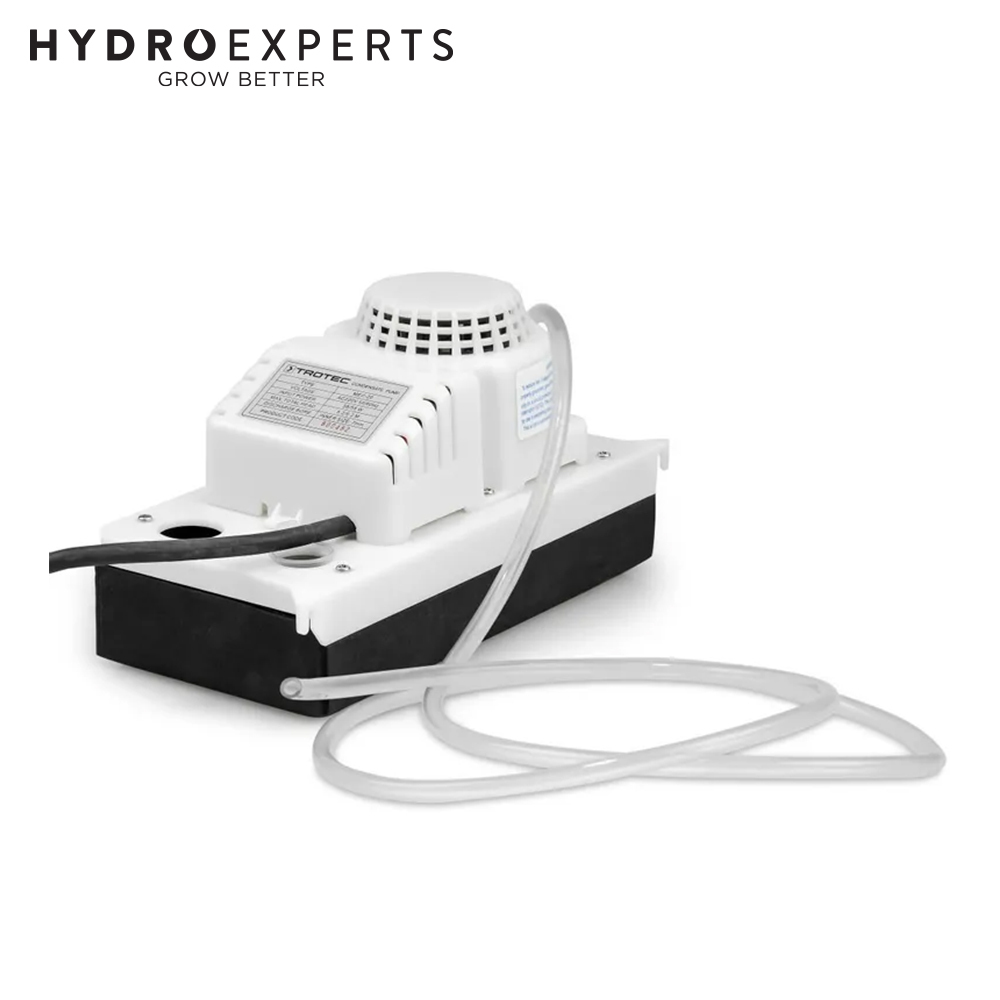

Trotec Condensate Pump External - 90L/H at 3M | Inlet 25MM | Outlet 5MM

SKU: ACES80501
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

Condensate pump for the following Trotec ECO and TTK-S commercial series dehumidifiers:

  • TTK 75 ECO
  • TTK 166 ECO
  • TTK 170 ECO
  • TTK 171 ECO
  • TTK 140 S model year 2013
  • TTK 170 S model year 2013
  • TTK 350 S model year 2013
  • TTK 650 S model year 2013
  • Optimally suited for longer, unattended dry maintenance applications.

After the condensate pump has been properly connected to the unit and the drying process has started, the pump's collection tray slowly fills with water. When a certain water level is reached, the pump starts automatically and discharges the water through the connected hose. The pump then switches off again until the level in the collection tray rises again.

The auto shutdown of the dehumidifier is suspended as soon as a condensate pump is used to pump out the extracted liquid.

Specifications

  • Voltage: 220 V (50/60 Hz)
  • Power: 58/55 watts
  • Maximum pumping height: 3.90 m
  • Check valve
  • Water hose inlet: 25 mm (maximum diameter outside)
  • Water hose outlet: 5 mm (diameter inside)
  • Dimensions: 280 mm x 125 mm x 140 mm
  • Weight: approx. 1,9 kg
  • Flow rate: 90 l/h at 3m head

In The Box

  • [1] x Trotec Condensate Pump External - 90L/H at 3M | Inlet 25MM | Outlet 5MM
