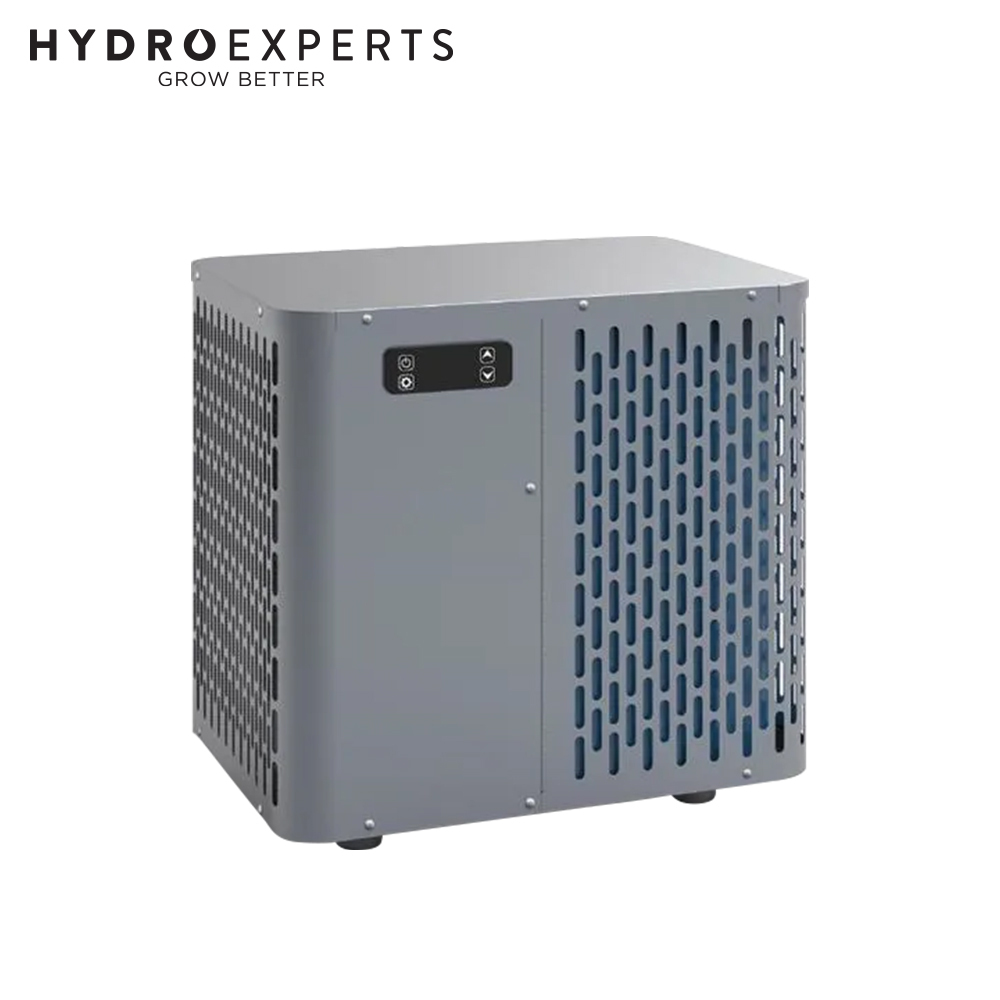

Toyesi Platypus Mini 50 - Compact Heater / Chiller Heat Pumps | 8°C to 38°C
Mini Plunge Pool & Spa Range
IN STOCK
POSTAGE APPLIES
Pick up at store Not Available
In-store pickup not available.
Delivery Options:
If cart total is less than $499*
Freight applies
If cart total is $499* & above
Freight applies
*This item is bullky so freight applies.
Calculate shipping
International shipping
Click hereSECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER
Platypus Mini 50 – redefining excellence in pool temperature control with advanced specifications for a superior aquatic experience. Specially crafted to meet the demands of larger pools and colder climates, the Platypus Mini 50 is your gateway to unparalleled comfort.
Precision Temperature Control
The Platypus Mini 50 is suitable for a variety of applications. It can heat pools up to 15,000 litres to a comfortable 30°C, making them enjoyable throughout the year. For spas and hot tubs up to 8,000 litres, it maintains a relaxing 38°C. It also effectively temperatures smaller pools, plunge pools and water play areas between 8°C to 28°C and 10°C to 40°C respectively.
Max Power, Minimum Consumption
Boasting a powerful 5 kW max heating output and a cooling capacity of 2.67 kW, the Platypus Mini 50 caters to larger aquatic settings effortlessly. With a capacity of 3.6 kW in air at 15°C and water at 26°C, it's the pinnacle of efficiency, providing the ultimate in temperature control.
Effortless Setup
Operating on a 240V power supply at 50Hz, the Platypus Mini 50 ensures a hassle-free experience for larger aquatic projects. With a max power input of 1.4 kW and max amps at 6.21 A, it's a powerhouse that guarantees optimal performance.
Quiet Efficiency for a Tranquil Oasis
Despite its power, the Platypus Mini 50 maintains a sound rating of just 55 dB(A) at 1m, creating a serene oasis where the focus is on the gentle lapping of perfectly controlled water.
Durable Design for Demanding Environments
Built to withstand the elements, this mini chiller boasts an IPX4 water-resistant rating. Measuring 440 x 380 x 425 mm (LxWxD) and weighing in at 32 kg, it's a robust yet compact solution ready to elevate your larger pool experience.
Eco-Conscious Cooling
Operating with eco-friendly R32 refrigerant and boasting a COP of 4.5 and EER of 3.07, the Platypus Mini 50 balances power, efficiency, and sustainability.
Upgrade your aquatic haven with the Platypus Mini 50 – where precision meets performance on a larger scale. Order now and redefine your larger pool experience!
SIZING CHILLER SELECTION TABLE FOR PLUNGE POOLS (ICE BATH)
Please use this table as a reference when choosing the right-sized chiller for your plunge pool.
| Plunge Pool Size | 8°C Water Temp | 10°C Water Temp | 12°C Water Temp | 15°C Water Temp |
|---|---|---|---|---|
| < 500 L | Mini 50 (1.3 kW) | Mini 30 (1.1 kW) | Mini 30 (0.9 kW) | Mini 30 (0.6 kW) |
| 1,000 L | Mini 50 (1.4 kW) | Mini 50 (1.2 kW) | Mini 30 (1.0 kW) | Mini 30 (0.7 kW) |
| 1,500 L | Mini 50 i (1.7 kW) | Mini 50 (1.5 kW) | Mini 50 (1.2 kW) | Mini 30 (0.9 kW) |
| 2,000 L | Mini 60 i (1.9 kW) | Mini 50 i (1.7 kW) | Mini 50 (1.4 kW) | Mini 30 (1.1 kW) |
| 2,500 L | HC 0704 (2.2 kW) | Mini 60 i (1.9 kW) | Mini 50 (1.7 kW) | Mini 50 (1.3 kW) |
| 3,000 L | HC 0704 (2.4 kW) | HC 0704 (2.2 kW) | Mini 50 i (1.9 kW) | Mini 50 (1.5 kW) |
| 4,000 L | HC 1005 (2.9 kW) | HC 0704 (2.6 kW) | Mini 60 i (2.3 kW) | Mini 50 (1.9 kW) |
| 5,000 L | HC 1005 (3.4 kW) | HC 1005 (3.1 kW) | HC 0704 (2.8 kW) | Mini 50 i (2.3 kW) |
| 6,000 L | HC 1307 (3.9 kW) | HC 1005 (3.6 kW) | HC 1005 (3.2 kW) | Mini 60 i (2.6 kW) |
Estimate Chiller load Assumptions for a Domestic Plunge pool.
Location, ambient temperature, Pool temperature, indoor pools, outdoor pools, pool covers, heated rooms, high-use periods and chiller operating hours will all change the heat load of a plunge pool. The above guide is just that a guide. The above guide is based on a 2-person user plunge pool. Commercial pools or pools with high usage should always seek a sizing estimate. The estimate above is also a minimum suggested size.
The above Sizing Chiller Selection Table is based on 28 C Ambient, Indoor Plunge Pool, No Cover, 12-hour chiller operating hours and 2-person pool usage.
It is highly recommended to select the next unit up when pool kW demands are at the edge of a selected unit’s nominal kW cooling capacity.
| Model | Cooling (KW) | HP | Litres of Water | Power |
|---|---|---|---|---|
| Mini 30 | 1.5 | 0.4 | < 1,000 | 1 Phase |
| Mini 50 | 2.6 | 1.0 | 1,500 | 1 Phase |
| Magic Mini 50 i (Inverter) | 3.0 | 1.2 | 2,000 | 1 Phase |
| Magic Mini 60 i (Inverter) | 3.3 | 1.3 | 2,500 | 1 Phase |
| Platypus HC 0704-1 | 2.68 | 1.6 | < 4,000 | 1 Phase |
| Platypus HC 1005-1 | 4.02 | 2.0 | 5,000 | 1 Phase |
| Platypus HC 1307-1 | 5.36 | 2.5 | 6,000 | 1 Phase |
| Platypus HC 1709-1 | 5.82 | 3.0 | 7,000 | 1 Phase |
| Platypus HC 2111-1 | 6.96 | 4.0 | 8,000 | 1 Phase |
| Platypus HC 3015-1 | 9.52 | 5.7 | 10,000 | 1 Phase |
| Platypus HC 3015-3 | 9.92 | 5.7 | 12,500 | 3 Phase |
| Platypus HC 3520-3 | 12.07 | 7.5 | 15,000 | 3 Phase |
Specifications
| Heating Range | 10°C to 40°C |
| Cooling Range | 8°C to 28°C |
| Operating Range | -7°C to 43°C |
| Max Heating Output | 5 kW |
| Max Cooling Output | 2.67 kW |
| Air 15°C & Water 26°C | |
| Capacity | 3.6 kW |
| Input | 0.8 kW |
| Amps | 3.48 A |
| COP | 4.5 |
| Air 35°C & Water 27°C | |
| Capacity | 2.67 kW |
| Input | 0.87 kW |
| Amps | 3.79 A |
| EER | 3.07 |
| Power Supply | 240 V 50Hz |
| Max Power Input | 1.4 kW |
| Max Amps | 6.21 A |
| Water Connections | 32/38 mm |
| Water Flow | 2.15 m3/Hr |
| Pressure Drop | 20 kPa |
| Refrigerant | R32 |
| Pressure minimax | 1.5/4.3 MPa |
| Sound Rating 1m | 55 dB(A) |
| Water Proof Rating | IPX4 |
| Weight | 26 kg |
In The Box
- [1] x Toyesi Platypus Mini 50 - Compact Heater / Chiller Heat Pumps | 8°C to 38°C
- Experience high efficiency and eco-friendliness with our R32 refrigerant.
- Achieve heating COP ranging from 4.0 to 13.8 and cooling EER between 2.7 to 5.1.
- Choose from three variants: Mini 30, Mini 50, and Magic Mini 50, all featuring EVI and Inverter technologies.
- The Magic Mini 50 is specially designed for cold climate areas.
- Enjoy a temperature output range of 8 °C to 43 °C for versatile use.
- Benefit from an ergonomically compact design with a robust ABS plastic casing and anti-UV protection.
- Lightweight at 26 to 32kg, making it suitable for small aquatic projects.
- Easy installation with a 32/38mm water connection, offering a plug-and-play solution.
- Get fantastic value for money with our reliable refrigerant system.
Documents
Download PDF brochure
Q: What pool sizes is the Platypus Mini 50 suitable for?
A: The Platypus Mini 50 is designed for larger pools, accommodating sizes that demand more significant temperature control. It's ideal for pools exceeding 15,000 litres.
Q: Can the Platypus Mini 50 handle extreme cold climates?
A: Absolutely. The Platypus Mini 50 is crafted to excel in colder regions, boasting a powerful heating output of 5 kW and an operating range that extends down to -7°C.
Q: How does the Platypus Mini 50 ensure efficiency for larger pools?
A: With a substantial cooling capacity of 2.67 kW and a heating range from 10°C to 40°C, the Platypus Mini 50 is engineered for optimal efficiency, ensuring larger aquatic settings are maintained at the perfect temperature.
Q: What makes the Platypus Mini 50 environmentally friendly?
A: Like its counterpart, the Platypus Mini 50 operates with eco-friendly R32 refrigerant, ensuring a commitment to environmental sustainability while delivering powerful heating and cooling capabilities.
