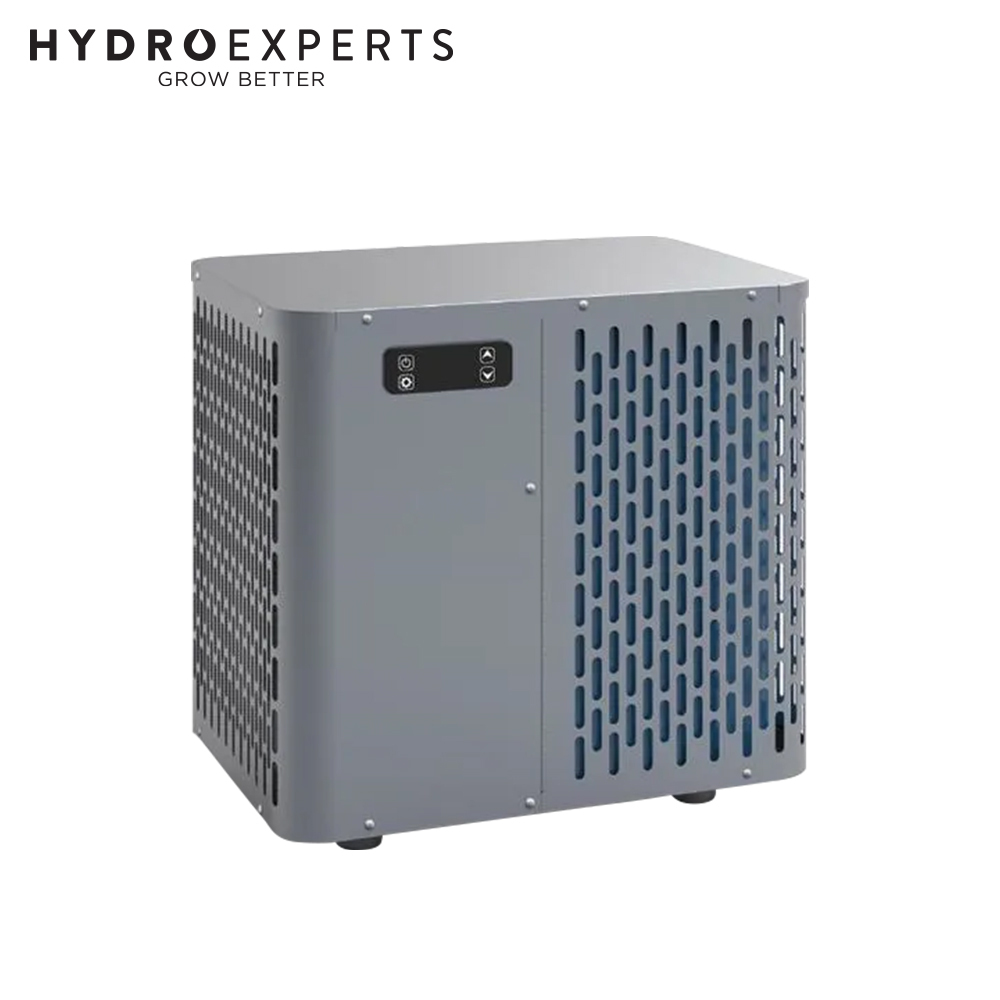

Platypus Mini 30 – your passport to year-round aquatic enjoyment. This compact heater-chiller has been specially designed for smaller backyard water features, providing temperature control that was previously unachievable at this scale. Its capabilities allow users to make the most of their aquatic spaces regardless of external conditions.
Precision Temperature Control
The Platypus Mini 30 is suitable for a variety of applications. It can heat pools up to 15,000 litres to a comfortable 30°C, making them enjoyable throughout the year. For spas and hot tubs up to 8,000 litres, it maintains a relaxing 38°C. It also effectively temperatures smaller pools, plunge pools and water play areas between 8-15°C and 15-38°C respectively.
Max Power, Minimum Consumption
Experience the power of a 3 kW max heating output and a cooling prowess of 1.56 kW. Whether it's a warm soak or a refreshing dip, this mini chiller delivers, with a capacity of 2.1 kW in air at 15°C and water at 26°C. And talk about efficiency – at 350C air and 270C water, it still manages 1.56 kW with an input of just 0.56 kW.
Effortless Setup
Operating on a 240V power supply at 50Hrtz, the Platypus Mini 30 ensures a hassle-free experience. With a max power input of 0.7 kW and max amps at 3.1 A, it's as efficient as it gets. Water connections at 32/38 mm, water flow at 1.3 m3/hr, and a pressure drop of 20 kPa make installation a breeze.
Quiet Efficiency
Say goodbye to noisy disruptions with a sound rating of just 52 dB(A) at 1m. The Platypus Mini 30 creates a serene oasis in your backyard, where the only sound is the gentle lapping of perfectly controlled water.
Durable Design
Built to withstand the elements, this mini chiller boasts an IPX4 water-resistant rating. Measuring 440 x 380 x 425 mm (LxWxD) and weighing in at 26 kg, it's a compact powerhouse ready to elevate your pool experience.
Eco-Conscious Cooling
Operating with eco-friendly R32 refrigerant and boasting a COP of 4.05 and EER of 2.79, the Platypus Mini 30 balances power and sustainability. Dive into comfort without compromising the environment.
Don't let the compact size of the Platypus Mini 30 fool you into underestimating its performance. It sets a new standard for temperature control in residential water features. Contact us to discuss how it can enhance your aquatic space.
Suitable Projects:
- Small backyard pools up to 15,000 L from 20 to 30 degrees Celcius
- Mini to small spas up to 8,000 L at 38 degrees Celcius
- Small plunge pools from 500 L to 5,000 L from 8 to 15 degrees Celcius
- Aquatic play areas from 15 to 38 degrees Celcius
- Aquatic research, Aquariums, Aquaponics, Hydroponics, and small Aquaculture Ventures.
SIZING CHILLER SELECTION TABLE FOR PLUNGE POOLS (ICE BATH)
Please use this table as a reference when choosing the right-sized chiller for your plunge pool.
| Plunge Pool Size | 8°C Water Temp | 10°C Water Temp | 12°C Water Temp | 15°C Water Temp |
|---|---|---|---|---|
| < 500 L | Mini 50 (1.3 kW) | Mini 30 (1.1 kW) | Mini 30 (0.9 kW) | Mini 30 (0.6 kW) |
| 1,000 L | Mini 50 (1.4 kW) | Mini 50 (1.2 kW) | Mini 30 (1.0 kW) | Mini 30 (0.7 kW) |
| 1,500 L | Mini 50 i (1.7 kW) | Mini 50 (1.5 kW) | Mini 50 (1.2 kW) | Mini 30 (0.9 kW) |
| 2,000 L | Mini 60 i (1.9 kW) | Mini 50 i (1.7 kW) | Mini 50 (1.4 kW) | Mini 30 (1.1 kW) |
| 2,500 L | HC 0704 (2.2 kW) | Mini 60 i (1.9 kW) | Mini 50 (1.7 kW) | Mini 50 (1.3 kW) |
| 3,000 L | HC 0704 (2.4 kW) | HC 0704 (2.2 kW) | Mini 50 i (1.9 kW) | Mini 50 (1.5 kW) |
| 4,000 L | HC 1005 (2.9 kW) | HC 0704 (2.6 kW) | Mini 60 i (2.3 kW) | Mini 50 (1.9 kW) |
| 5,000 L | HC 1005 (3.4 kW) | HC 1005 (3.1 kW) | HC 0704 (2.8 kW) | Mini 50 i (2.3 kW) |
| 6,000 L | HC 1307 (3.9 kW) | HC 1005 (3.6 kW) | HC 1005 (3.2 kW) | Mini 60 i (2.6 kW) |
Estimate Chiller load Assumptions for a Domestic Plunge pool.
Location, ambient temperature, Pool temperature, indoor pools, outdoor pools, pool covers, heated rooms, high-use periods and chiller operating hours will all change the heat load of a plunge pool. The above guide is just that a guide. The above guide is based on a 2-person user plunge pool. Commercial pools or pools with high usage should always seek a sizing estimate. The estimate above is also a minimum suggested size.
The above Sizing Chiller Selection Table is based on 28 C Ambient, Indoor Plunge Pool, No Cover, 12-hour chiller operating hours and 2-person pool usage.
It is highly recommended to select the next unit up when pool kW demands are at the edge of a selected unit’s nominal kW cooling capacity.
| Model | Cooling (KW) | HP | Litres of Water | Power |
|---|---|---|---|---|
| Mini 30 | 1.5 | 0.4 | < 1,000 | 1 Phase |
| Mini 50 | 2.6 | 1.0 | 1,500 | 1 Phase |
| Magic Mini 50 i (Inverter) | 3.0 | 1.2 | 2,000 | 1 Phase |
| Magic Mini 60 i (Inverter) | 3.3 | 1.3 | 2,500 | 1 Phase |
| Platypus HC 0704-1 | 2.68 | 1.6 | < 4,000 | 1 Phase |
| Platypus HC 1005-1 | 4.02 | 2.0 | 5,000 | 1 Phase |
| Platypus HC 1307-1 | 5.36 | 2.5 | 6,000 | 1 Phase |
| Platypus HC 1709-1 | 5.82 | 3.0 | 7,000 | 1 Phase |
| Platypus HC 2111-1 | 6.96 | 4.0 | 8,000 | 1 Phase |
| Platypus HC 3015-1 | 9.52 | 5.7 | 10,000 | 1 Phase |
| Platypus HC 3015-3 | 9.92 | 5.7 | 12,500 | 3 Phase |
| Platypus HC 3520-3 | 12.07 | 7.5 | 15,000 | 3 Phase |
Specifications
| Heating Range | 10°C to 40°C |
| Cooling Range | 8°C to 28°C |
| Operating Range | -7°C to 43°C |
| Max Heating Output | 3 kW |
| Max Cooling Output | 1.56 kW |
| Air 15°C & Water 26°C | |
| Capacity | 2.1 kW |
| Input | 0.52 kW |
| Amps | 2.26 A |
| COP | 4.05 |
| Air 35°C & Water 27°C | |
| Capacity | 1.56 kW |
| Input | 0.56 kW |
| Amps | 2.44 A |
| EER | 2.79 |
| Power Supply | 240 V 50Hz |
| Max Power Input | 0.7 kW |
| Max Amps | 3.1 A |
| Water Connections | 32/38 mm |
| Water Flow | 1.3 m3/Hr |
| Pressure Drop | 20 kPa |
| Refrigerant | R32 |
| Pressure minimax | 1.5/4.3 MPa |
| Sound Rating 1m | 52 dB(A) |
| Water Proof Rating | IPX4 |
| Weight | 26 kg |
In The Box
- [1] x Toyesi Platypus Mini 30 - Compact Heater / Chiller Heat Pumps | 8°C to 38°C
- Experience high efficiency and eco-friendliness with our R32 refrigerant.
- Achieve heating COP ranging from 4.0 to 13.8 and cooling EER between 2.7 to 5.1.
- Choose from three variants: Mini 30, Mini 50, and Magic Mini 50, all featuring EVI and Inverter technologies.
- The Magic Mini 50 is specially designed for cold climate areas.
- Enjoy a temperature output range of 8 °C to 43 °C for versatile use.
- Benefit from an ergonomically compact design with a robust ABS plastic casing and anti-UV protection.
- Lightweight at 26 to 32kg, making it suitable for small aquatic projects.
- Easy installation with a 32/38mm water connection, offering a plug-and-play solution.
- Get fantastic value for money with our reliable refrigerant system.
Documents
Download PDF brochure
Q: What pool sizes does the Platypus Mini 30 cater to?
A: The Platypus Mini 30 is designed for small backyard pools up to 15,000 litres, ensuring a cosy temperature ranging from 20 to 30°C.
Q: Can the Platypus Mini 30 handle cold climates?
A: Absolutely. The Magic Mini 50 variant, equipped with EVI technology, is specifically crafted for colder regions, performing optimally even in temperatures as low as minus 25°C.
Q: How versatile is the Platypus Mini 30 for different projects?
A: Extremely versatile! From spas and plunge pools to aquatic research and aquaponics, the Platypus Mini 30 is your all-in-one solution for a variety of small aquatic ventures.
Q: Is the Platypus Mini 30 environmentally friendly?
A: Yes, it is! The Platypus Mini 30 utilises the eco-friendly R32 refrigerant, providing high efficiency while maintaining a commitment to environmental sustainability.
