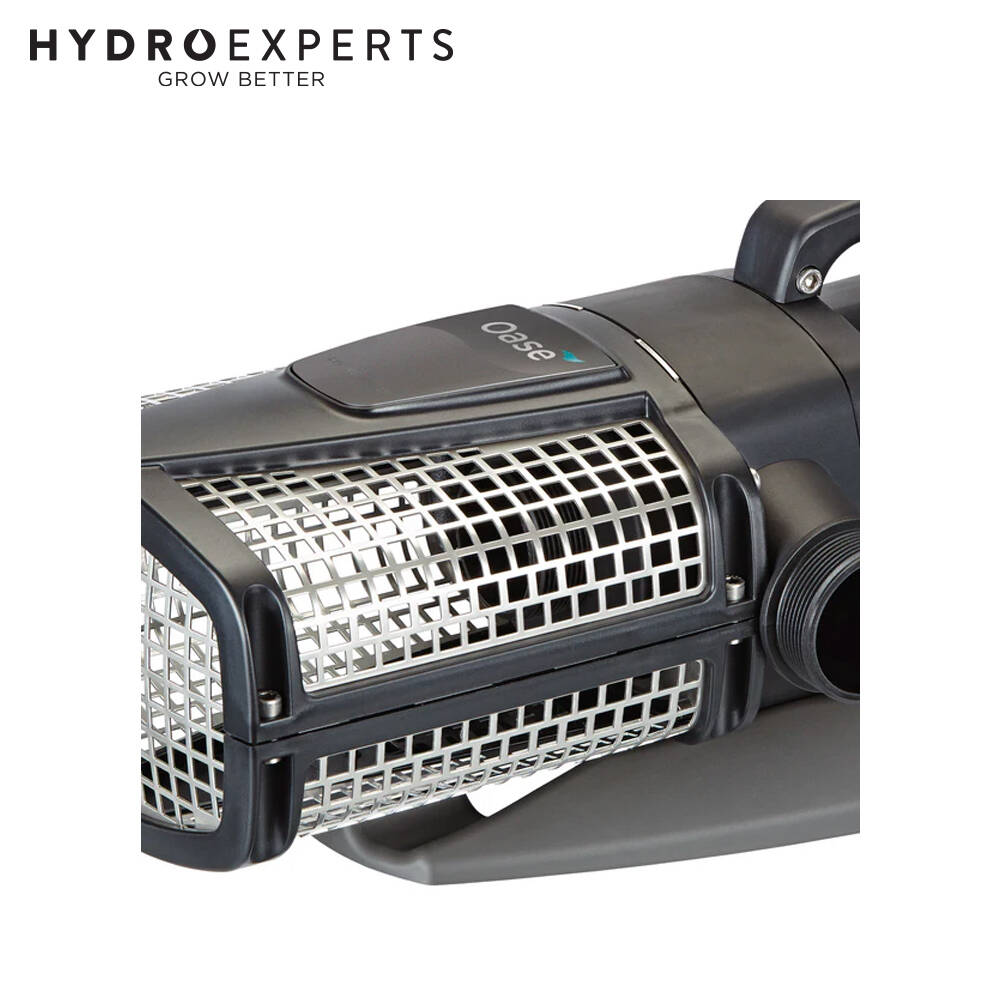

OASE AquaMax Eco Expert - 20000 / 27000 (12V) | DC High-Flow Water Pump
IN STOCK
FREE SHIPPING
Pick up at store Not Available
In-store pickup not available.
Delivery Charge: Free
International shipping
Click hereSECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER

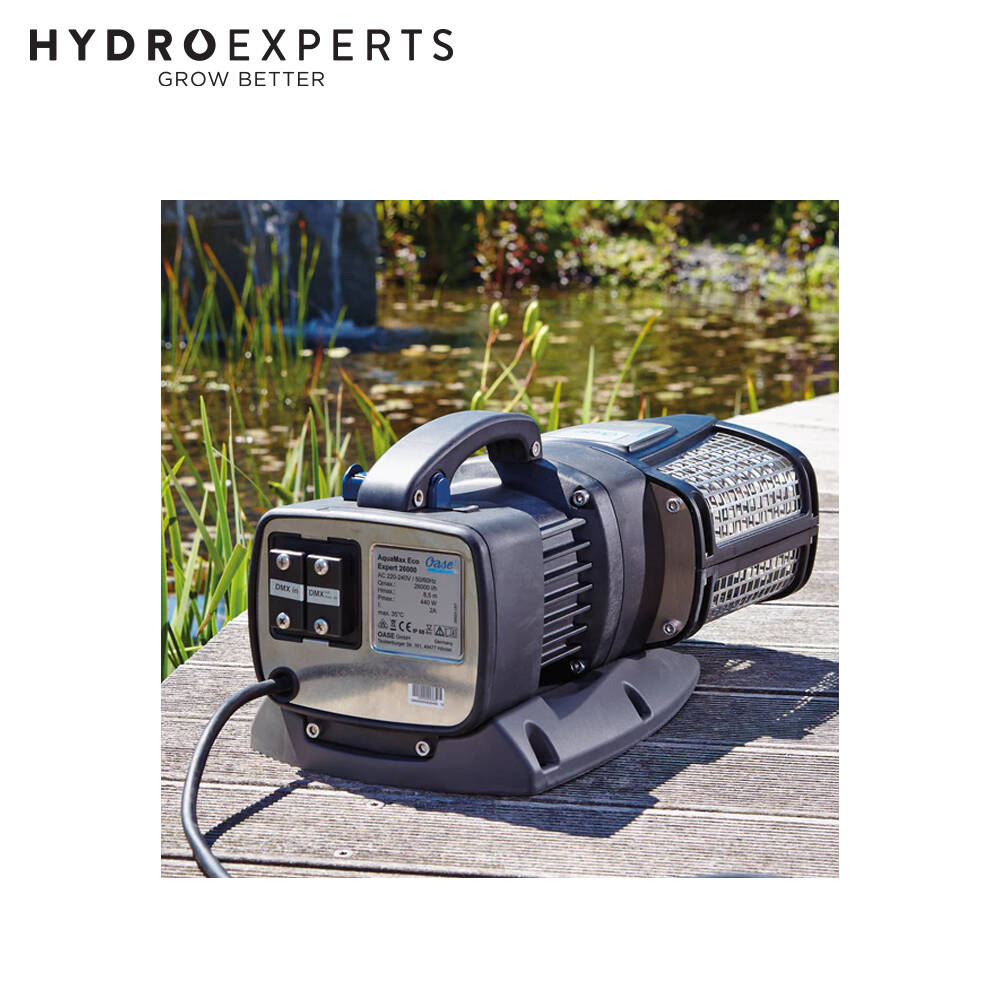

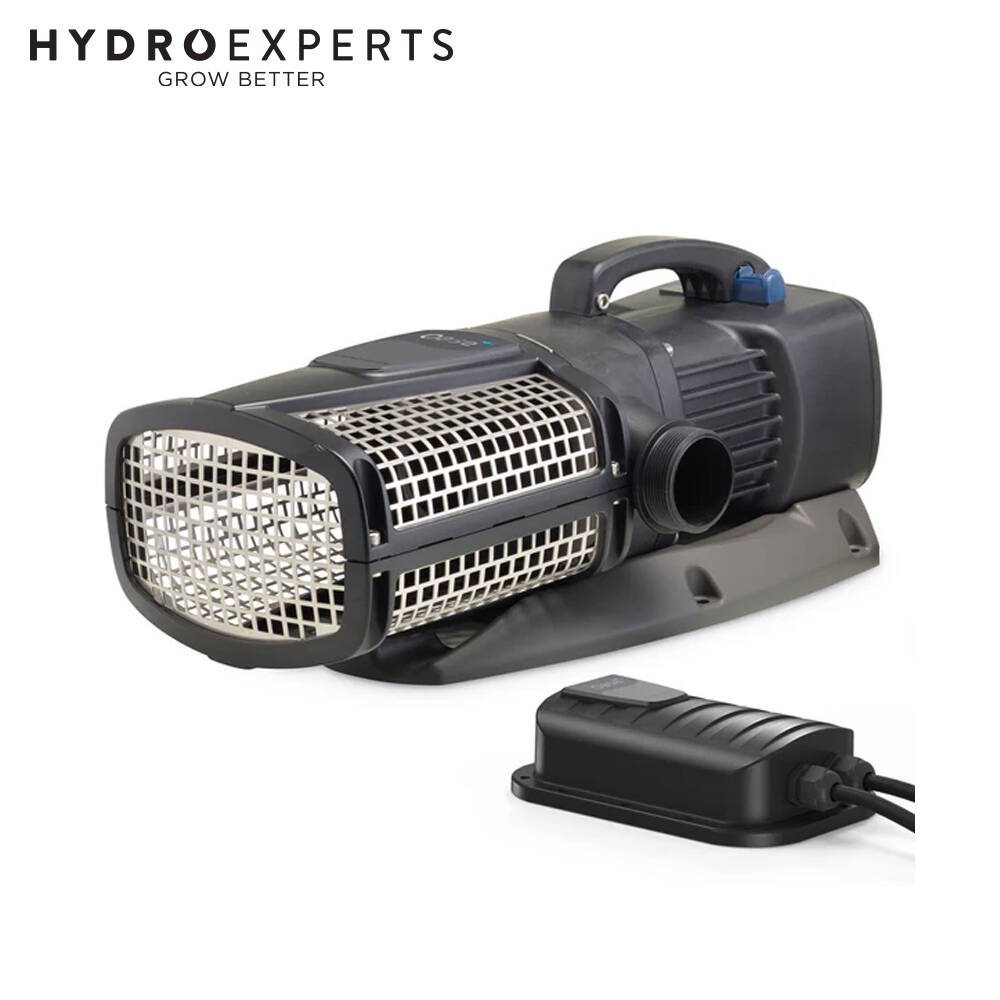

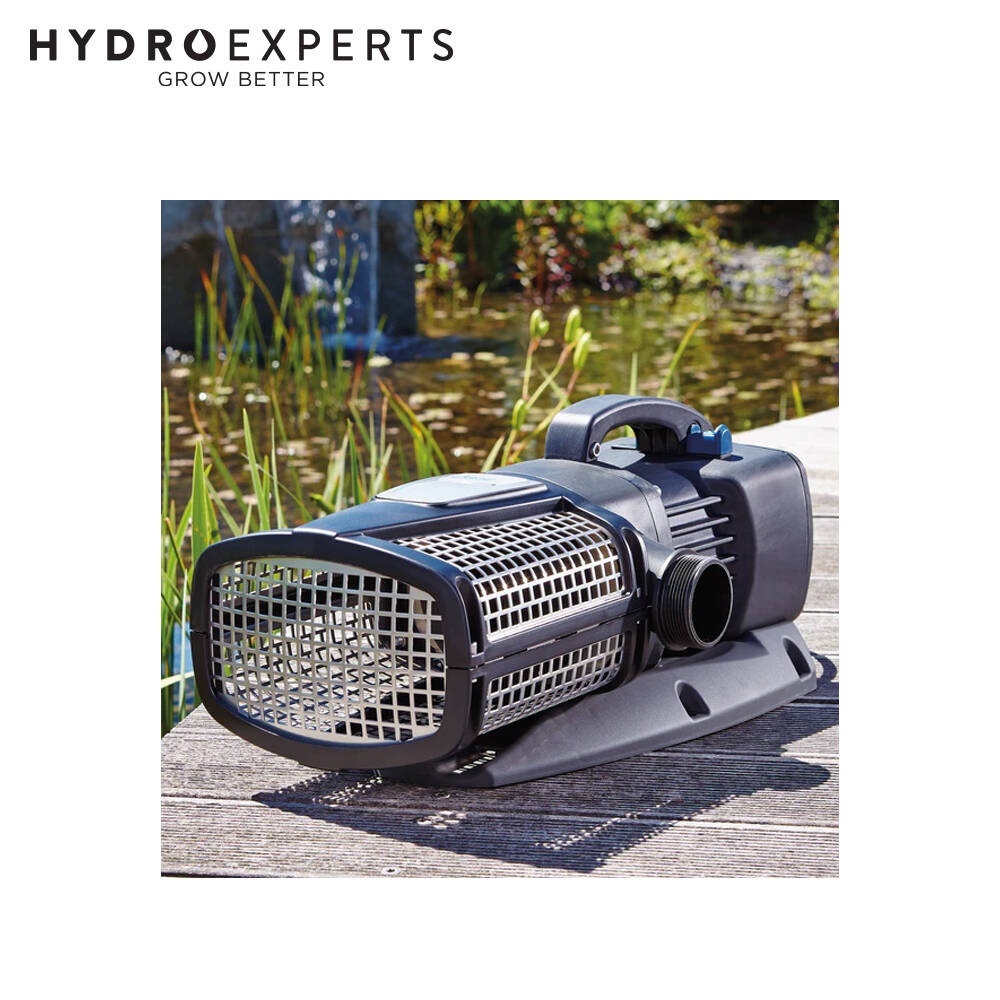

The power of a new pump generation – designed for demanding filter systems and large water features, this powerful and economical pump provides high efficiency, effectively handling coarse debris up to 11 mm. Its robust stainless-steel construction ensures long-lasting durability, while the exceptionally quiet motor allows for peaceful operation. With installation flexibility, it can be set up dry or submerged and is compatible with the Easy Control App for precise electronic adjustment. Equipped with Seasonal Flow Control (SFC), it provides an additional 30% energy savings, and Environmental Function Control (EFC) offers reliable protection by automatically shutting off the pump in case of dry running or blockage. Safe 12 V technology makes it ideal for use in swimming and natural ponds.
Features
- Energy efficient with a high flow rate
- Network-enabled and equipped with Seasonal Flow Control and Environmental Function Control
- Perfect for use in swimming ponds and natural pools thanks to safe 12 V technology
- It switches off automatically in the event of dry running or blockage, thus preventing damage to the pump.
characteristics
- New, energy-efficient pump generation for extremely powerful and economic delivery capacity
- Perfect for use in demanding filter systems or for large watercourses and waterfalls
- Robust and durable stainless steel housing for stability
- Unique, patented frost protection: the pump will not be damaged at temperatures down to as low as -20° C
- Protection against dry run and blocking through Environmental Function Control (EFC by OASE)
- Can be set up underwater & dry installed
- The pump is unusually quiet in operation; ideal for use in a pump chamber
- Patented "Seasonal Flow Control" for intelligent and environmentally-conscious regulation of flow rate and delivery head
- Using optional accessories, when the SFC function is enabled, an extra 30% can be saved in energy
- MADE IN GERMANY: precise and reliable German engineering skills at a particularly high quality level

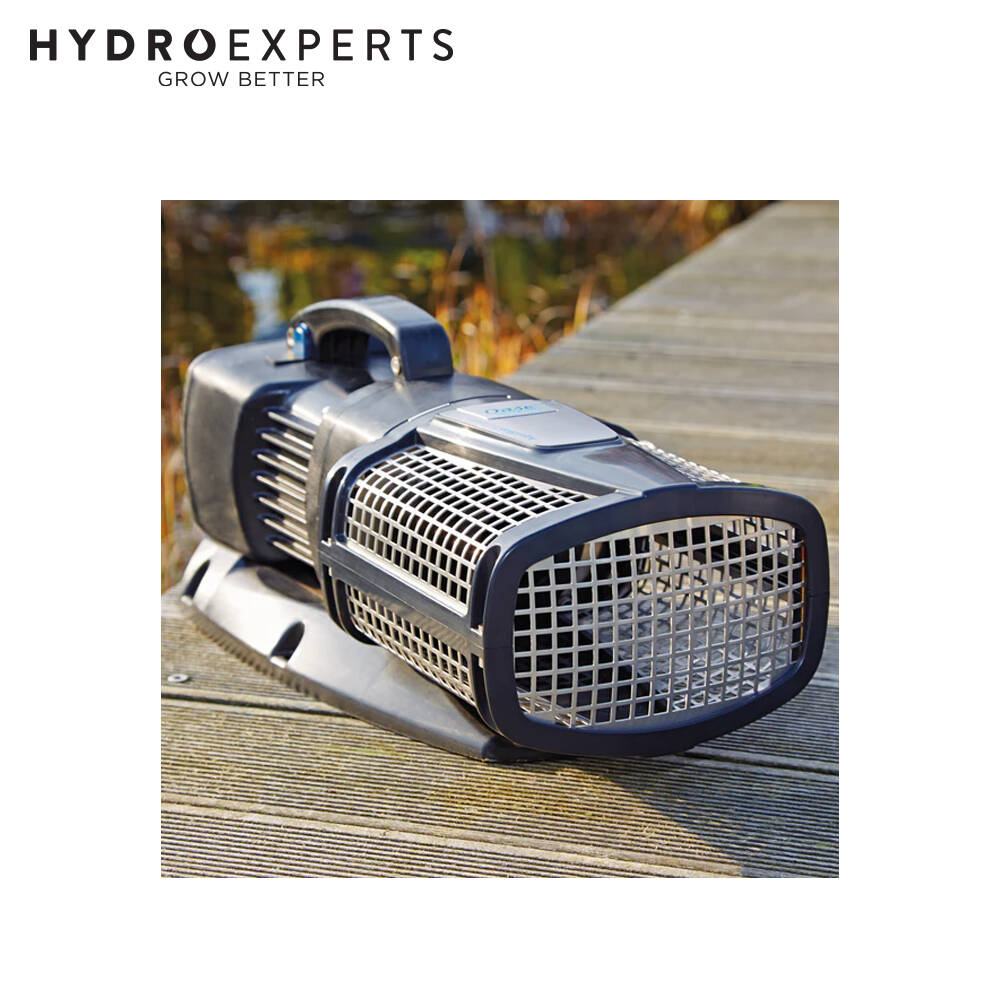

- Excellent efficiency; outstanding handling of coarse debris of particles up to 11 mm in size
Specifications
Specification of 20000
- Product Number: 02OD013 | 55313
- Rated voltage (primary, secondary): 220 - 240 V / 50/60 Hz, 12 V / DC
- Power consumption - W: 30 - 260 W
- Cable length 12 V device: 2.50 (Power unit) + 8.00 m
- Net weight: 14.600 kg
- Guarantee (+ request guarantee) - years: 3 + 2 Years

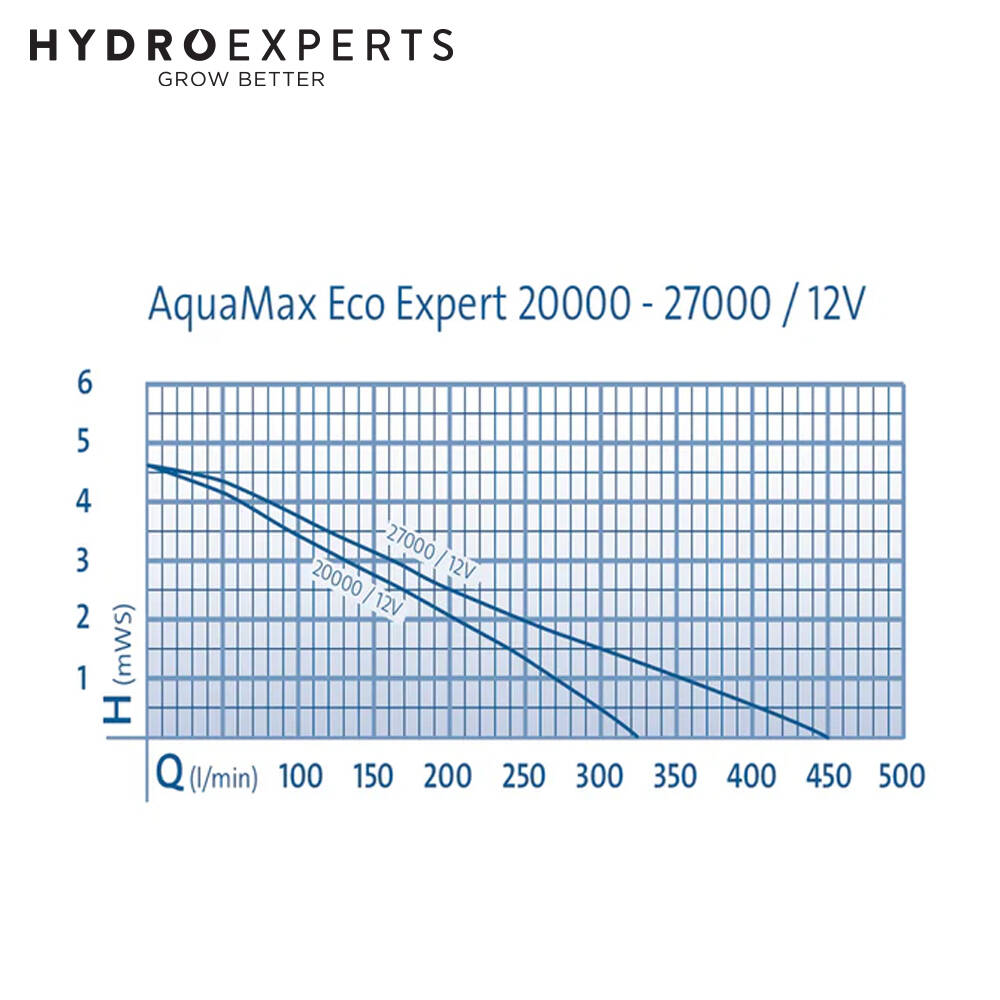

- Max. flow rate per minute: 321.67 l/min
- Max. flow rate - l/h: 19300 l/h
- Max. head height, metres: 4.60 m

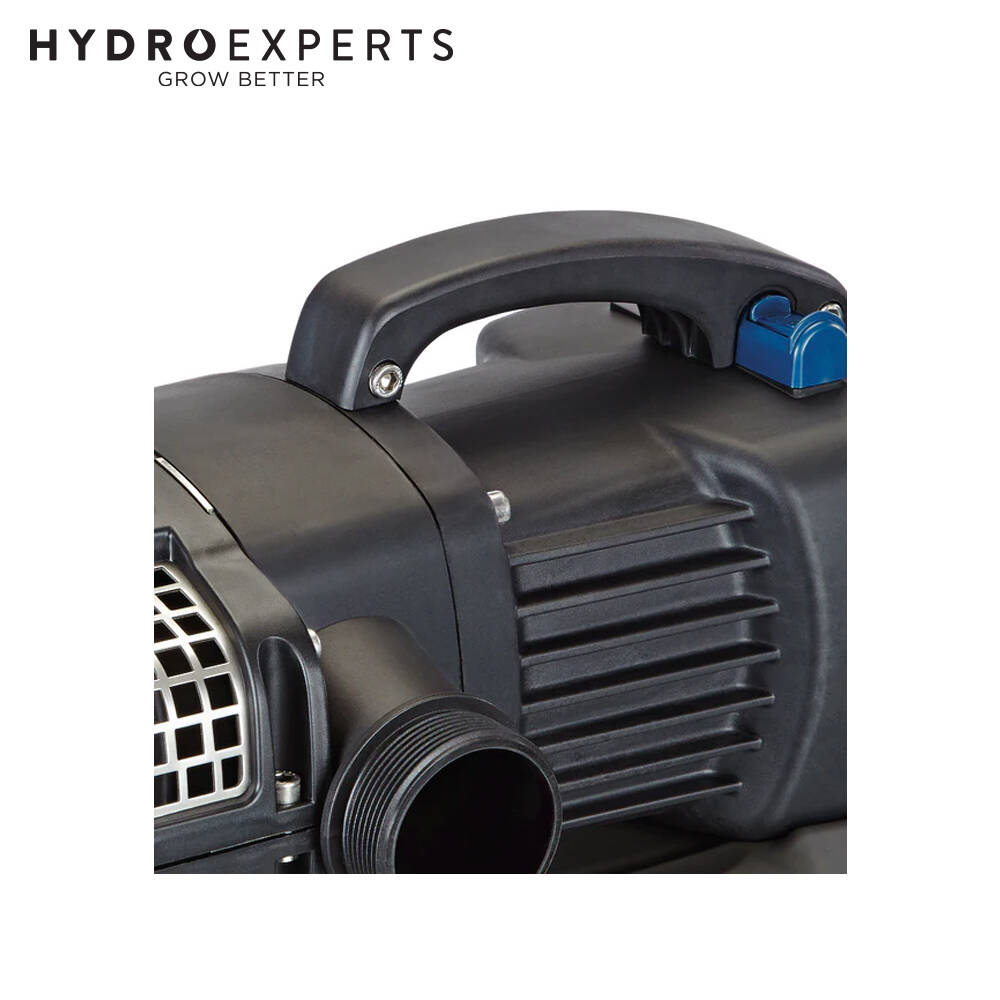

- Connection pressure-side - mm: 50 mm
- Connection pressure-side: 2"
- Connection suction-side - mm: 50 mm
- Connection suction-side: 2"
- Connection for hoses - mm: 38 / 50 mm
- Hose connection: 1 ½", 2"

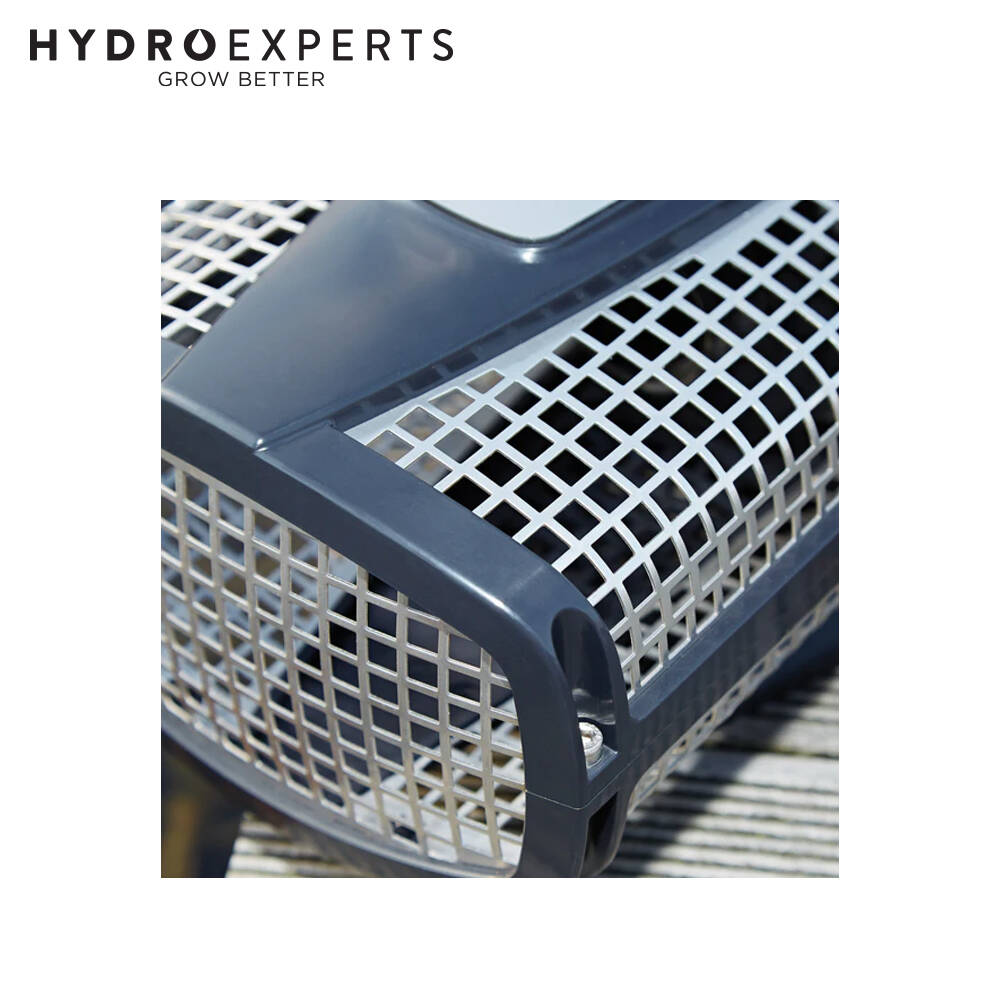

- Filter intake surface: 1060 cm²
- Max. coarse debris displacement – mm: 11 mm
- Electronic adjustment: Yes
- Setup type: Can be set up underwater & dry installed
Specification of 27000
- Product Number: 02OD047 | 77918
- Rated voltage + frequency: 220 - 240 V / 50/60 Hz
- Power consumption - W: 60 - 440 W
- Power cable length - m: 10 m
- Net weight: 12.000 kg
- Guarantee (+ request guarantee) - years: 3 + 2 Years
- Max. flow rate per minute: 433.33 l/min
- Max. flow rate - l/h: 26000 l/h
- Max. head height, metres: 8.5 m
- Connection pressure-side - mm: 50 mm
- Connection pressure-side: 2"
- Connection suction-side - mm: 50 mm
- Connection suction-side: 2"
- Connection for hoses - mm: 38 / 50 mm
- Hose connection: 1 ½", 2"
- Filter intake surface: 1060 cm²
- Max. coarse debris displacement – mm: 11 mm
- Connection EGC: Yes
- Electronic adjustment: Yes
- Setup type: Can be set up underwater & dry installed
In The Box
- [1] x OASE AquaMax Eco Expert - 20000 / 27000 (12V) | DC High-Flow Water Pump
