Uniseal Pipe to Tank Seal | Airtight | Waterproof | Made In USA

SKU: FITT80000
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

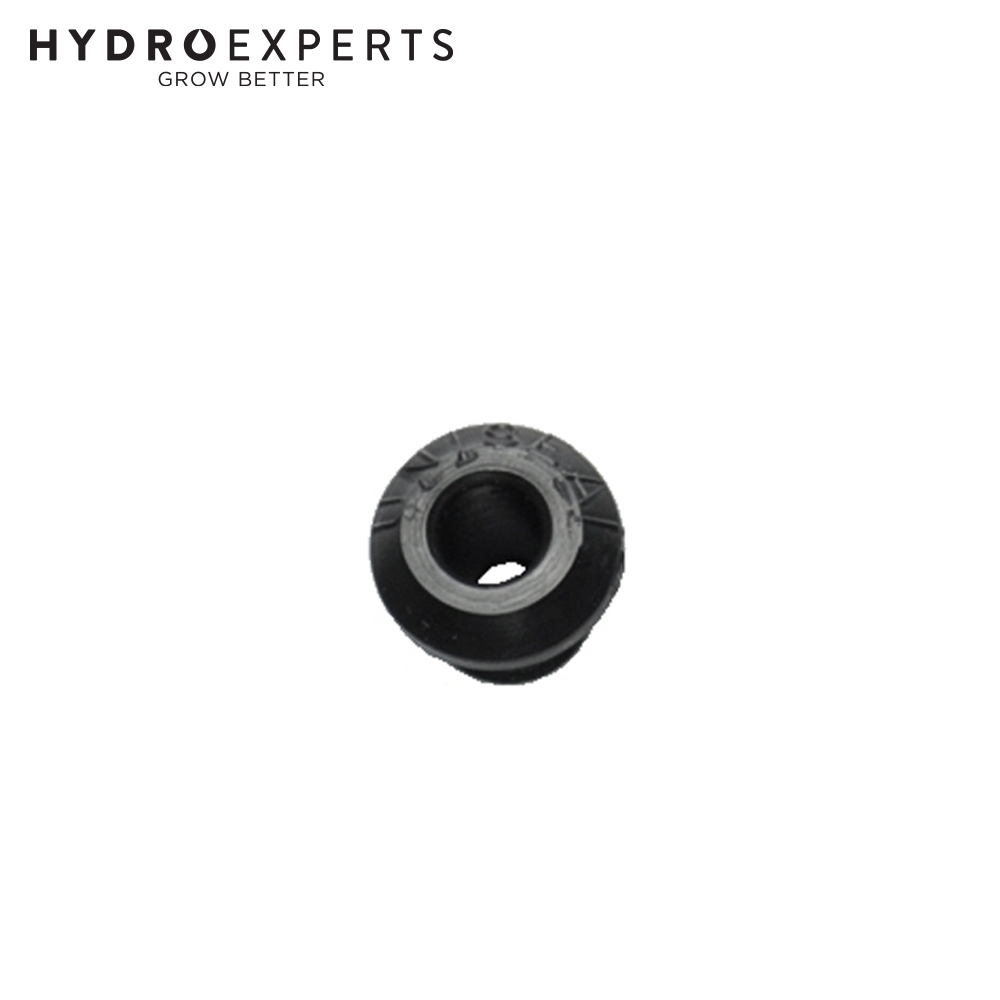

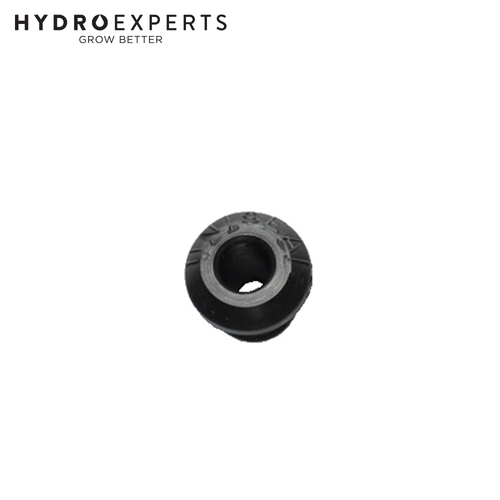

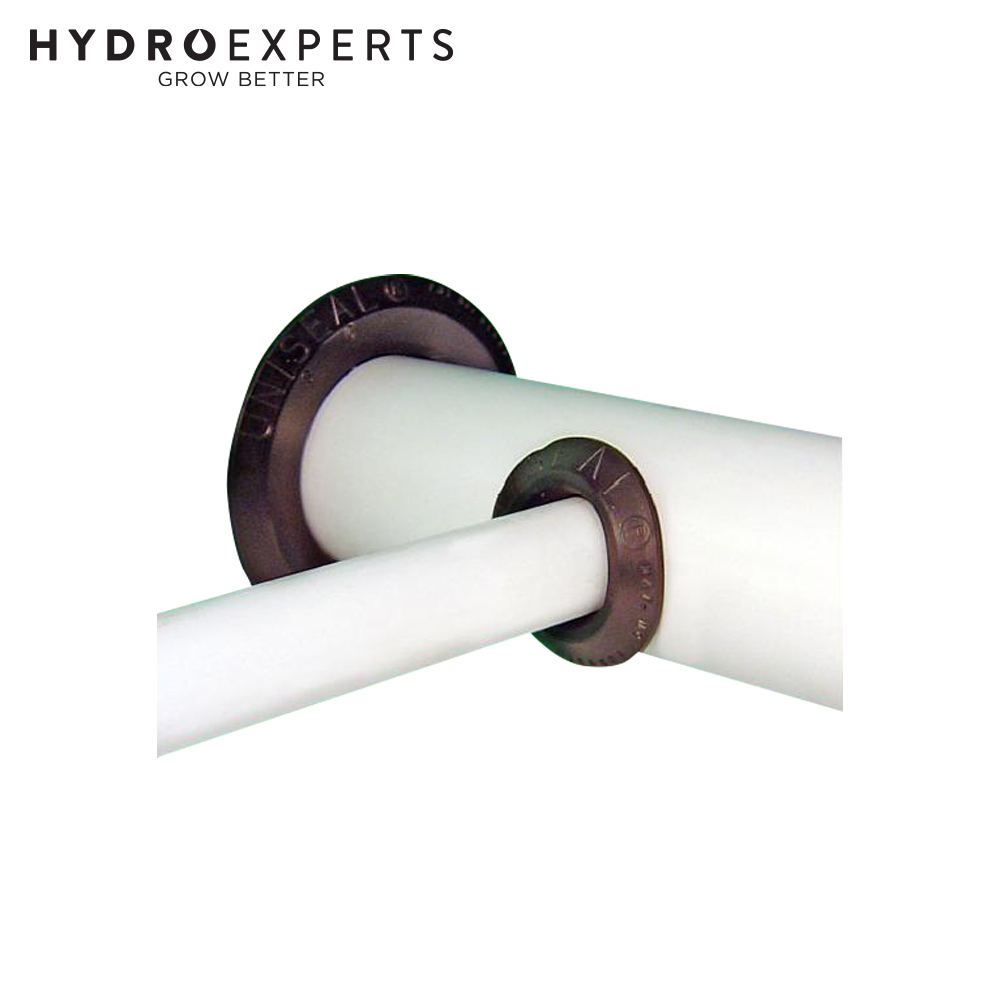

Uniseals are used to attach pipe to just about any container in situation where bulkheads will not work. The most common use is on curved surfaces such as storage drums, buckets, and even other pipe. Uniseals are a slip fitting suitable for use on sump tanks, vacuum toilets, irrigation systems, tanks etc.  Uniseal replaces all the old hardware with a single injection moulded unit requiring no component parts.

Selecting the correct size fitting:

  • Step 1: Measure the outer diameter (OD) of the pipe
  • Step 2: Use column A to find the closest size
  • Step 3: Click on the corresponding Uniseal from column B. Or you can choose the corresponding pipe size from the drop-down list above.
  • Step 4: To install the fitting, drill a hole using a hole saw to the size in column C. Please find below the Uniseal installation steps.

Specifications

Pipe Size (Outer Diameter) Uniseal Size Hole Saw Size
OD 6.4mm 3/16" 8MM
6mm Pressure Pipe (OD 9.5mm) 1/4" 13mm
10mm Pressure Pipe (OD 17.1mm) 3/8" 25MM
15mm Pressure Pipe (OD 21.3mm) 1/2" 32MM
20mm Pressure Pipe (OD 26.6mm) 3/4" 32MM
25mm Pressure Pipe (OD 33.4mm) 1" 44MM
32mm Pressure Pipe, 40mm DWV (OD42.2mm) 1 1/4" 51MM
40mm Pressure Pipe (OD 48.2mm) 1 1/2" 64MM
50mm Pressure Pipe, 50mm DWV (OD 60.3mm) 2" 76MM
50mm Pressure Pipe 2" 35 76MM
90mm Stormwater pipe (OD 89mm) 3" 102MM
100mm Pressure Pipe (OD 114.3mm) 4" 127MM
100mm DWV (OD 110mm) 4" 35 127MM

In The Box

  • [1] x Uniseal Pipe to Tank Seal | Airtight | Waterproof | Made In USA
  • Suited for tanks, vacuum toilets, irrigation systems, sump tanks, etc.
  • Designed to fit PVC & Steel pipe.
  • Suitable wall thicknesses of 3 - 10mm.
  • Resistant to grease, oil, heat and cold.
  • PP refers to Pressure Pipe
  • DWV refers to Drain, Waste & Vent Pipe

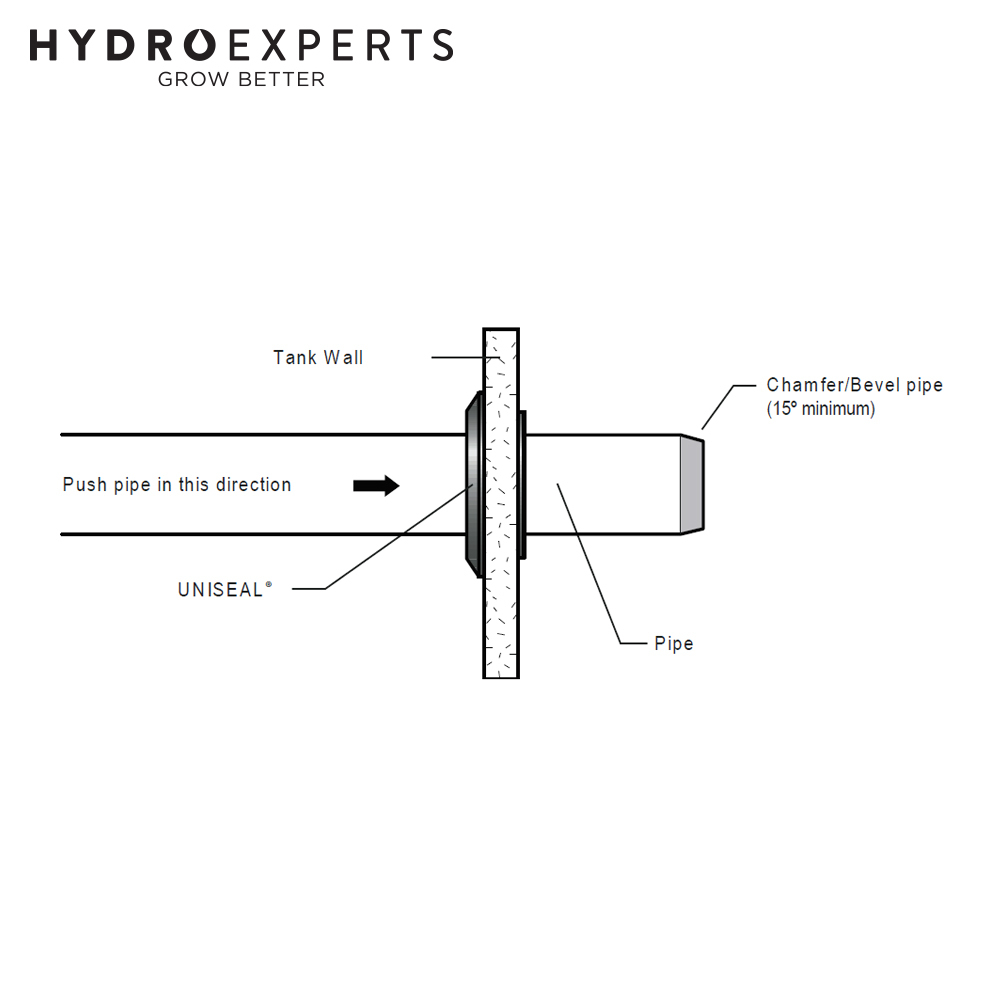

  • Step 1: Cut a hole in the wall of a tank or other surface to the hole size indicated for the Uniseal you are using. (Column C from the above table)
  • Step 2: Make sure that the hole is clean cut with no sharp edges. Irregularities could cause poor sealing and eventually leakage. It is recommended to use fine grit sandpaper to clean the hole if needed.
  • Step 3: Insert the uniseal into the hole with the wide side facing the pipe to be inserted. Make sure the pipe end to be inserted is clean cut. If required, file the pipe edges so that there are no sharp points which might cut the Uniseal.
  • Step 4: Using dish soap, lubricate the outside of the pipe end to be inserted. Then push the pipe through the Uniseal from the large flange side. The soap acts as a lubricant and will be squeezed off as the pipe passes through the Uniseal. The friction of the rubber holds the pipe tightly in place. Tapering the end of the pipe might help with the above.
