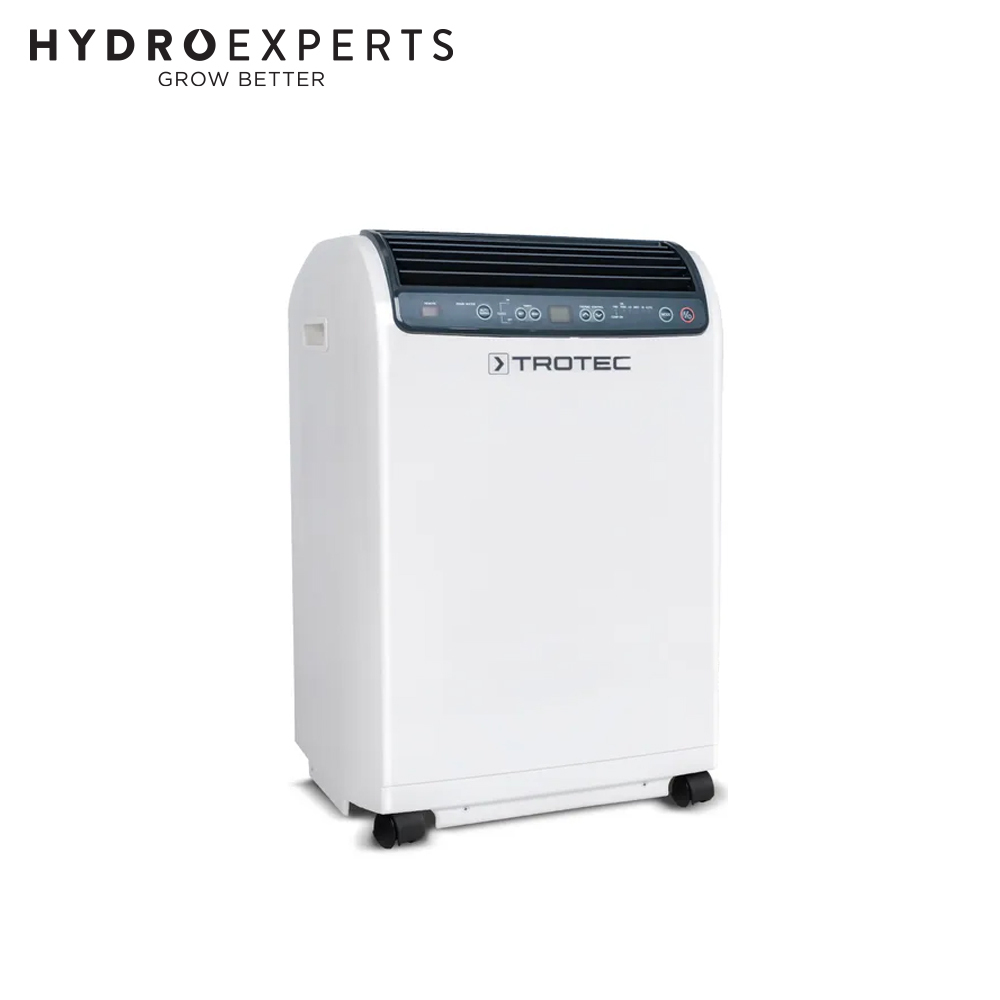

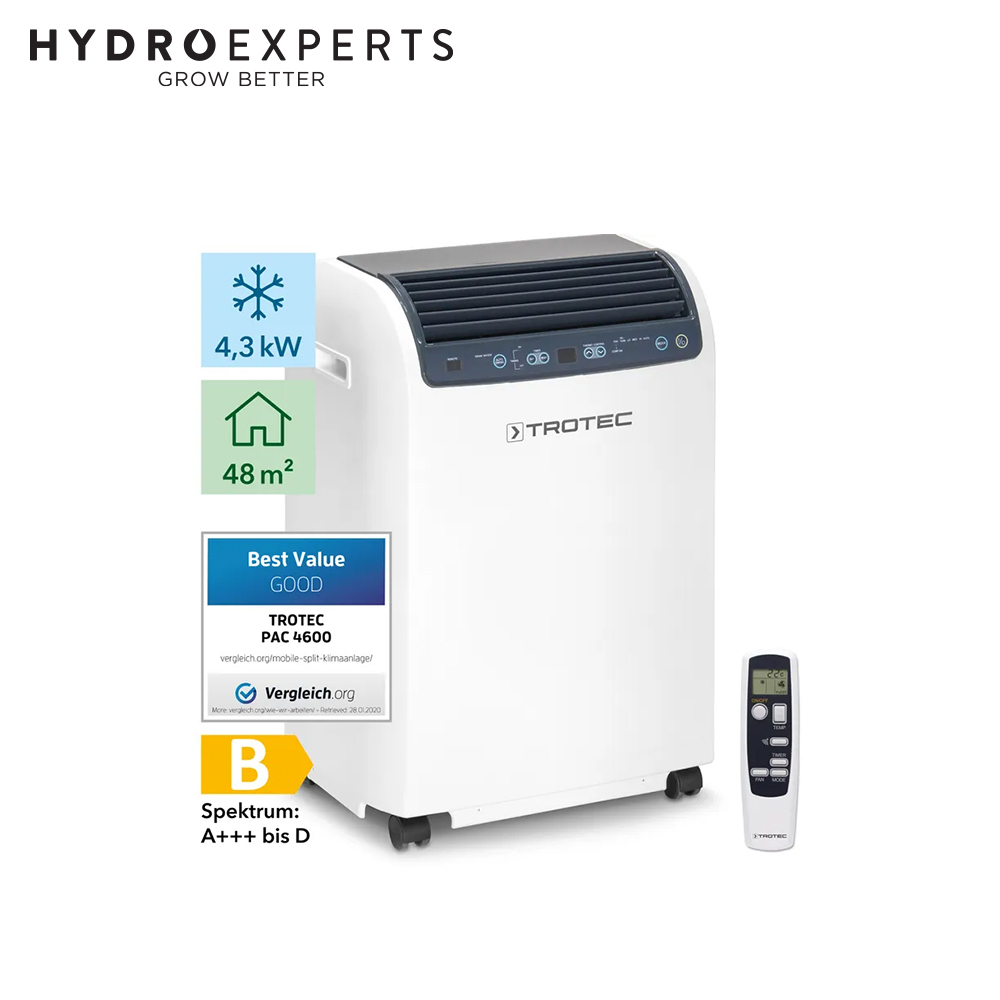

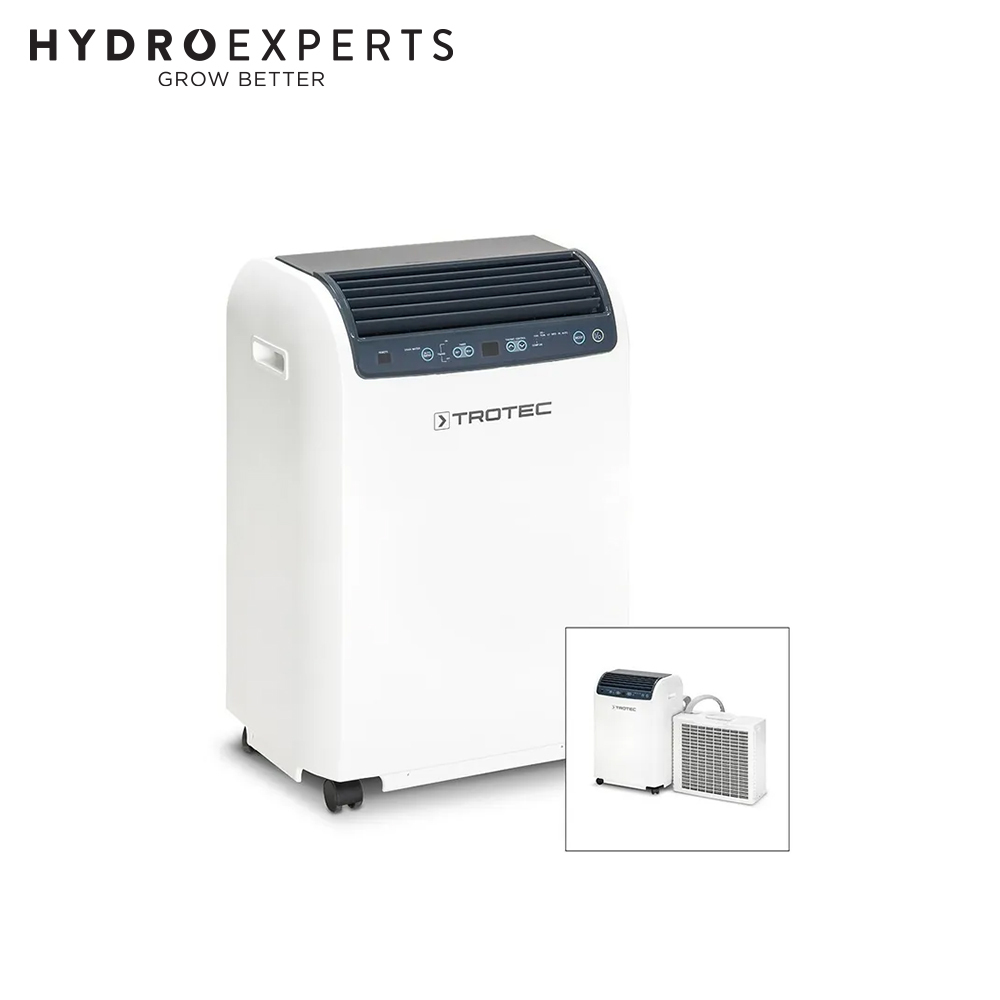

Trotec PAC 4600 Split Air Conditioner - 14500Btu/h | 4.3kW | 4 Speed Levels

Recommended room size : 48 - 120 m3

SKU: DHFR30107
|

OUT OF STOCK

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

The split air conditioner PAC 4600 with extremely high cooling capacity, three-speed manual or fully-automated operation, individually programmable on/off times, dehumidifier function, IR remote control and lots more - this high performance air conditioner ­leaves nothing to be desired.

Due to its split system, the indoor unit of the PAC 4600 despites very high cooling capacities and is very compact and extremely flexible in terms of location.

As well as the adjustable cooling airflow, the PAC 4600 also has a swing function. Oscillating fan vanes ensure improved room air distribution, which further increases the efficiency of the appliance.

Technics:

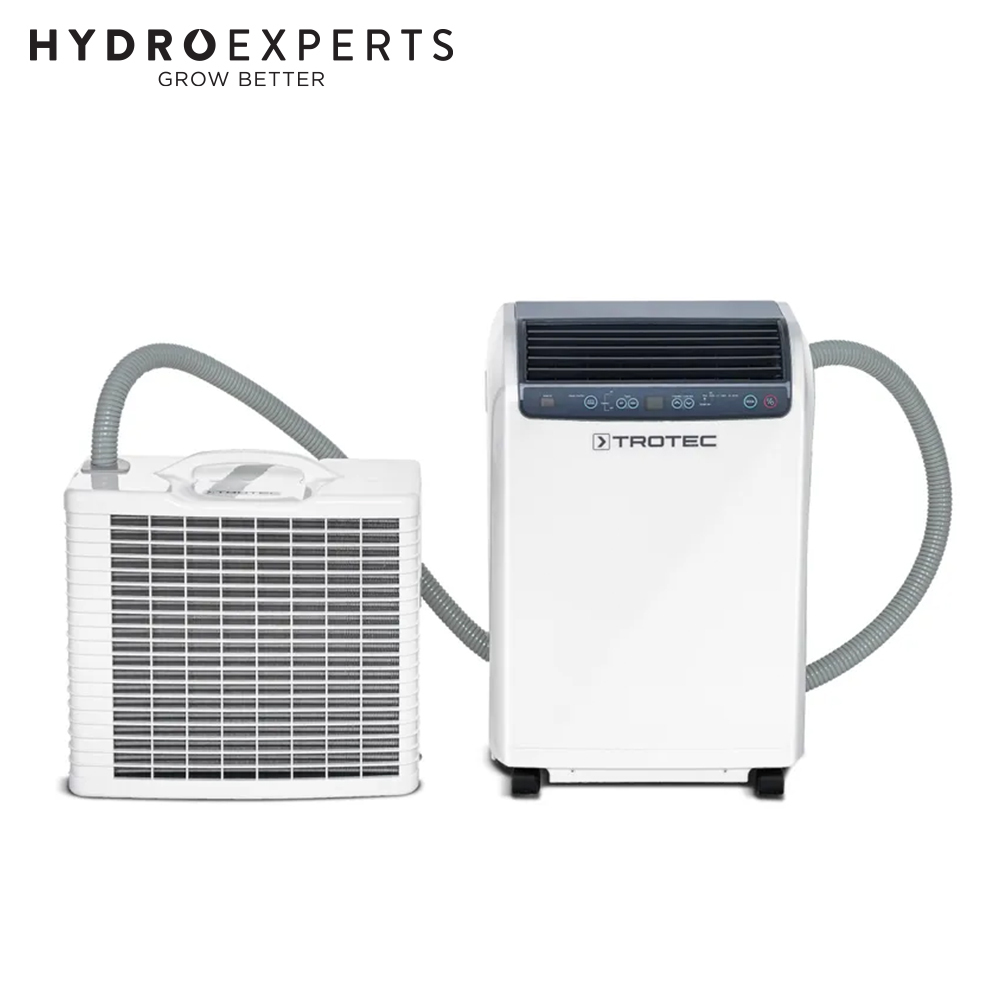

Split systems comprises separate local units. The condenser (outdoor unit) and the vaporiser (indoor unit) are separated by design. The outdoor part is placed outside, on the balcony or terrace. The two units are connected by a lead.

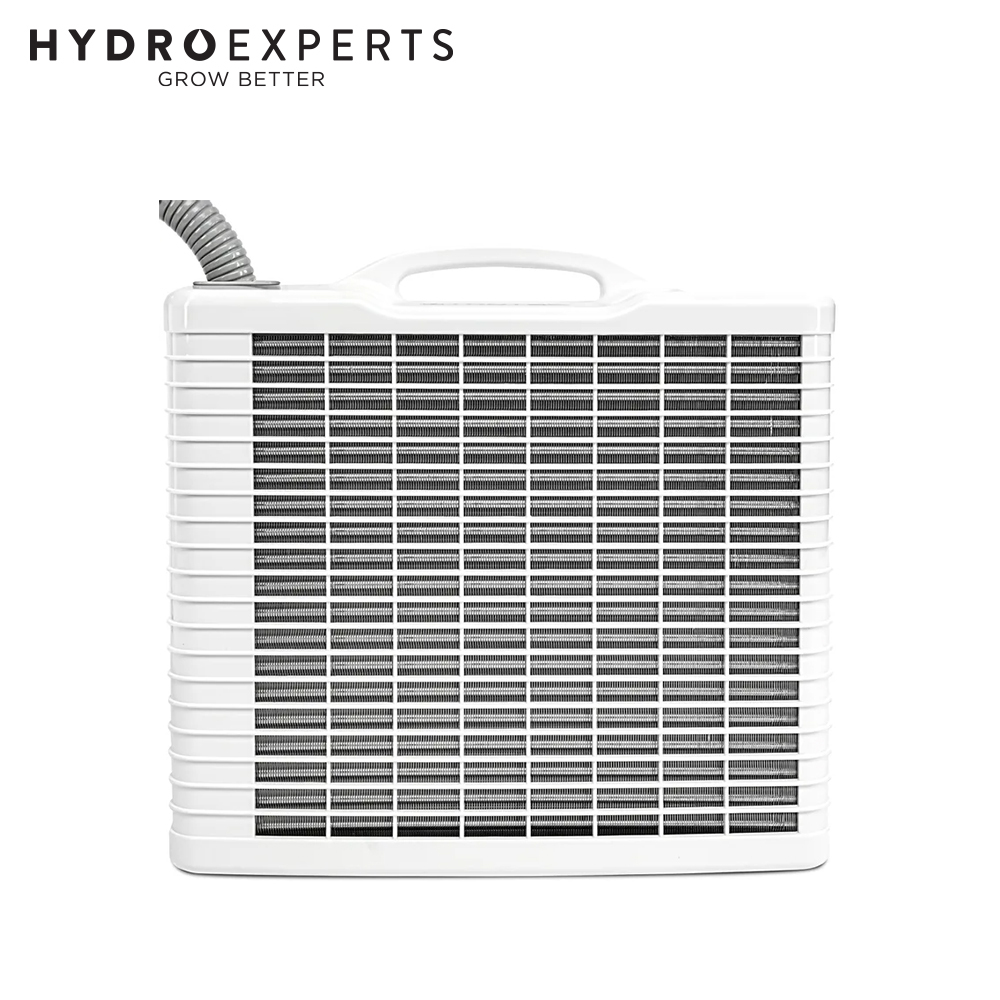

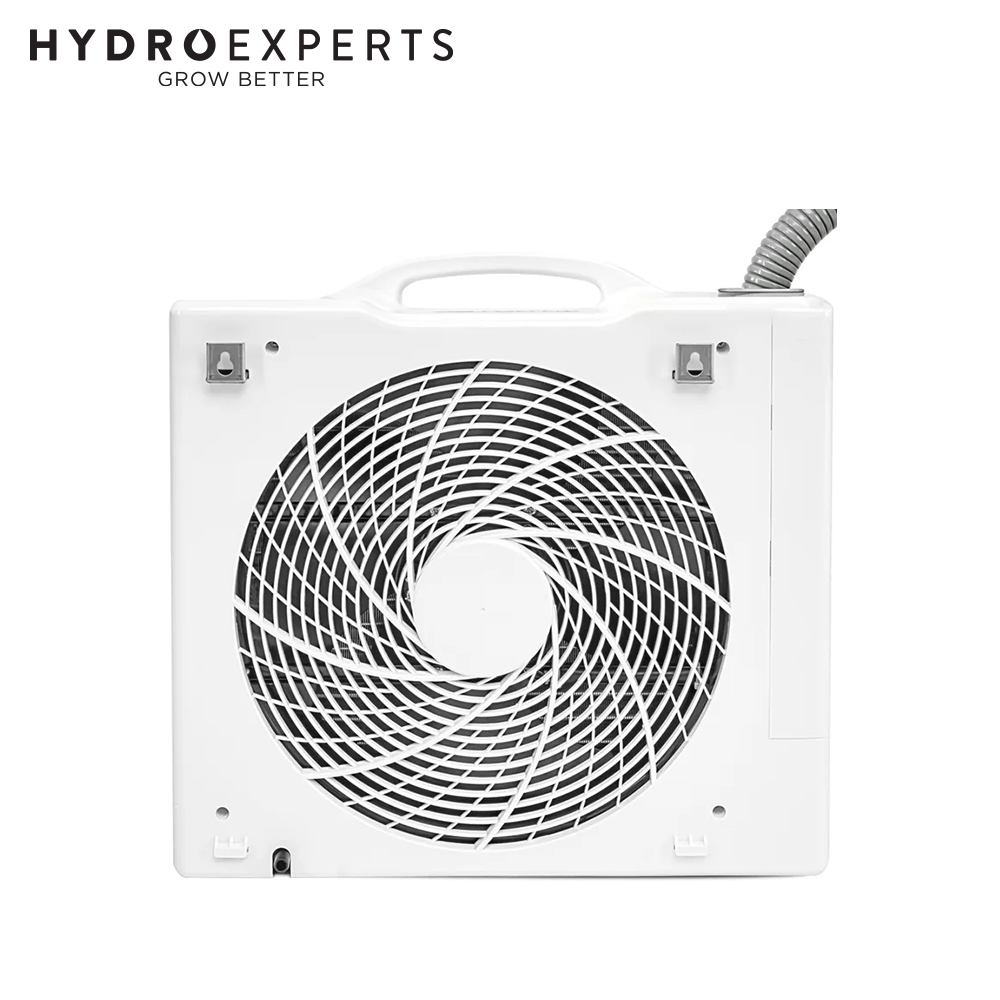

For optional wall mounting, the outdoor unit is fitted as standard with a wall mounting attachment.

Split unit with effective cooling

Whether optionally fully automatic or three-stage manual operation, individually programmable switch-on/-off times, dehumidification function, IR remote control and much more – this powerful air handling unit leaves nothing to be desired. Due to the split construction, the internal unit of the PAC 4600 despite a very high cooling capacity comes with especially compact dimensions and thus enables manifold installation possibilities.

In addition to the variable adjustment option of the cooling air flow, the air handling unit PAC 4600 is provided with a swing function. Oscillating fan blades improve the distribution of room air, which leads to an increased efficiency of the device. For optional wall mounting the external unit is as standard equipped with a suspension device.

Provides cooling at home, in the office or a hotel room – with a low power consumption

Using the flexible air conditioning system PAC 4600 you can ban the searing heat from the house even during hot spells with record temperatures. Owing to energy efficiency category A, the ongoing consumption costs are kept at a reasonable level. In order to reduce the energy demand the device automatically ensures that the refrigerating compressor will be switched off upon reaching the preset target temperature. The device will only resume cooling when the desired temperature value is exceeded.

Fresh breeze – with and without cooling function

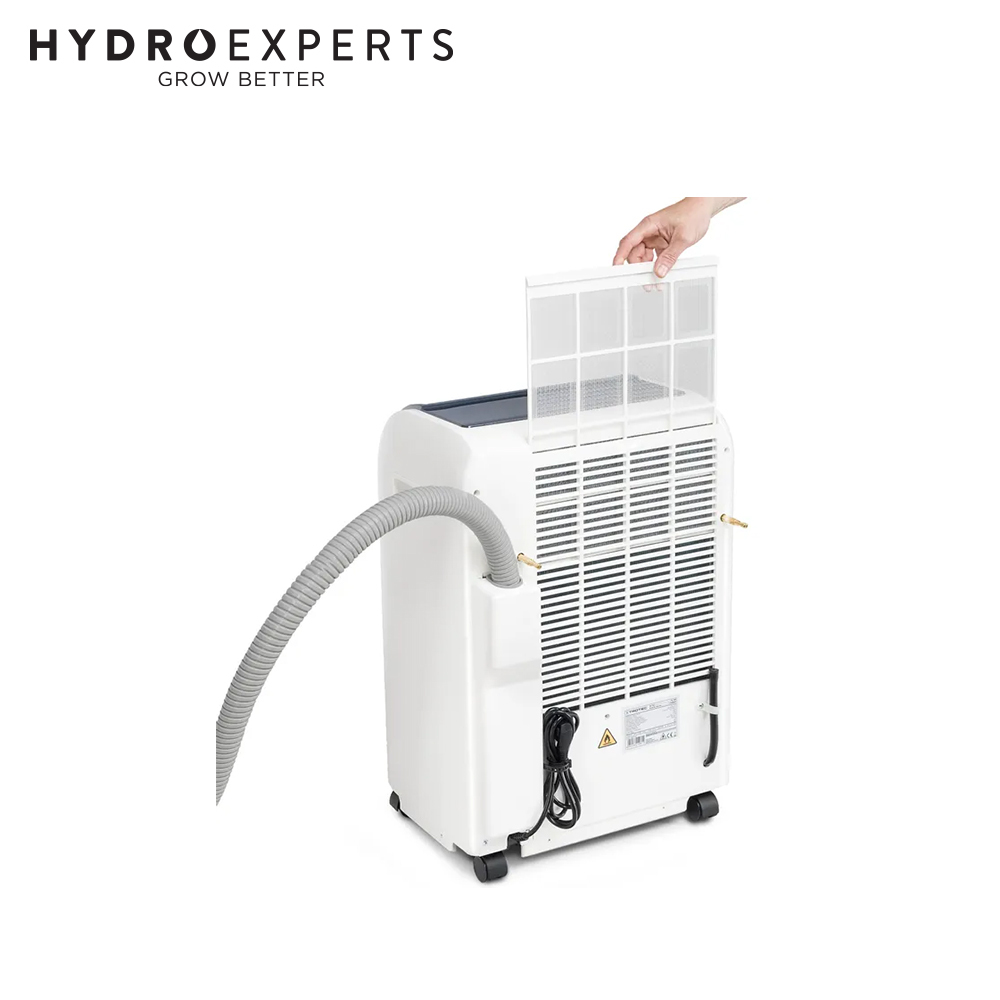

In addition, the elegant all-rounder comes with an adjustable four-stage fan blower with a flow rate of up to 550 m³/h. Even with the refrigerating compressor inactivated, the device provides a fresh breeze and effective air circulation in the room. With additionally activated, optional swing function, cold air will be evenly distributed in the room. In order to also filter out fluff, dust and animal hair from the breathing air, an easy-to-clean air filter is integrated on the back of the device.

Timer function

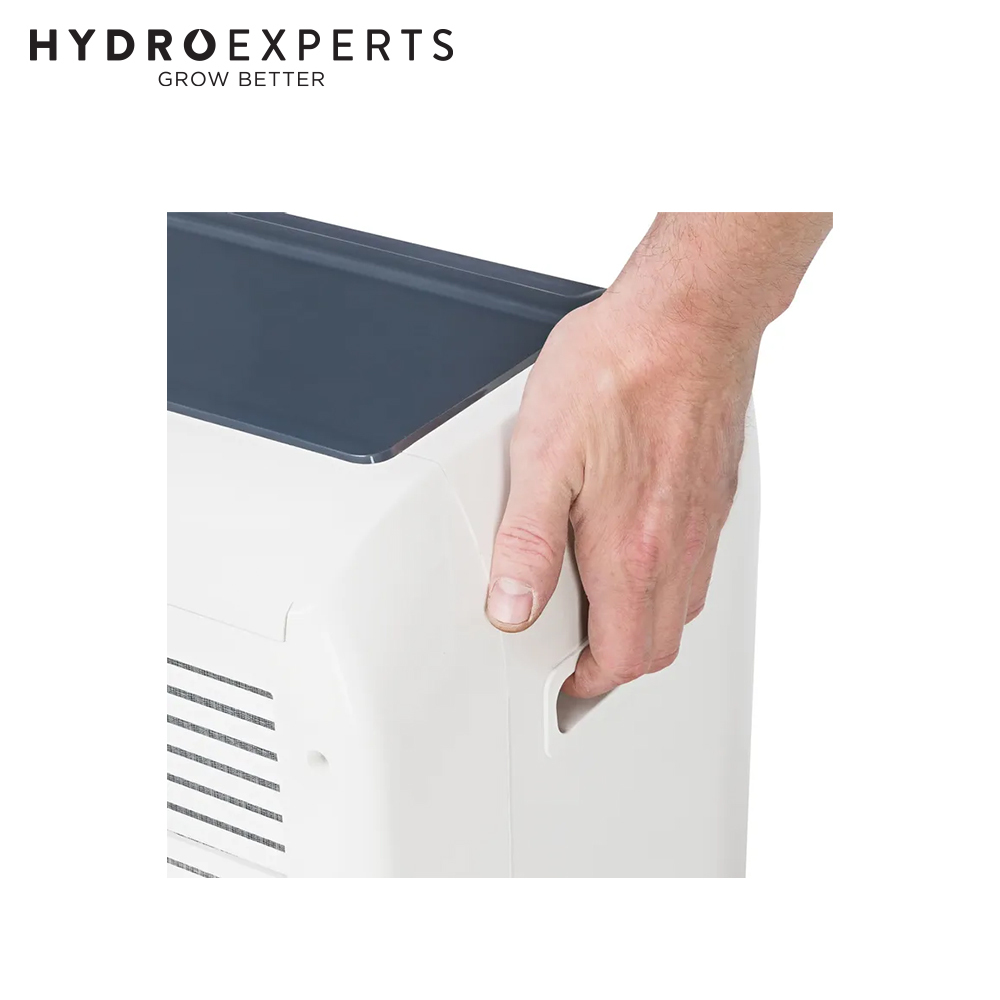

An individual feel-good climate straight to the point: Use the 24-hour timer to programme the switch-on or switch-off time of the PAC 4600 in a way that coincides with your daily rhythm. For instance, you can start into your work day with agreeable temperatures. Or use the timer to ban the heat that has built up during the day from your bedroom in time before retiring to bed for a good night's rest. The device is equipped with recessed handles and low-friction rollers permitting the quick and easy transportation into other rooms equally in need of a fresh breeze.

Swing function

The optional on-demand swing function provides even cooling throughout the room. The air outlet automatically swings from the bottom to the top in order for the cold air distributing in an optimal way.

Specifications

General information

  •      Article number    1.210.000.021

Type

  •      Split
  •      Monobloc

Cooling capacity

  •      Max. cooling capacity [kW]    4.3
  •      Max. cooling capacity [Btu/h]    14,500

Recommended room size

  •      m³    120
  •      m²    48

Air flow rate

  •      Level min. [m³/h]    380
  •      Level Max. [m³/h]    550

Fan

  •      stages    4
  •      Radial

Dehumidification performance

  •      Max. dehumidification performance [l/h]    1.8

Attainable room temperature

  •      (min.) depending on operating conditions [°C]    16
  •      (max.) depending on operating conditions [°C]    30

Cooling medium

  •      Cooling medium    Air

Ambient conditions

  •      Min. temperature range [°C]    16
  •      Max. temperature range [°C]    30

Electrical values

  •      Mains connection    220 - 240 V/50 Hz
  •      Power input [kW]    1.37
  •      Nominal current consumption [A]    6.1
  •      Recommended fusing [A]    10

Electric connection

  •      Connection plug    CEE 7/7
  •      Cable length [m]    1.7

Compressor

  •      refrigerant    R32
  •      Amount of refrigerant [g]    970
  •      GWP factor    675
  •      CO2 equivalent    0.66
  •      Pressure suction side [MPa]    1.16
  •      Pressure outlet side [MPa]    4.2

Sound values

  •      Noise emission [dB(A)] according to EN ISO 3745:2012    57 dB(A)
  •      Level 1 - Distance 1 m [dB(A)]    45
  •      Level 2 - Distance 1 m [dB(A)]    48
  •      Level 3 - Distance 1 m [dB(A)]    54

Surrounding conditions external unit

  •      Surrounding conditions min. temperature [°C]    21
  •      Surrounding conditions max. temperature [°C]    43

Sound values external unit

  •      Noise emission [dB(A)] according to EN ISO 3745:2012 -external unit    62

Connection line external unit

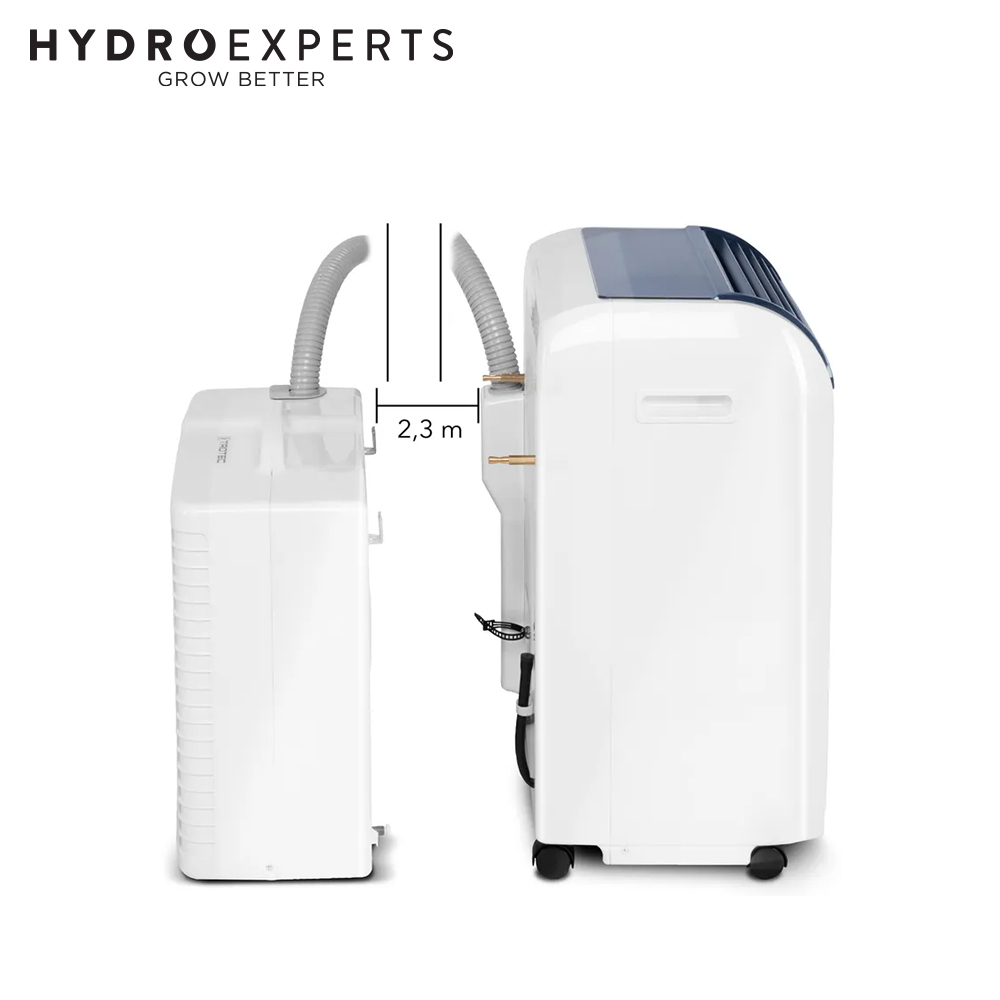

  •      Total length | Connection line external unit [m]    3
  •      Effective length | Connection line external unit [m]    2.3

Dimensions

  •      Length (packaging excluded) [mm]    335
  •      Width (packaging excluded) [mm]    470
  •      Height (packaging excluded) [mm]    695

Weight

  •      (packaging excluded) [kg]    38

EQUIPMENT, FEATURES AND FUNCTIONS
Condensate draining

  •      With condensation tray
  •      Exhaust air
  •      With condensate drain
  •      With water tank
  •      Available
  •      Water tank [l]

Timer function

  •      Switch-off time can be preselected
  •      Switch-on time preselectable

Room thermostat

  •      Available

Room air filter

  •      Readily accessible
  •      Cleanable

Additional functions

  •      Swing function
  •      Dehumidification function
  •      Ventilation function
  •      Automatic function
  •      Automatic fault diagnosis
  •      Fan rundown function
  •      Sleep mode

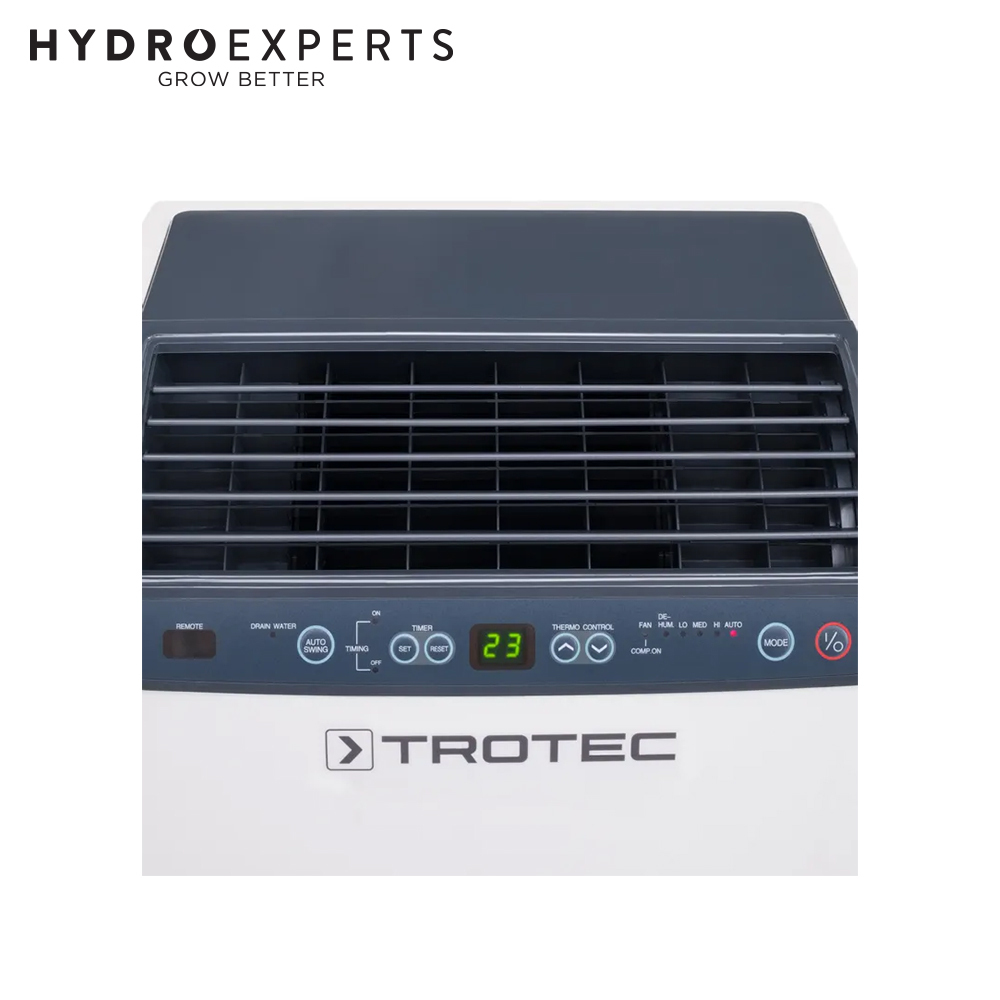

Control panel

  •      Infrared remote control
  •      Electronic control panel
  •      Microprocessor-controlled operation
  •      LED display
  •      Membrane keys

Mobility

  •      Carry/transport handle(s)
  •      Plastic wheels
  •      Rubber-tyred metal wheels
  •      Swivel casters with parking brakes
  •      Non-marking full-rubber wheels
  •      Adjustable bar handle

Housing design

  •      Plastics

In The Box

  • [1] x Trotec PAC 4600 Split Air Conditioner - 14500Btu/h | 4.3kW | 4 Speed Levels
  • up to 50% more efficiency compared to monobloc devices
  • Split device with very high cooling capacity
  • 3 m connection lead
  • Air outlet with swing function
  • Programmable 24-hour timer for on/off times
  • Removeable air filter
  • IR remote control
  • 3 variable fan speeds, plus automatic function
  • Control electronics with digital operating status display
  • Compact design and minimum space requirement
  • Carryig handle
  • Plastic transport rollers
  • Technical data:

Type: Split system

  • Cooling capacity: 4.3 kW / 14.500 btu
  • Suitable for rooms up to approx.: 120 m³
  • Air flow rate min.: 380 m³/h
  • Air flow rate max.: 630 m³/h
  • Fan stages: 3 and automatic
  • Dehumidification performance, max.: 1.8 l/h
  • Cooling medium: air
  • Cooling agent: R-410A
  • Surrounding conditions (temperature): 16°C - 30°C
  • Input voltage: 230 V / 50 Hz
  • Power input max.: 1.31 kW
  • Current consumption: 5.6 A
  • Fuse protection: 10 A
  • Noise emission according to EN ISO 3745:2012: 59 dB(A) (internal unit) 64 dB(A) (external unit)
  • Connector type: CEE 7/7

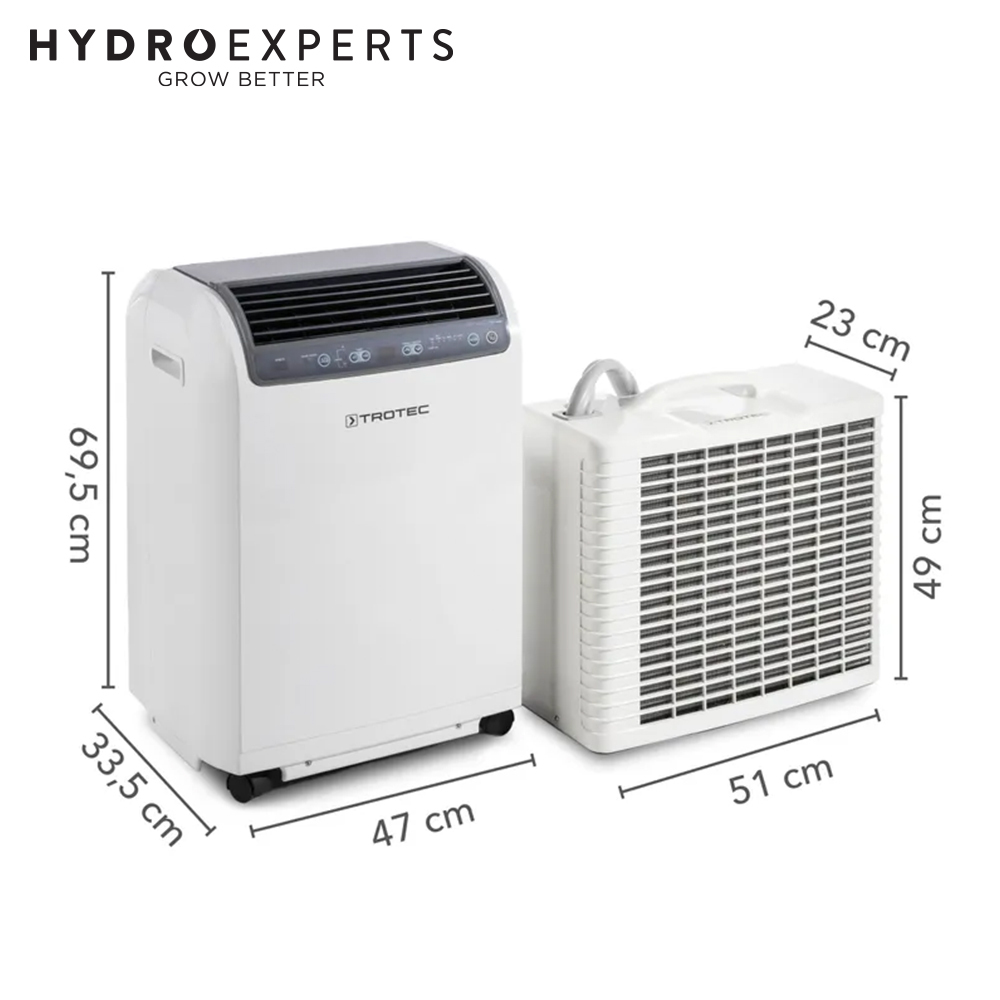

  • Dimensions internal unit (L x W x H): 335 x 470 x 695 mm
  • Dimensions external unit (L x W x H): 230 x 510 x 490 mm
  • Weight internal unit: 35 kg
  • Weight external unit: 14 kg
  • Connection lead (total length / effective length): 3 m / 2.3 m
