TrolMaster Hydro-X Program Device Station - DSP-2

SKU: CTRL11028
|

ETA: 1-3 Weeks

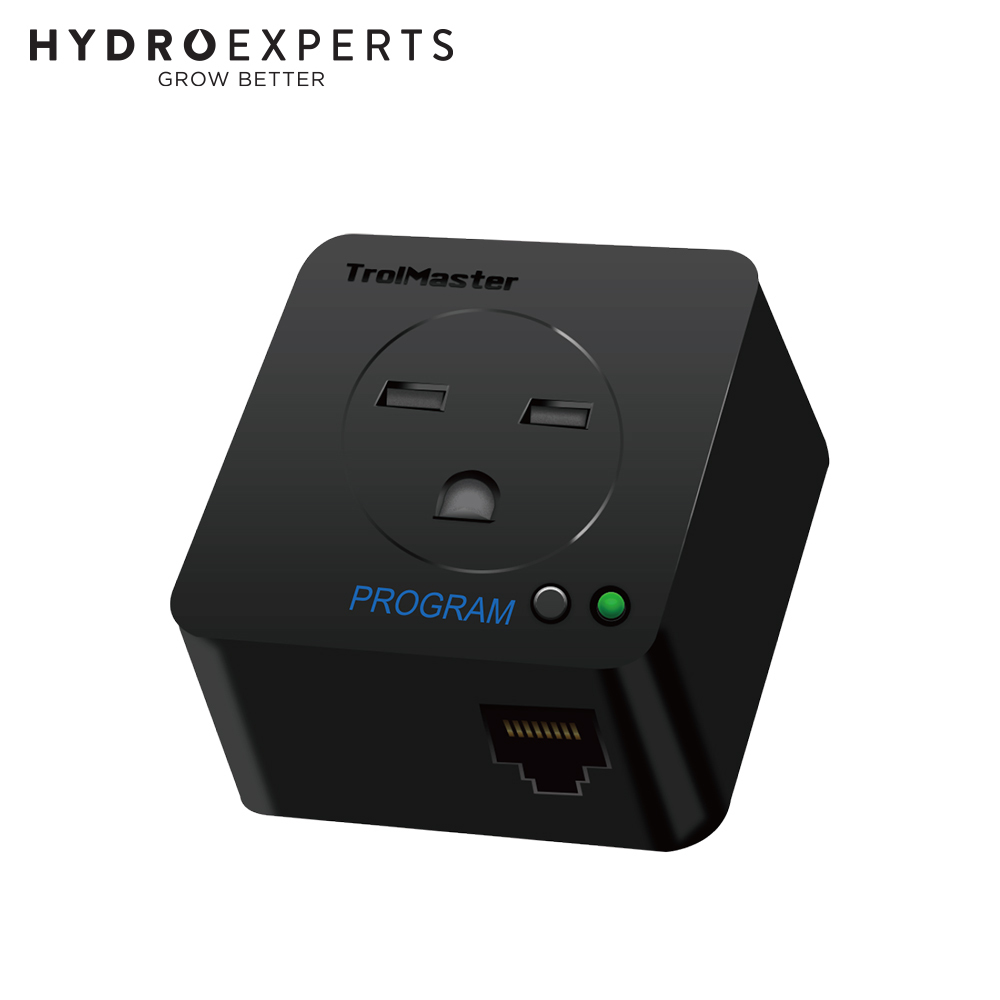

TrolMaster Hydro-X Program Device Station - DSP-2

FREE SHIPPING OVER $499*

REG. PRICE: $262.50
$239.95
Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

Take advantage of the TrolMaster Hydro-X Programme Device Station - DSP-2 to usher in a new era of horticulture control. Utilise this multi-functional timer module's limitless potential to improve your production procedures. With the DSP-2, which was created to effortlessly interact with the Hydro-X system, you can easily coordinate a symphony of movements that will promote growth.

Versatile Timed Control

The DSP-2 will introduce you to flexible timed control, allowing you to enter a world of limitless possibilities. Connect a variety of devices in an efficient manner that depend on precise timing for best performance. The DSP-2 is prepared to streamline your operation and increase the vitality of your crop, whether it be through lighting cycles, irrigation systems, or ventilation methods.

Global Compatibility, Local Excellence

With its global compatibility, the DSP-2 defies geographical borders. This device station elevates your control to an international level and is built to operate flawlessly under the global voltage standard (100-240 VAC, 50/60 Hz). The DSP-2 ensures that your high-energy devices are managed with complete dependability thanks to its strong capacity of up to 10 amps.

LED status:

  1. Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. Pressing the small button on the module will address/link the module when first installed.
  2. Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
  3. SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
  4. Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
  5. By pressing and holding the button on the DSP-2, users can manually override the module and turn it ON / OFF.

Features

  •  LED Power Indicator
  •  RJ12 Cable Socket
  •  Addressing
  •  Plug & Play

Specifications

  • Input Voltage: 240 VAC, 50/60Hz
  • Output Current: 10A
  • Output Voltage: 240 VAC, 50/60Hz
  • Working Environments: Temperature 32-122°F, Humidity=90%
  • Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
  • G.W. per pack: 0.34kgs
  • Plug: Australian

In The Box

  •  [1] x Device Station
  •  [1] x 16ft RJ12 Cable
  •  [1] x 4ft RJ12 Cable
  •  [1] x RJ12 T-Splitter
