TrolMaster Hydro-X Pro 35" Large Controller Cabinet - SCC-2

SKU: ACES20352
|

POSTAGE APPLIES

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

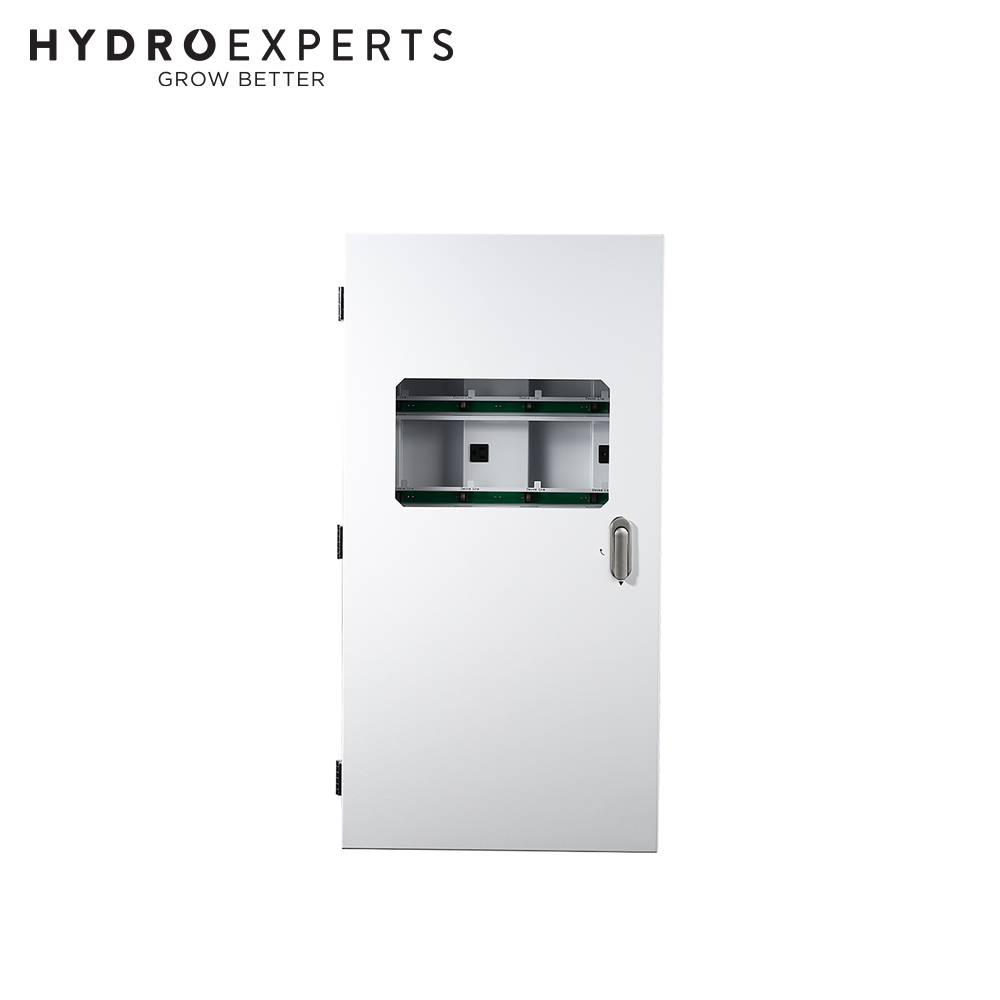

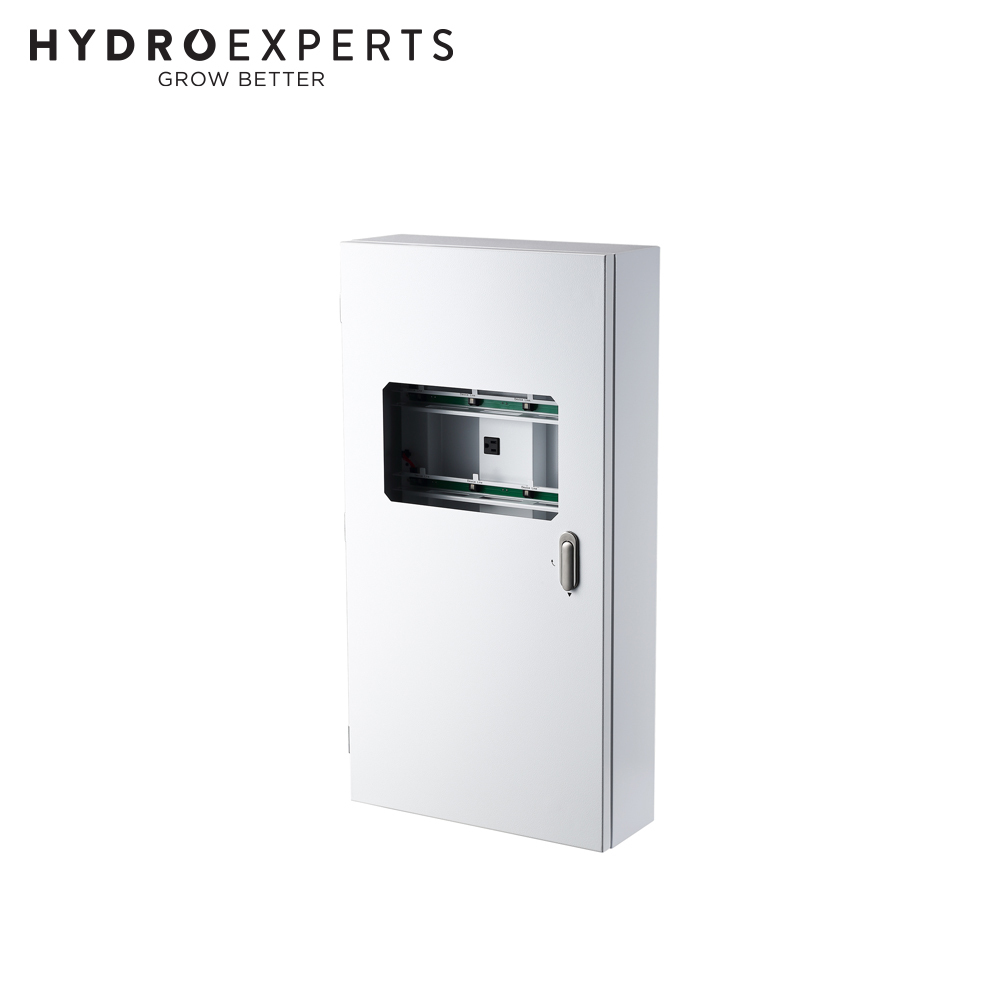

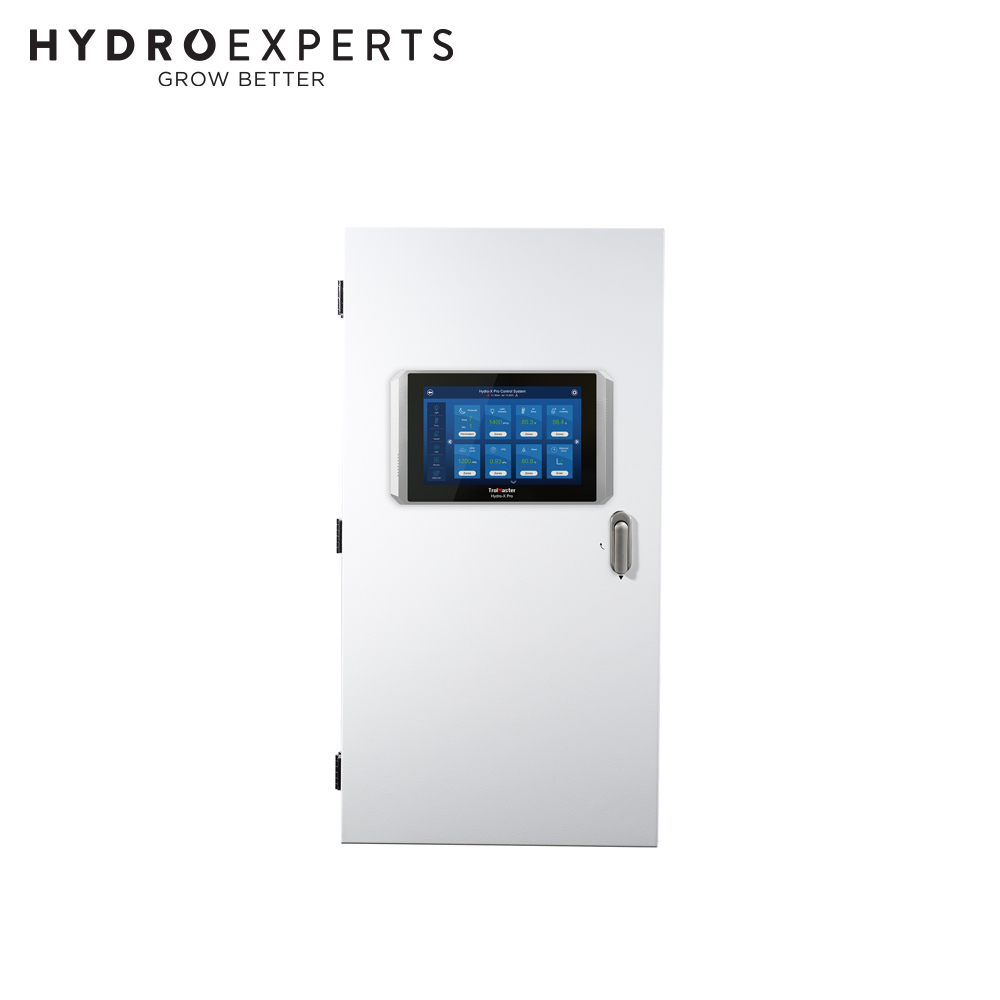

The SCC-2 35"Controller Cabinet is a modular electrical enclosure and wire management system for your TrolMaster Control system including Hydro-X Pro and Aqua-X Pro.

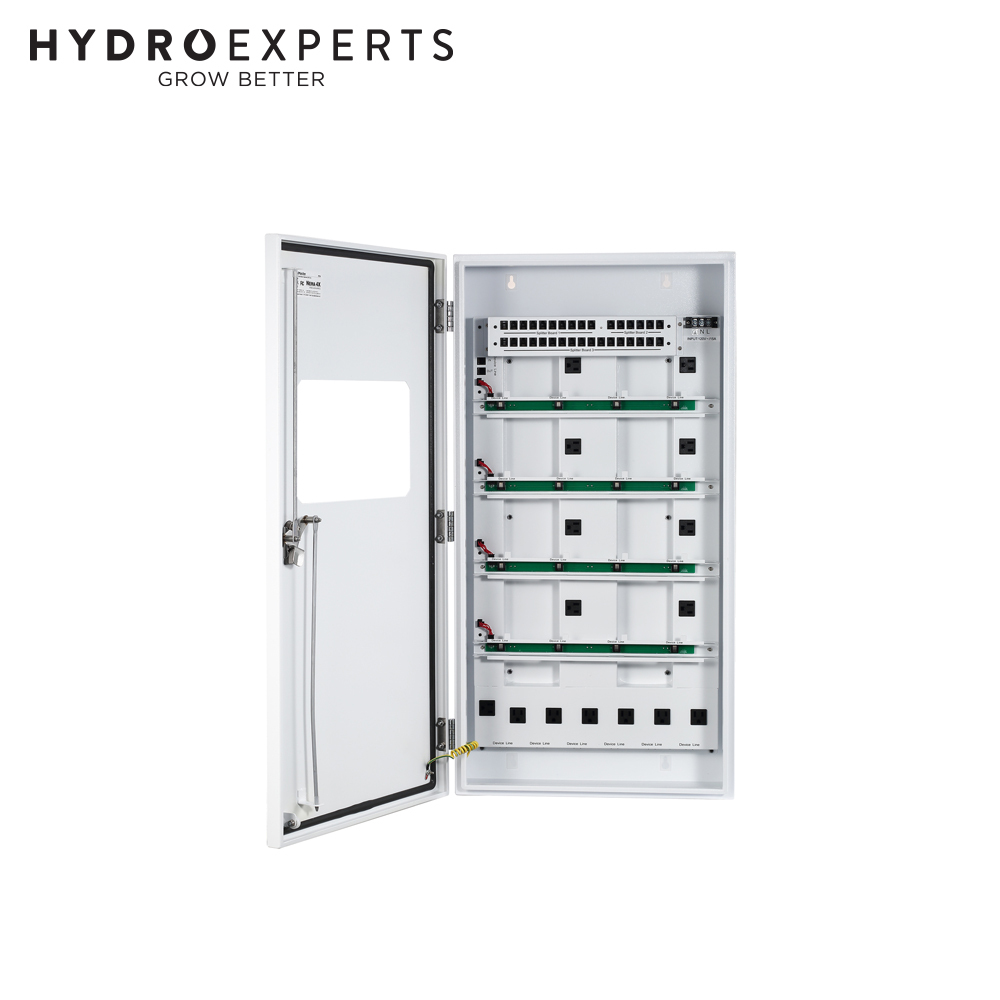

The enclosures are designed to allow any of TrolMaster’s controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies, and modules, and organize your RJ12 cables with ease.

Features

  • Guaranteed Industrial Rated & Waterproof
  • ALL-IN-ONE Controller & Device Module Housing
  • Design Your Own Cabinet by Using Bi-directional RJ12 Cables
  • Detachable Design
  • Superior Safety System

Specifications

  • Dimension: 35" (L) x 18" (W) x 6.26" (H)
  • Cabinet Capacity:
    • Splitter Board #1: 10 ports (top)
    • Splitter Board #2: 6 ports (top)
    • Splitter Board #3: 17 ports (top)
    • Splitter Board #4: 4 x 4 ports (middle splitter bars)
    • Splitter Board #5: 6 ports (bottom)
  • Power Outlet: 8 + 1 + 6
  • Operating Conditions:
    • Enclosure Rating: IP56 (equivalent to NEMA 4X rating)
    • Temperature Resistance: 32°-104°F
  • Input Voltage: 120V
  • Maximum Amperage: 15A

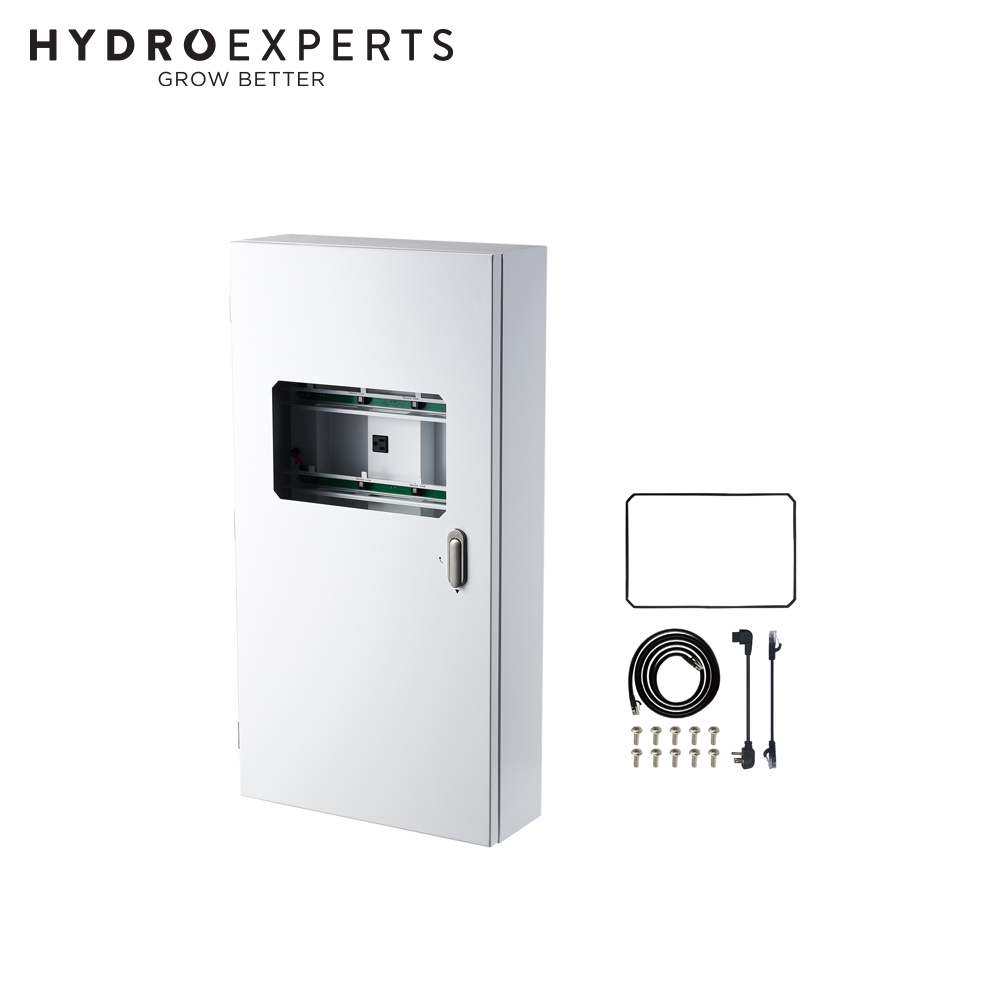

In The Box

  • [1] x Controller Cabinet
  • [1] x Installation Manual
  • [4] x Long RJ-12 Cables
  • [26] x Short RJ-12 Cables
  • [8] x Power Cables (for OA6-24/OA6-110)
  • [18] x OA6-24/OA6-110 Screw Set
