TrolMaster Hydro-X Low-Volt Station - DSV-1

Low-Voltage Output Module

SKU: CTRL11027
|

ETA: 1-3 Weeks

TrolMaster Hydro-X Low-Volt Station - DSV-1

FREE SHIPPING OVER $499*

REG. PRICE: $230.00
$209.95
Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Trolmaster DSV-1 is a low-voltage output module that can be used on the HCS-1, HCS-2 controllers. The DSV-1 can be addressed to be used as a temperature, humidity, CO2, or timer device module.

Multiple voltage outputs are selectable by the user. The DSV-1 can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-1.

This allows the user to directly connect low voltage devices such as solenoids, valves, audio visual alarms or any other device that requires 12 to 24 volt AC or DC power to operate.

Specifications

  • Input Voltage: 100~240VAC, 50/60Hz
  • Output Voltage:
    • DC24/ AC24 0.25A
    • DC12/ AC12 0.5A
  • Working Environment: Temperature 32-122°F, Humidity=90%
  • Packaging Dimensions: 85mm x 80mm x 90mm

In The Box

  • [1] x Low-Volt Station DSV-1
  • [1] x 16ft RJ12 Cable
  • [1] x 4ft RJ12 Cable
  • [1] x RJ12 T-Splitter

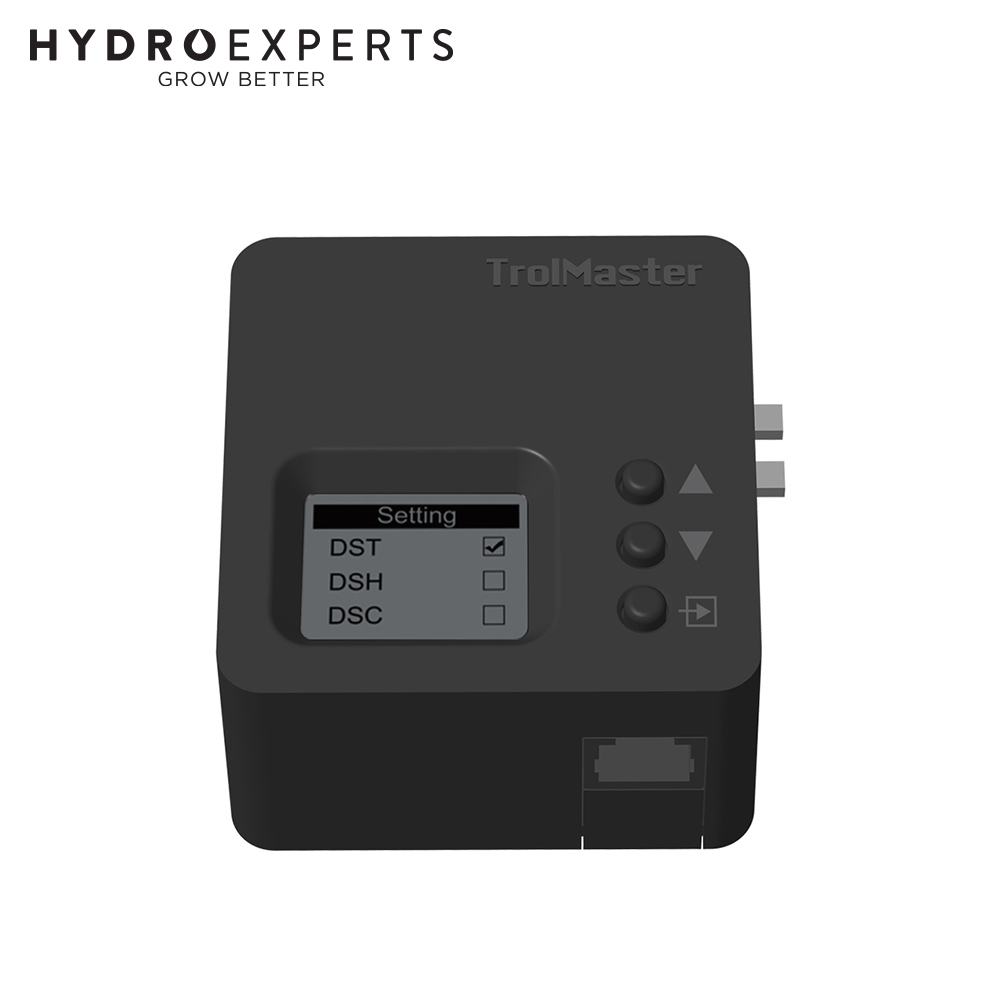

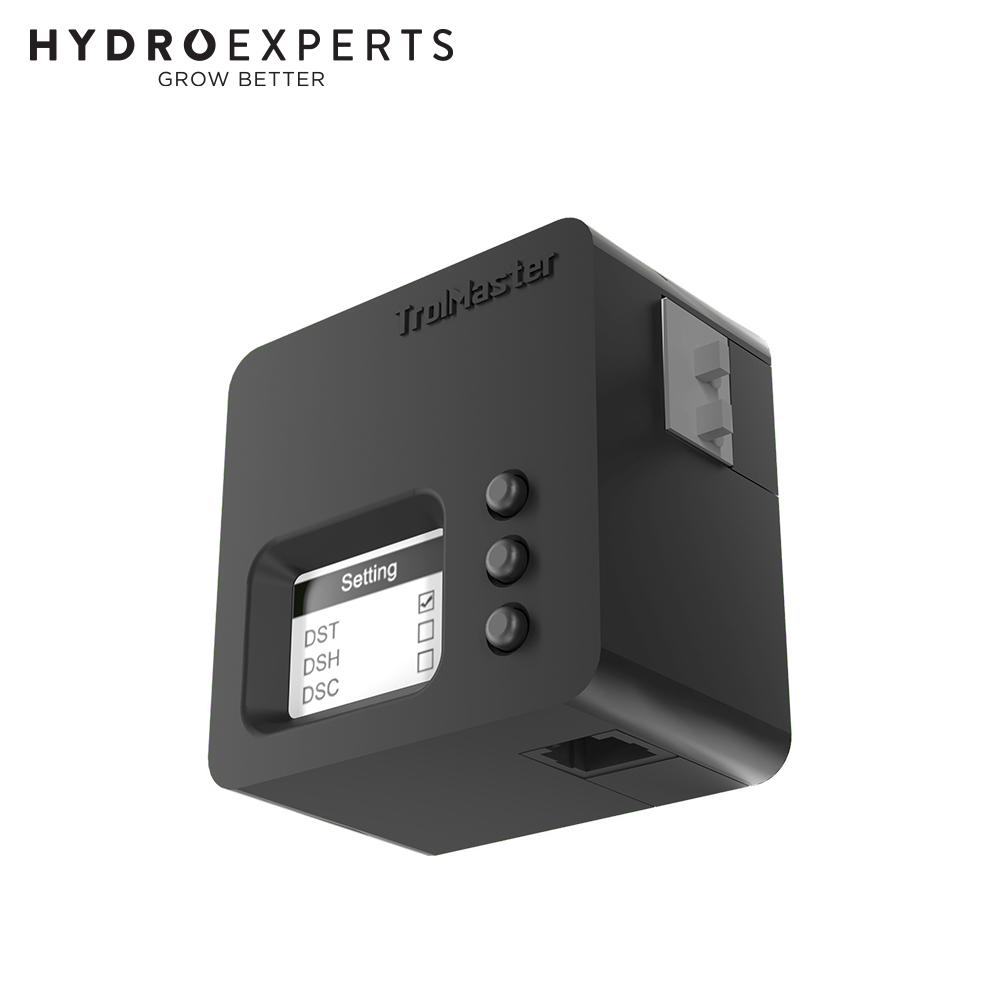

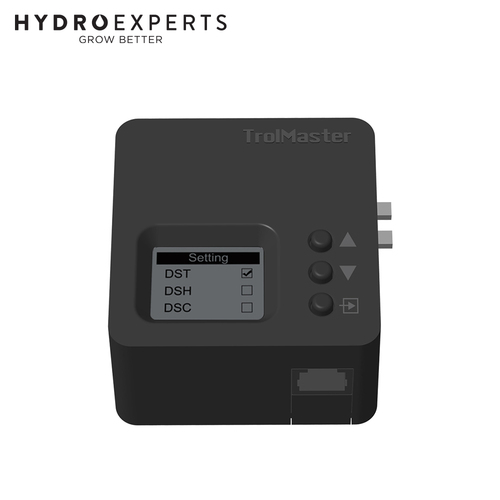

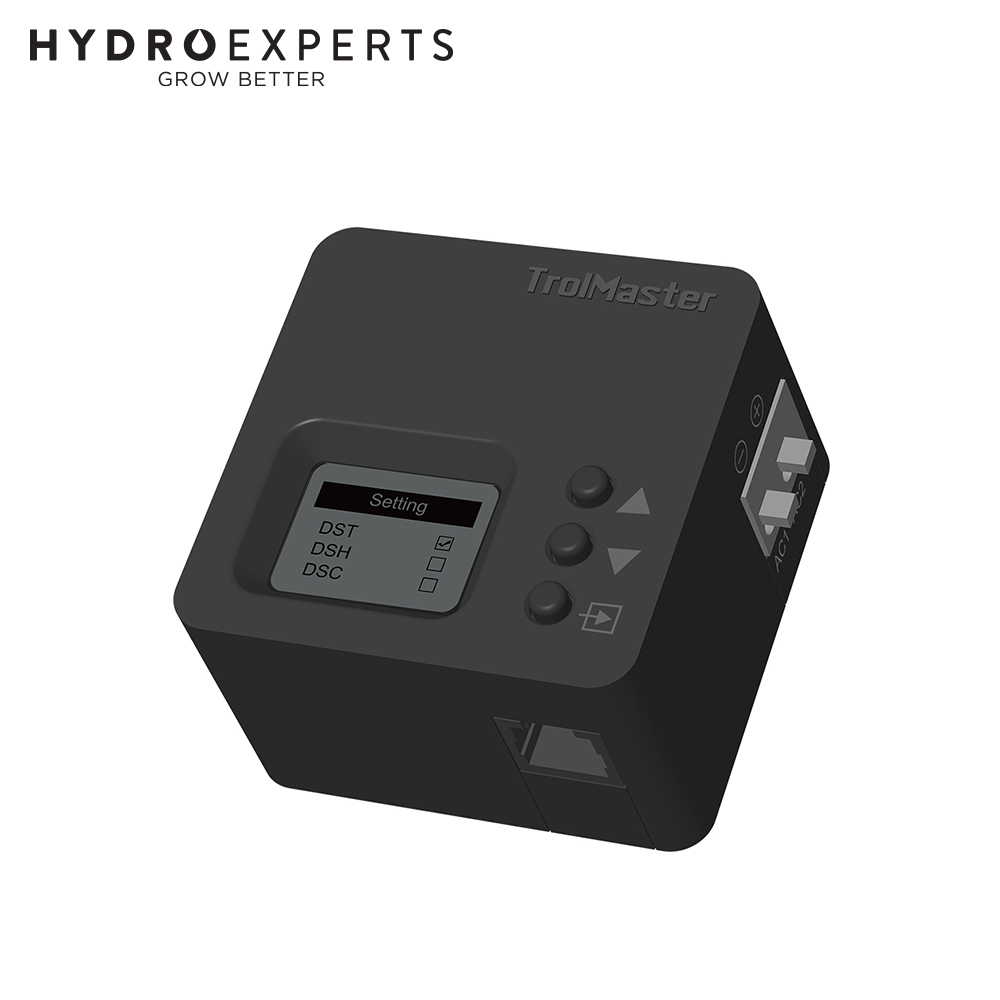

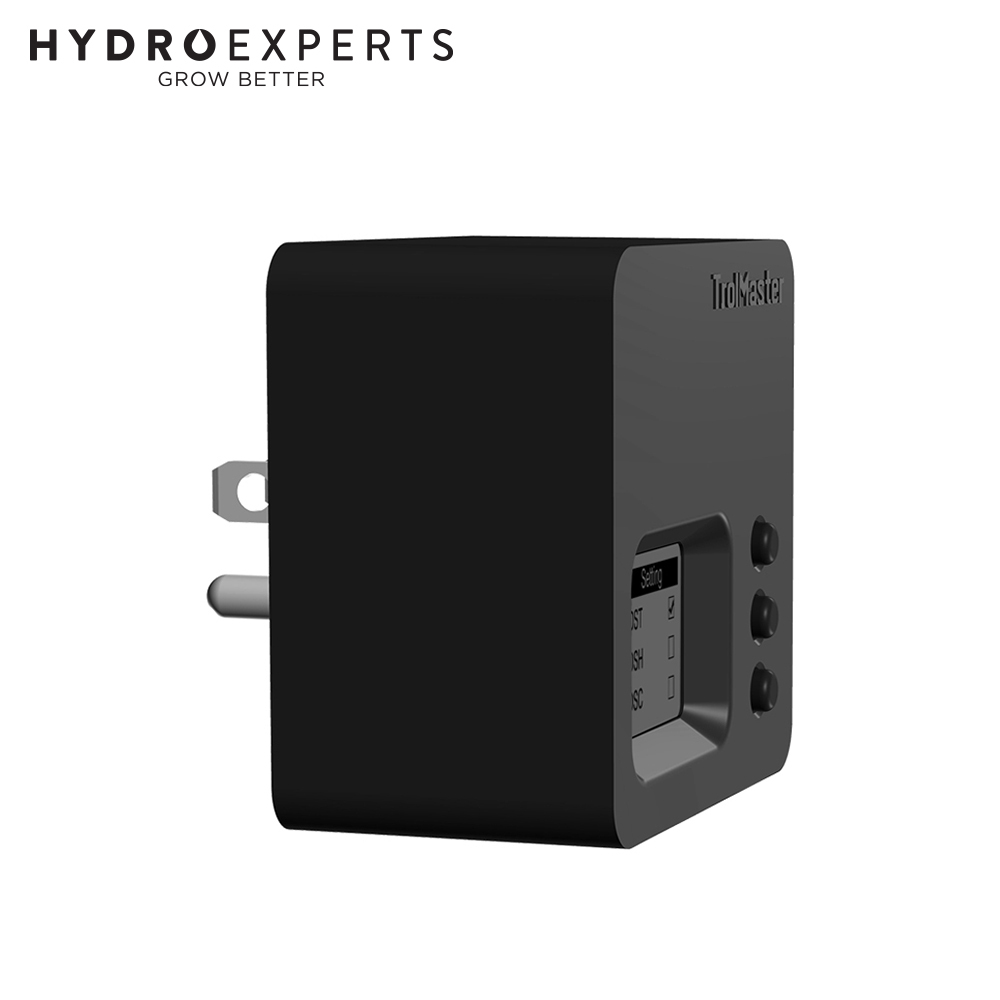

  • LCD Display, Easy Operation
  • Seamless Connection with Hydro-X and Hydro-X Pro
  • Multiple purposes assigment
  • Plug & Play
