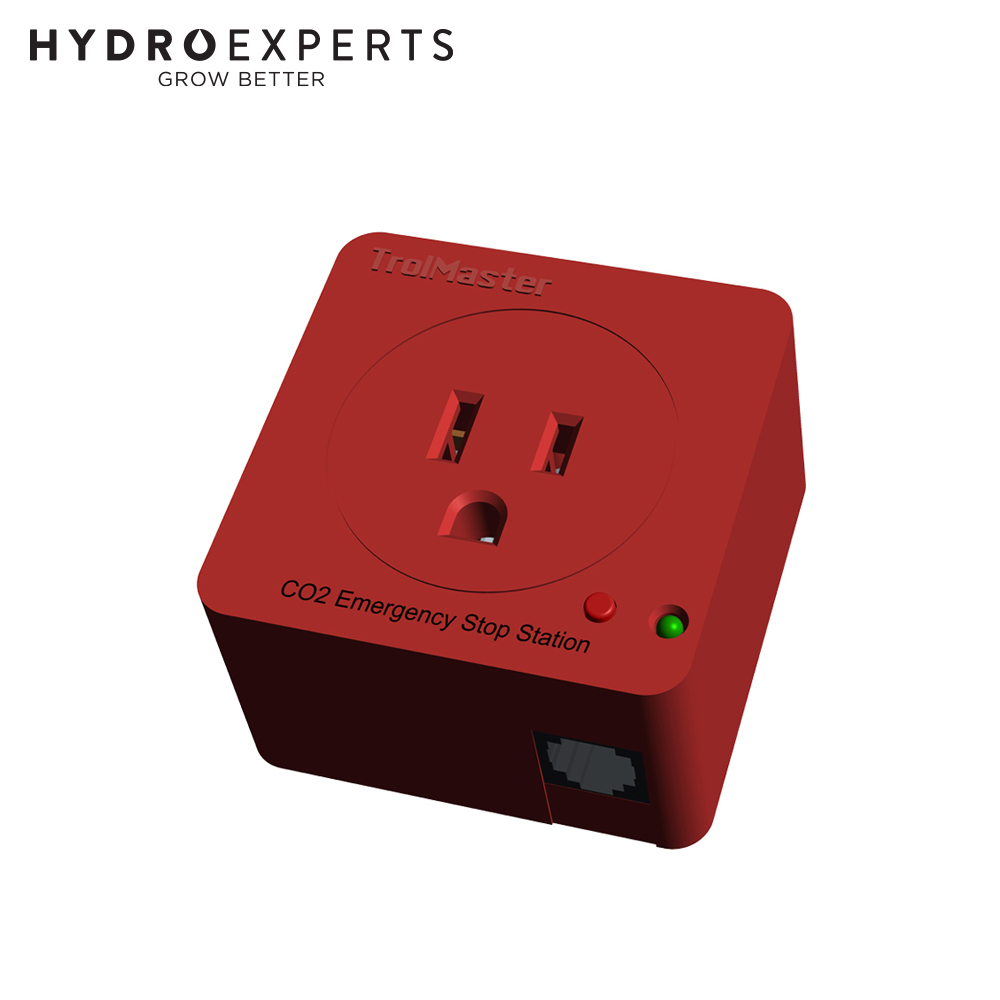

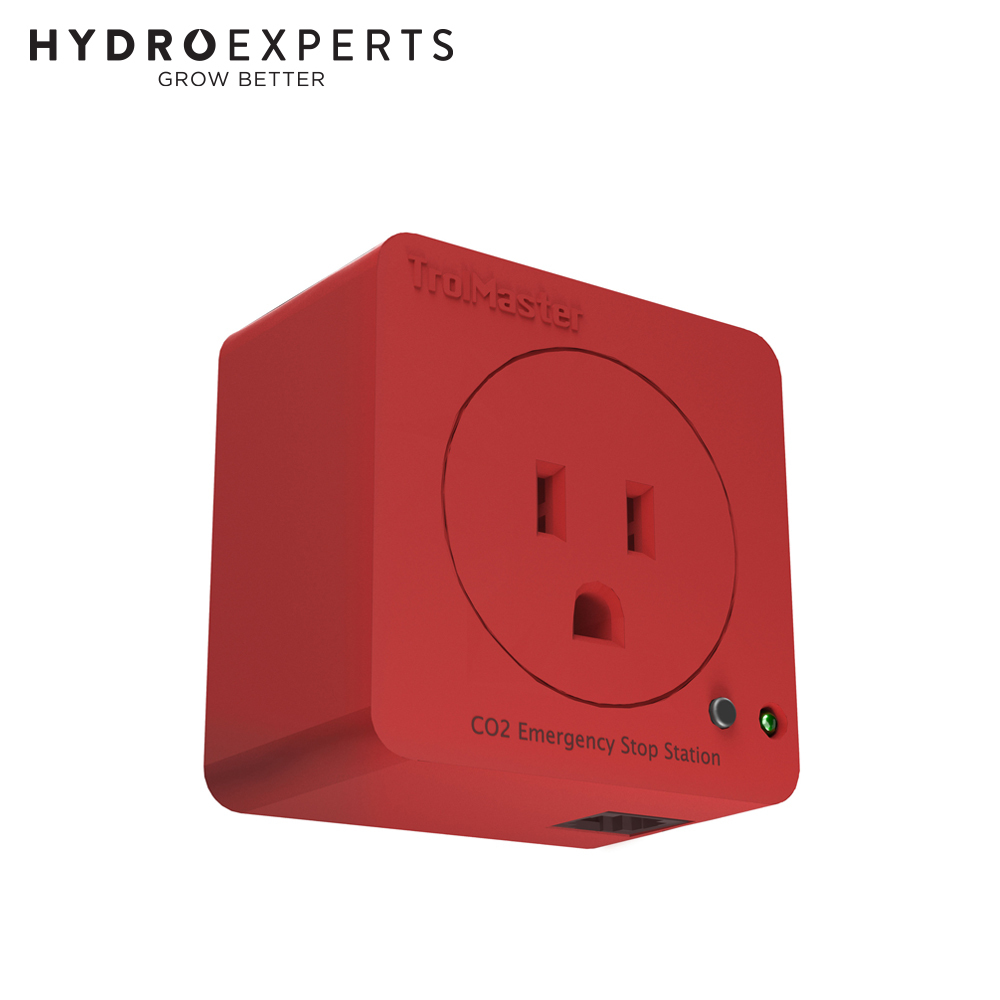

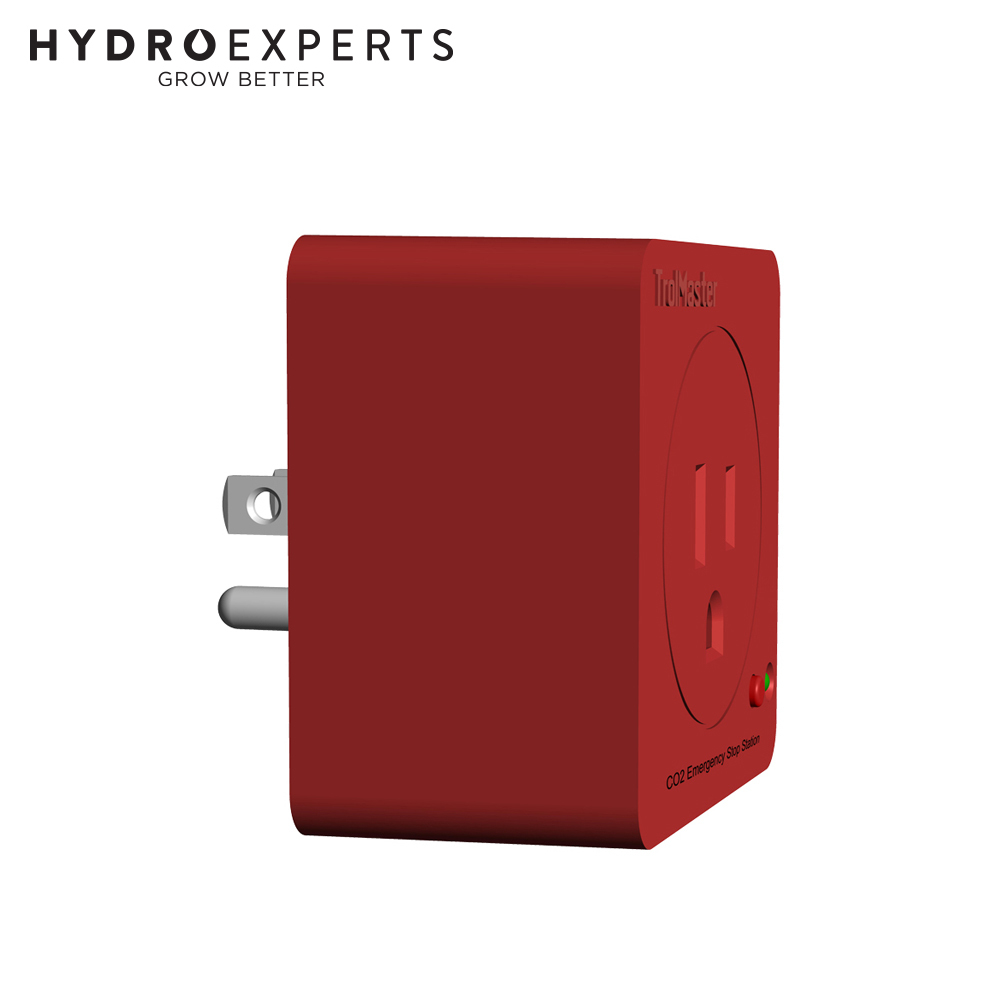

TrolMaster Carbon-X CO2 Emergency Stop Station - DSE-1

The DSE-1 CO2 Emergency Stop Station will provide the maximum safety for your growing environment. In case of a problem or high CO2 levels, this cutting-edge technology offers a seamless way to terminate the CO2 supply. It manages the power supply to CO2 solenoid valves when operating at 120V. As a guardian, the integrated Carbon-X system immediately turns off power to the DSE-1 when it detects errors or abnormally high CO2 levels in any attached CO2 sensors. In addition, the DSE-1 immediately turns off the power supply if it cannot reach the Carbon-X.

LED status:

• Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have an excellent connection to the controller.
• Pressing the small button on the module will address/link the module when first installed.
• Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
• SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
• Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
