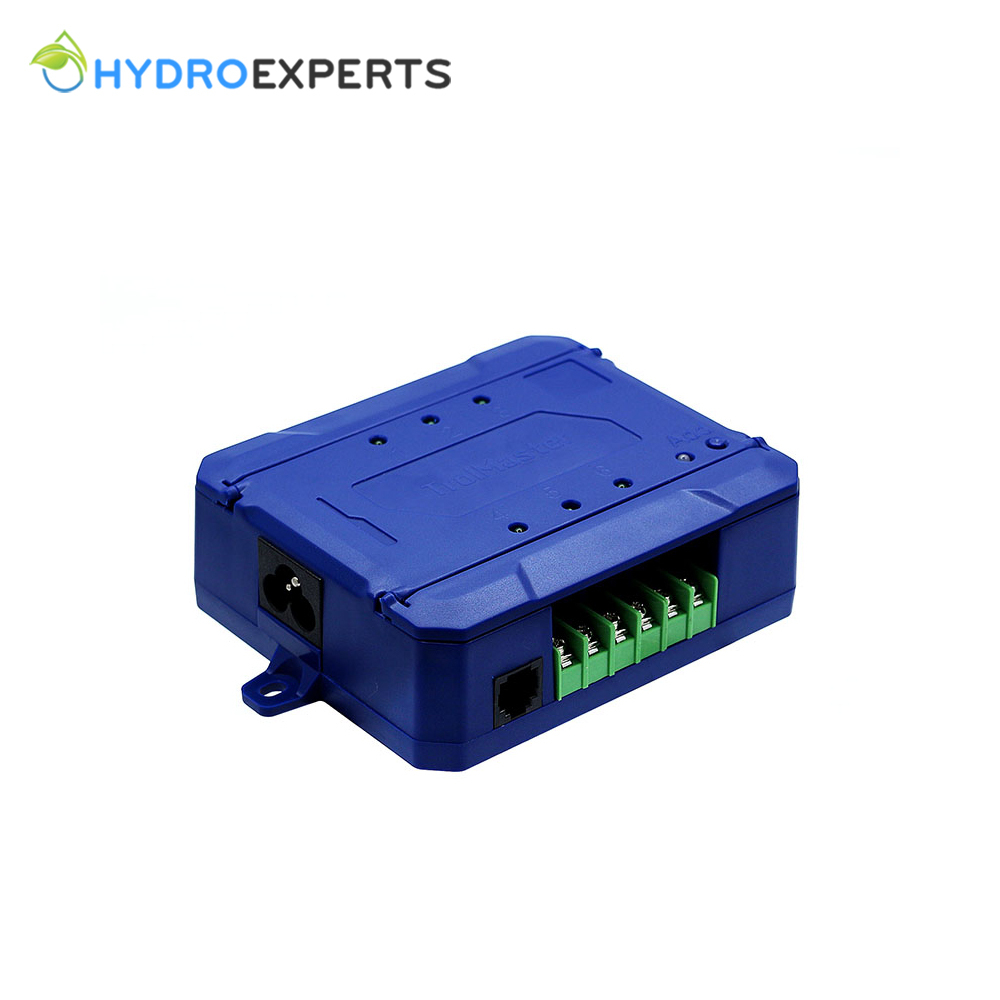

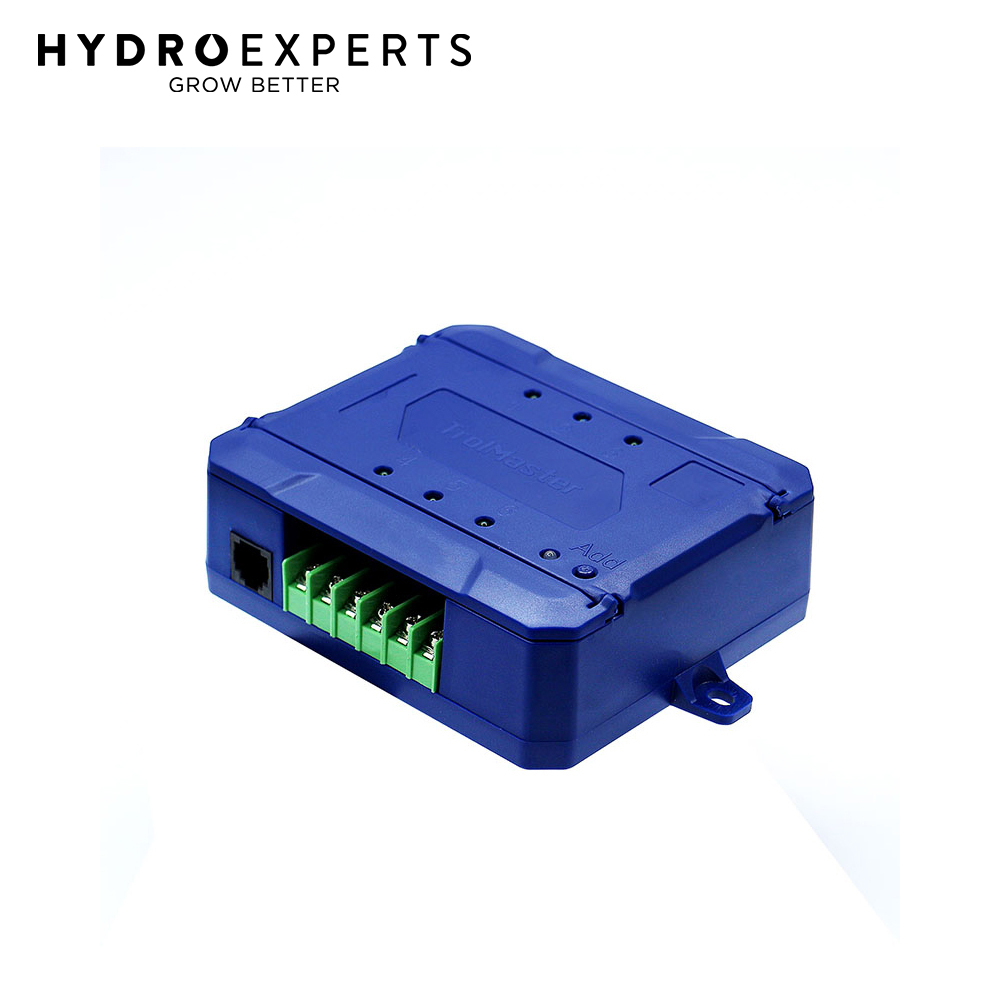

TrolMaster Aqua-X Irrigation Control System - 24V | Control Board | OA6-24

SKU: CTRL12022
|

IN STOCK

FREE SHIPPING OVER $499*

REG. PRICE: $277.50
$254.95
Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The OA6-24 control board is designed to control multiple 24vac solenoid valves.

It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

Specifications

  • Input Voltage: 110-240 VAC
  • Max Input Current: 0.2A
  • Max Output Voltage/Current: 24VAC/0.2A per output
  • Working Environments: Temperature 32°-122°F, Humidity=90%
  • Packaging Dimensions: 275mm(L) x 164mm(W) x 40mm(H)

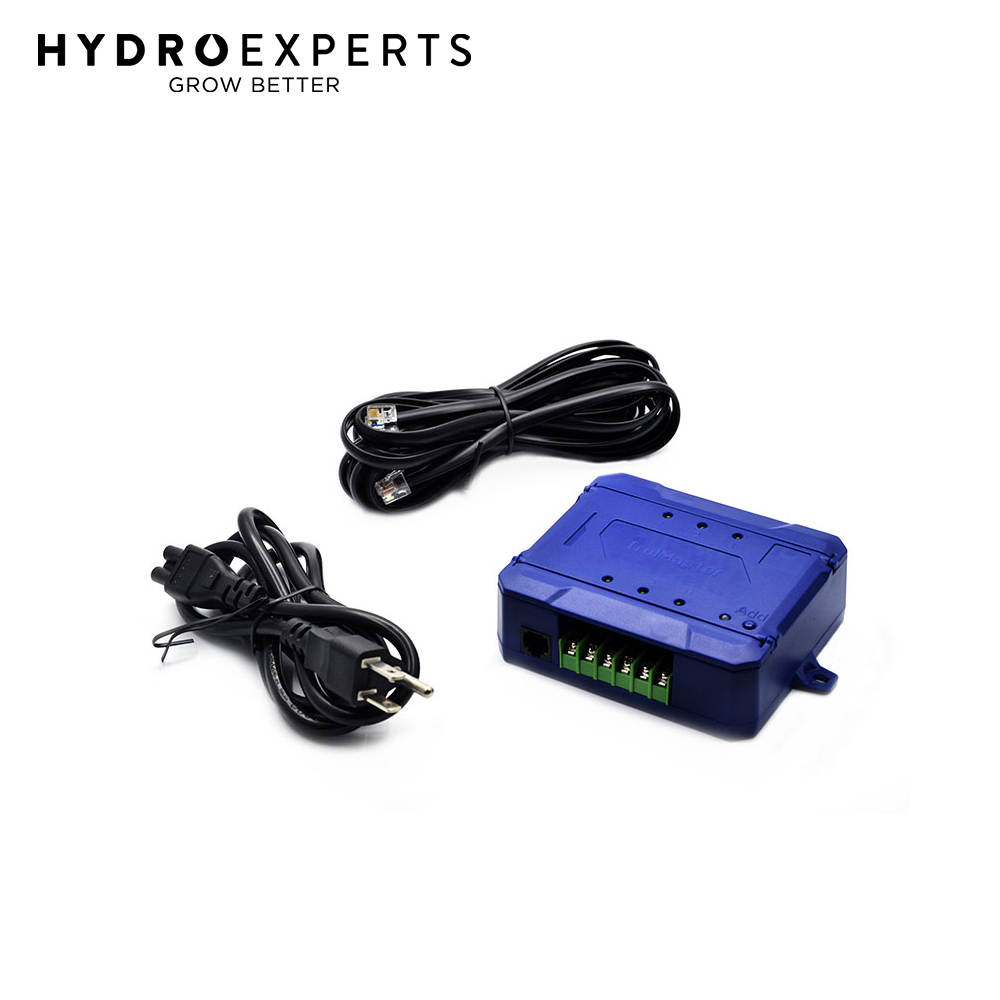

In The Box

  • 1 x 24V Control Board
  • 1 x 16ft RJ12 Cable
  • LED Power Indicator
  • Addressing Button
  • 6 Individually-Controlled 24V Outputs
  • ndividual LED Indicator for Each Output
  • Double RJ12 Cable Sockets for Daisy Chain Connectivity
