TrolMaster Aqua-X Irrigation Control System - 110V | Control Board | OA6-110

SKU: CTRL12021
|

OUT OF STOCK

FREE SHIPPING OVER $499*

REG. PRICE: $310.00
$284.95
This item has been DISCONTINUED either by our supplier and/or manufacturer.

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

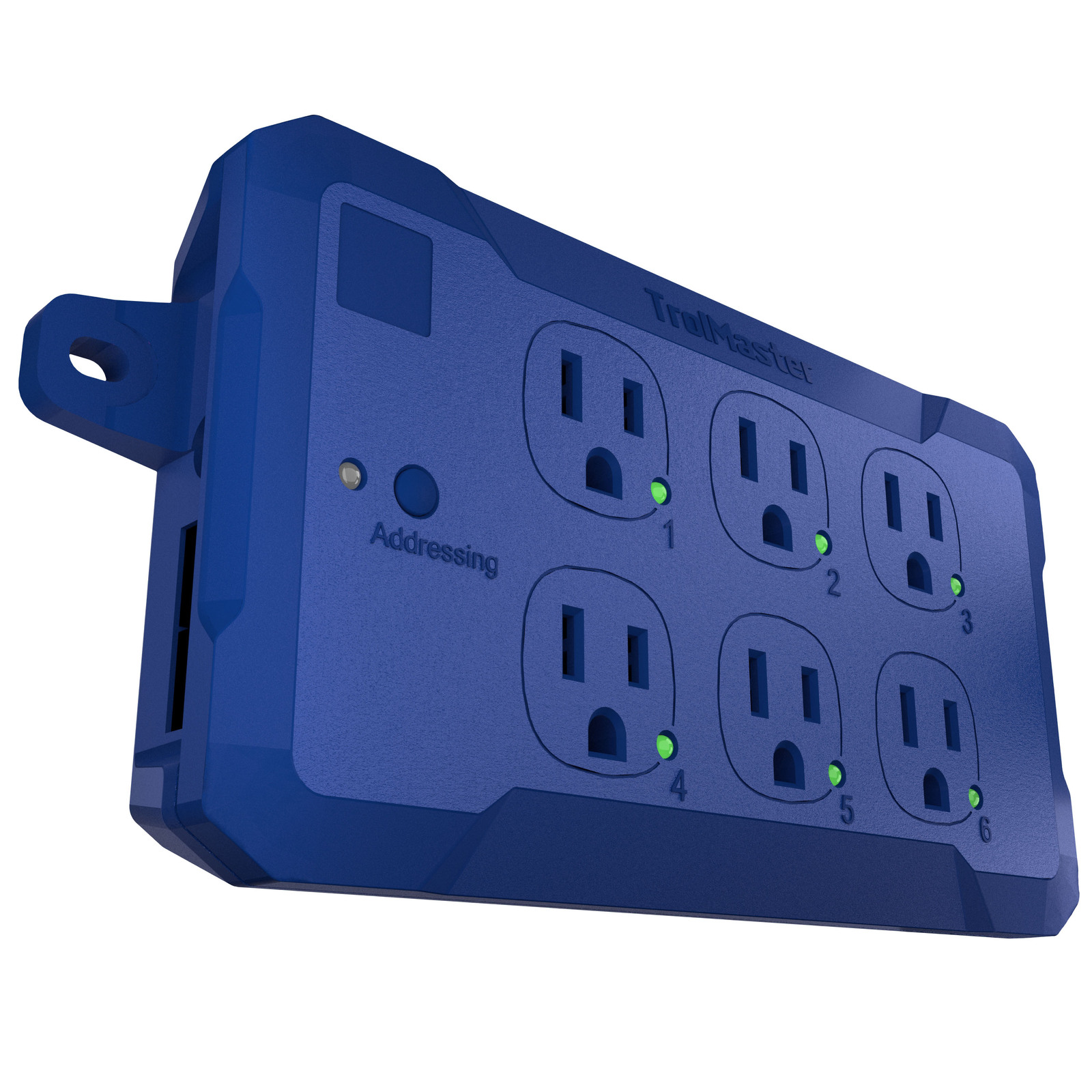

The OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120-volt outlets. Each has an LED indicator to show whether the outlet is On or Off.  Up to (5) of the OA6-110 modules can be connected to a single Aqua-x.

A 110V Control Board is specially designed for Aqua-X Irrigation Control System. It features 6 individual 110V outputs for the pump control in the Aqua-X Control System. Water pumps are the basic component of automatic flow control in the irrigation system.

With the use of 110V Control Board(s), the Aqua-X Irrigation Control System could manage up to 30 individually controlled 110V outputs (used to control water pumps) for multiple watering plans (by schedule or by recycle). With the massive control outputs, users could manage water delivery schedules easily for multiple nutrients, multiple rooms and multiple zones.

Specifications



  • Input Voltage: 120 VAC
  • Max Input Current: 9A
  • Max Output Voltage/Current: 120VAC/1.5A per Output
  • Working Environments: Temperature 32°-122°F, Humidity=90%
  • Packaging Dimensions: 275mm(L) x 164mm(W) x 62mm(H)

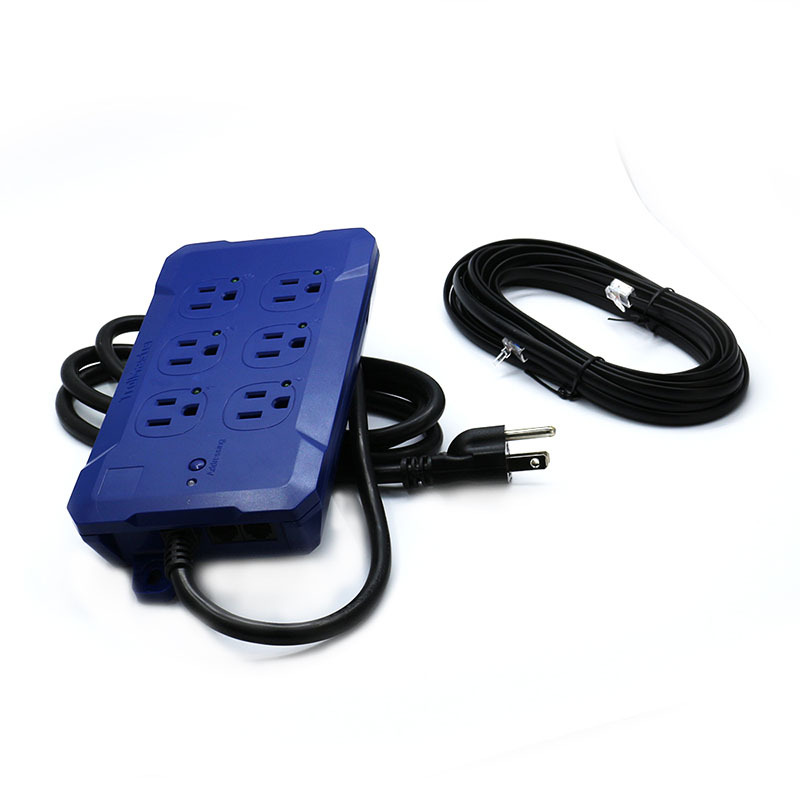

In The Box

  • 1 x 110V Control Board
  • 1 x 16ft RJ12 Cable
  •  LED Power Indicator
  •  Addressing Button
  •  6 Individually-Controlled 110V Outputs
  •  Individual LED Indicator for Each Output
  •  Double RJ12 Cable Sockets for Easy Connectivity
