TrolMaster Aqua-X 12 Outputs 24V Control Board - OAT-24

For NFS-2 & NFS-3

SKU: CTRL12028
|

ETA: 1-3 Weeks

Product main image

FREE SHIPPING

REG. PRICE: $735.00
$669.95
Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

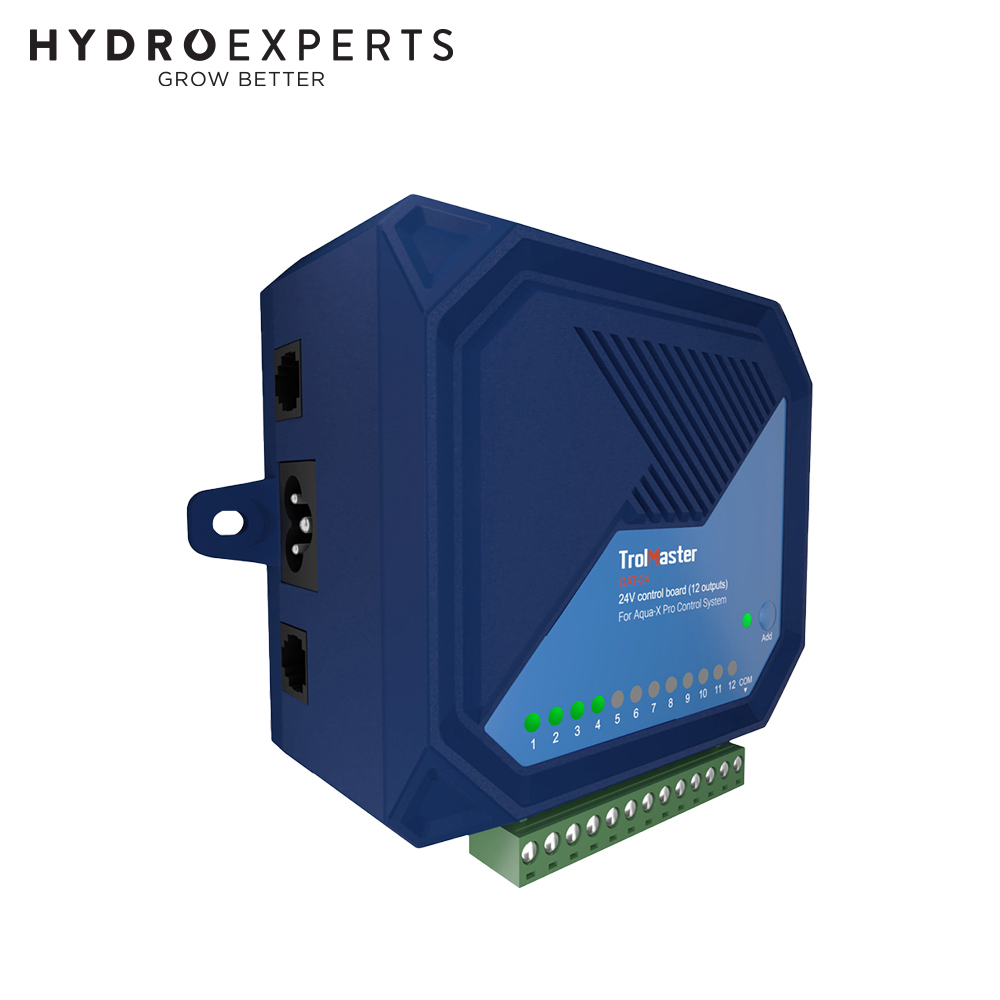

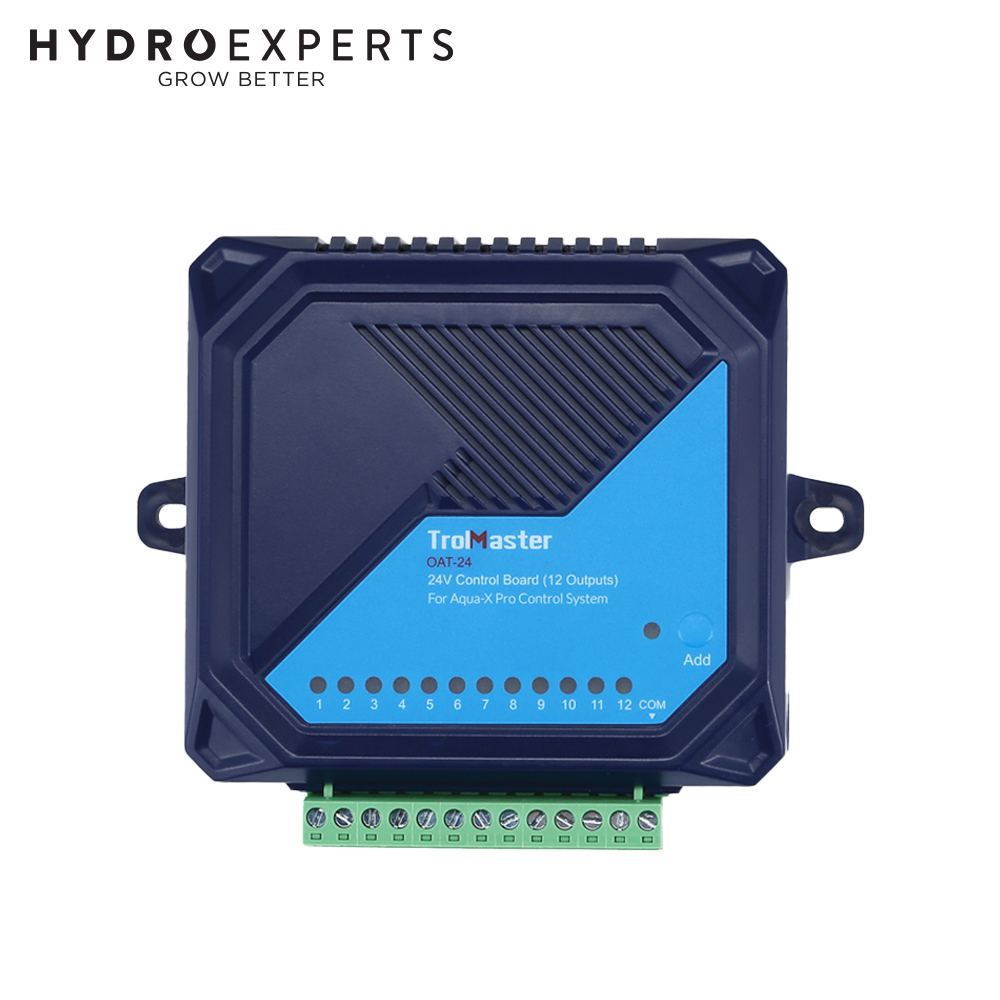

The TrolMaster OAT-24 module has 12 unique 24V outputs that can control 12 different 24-volt irrigation solenoids. It was specifically created for the Aqua-X Pro Irrigation Control System. The Aqua-X Pro Irrigation Control System can effectively manage an amazing 600 individually controlled 24V valves when several OAT-24 modules are used. Each solenoid valve can be individually set up by users, who can select from five control modes: Recycle, Schedule, Demand, Volume, or Auto-fill. Thanks to this adaptable technology, users can easily control irrigation schedules for varied fertilisers, rooms, and irrigation zones.

Note: If more than one OAT-24 is connected to the NFS Controller, you CAN’ T share a common wire from one OAT-24 to another OAT-24.

Features

  • 12 individuals schedules outputs

Specifications

  • Input Voltage: 100-240V, 50/60Hz
  • Max Input Current: 1.7A
  • Max Output Voltage/Current: 24VAC/0.5A per output
  • Working Environments: Temperature 32-122°F (0-50°C), Humidity ≤90%

In The Box

  • [1] x OAT-24
  • [1] x 16ft RJ12 Cable
  • [1] x Power Cable
  • [1] x 13-Pin Phoenix Type Connector
