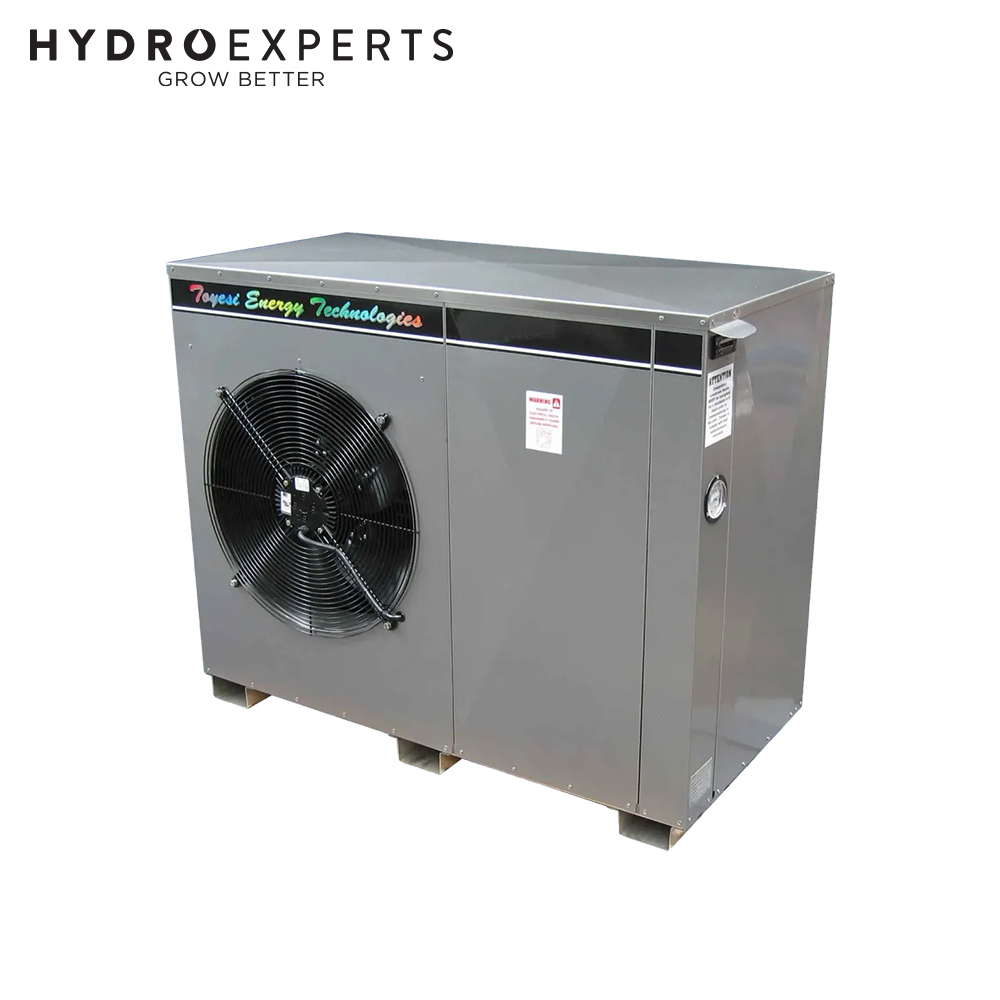

Toyesi Titan Series - TET 250 SSD | Commercial Range Heat Pumps & Chillers
High End Domestic & Commercial Grade Solutions
FREE SHIPPING
SECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER
Equipped with a powerful 11 kW heating capacity, the TET 250 SSD effortlessly caters to water volumes ranging from 10,000 to 20,000 litres. Its superior cooling capability, featuring 7 kW and a Horsepower (HP) of 2.5, ensures efficient temperature control for volumes up to 4,000 litres. This model operates seamlessly on a 1-Phase power supply, providing flexibility in various setups.
The TET 250 SSD stands as a versatile solution, offering adaptability for both small-scale and large-scale aquaculture operations. Its 1-Phase configuration adds to the flexibility, making it suitable for a wide range of applications.
Built to Last, Built for You:
- Similar to its TET 175 SSD counterpart, the TET 250 SSD boasts thick-walled titanium heat exchangers and a robust stainless steel chassis. This design ensures longevity, reliability, and minimal downtimes, reflecting Toyesi's commitment to excellence since 1989.
Precision Temperature Control:
- With a temperature range spanning from 5°C to 55°C, the TET 250 SSD provides precise control over aquatic environments. Whether you require heating during colder periods or cooling in warmer conditions, this model adapts effortlessly to meet the demands of your aquaculture setup.
Tailored for Efficiency:
- Customisation is at the heart of the TET 250 SSD. Its adaptability for heat, cool, or heater chillers, combined with optional features, ensures a tailored solution for your specific requirements. From outdoor installations to plant rooms, this model offers a capacity of up to 400 kW heating, providing a scalable and efficient solutio
Technical Data
| Model | Heating KW | Litres Of Water for Heating | Cooling KW HP | Litres Of Water for Cooling | HP | Phase |
|---|---|---|---|---|---|---|
| TET 250 SSD | 11 | 10 to 20,000 | 7 | 4,000 | 2.5 | 1-Phase |
Specifications
MODEL TET 250
- Winter Output (kW): 11.0
- Summer Output (kW): 14.0
- Cooling Capacity (kW): 7.7
- Power Input (kW): 2.8
- COP: 5.0
- Power Supply (1-phase / 3-phase): 240
- RLA / Phase (A) (1-phase / 3-phase): 16
- Circuit Protect (A) (1-phase / 3-phase): 32
- Sound @ 1m dB(A): 62
- Refrigerant: 407 C
- Compressor Type: Copeland Scroll
- Water Connection (mm): 40
- Min. Water Flow Rate (L/s): 0.5
- Pressure Drop kPa: 45 to 75
- Dimensions L x W x H (mm): 760 x 410 x 935
- Weight (kg): 90
In The Box
- [1] x Toyesi Titan Series Heat Pumps & Chillers - TET 250 SSD
- The Trident commercial units are all reverse-cycle heater chillers
- operating temperature range from 5°C to 55°C
- Scalable from small single units to multi-stage systems for even the largest aquaculture tank.
- Multi-stage units available up to 250kW cooling and 440 kW Heating
- Widest 1-Phase and 3-Phase options.
- Long Life Expectation up to 20 years plus if well maintained.
- Distinctive, robust, and corrosion-resistant stainless-steel case and fasteners throughout.
- Low ambient ‘winter heating capacity ratings
- Compact slim case design offering a small footprint.
- Commercial-grade compressor technology
- High heat transfer coefficient high-grade titanium heat exchangers
- Self-managing ‘reverse cycle’ defrost logic.
- Optimum flow rate water balancing valves
- Visible operating performance needle gauges.
- Self-diagnostic energy management control board.
- Slow rotation ‘quieter’ side fan operation.
- Digital LED display thermostat controller
- Compressor ‘soft start’ control.
- Factory operation and performance testing.
- Long-term after-sales technical support and service
Documents
Download PDF brochure
Q: How does the TET 250 SSD differ from other heat pumps?
A: The TET 250 SSD distinguishes itself with a powerful 11 kW heating capacity and 7 kW cooling capacity. Its 2.5 HP ensures efficient temperature control for water volumes up to 4,000 litres. Operating on a 1-Phase power supply, it offers flexibility for diverse aquaculture setups.
Q: Can the TET 250 SSD handle different water volumes?
A: Absolutely. This model is designed for versatility, catering to water volumes ranging from 10,000 to 20,000 litres for heating and up to 4,000 litres for cooling. Its adaptability makes it suitable for various aquaculture applications.
Q: What makes the TET 250 SSD suitable for different setups?
A: The TET 250 SSD is built with thick-walled titanium heat exchangers and a robust stainless steel chassis, ensuring durability and minimal downtimes. Its 1-Phase configuration adds versatility, making it ideal for both small-scale and large-scale aquaculture operations.
Q: What temperature range does the TET 250 SSD operate in?
A: This model operates seamlessly in a temperature range from 5°C to 55°C, providing precise temperature control for aquatic environments. Whether you need heating during colder periods or cooling in warmer conditions, the TET 250 SSD adapts effortlessly.
Q: How does the TET 250 SSD ensure efficiency?
A: Customisation is key to the TET 250 SSD's efficiency. With options for heat, cool, or heater chillers, and a capacity of up to 400 kW heating, this model can be tailored to specific requirements. Its versatility makes it suitable for outdoor installations, plant rooms, and a wide range of applications.
Q: What is the expected lifespan of the TET 250 SSD?
A: Similar to other Toyesi models, the TET 250 SSD boasts a durable design, ensuring a long operational life. With proper maintenance, users can anticipate a lifespan of up to 20 years, reflecting Toyesi's commitment to lasting performance.
