Stainless Steel Vacuum Kit - 5.5L (1.5 Gallon) | Gasket Design

High Strength Chamber | Industrial Grade Silicone Gasket

SKU: ACES40113
|

IN STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

These complete vacuum chamber setups are designed built and 100% tested in Chicago, Illinois. With our unique patent pending gasket design (Utility Patent #14/533,548) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of our system) allowing customers to instantly take it off and flip it over.

No adhesives are used! Our simple gasket design even allows you to place the lid on the chamber off center and still pull a full vacuum. This is a feature that most other vacuum chambers do not offer. The maximum allowed temperature of this chamber is 160f. The components of this chamber are rated at higher temperatures however as a vacuum vessel we limit maximum operational temperature to 160f. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs.

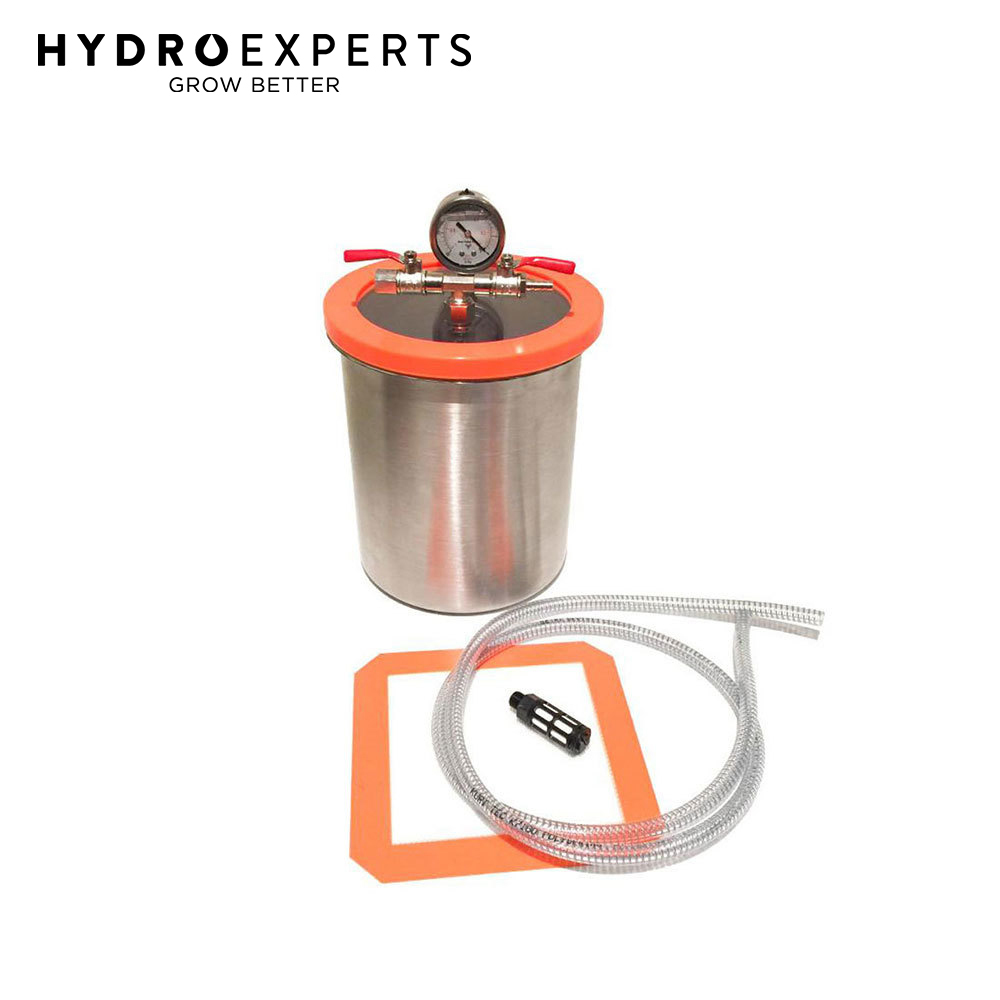

This Kit Includes:

  • [1] x 1.5 Gallon High strength Stainless Steel Chamber
  • [1] x Industrial grade silicone gasket
  • Gasket can withstand 390F max temp.
  • 60A durometer density
  • [1] x Glycerin filled vacuum gauge (must be regulated upon arrival)
  • Max vacuum -29Hg (+/-.5Hg) at sea level
  • [1] x Leak free nickel plated air manifold
  • Vacuum release valve and vacuum connect valve
  • [1] x 1/4 Female flare universal pump adapter for vacuum hose
  • [1] x 5ft clear steel reinforced vacuum hose
  • [1] x 8”x 8” Platinum cured silicone non stick VacPad®
  • [1] x 50 Micron air filter
  • Internal Dimensions: 8-5/8” Tall X 7-1/8” Diameter

In The Box

  • [1] x Stainless Steel Vacuum Kit - 5.5L (1.5 Gallon)
