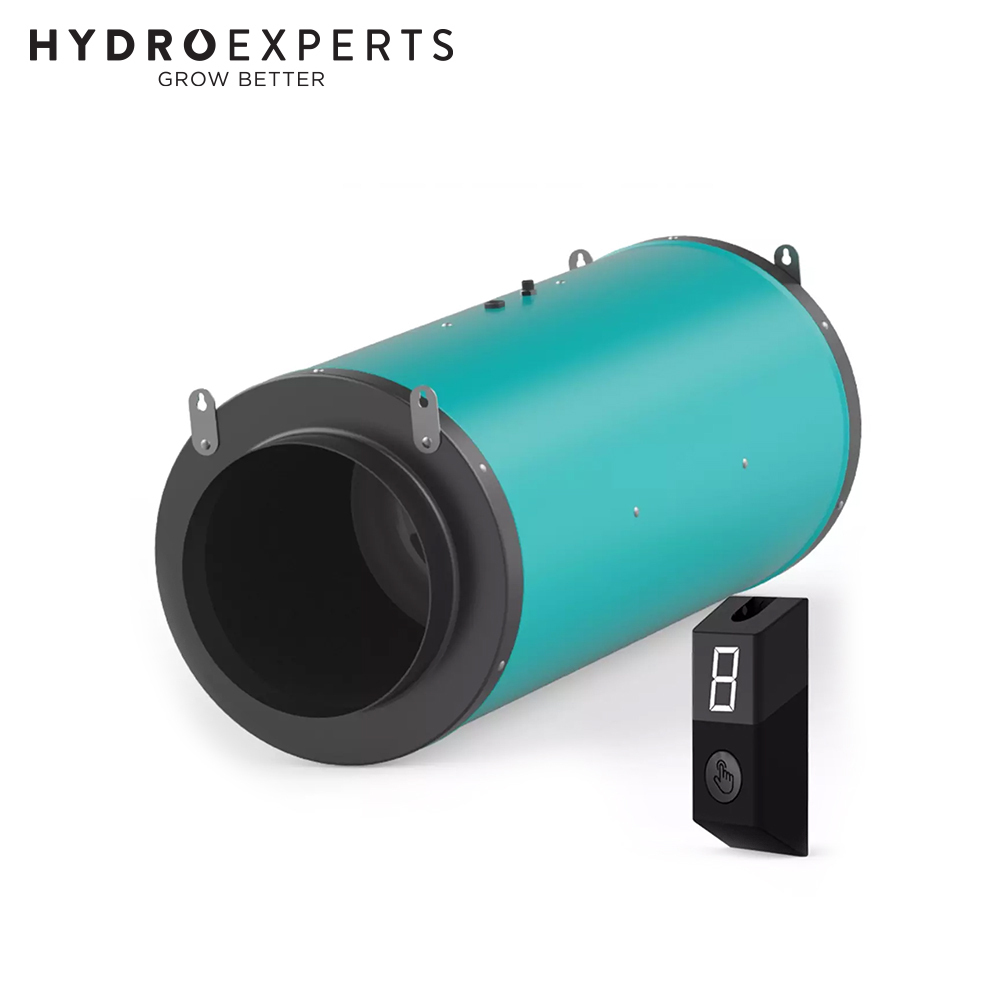

Sigilventus Silenced EC Inline Fan - 315MM (12" Inch) | Speed Control

SKU: XFANS60104
|

OUT OF STOCK

FREE SHIPPING

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

SIGILVENTUS EC SILENCED FAN is simply designed to make the wrapped EC motor fan work quietly with no humming, no vibration and no airflow loss. Due to the use of the selected high-density acoustic foam, it has been proved to be one of the quietest inline fans in the horticulture industry.

  • ENGINEERED SILENCD BODY
    • Using durable piano wire springs to attach the EC fan motor to the steel silencing housing, simply makes the whole fan vibration-free. The acoustic foam used inside is Eco and fire-proof for safety operation and meeting the standard of the application in the HVACR industry.
  • INTELLIGENT AND UNIVERSALLY COMPATIBLE
    • It supports universal ventilation systems by offering 0-10vdc control signals, as well as PWM and Potentiometer and offers adaptors for other 3pins EC fan controllers and RJ45 controllers.
  • BEST HYDROPONIC VENTILATION SOLUTION EVER
    • SigilVentus Silenced Fans are all built with an EC motor fan, which has up-to-date EC technology. Unlike traditional AC motor or badly built EC/DC motor, it is totally free of buzzing at low speeds. And due to years of specialized EC tech research and development, SigilVentus offers the most cost-effective EC solution and proved to be the most affordable EC silenced fan on the market and the best in its class.

Specifications

315MM (12" Inch)

  • Dimension    940mm (L) x 415mm(H)
  • Duct Size    12“|315mm
  • Rated Voltage    220V~240V
  • Max. Power C.    320W
  • Frequency    50Hz|60Hz
  • Max. Speed    3000RPM
  • Max. Airflow    1757CFM
  • Static Pressure    677Pa
  • Signal Outputs    PWM, 0-10V, POT, FG
  • MAX. Noise    68dBA [1M-INLET]
  • Housing Material    Steel
  • Acoustic Foam    Fire-Proof
  • Motor Type    EC Motor
  • Net Weight    21kgs
  • IP Rating    IP65
  • Installation    4 Hanging Brackets
  • Certifications    CE, SAA, ERP

In The Box

  • [1] x Sigilventus Silenced EC Inline Fan - 315MM (12" Inch) | Speed Control
  • AV equipment and Server rooms
  • Closets and Cabinets
  • Hydroponic Indoor Grow System and Poultry Ventilation
  • Bathrooms and Attics Exhaust
  • Smells Hotpot or BBQ Ventilation System
  • 4G OR 5G Telecom Signal Station Ventilation and Cooling
  • Frequency 50Hz|60Hz
  • Signal Outputs PWM, 0-10VDC, POT, FG
  • Housing Material Aluminum
  • Bearing System NMB or NSK Ball
  • Impeller Design Mixed Flow
  • Motor Type EC Motor
  • IP Rating IPX4
  • Bracket Type Detachable
  • Certifications ETL, CE, SAA, CCC
