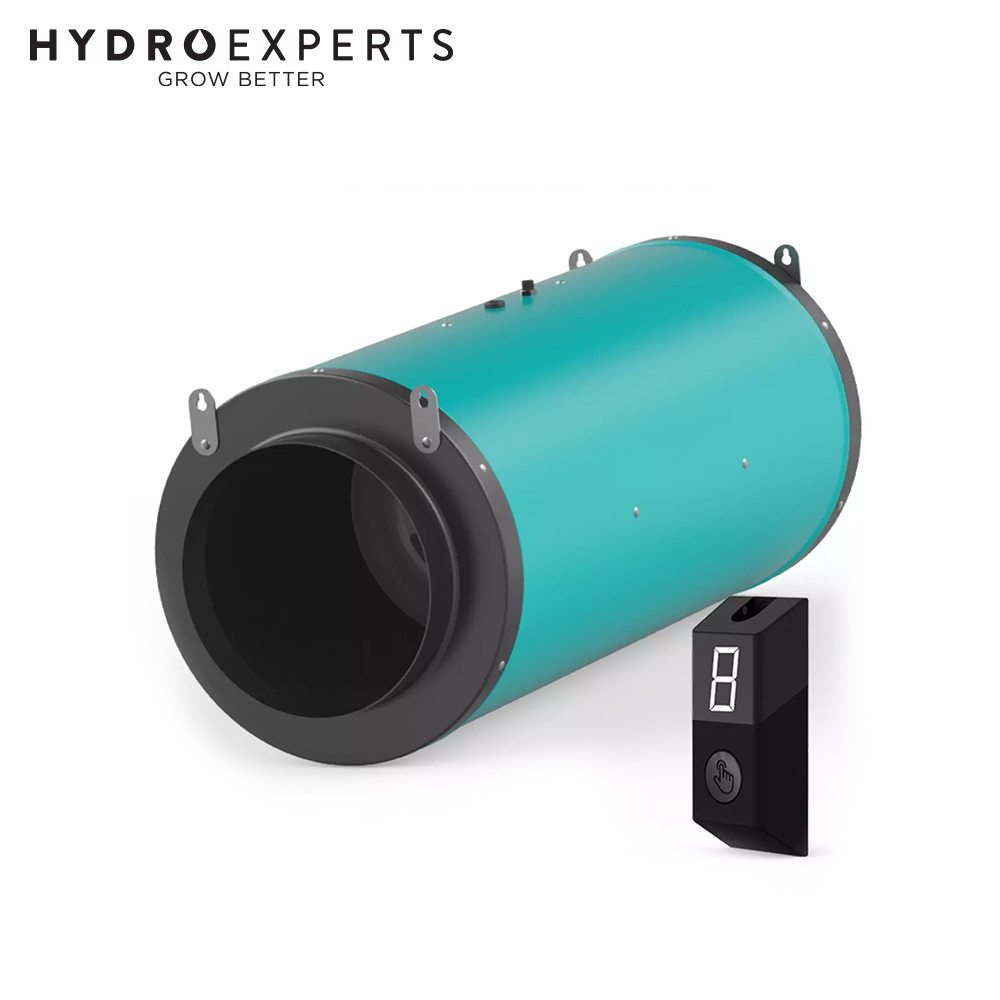

Sigilventus Silenced EC Inline Fan - 200MM (8" Inch) | Speed control
SKU: XFANS60102
|
OUT OF STOCK
FREE SHIPPING
SECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER
SIGILVENTUS EC SILENCED FAN is simply designed to make the wrapped EC motor fan work quietly with no humming, no vibration and no airflow loss. Due to the use of the selected high-density acoustic foam, it has been proved to be one of the quietest inline fans in the horticulture industry.
- ENGINEERED SILENCD BODY
- Using durable piano wire springs to attach the EC fan motor to the steel silencing housing, simply makes the whole fan vibration-free. The acoustic foam used inside is Eco and fire-proof for safety operation and meeting the standard of the application in the HVACR industry.
- INTELLIGENT AND UNIVERSALLY COMPATIBLE
- It supports universal ventilation systems by offering 0-10vdc control signals, as well as PWM and Potentiometer and offers adaptors for other 3pins EC fan controllers and RJ45 controllers.
- BEST HYDROPONIC VENTILATION SOLUTION EVER
- SigilVentus Silenced Fans are all built with an EC motor fan, which has up-to-date EC technology. Unlike traditional AC motor or badly built EC/DC motor, it is totally free of buzzing at low speeds. And due to years of specialized EC tech research and development, SigilVentus offers the most cost-effective EC solution and proved to be the most affordable EC silenced fan on the market and the best in its class.
Specifications
200MM (8" Inch)
- Model SE-A200-J01
- Dimension 699mm (L) x 307mm(H)
- Duct Size 8“|200mm
- Rated Voltage 110V~120V | 220V~240V
- Max. Power C. 75W
- Frequency 50Hz|60Hz
- Max. Speed 3800RPM
- Max. Airflow 710CFM | 1205M3H
- Static Pressure 53mmH2O | 520Pa
- Signal Outputs PWM, 0-10V, POT, FG
- MAX. Noise 51dBA[1M-INLET]
- Housing Material Steel
- Acoustic Foam Fire-Proof
- Motor Type EC Motor
- Net Weight 7.5kgs
- IP Rating IPX4
- Installation 4 Hanging Brackets
- Certifications ETL, CE, SAA
In The Box
- [1] x Sigilventus Silenced EC Inline Fan - 200MM (8" Inch) | Speed control
- AV equipment and Server rooms
- Closets and Cabinets
- Hydroponic Indoor Grow System and Poultry Ventilation
- Bathrooms and Attics Exhaust
- Smells Hotpot or BBQ Ventilation System
- 4G OR 5G Telecom Signal Station Ventilation and Cooling
- Frequency 50Hz|60Hz
- Signal Outputs PWM, 0-10VDC, POT, FG
- Housing Material Aluminum
- Bearing System NMB or NSK Ball
- Impeller Design Mixed Flow
- Motor Type EC Motor
- IP Rating IPX4
- Bracket Type Detachable
- Certifications ETL, CE, SAA, CCC
