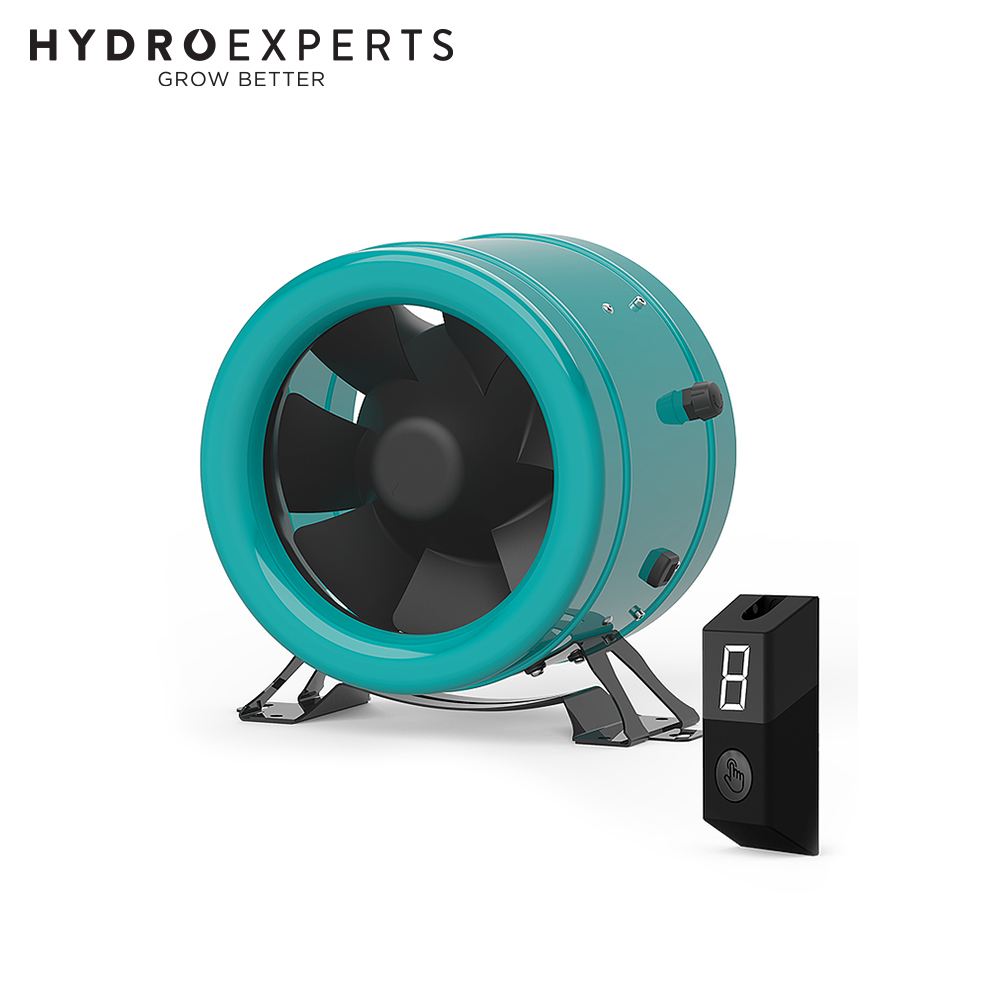

Sigilventus EC Inline Fan - 250MM (10" Inch) | Speed control

SKU: XFANS60003
|
Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

GILVENTUS EC MIX FLOW INLINE FAN is an extremely low profile inline fan with jet-engine blades design and metal housing. Combined with an EC motor for no-humming, no vibration, smooth operation and the most energy-efficient performance. It is an outstanding fan in the market because of its high efficiency, resulting from a built-in multiphase brushless DC motor design, sending this compact inline fan to high speeds and a high static pressure rating as well as maintaining a lower level of power consumption. Included in the box is an 8 speeds controller for maximum flexibility. We also offer optional wireless controllers or smart controllers which are sold separately.

  • HALF POWER CONSUMPTION OF TRADITIONAL DUCT FANS
    • It is an outstanding fan in the market because of its high efficiency resulting from a built-in multiphase brushless DC motor design, sending up this compact inline fan to high speed and bringing a high static pressure rating as well as keeping a lower level of power consumption.
  • MULTIPLE-WAY OF SPEED CONTROL
    • Every Sigilventus inline duct fan comes with a standard speed controller utilizing PWM (Pulse Width Modulation) and DIY speed control wires for any ventilation system or devices supporting PWM/0-10V/Potentiometer/Tachometer signal, and also adaptors for supporting other controllers such as G.A.S and PrimaKlima. Meanwhile, we also offer an optional wireless controller, and a smart controller, which are sold separately.

Specifications

250MM (10" Inch)

  • Model: SE-A250-T01
  • Fan Size: 10"  | 250mm
  • Rated Voltage: 110V~120V | 220V~240V
  • Max. Power C.: 150W
  • Frequency: 50Hz|60Hz
  • Max. Speed: 3200RPM
  • Max. Airflow: 1065CFM | 1808M3H
  • Static Pressure: 52mmH2O | 510Pa
  • MAX. Noise: 65dBA [1M-INLET]
  • Signal Outputs: PWM, 0-10V, POT, FG
  • Housing Material: Steel
  • Bearing System: NMB or NSK Ball
  • Impeller Design: Mixed Flow
  • Motor Type: EC Motor
  • Net Weight: 3kgs
  • IP Rating: IPX4
  • Bracket Type: Detachable
  • Certifications: ETL, CE, SAA

In The Box

  • [1] x Sigilventus EC Inline Fan - 250MM (10" Inch) | Speed control
  • SigilVentus EC Mixflow Inline Fans are designed to solve various ventilation problems in domestic, commercial and industrial applications, they are proven to be better than other equivalents in an installation where the extractor must be in energy-saving operation for years and they are compatible with a universal intelligent ventilation system that implies control by external sensors.
  • AV equipment and Server rooms
  • Closets and Cabinets
  • Hydroponic Indoor Grow System and Poultry Ventilation
  • Bathrooms and Attics Exhaust
  • Odourless Hotpot or BBQ Ventilation System
  • 4G OR 5G Telecom Signal Station Ventilation and Cooling
