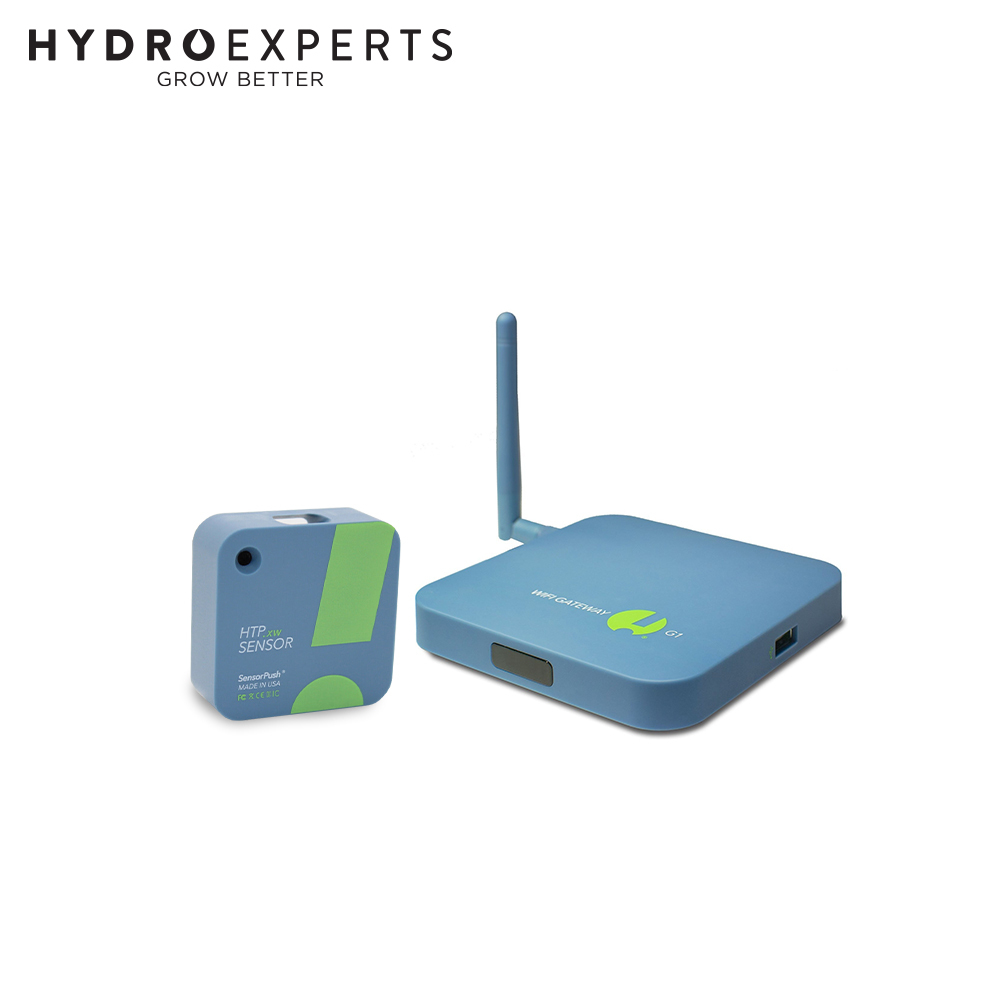

SensorPush Wireless Humidity Barometric Pressure & Temperature HTP.xw Sensor Kit | Water-Resistant

HTP.xw Sensor + G1 Wifi Gateway

SKU: HMDT-KIT10103

SensorPush

Products You May Need

(HMDT40101) SensorPush HT1 - Humidity / Temperature / Dewpoint / VPD Bluetooth Sensor - In Stock

$109.95

(HMDT40102) SensorPush HT.w - Water-Resistant | Humidity / Temperature / Dewpoint / VPD Bluetooth Sensor - In Stock

$149.95

(HMDT40103) SensorPush HTP.xw - Extreme Accuracy | Water-Resistant | Humidity / Temperature / Barometric Pressure Smart Sensor - In Stock

$179.95

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

Calculate shipping

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

Warning: Powered by button/coin battery. Please keep it away from children.

Note:

[1] x SensorPush HTP.xw - Extreme Accuracy | Water-Resistant | Humidity / Temperature / Barometric Pressure Smart Sensor

The HTP.xw Extreme Accuracy Water-Resistant Temperature / Humidity / Barometric Pressure Smart Sensor pairs effortlessly with version 4.0+ of our free mobile apps and the optional SensorPush G1 WiFi Gateway to provide the most premium solution for monitoring barometric pressure, humidity, temperature, dewpoint, and VPD conditions over time.

It features the world’s most accurate digital humidity/temperature sensor with a typical accuracy of ±1.5%RH/±0.1°C and adds a sensor membrane and o-ring seals for a durable splash and rain proof design as well as a highly accurate barometric pressure sensor with a typical accuracy of ±0.5mb. Battery changes are now easier and even more infrequent than ever with the easy change battery cap and a typical battery life of over 2 years in normal conditions.

And perhaps best of all, the HTP.xw is designed, supported, and now made in the USA! Its long range (100m / 325' line of sight) keeps you up to date, even at a distance. The Swiss-made sensing component provides highly accurate, repeatable measurements that you can trust. Data is collected at one-minute intervals and is stored on the sensor for close to a month. It is automatically pushed to mobile applications when they are in range. There it is stored for graphing and analysis. The apps allow alert ranges to be set, so you can know when there's a problem without constant checking.

[1] x SensorPush G1 Wireless Gateway | Remote Access via Internet

Thousands of satisfied customers already trust the HT1 Humidity / Temperature Smart Sensor to monitor the environmental conditions for the things they care about most. Now the SensorPush G1 WiFi Gateway enables you to monitor your SensorPush sensors remotely from anywhere via the Internet!

With the included cloud service (no monthly fee), you'll have the full SensorPush experience, accuracy and ease of use, no matter where you are! Receive current conditions, alerts and even the full data history just as if you were monitoring locally. It's perfect for keeping an eye on conditions at home or at a vacation property while you're away. Make sure your cigars are safe while you're at work. Whatever the situation, when you need to monitor environmental conditions from afar, the SensorPush G1 WiFi Gateway has you covered.

How Does It Work?

The simple setup process connects your G1 WiFi Gateway to the internet, via WiFi or Ethernet and links it to your SensorPush cloud account. This account is included with the purchase of a G1 WiFi gateway and is easily created during setup. Once online, the gateway receives data via Bluetooth from any in-range SensorPush sensors and relays that information to our web-based service (a.k.a. "the cloud").

The SensorPush app can then retrieve the data from the internet, so you can access it from anywhere. As before, the system has been designed to be as flexible as possible. Multiple gateways on one account? No problem. Multiple phones monitoring one account? Of course. Just log each device in with the same email address and password and your data is instantly synchronized across devices for easy access by family members, employees, house sitters or anyone you wish.

When a sensor is renamed or alert settings are changed, the updates are reflected on all connected devices within moments. When you add new sensors, just pair them with one device. The gateway and all other devices will automatically import them and begin monitoring right away.

Additionally, if all of your sensors are within range of a G1 WiFi gateway, you can now disable Bluetooth within the SensorPush app, or even on your phone (once setup is complete) for improved battery life.

Lastly, the gateway is designed to work seamlessly with the existing sensors, so those of you who have already purchased our sensors are all set.

Specifications

SensorPush HTP.xw - Extreme Accuracy | Water-Resistant | Humidity / Temperature / Barometric Pressure Smart Sensor

Sample Rate: Sensor takes temperature and humidity readings once per minute.
Dimensions: 40mm x 40mm x 16.5mm / 1.57" x 1.57" x 0.65"
Weight: 23g / 0.8oz
Battery: CR2477
Battery Life: Typ. over 2 years (more in normal conditions, less in extreme cold)
Compatibility:
- iOS 11+, Android 5.1+. Requires Bluetooth 4.0+ (also known as Bluetooth LE).
- iPhones since the iPhone 5s, iPads since the 5th generation and the 6th generation iPad Touch support this technology.
- There are too many Android devices to list them all here, but you can look in the specifications for your device for Bluetooth 4.0 or Bluetooth LE. Please contact SensorPush support if you are unsure about your specific device.
Temperature Range: -40°C to 60°C (-40°F to 140°F)
Humidity Range:
- 0 - 100%
- (Prolonged exposure to > 80% RH may create an offset of up to +3% in the readings. This effect gradually reverses after return to < 80% RH conditions)
Temperature Accuracy (20°C - 60°C / 68°F - 140°F): ±0.2°C / ±0.36°F typical, ±0.4°C / ±0.72°F maximum
Barometric Pressure Range: 300-1250mb / 8.86 - 36.91inHg
Temperature Accuracy (Full Range): ±0.1°C / ±0.18°F typical ±0.3°C / ±0.54°F maximum
Humidity Accuracy (@ 25°C / 77°F, from 20% - 80% RH): ±1.5% typical, ±3% maximum
Humidity Accuracy (@ 25°C / 77°F, from 0% - 100% RH): ±2% typical, ±3% maximum
Barometric Pressure Accuracy (@ -20-60°C / -4-140°F): ±0.5mb / 0.015inHg typical, ±1.5mb / 0.044inHg maximum
Accuracy Notes:
- 95% of sensors fall within the "typical" range. Sensors outside the "maximum" range are not qualified for sale.
- Please note that above values are maximal tolerances (not including hysteresis) against a high precision reference such as a dew point mirror. Common deviations are within ±2%RH where specified tolerance is ±3%RH and about half the specified tolerance at other values.

SensorPush G1 Wireless Gateway | Remote Access via Internet

WiFi Frequency Band: 2.4 GHz
Width: 5.6 in / 141 mm
Height: 0.8 in / 20 mm
Depth: 4.2 in / 107 mm
Weight: 5.3 oz / 149 g
Power: DC 5V / 2A

In The Box

[1] x SensorPush HTP.xw - Extreme Accuracy | Water-Resistant
[1] x SensorPush G1 Wireless Gateway

SensorPush HTP.xw - Extreme Accuracy | Water-Resistant | Humidity / Temperature / Barometric Pressure Smart Sensor

Temperature accuracy of ±0.3°C
Humidity accuracy of ±3%
Range of 325' line of sight
One-minute intervals of data collection
Up to two weeks of storage

SensorPush G1 Wireless Gateway | Remote Access via Internet

Access data from anywhere
Available through WiFi or Ethernet cable
No set limit to the number of sensors you can monitor with one gateway
No set limit to the number of mobile devices that can simultaneously log into a single account

Q: How often do SensorPush sensors record data?

A: SensorPush sensors record data every minute. Currently, the sample rate cannot be adjusted. However, the CSV export functionality in our applications allows data to be exported at reduced intervals (e.g., every 15 minutes or hourly) to help keep data files manageable if the extra detail is not required. Learn more about exporting data to CSV files.

The current conditions are broadcasted for nearby mobile devices and SensorPush G1 WiFi Gateways to see immediately. Conditions are also logged on the device, allowing you to download a full history later. The amount of storage depends on the sensor model, with current models ranging from 20 to 45 days.

Q: How many days of readings can the sensor store, and what happens after that?

A: Both the sensor and the app store data. The sensor automatically maintains a backup of the most recent 20 days of readings. If you are away from the sensor, it will continue to record the conditions. When the sensor reaches 20 days, it starts to overwrite the oldest data points.

Once the data is picked up by the app, it is stored indefinitely on your mobile device. Similarly, when a SensorPush G1 Gateway is used in conjunction with the sensor, the data is stored indefinitely in the SensorPush cloud.

Q: Can I use SensorPush in a refrigerator, freezer, or walk-in cooler?

A: Absolutely! Many individuals and businesses use SensorPush to monitor their refrigerators, freezers, or even commercial walk-in coolers. However, there are some important considerations:

Signal Strength/Range: Signal strength will be reduced because the signal has to travel through the walls of the equipment. In a normal refrigerator or freezer, you'll likely get a good signal in the same room or in adjacent rooms, but the range won't be as long as it would be if the sensor were outside. When placing a G1 WiFi Gateway, keep it relatively close to the refrigeration equipment. If you need it to be farther away, a little trial and error may be required to ensure a reliable connection.
Water Absorption: Water effectively absorbs Bluetooth signals, and since most food products contain a high percentage of water, this can affect the usable range. The range can vary significantly based on how the sensor is placed within the equipment.
Battery Efficiency: Batteries are less efficient at cold temperatures. In a refrigerator, this effect is minor, but in very cold freezers, you might need to change the battery more often—possibly every 6-12 months instead of the usual 2+ year interval.

For best results in sensitive applications, combining the sensors with a G1 WiFi Gateway is recommended. Since the range is reduced inside refrigeration equipment, the best way to ensure you are always up to date and alerted when issues arise is by using the SensorPush Cloud and the G1 WiFi Gateway.

Q: Can I use SensorPush sensors outdoors?

A: Yes, SensorPush sensors can perform well outdoors, provided they are protected from direct sunlight and precipitation.

While the sensors are not designed to be submersible and thus not classified as waterproof, the HT.w and HTP.xw models are water-resistant. They feature o-ring seals and protective sensor membranes, making them more robust and suitable for outdoor use.

Many users have had good results with the HT1 sensor when it is placed under the eave of a roof or in similarly protected outdoor conditions. Since the HT1 has an open sensor hole, it is advisable to mount the sensor with this hole facing downward to reduce the likelihood of water or debris entering the device.

Regardless of the model, you should protect your sensor from direct sunlight. Solar radiation can heat the sensor's casing, skewing the temperature and humidity readings. For optimal accuracy, choose a mounting location that shields the sensor from direct sunlight and precipitation while allowing good airflow. Mounting the sensor under an eave generally works well. Additionally, there are specially designed solar radiation shields available for such applications.
