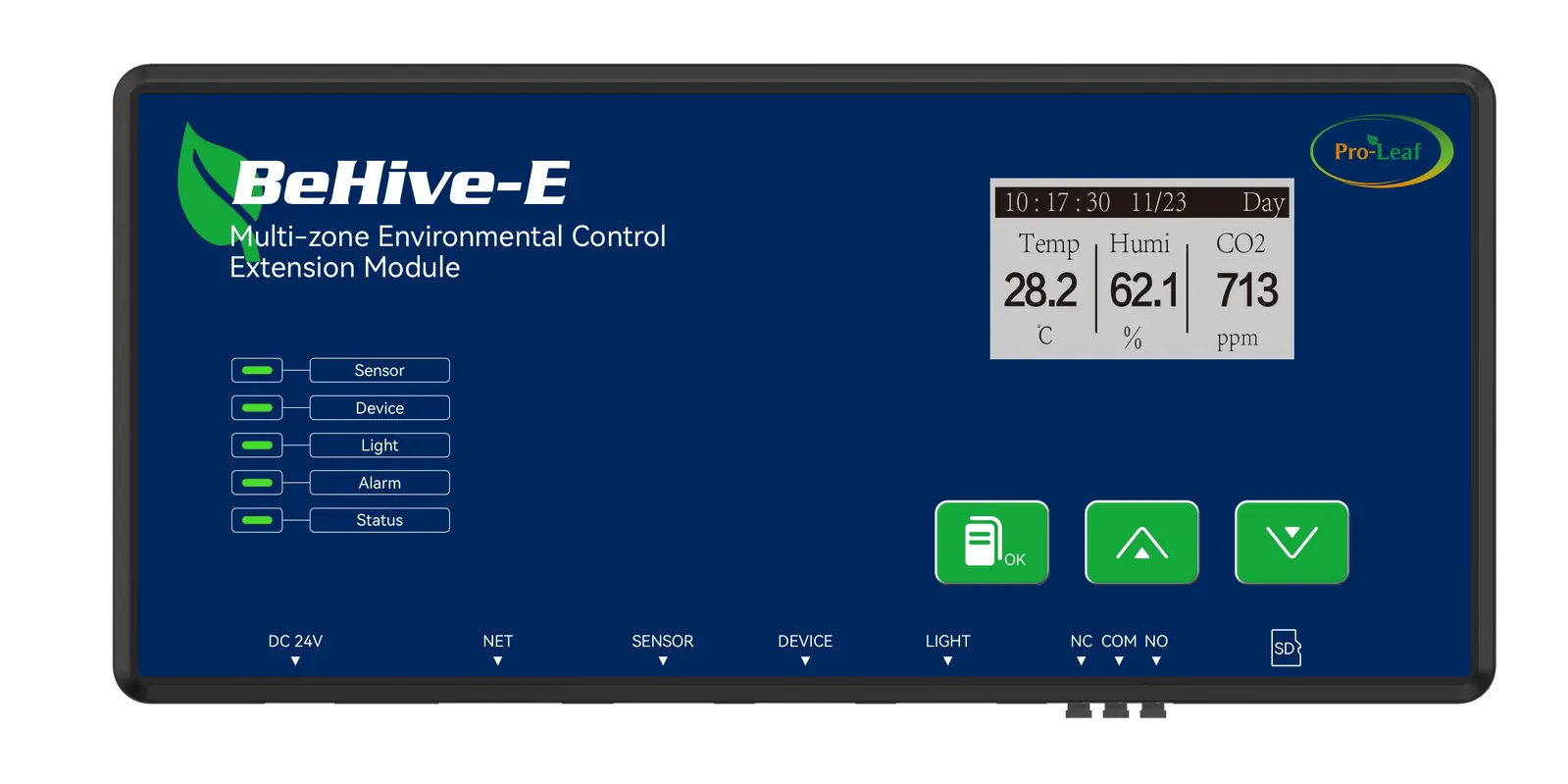

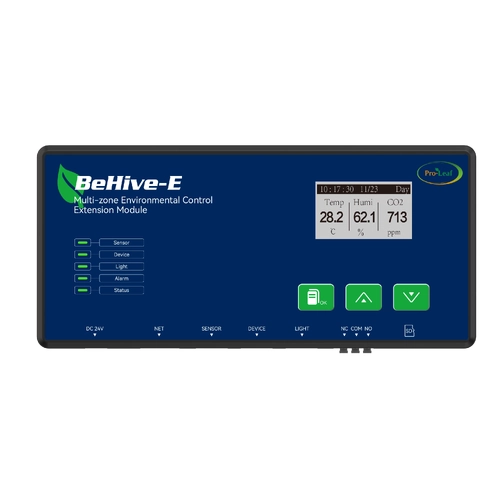

Pro Leaf BeLeaf BeHive-E - BLH-E | Multi-Zone Environmental Control Extension Module

w/ 4-IN-1 Climate Sensor CO2 | Humidity | Temp | Lumen

SKU: NEWBLH-E
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

BeLeaf system is a comprehensive agricultural environmental system developed by Pro-Leaf especially for indoor growing facilities, which integrates environmental control and irrigation control.

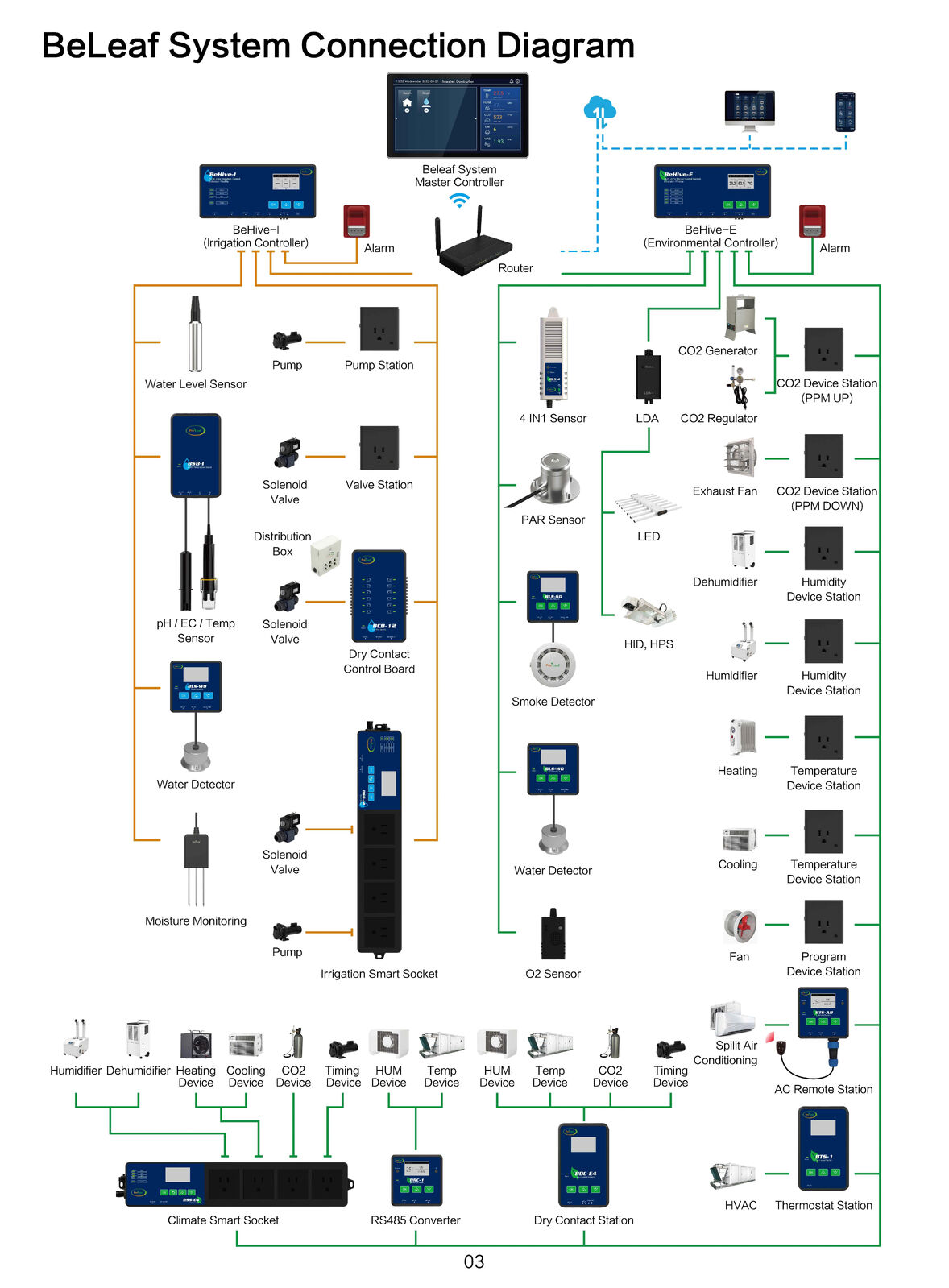

BeLeaf system consists of an on-site Management Unit (BeLeaf Master), Control Unit (BelHive), Sensors, Device Station, Mobile APP, Router, and Cloud Base Server. It allows real-time monitoring and control of grow environmental parameters such as temperature, humidity, light, CO2, and irrigation plan in multiple growing areas, satisfying the control needs of hobbyists to professional growers. The on-site Management Unit and Mobile APP can record sensor data for 30 days, which can help customers with remote monitoring, control, good security and stability, and reduce labor costs.

The BeLeaf system control unit can connect up to 16 environmental control devices, connect 10 environmental sensors of various types, and control 2 lines of lighting.

Specifications

  • Model: BLH-E
  • Size: 16F/97.9*322 mm
  • IP Rating: IP20
  • Working Temperature:
    • 0°C to 50°C
    • 32°F to 122°F
  • Working Humidity: <90%, Non-conforming
  • Working Voltage: DC24V
  • Working current: <50mA (without sensors and device modules)
  • Power Adaptive Input:
    • DC24V, 2A
    • Interface: DC005-2.5
  • Screen:
    • 1.7-inch black and white LCD
    • Resolution: 128 * 64
    • Write loadlight
  • Network Port: RJ45
  • NCMO Port:
    • Dry Contact Alarm Output
    • Load Voltage: < 30V
    • Load Current: < 1A
  • Sensor Port:
    • RJ12,6PIC
    • R5 485
    • Ouplur voltage: 24V
    • Ouplur Current: 0.5A
  • Device Port:
    • RJ12,6PIC
    • R5 485
    • Ouplur voltage: 24V
    • Ouplur Current: 0.5A
  • Light Port:
    • RJ12,6PIC
    • R5 485
    • Ouplur voltage: 24V
    • Ouplur Current: 0.5A
  • Max Number of Sensors:
    • Maximum 10 sensors, total current does not exceed 0.5A
    • 4 IN sensor (SLS~4A)
    • Park sensor (SLS~3A)
    • Max 1pcs Device Detector (SLS~5D)
    • Water Detector (SLS~NQ)
    • O2 Guardian (SLS~O2)
  • Max Number of Device Modules:
    • Maximum 15 Device Modules, and the total current shall not exceed 0.5A (within power consumption of the device may exceed 0.5A, the device have its own power supply)
    • AC Remote Station (BTS~AR)
    • Temperatures System (BTS~I)
    • Temperature Device Station-Coding (BTS~C1)
    • Temperature Device Station-Heading (BTS~HH)
    • Humility Device Station-Determinization (BHS~D1)
    • Humility Device Station-Humification (BHS~H1)
    • CO2 Device Station-PPHU (RDS~PMI)
    • CO2 Device Station-PPH Down (RDS~PD1)
    • Program Device Station (BPS~I)
    • Dry Contact Station (BPC~I)
    • Smart Socket 100~240V (BSS~4)
    • RS485 Converter (BRC~1)
  • Max Number of Lighting Control:
    • Maximum Two Channels
    • Two Light Adapter & DA~1
  • Communication Specification:
    • RS485 Host
    • 900MHz
    • No parity
    • 6-bit data
    • 1-bit stop bit
  • Certification:
    • ETL
    • FCC
    • CE

In The Box

  • [1] x BelHive–E
  • [2] x Expansion Screw Set
  • [3] x RJ12 Connection Cable (20cm)
  • [1] x 35mm Metal Rail Clips
  • [1] x Adapter
  • [2] x Metal Hanging Piece

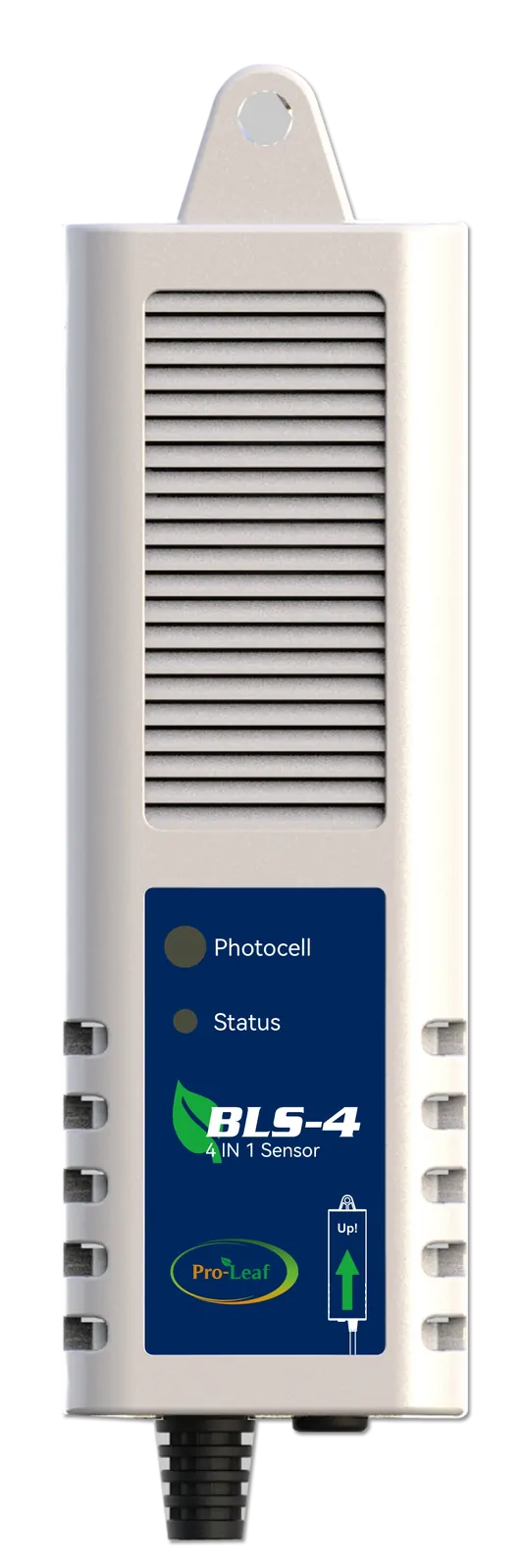

  • [1] x 4 In 1 Sensor
  • [4] x M3 Countersunk Head Screws
  • [1] x Manual
  • [2] x M4 Pan Head Screws
  • [3] x RJ12 Splitter
