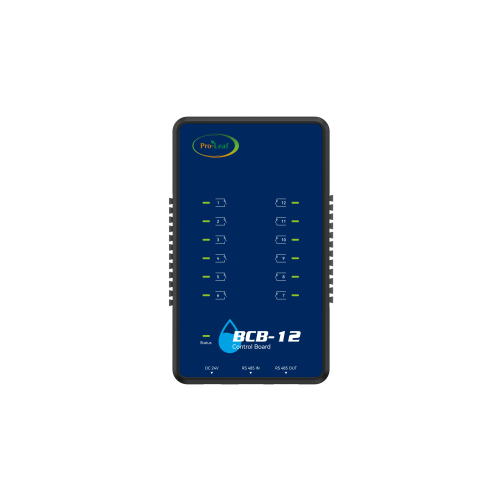

Pro Leaf BeHive-I Dry Contact Control Board BCB-12 | 12 Output

SKU: NEWBCB-12
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

Extension module allows user the to easily connect and control 12 valves

Function

  • The status light is always on when the power is on;
  • The output indicator light is based on the output state: when the output is connected,
  • the indicator light is on; when the output is disconnected, the indicator light is off;
  • If the controller is powered on and there is no host to inquire or control it, it will send
  • a registration protocol to the bus every 10 seconds.



Specifications

  • Name: Control Board BCB-12
  • Model: BCB-12 / BCB-12L
  • Size: 145*88.8*33.2 mm
  • Protection Level: IP20
  • Operating Temperature: 0–50 degrees Celsius
  • Operating Humidity: ≤ 90%, non-condensing
  • Operating Voltage: 12–24VDC
  • Operating Current: ≤150mA
  • Control Output: Dry contact '12
  • Output Port: Press-on spring terminals'2x (2 as a set)
  • Output Dry Contact Load: Current ≤5A, Voltage ≤30V
  • Communication Port: RJ12, 6P6C, with power input
  • Communication Parameters: RS485 slave, baud rate of 9600, no parity, 8 data bits and 1 stop bit

In The Box

  • [1] x BeHive-I Control Board BCB-12
  • [1] x RJ12 Connection Cable (5 meters)
  • [2] x Expansion Screw Set
  • [2] x Hanging Plate
  • [2] x Small Screw
  • [1] x 12V DC/0.5A Power Adapter
