Pro LEaf BeLeaf BeHive-I pH+EC/Temp Sensor + Sensor Board - for Tank

SKU: NEWBSB-1
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

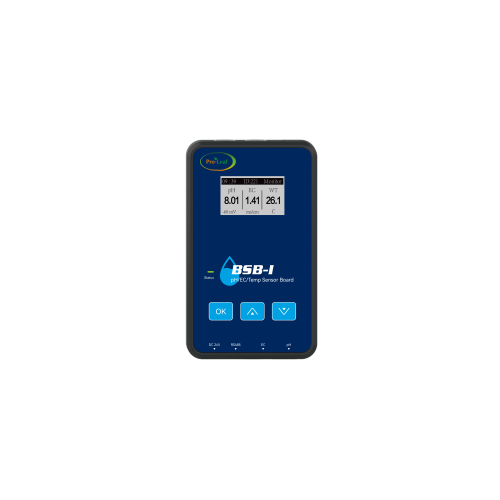

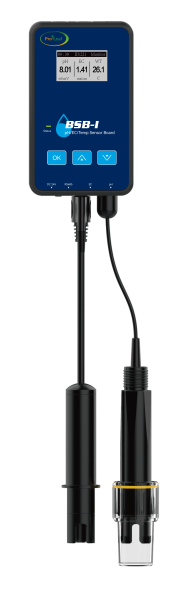

BeLeaf pH probe EC & Temperature probe Sensor Board

Specifications

  • Model: BSB-I
  • Size: 145.3*83*34.4 mm
  • Protection Level: IP20
  • Operating Temperature: 0 ~ 50°C
  • Operating Voltage: DC12~24V
  • Operating Current: ≤40mA @24V
  • EC Measuring Range: 0~5ms/cm
  • EC Accuracy: ±5%RD
  • pH Measuring Range: 0~14
  • pH Accuracy: ±0.1
  • Water Temperature Range: 0~50°C
  • Water Temperature Accuracy: ±1°C
  • Communication Port: RJ12, dP6C, with DC24V power supply
  • Communication Parameters: RS485 slave, baud rate of 9600, no parity, 8 data bits and 1 stop bit
  • Screen: 1.7 inch black and white LCD, resolution 128'64, with white backlight

In The Box

  • [1] x BeLeaf BeHive-I pH+EC/temp Sensor + sensor board (Tank)
  • [1] x pH Sensor
  • [1] x EC Sensor
  • [1] x 12V/0.5A Power Adapter
  • [2] x Expansion Screw Set
  • [2] x Hanging Plate
  • [2] x Self-tapping Screw
  • [1] x Splitter
  • [1] x RJ12 Connection Cable (1m)
  • [1] x RJ12 Connection Cable (5m)
