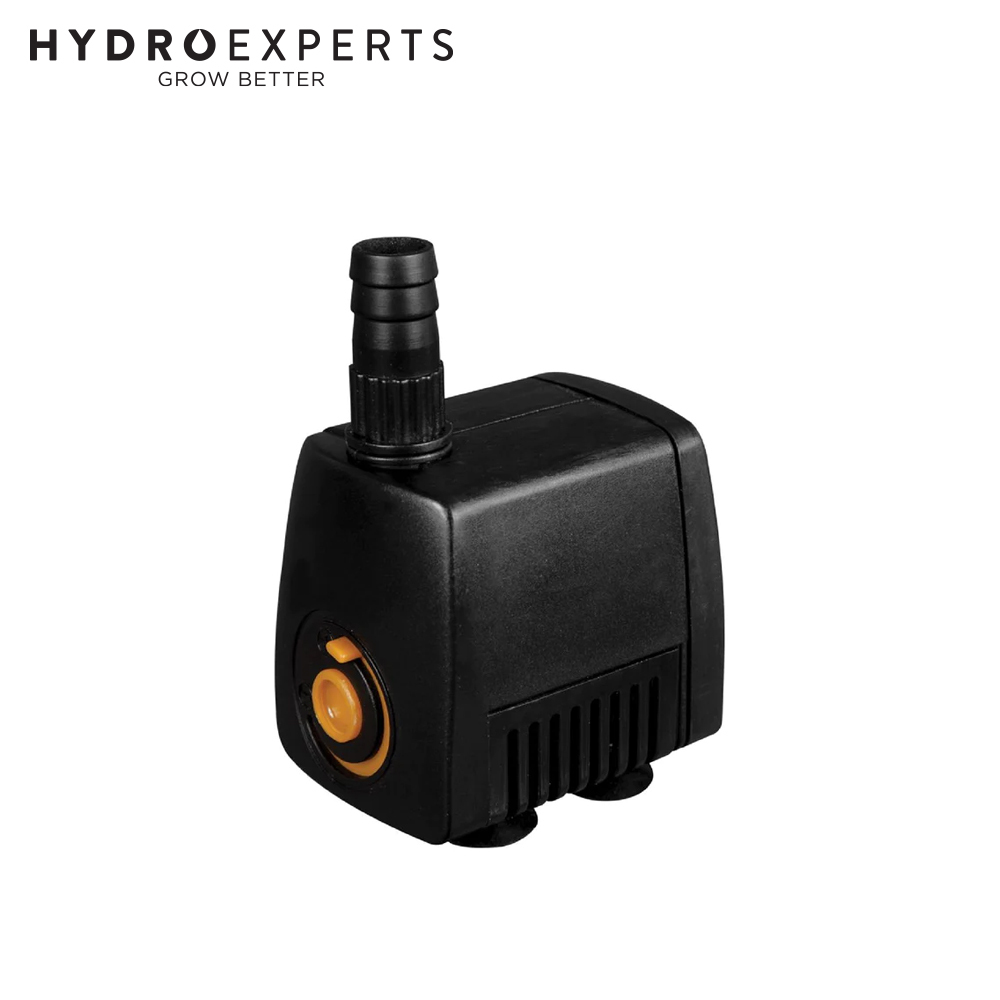

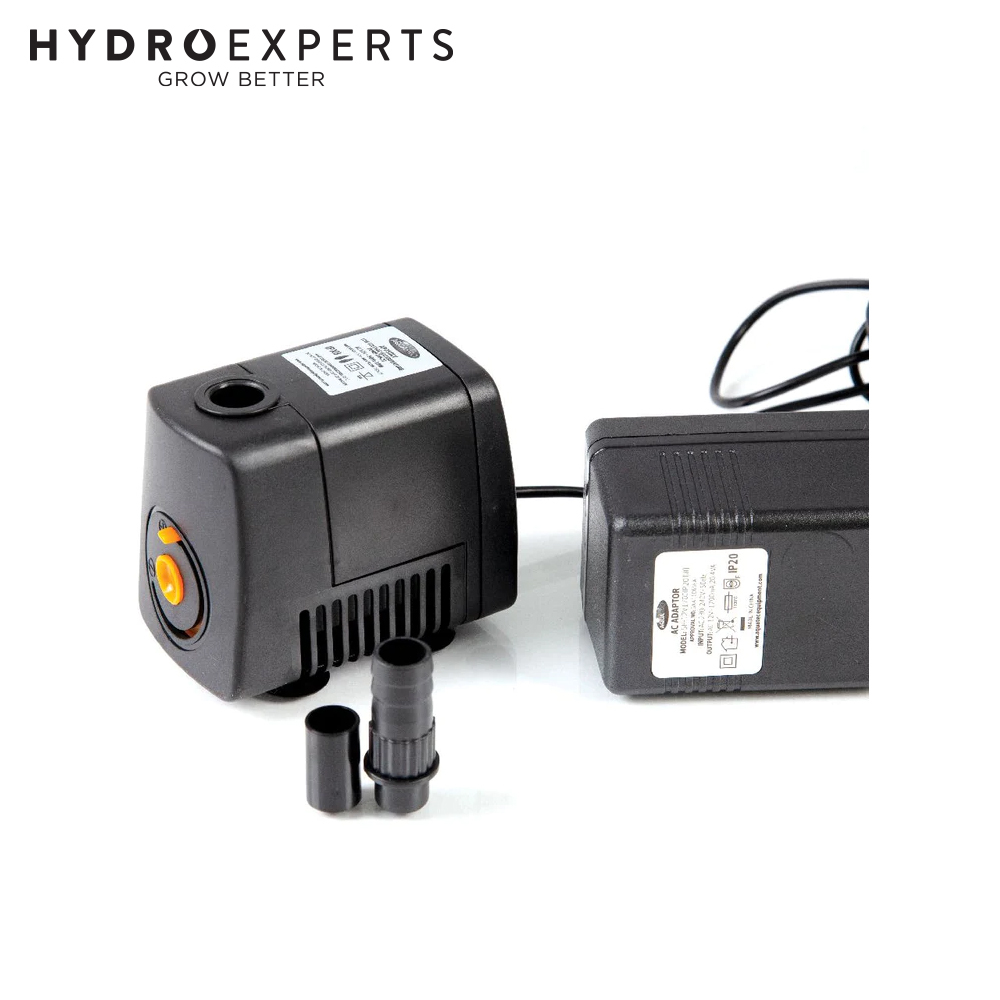

PondMAX Hydroponic & Aquaponic Water Pump - HP550 | 550L/Hour | Inlet/Outlet Size: 12mm

High-Quality Pump with Built-in Flow Control for Optimal Water Circulation

The PondMAX HP550 is a high-quality pump with durable ceramic shafts. With built-in flow adjusters, these are the perfect pump for hydroponic and aquaponic applications. PondMAX pump has been manufactured with advanced technology to provide you with the best quality pump for your hydroponic, aquaponic or aquarium setup.

PondMAX pumps are suitable for use in many different applications including; fountains, water features, small ponds and hydroponics.

Your PondMAX pump has a single moving part (an impellor set) therefore enabling easy cleaning and maintenance.

The motor and electrical components are encapsulated in epoxy resin, ensuring safe operation under water.

INSTALLATION

1. If required, have a qualified electrician install a weatherproof power point near the pond or water feature, (within the cable length of the pump).
2. Place the pump in the desired location, ensure the pump is on a stable surface that is free of sludge, sand and other debris and connect tubing to the outlet or attach the fountain kit.
3. Ensure the pump is submerged then plug in the power cord and switch it on.

MAINTENANCE
Disconnect the power cord from the power supply before performing maintenance. Never lift the pump by the power cord. The only serviceable item is the impellor set. The motor unit of the pump is encapsulated with epoxy resin and does not need lubrication.

All PondMAX submersible pumps are water-cooled; if the pump becomes restricted it will overheat and could cause permanent damage. Ensure the pump does not become blocked or restricted.

The power cord cannot be replaced, if the cord is damaged, the pump must be discarded.

The impellor set is a wearing consumable part. Regular inspections, cleaning and maintenance of the impellor are necessary to ensure a longer impellor life.

If the impellor set becomes worn or damaged it should be replaced (available from your dealer or special orders). Failure to do so may cause serious damage to the pump.

1. Disconnect the power cord from the power supply before performing maintenance.
2. Remove the pump from the water, detach the tubing/ fountain kit and remove the front cage from the pump.
3. Remove the impellor locking ring/ cover by either turning anti-clockwise and pulling out.
4. Gently remove the impellor and shaft, use long nose pliers if needed. Take care not to break ceramic shafts (if applicable) because they are brittle.
5. Clean impellor, checking for any signs of wear or damage.
6. Reinstall the shaft, and then carefully slide the impellor onto the shaft. The impellor will pull itself in by magnetic force, this is normal. (Take care not to pinch your fingers).
7. Replace the impellor cover making sure the shaft is located properly on the impellor cover.
8. Replace the front cage.
9. Re-attach the tubing/fountain kit, submerse it in water, connect it to the power supply and turn it on.
