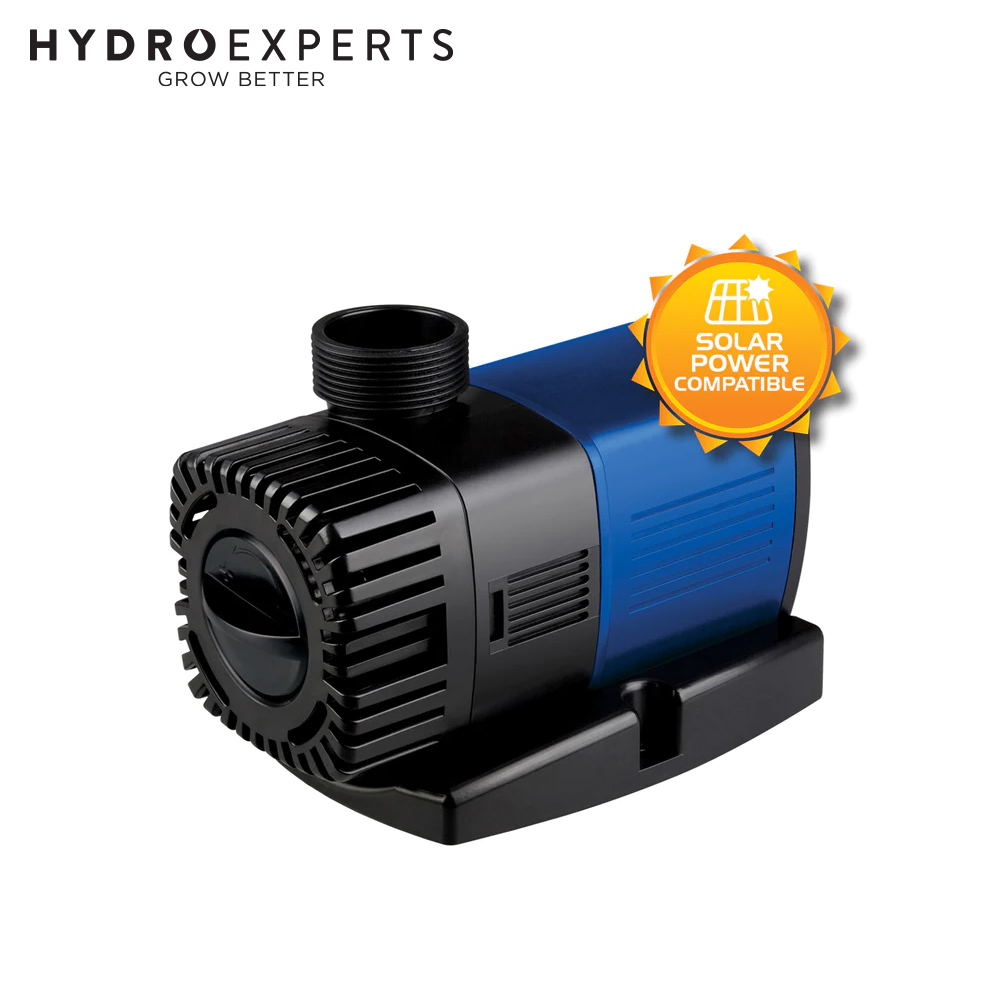

PondMAX EV4910-DC Low Voltage Pump - 45W | Max Flow: 4600L/H | 32MM Inlet & Outlet
High Performance With Very Low Power Consumption
SKU: WPUMP50014
|
IN STOCK
FREE SHIPPING OVER $499*
Products You May Need
Pick up at store Free
Delivery Options:
If cart total is less than $499*
Freight applies
If cart total is $499* & above
Free
*excluding bulky items
Calculate shipping
International shipping
Click hereSECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER
The PondMAX EVOII Low Voltage DC pumps are suitable for multiple applications including fountains, water features, aquaponics and garden ponds. This pump is a safe low voltage pump making it child and pet friendly.
- PondMax Fountain & Pond pumps are suitable for use in many different applications including fountains, water features, aquatic systems, aquarium applications and hydroponics. The pumps can be used in either submersible or in-line use applications.
- Submersible pumps are magnetically driven centrifugal pumps, therefore they cannot suck from a water level that is below the inlet level when used in-line.

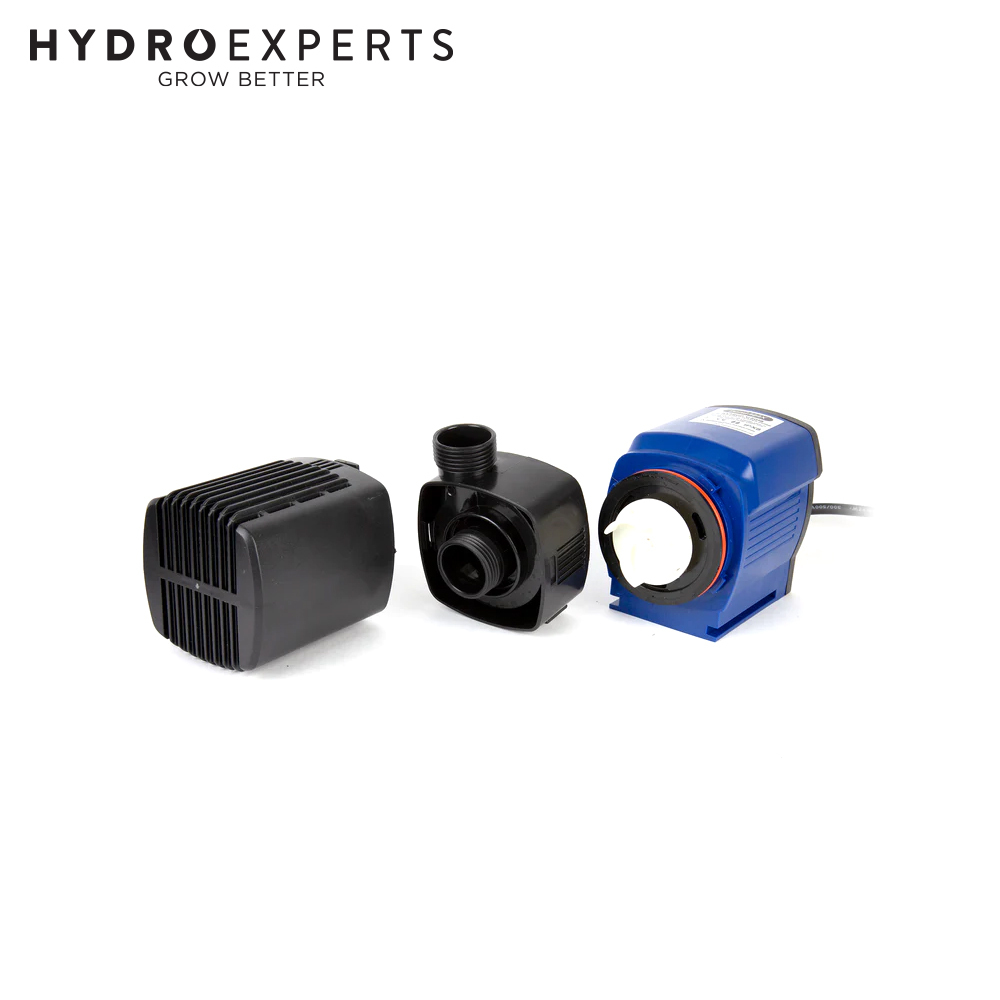

- Your pump has a single moving part (an impellor set) enabling easy cleaning and maintenance.
- The models EV1900 – EV13600 Pumps have intelligent circuitry that analyses the speed and torque of the motor. It will increase and decrease energy usage to maximise efficiency.
- The soft-start nature of the system helps to avoid sudden jolting at the start-up. The intelligent system will change the motor speed to maximise the flow of water in the given circumstances. If the Impellor gets jammed or stops, the circuitry will sense the state and cut the power automatically for 3 seconds and then power up again.
- This procedure will repeat 3 times. If the rotor is still jammed, it will activate a prolonged low state, till the pump is turned off, and adequate maintenance is carried out. Thus minimising motor burnout, due to electrical heat, through lack of water flow through the motor.
- The motor and electrical components are totally encapsulated in epoxy resin, ensuring safe operation under water.
- The pump has a robust bearing and shaft design so no Oil/grease lubrication is required.
- PondMax pumps, that have plastic impeller parts and ceramic shafts, can be used in Marine applications as there is no exposed copper. For Marine use, please see the warranty disclaimer.
- PondMax Submersible Pumps are continuously rated and therefore are designed to operate 24/7.
- DC Current, commonly found in batteries is useful when designing pump systems to run with backup batteries and solar panels.

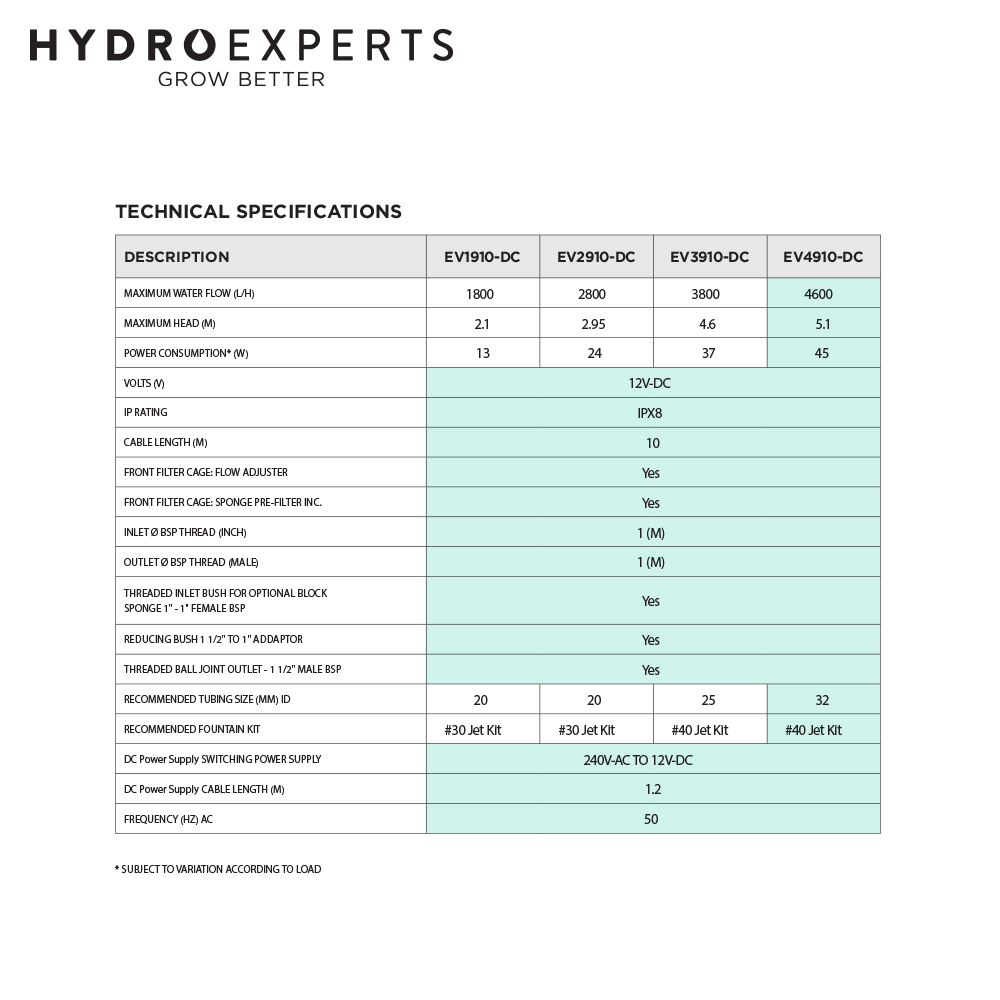

Specifications
- Maximum Water Flow (L/H): 4600
- Maximum Head (m): 5.1
- Power Consumption* (W): 45
- Volts (V): 12V-DC
- IP Rating: IPX8
- Cable Lenght (m): 10

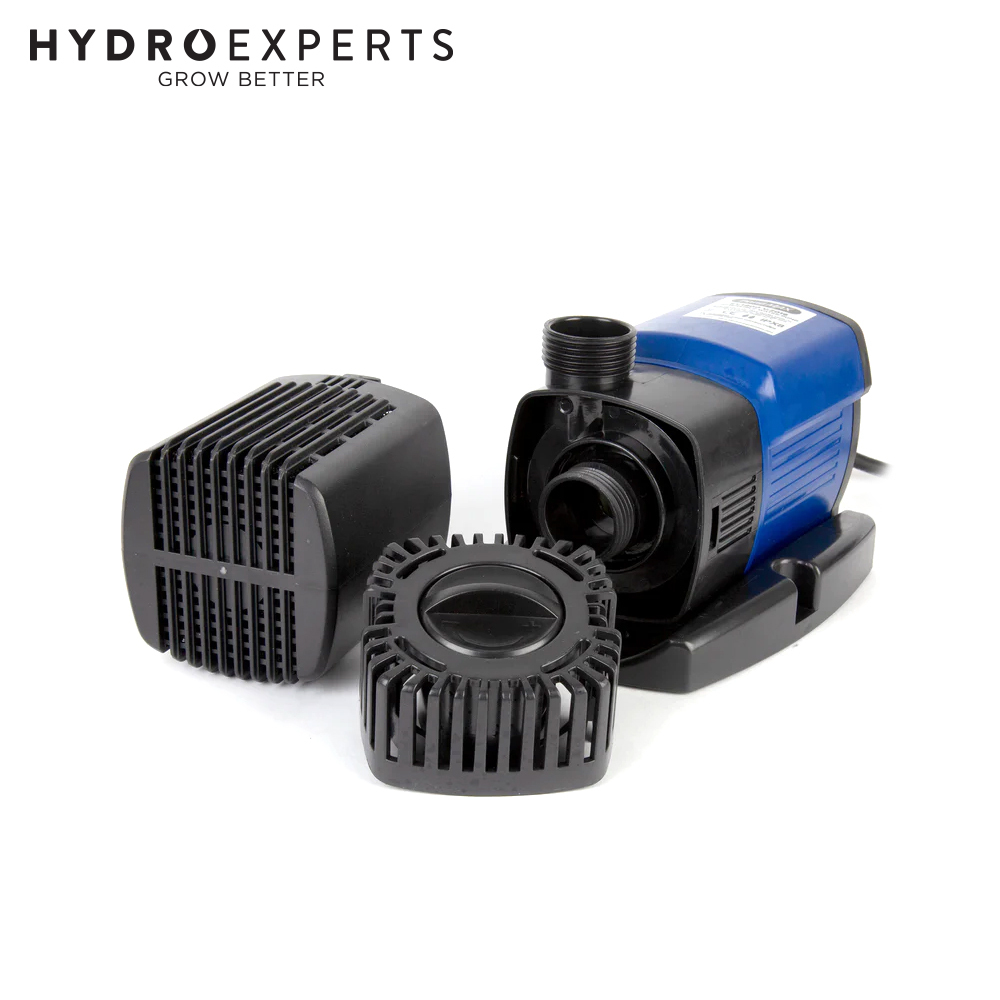

- Front Filter Cage (Flow Adjuster): Yes
- Front Filter Cage (Sponge Pre-Filter INC): Yes
- Inlet Ø BSP Thread (inch): 1" (M)
- Outlet Ø BSP Thread (Male / Female): 1 (M)

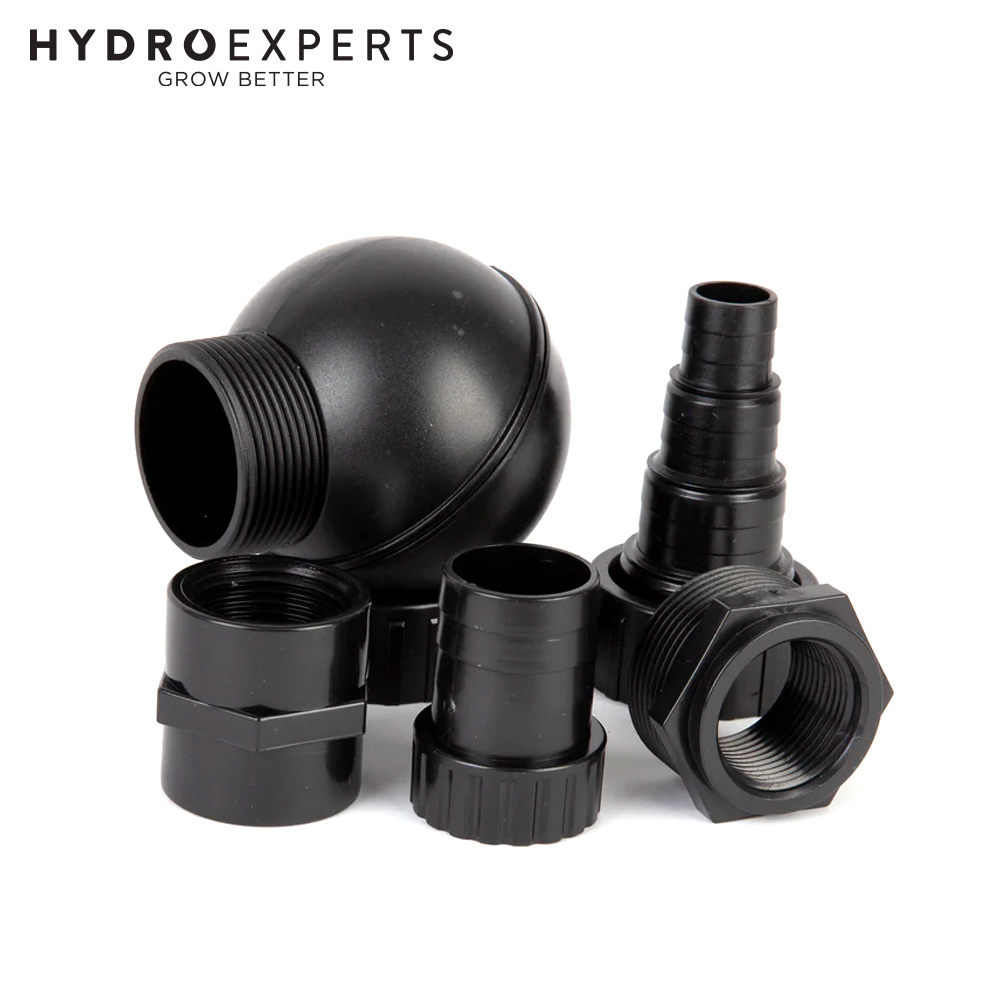

- Threaded Inlet Bush for Optional Block Sponge 1" - 1" Female Bsp: Yes
- Reducing Bush 1 1/2" to 1" Adaptor: Yes
- Threaded Ball Joint Outlet - 1 1/2" Male BSP: Yes
- Recommended Tubing Size (mm ) ID: 32mm

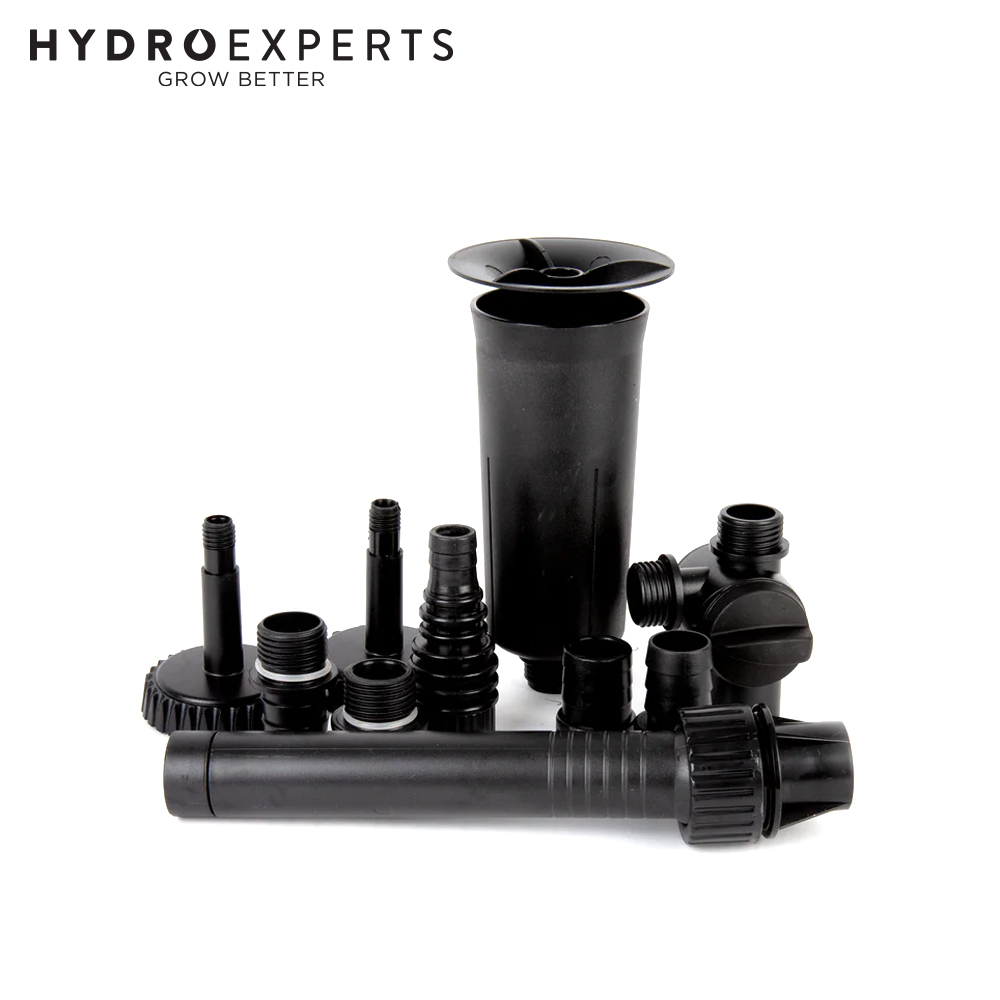

- Recommended Fountain Kit: #40 Jet Kit
- DC Power Supply Switching Power Supply: 240V-AC TO 12V-DC
- DC Power Supply CABLE LENGTH (M): 1.2
- Frequency (Hz) AC: 50
*SUBJECT TO VARIATION ACCORDING TO LOAD
In The Box
- [1] x PondMAX EV4910-DC Low Voltage Pump - 45W | Max Flow: 4600L/H | 25MM Inlet & Outlet
- Variable Frequency Motor Technology – Extra high-speed rotations of the impellor.
- Open Vane Impeller Design – Handles large particles size up to 4mm soft sediment.
- Long-life Impellor Design – Ceramic shaft is wear-resistant and self-lubricated by water
- High Head Pressure – Due to extra high-speed rotations of the impellor.
- Energy Efficient – Exceptional low power consumption to high water flow conversion.
- Eco Friendly – Exceptional low dB noise rating with low mechanical vibration.
- Marine Compatible* see warranty disclaimer – No exposed copper.
- Tool-less Assembly - For Easy maintenance. No special tools are required.
- Rotor Stop Protection – Sensors automatically cut power in the event that the impellor stops rotating, reducing the chances of motor burnout.
- Soft Start – Rotor starts at low speed and increases over a short period of time. This reduces sudden recoil kickback on start up.
- 12V Low Voltage Direct Current (DC) – This can be used safely in most applications.
- High Performance With Very Low Power Consumption
- Variable Frequency Motor Design
- Anti-burnout & Soft Start Technology
- Tool-less Assembly for Easy Maintenance
- Fountain Kit Included
- Can Be Used Inline
Documents
Download PDF brochure
Limited Warranty 2+1 Year
- The additional 1 Year Extended Warranty applies when you REGISTER with Aquatec Equipment. See enclosed for details and please retain your proof of purchase and Warranty form.
- The warranty covers only appliance defects and faulty material and workmanship within a 2-year period.
- Faults arising due to accidents, misuse, not following manufacturer’s guidelines/instructions or power surges/spikes/brownouts will not be covered.
- The system has been designed with a specific length of cable and DC Power Supply. If any other electrical supply is attached or used this warranty is void.
- The impellor set is a consumable item and is therefore not covered under warranty.
- The warranty will be void if any tampering removal of warranty labels or electrical circuitry is evident.
- The warranty will be void if the power cord is cut or damaged in any way.
- The warranty will be void if any visible signs of overheating are present.
- Loss of livestock, damage to property or personal injury caused by this product will not be covered.
- Warranty claims caused by installation faults will not be covered.
- It is the customer’s responsibility to return the faulty appliance for any warranty claim, to Aquatec.
- For any warranty to be valid, original proof of purchase must be provided.
- Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
- You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- A Warranty claim must be made within 2 years of the date of purchase.
- If used in Marine or Saltwater, due to the harsh conditions, there is only a 1-year warranty.
Extended Warranty
- The Extended Warranty period is for an additional 1 Year and commences on the expiration of the Standard Warranty period.
- Application for Extended Warranty is FREE of any registration cost to the purchaser on completion of the Extended Warranty questionnaire can be found in the box with the item purchased.
- Please keep a copy of the registration form in a safe place together with your proof of purchase (sales receipt). Both documents will be required for any claim under this extended warranty.
- Where Aquatec determines goods are being used in a manner contrary to the instructions, specifications or this Warranty, Aquatec reserves the right to terminate the Extended Warranty for such goods and will provide written notice to the purchaser.
