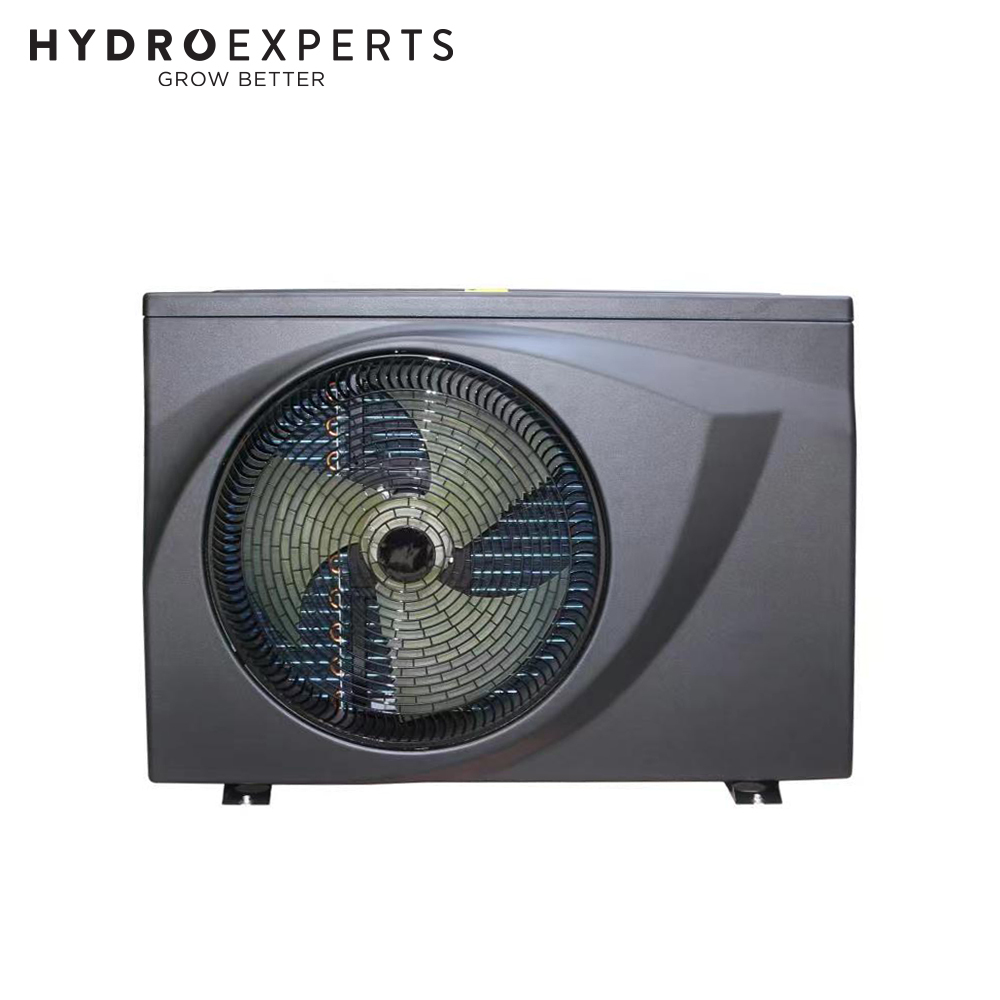

Toyesi Platypus Domestic Heat Pump HC 0704-1 - Home Swimming Pool Heater
Inverter Heater / Chiller Heat Pumps 8°C to 38°C
ETA: 9-12 Weeks
POSTAGE APPLIES
Pick up at store Not Available
In-store pickup not available.
Delivery Options:
If cart total is less than $499*
Freight applies
If cart total is $499* & above
Freight applies
*This item is bullky so freight applies.
Calculate shipping
International shipping
Click hereSECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER
The Platypus HC 0704-1 home swimming pool heater redefines efficiency. Engineered with a compact and economical design, this heat pump operates with a high-efficiency Eco-Friendly R32 Refrigerant. The heating coefficient of performance ranges from an impressive 4.0 to 13.8 , ensuring the pool stays warm even in colder seasons. Cooling is equally efficient with an energy efficiency ratio of 2.7 to 5.1 . Temperature output can be flexibly set ranging from a soothing 8°C to a tropical 43°C. The Platypus HC 0704-1 boasts an ergonomically compact chassis, coated in durable powder (for the Mini version) or ABS plastic casing with anti-UV protection. This offers a fantastic value-for-money heating and cooling solution.
Versatile Pool Paradise
The Platypus HC 0704-1 stands out as the epitome of versatility in home pool heating. With its inverter heater-chiller system, this model offers heat mode, cool mode, and the convenient auto mode. It is perfect for backyard pools ranging from 15°C to 31°C, and is also suitable for smaller 1,000 to 8,000L cold plunge pools, maintaining temperatures from 8°C to 15°C. Enjoy the luxury of spa sessions up to 38°C, transforming the pool area into a year-round paradise. The Platypus range provides an unparalleled heating solution for pools of all sizes.
Mini Marvels: Portable Perfection
The Platypus Mini line introduces mini heater chillers that pack performance in a compact (approx. 40mm cube) design. Tailored for small backyard pools, plunge pools, and spas, these units epitomise simplicity with their plug-and-play system. The Platypus Mini ensures portability, making it an excellent choice for mobile pools and spas. Enjoy the efficiency and power of heat pumps in a sleek and space-saving package. Select the preferred mode – heating only, cooling only, or the intelligent auto mode – and bask in the convenience of full temperature control. Mini in size, mighty in performance.
SIZING CHILLER SELECTION TABLE FOR PLUNGE POOLS (ICE BATH)
Please use this table as a reference when choosing the right-sized chiller for your plunge pool.
| Plunge Pool Size | 8°C Water Temp | 10°C Water Temp | 12°C Water Temp | 15°C Water Temp |
|---|---|---|---|---|
| < 500 L | Mini 50 (1.3 kW) | Mini 30 (1.1 kW) | Mini 30 (0.9 kW) | Mini 30 (0.6 kW) |
| 1,000 L | Mini 50 (1.4 kW) | Mini 50 (1.2 kW) | Mini 30 (1.0 kW) | Mini 30 (0.7 kW) |
| 1,500 L | Mini 50 i (1.7 kW) | Mini 50 (1.5 kW) | Mini 50 (1.2 kW) | Mini 30 (0.9 kW) |
| 2,000 L | Mini 60 i (1.9 kW) | Mini 50 i (1.7 kW) | Mini 50 (1.4 kW) | Mini 30 (1.1 kW) |
| 2,500 L | HC 0704 (2.2 kW) | Mini 60 i (1.9 kW) | Mini 50 (1.7 kW) | Mini 50 (1.3 kW) |
| 3,000 L | HC 0704 (2.4 kW) | HC 0704 (2.2 kW) | Mini 50 i (1.9 kW) | Mini 50 (1.5 kW) |
| 4,000 L | HC 1005 (2.9 kW) | HC 0704 (2.6 kW) | Mini 60 i (2.3 kW) | Mini 50 (1.9 kW) |
| 5,000 L | HC 1005 (3.4 kW) | HC 1005 (3.1 kW) | HC 0704 (2.8 kW) | Mini 50 i (2.3 kW) |
| 6,000 L | HC 1307 (3.9 kW) | HC 1005 (3.6 kW) | HC 1005 (3.2 kW) | Mini 60 i (2.6 kW) |
Estimate Chiller load Assumptions for a Domestic Plunge pool.
Location, ambient temperature, Pool temperature, indoor pools, outdoor pools, pool covers, heated rooms, high-use periods and chiller operating hours will all change the heat load of a plunge pool. The above guide is just that a guide. The above guide is based on a 2-person user plunge pool. Commercial pools or pools with high usage should always seek a sizing estimate. The estimate above is also a minimum suggested size.
The above Sizing Chiller Selection Table is based on 28 C Ambient, Indoor Plunge Pool, No Cover, 12-hour chiller operating hours and 2-person pool usage.
It is highly recommended to select the next unit up when pool kW demands are at the edge of a selected unit’s nominal kW cooling capacity.
| Model | Cooling (KW) | HP | Litres of Water | Power |
|---|---|---|---|---|
| Mini 30 | 1.5 | 0.4 | < 1,000 | 1 Phase |
| Mini 50 | 2.6 | 1.0 | 1,500 | 1 Phase |
| Magic Mini 50 i (Inverter) | 3.0 | 1.2 | 2,000 | 1 Phase |
| Magic Mini 60 i (Inverter) | 3.3 | 1.3 | 2,500 | 1 Phase |
| Platypus HC 0704-1 | 2.68 | 1.6 | < 4,000 | 1 Phase |
| Platypus HC 1005-1 | 4.02 | 2.0 | 5,000 | 1 Phase |
| Platypus HC 1307-1 | 5.36 | 2.5 | 6,000 | 1 Phase |
| Platypus HC 1709-1 | 5.82 | 3.0 | 7,000 | 1 Phase |
| Platypus HC 2111-1 | 6.96 | 4.0 | 8,000 | 1 Phase |
| Platypus HC 3015-1 | 9.52 | 5.7 | 10,000 | 1 Phase |
| Platypus HC 3015-3 | 9.92 | 5.7 | 12,500 | 3 Phase |
| Platypus HC 3520-3 | 12.07 | 7.5 | 15,000 | 3 Phase |
In The Box
- [1] x Toyesi Platypus Domestic Heat Pump HC 0704-1 - Home Swimming Pool Heater
- Distinctive, robust, and corrosion-resistant stainless-steel case and fasteners throughout.
- Low ambient 'winter heating capacity ratings.
- Compact slim case design offering a small footprint.
- Commercial-grade compressor technology.
- High heat transfer coefficient pool-spa water heat-exchangers for use with salt or chlorinated water.
- Self-managing 'reverse cycle' defrost logic.
- Optimum flow rate water balancing valves.
- Visible operating performance needle gauges.
- Self-diagnostic energy management control board.
- Slow rotation 'quieter' side fan operation.
- Digital LED display thermostat controller.
- Compressor 'soft start' control.
- Factory operation and performance testing.
- Long-term after-sales technical support and service.
- Warehouse stocked spare parts 'ready to ship'.
- Fully welded condensate recovery drip tray.
Q1: What makes the Platypus HC 0704-1 a cost-effective choice for pool heating?
A: The Platypus HC 0704-1 stands out for its high-efficiency Eco-Friendly R32 Refrigerant, delivering a Heating COP ranging from 4.0 to 13.8. This ensures optimal performance, making it a cost-effective solution for maintaining your pool at the perfect temperature.
Q2: Can the Platypus Mini be used for different pool types, and is it easy to install?
A: Absolutely! The Platypus Mini is designed for versatility, catering to small backyard pools, plunge pools, and spas. Its plug-and-play system ensures easy installation, making it a hassle-free choice for various pool types.
Q3: How does the Inverter heater-chiller system benefit pool owners?
A: The Inverter heater-chiller system in the Platypus HC 0704-1 offers Heat Mode, Cool Mode, and Auto Mode, providing flexibility and efficiency. This feature allows pool owners to tailor the heating or cooling process according to their specific needs, contributing to energy savings.
Q4: Is the Platypus HC 0704-1 suitable for both small and large pools?
A: Yes, indeed! The Platypus HC 0704-1 is designed for versatility, making it ideal for small backyard pools and large pools alike. Its temperature control capabilities cater to a wide range, from smaller plunge pools to larger backyard swimming pools.
