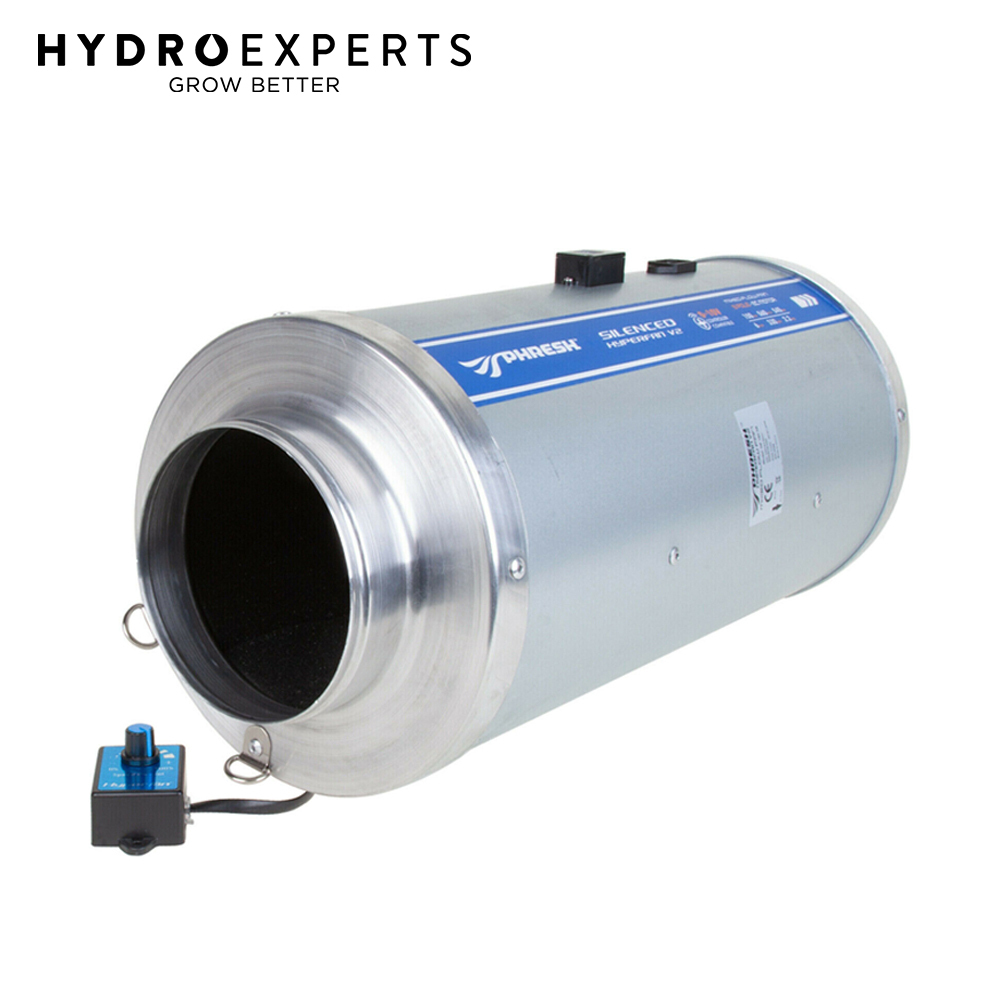

Phresh Silenced EC Hyperfan v2 w/ Controller - 300MM (12") | 1827CFM

Updated v2 Model | Speed Variable | 2 Years Warranty

SKU: XFANS45224
|

IN STOCK

POSTAGE APPLIES

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Freight applies

*This item is bullky so freight applies.

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade. Silenced Hyperfans have a reduced dB of up to 70% over standard Hyperfans. Our unique spring-mounted housing further reduce vibration and help deliver some of the quietest fans in the industry (m3/h per Watt)

Specifications

Size: 300MM (12" Inch)

  • Max Air Flow: 3100 M^3/h - 1827CFM - 862LPS
  • RPM: 3200
  • Watts: 320W
  • Amps: 2.8A
  • Weight: 12.9KG
  • Noise: 59 dB A
  • Fan Pressure: 730Pa/iwg2.93"
  • Diameter: 302.1MM
  • Width: 388MM
  • Length: 1010MM
  • Housing: Steel & Aluminium
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2

In The Box

  • [1] x Phresh Silenced EC Hyperfan v2 w/ Controller - 300MM (12")
  • New 9 pole digital EC "Brush-Less" motors
  • High fan efficiency
  • Higher linear airflow output than other fans
  • Higher static pressure output than outer fans
  • Detachable, fully variable speed controller included
  • Sturdy, steel housing and Abec 7 ball bearings
  • 0-10V controller compatible via RJ9 or RJ11 cable



The importance of pressure (pa):

Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's ability to remove either hot or stale air from the environment.

2-Year Replacement Warranty

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.
