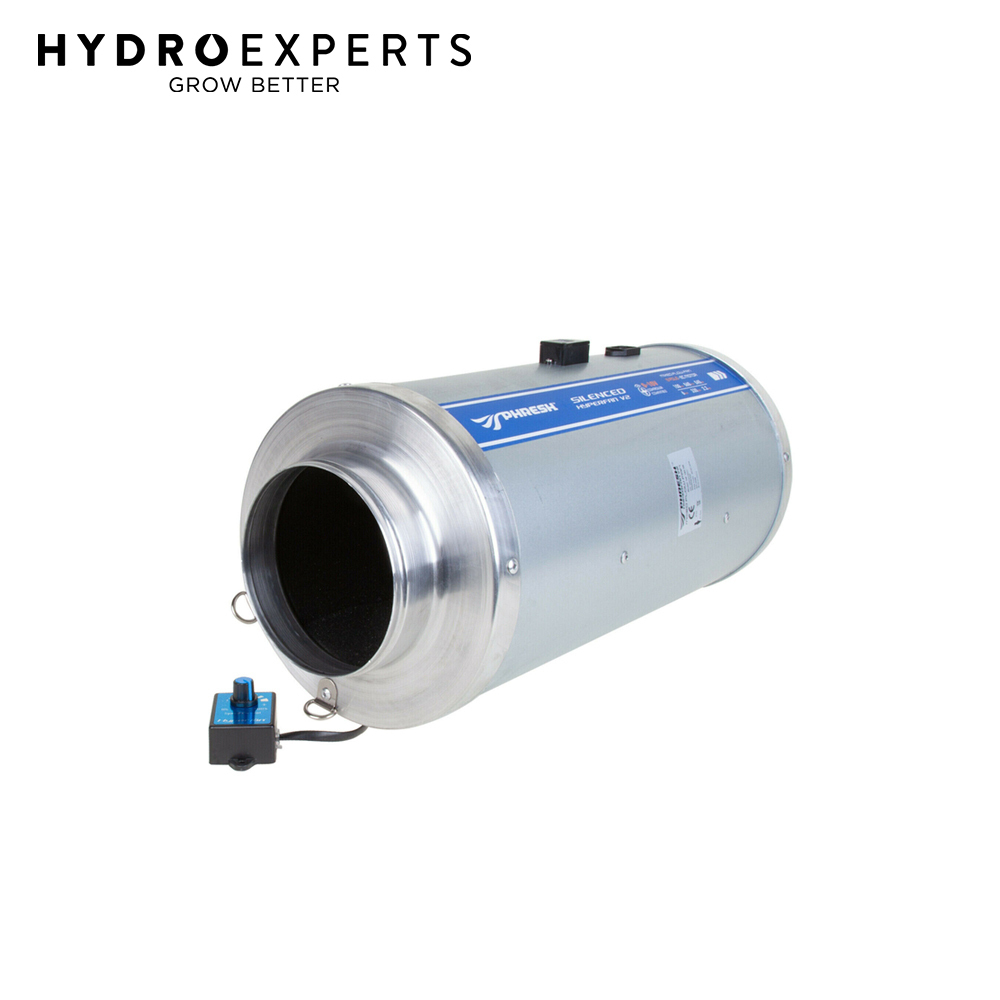

Phresh Silenced EC Hyperfan v2 w/ Controller - 125MM (5" Inch)

Updated v2 Model | Speed Variable | 2 Years Warranty

SKU: XFANS45226
|

IN STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade. Silenced Hyperfans have a reduced dB of up to 70% over standard Hyperfans. Our unique spring-mounted housing further reduce vibration and help deliver some of the quietest fans in the industry (m3/h per Watt)

Specifications

Size: 125MM (5" Inch)

  • Max Air Flow: 206 cfm – 350 m3/h – 97 Lps
  • RPM: 5700
  • Watts: 27W
  • Noise: 51 dB A
  • Amps: 0.25
  • Weight: 0.25
  • Fan Pressure: 475 Pa / iwg 1.92"
  • Diameter: Ø 5" / 125 mm
  • Width: 8.39" / 213 mm (including mounting bracket)
  • Length: 19" / 480 mm
  • Housing: Available in stainless or powder coated steel
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2



In The Box

  • [1] x Phresh Silenced EC Hyperfan v2 w/ Controller - 125MM (5" Inch)
  • New 9 pole digital EC "Brush-Less" motors
  • High fan efficiency @7.85CFM per watt
  • Higher linear airflow output than other fans
  • Higher static pressure output than outer fans
  • Detachable, fully variable speed controller included
  • Sturdy, steel housing and Abec 7 ball bearings
  • 0-10V controller compatible via RJ9 or RJ11 cable

The importance of pressure (pa):

Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's ability to remove either hot or stale air from the environment.

  • Warranty: 2 Years
