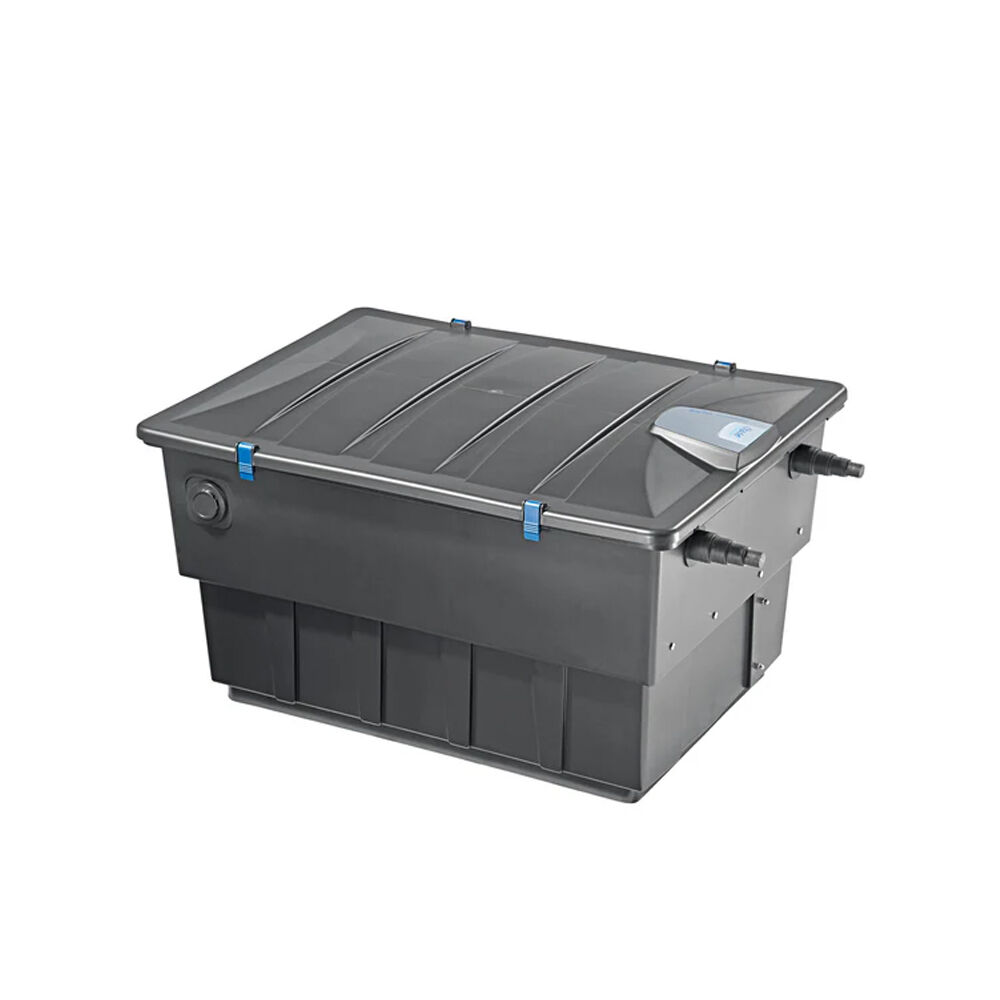

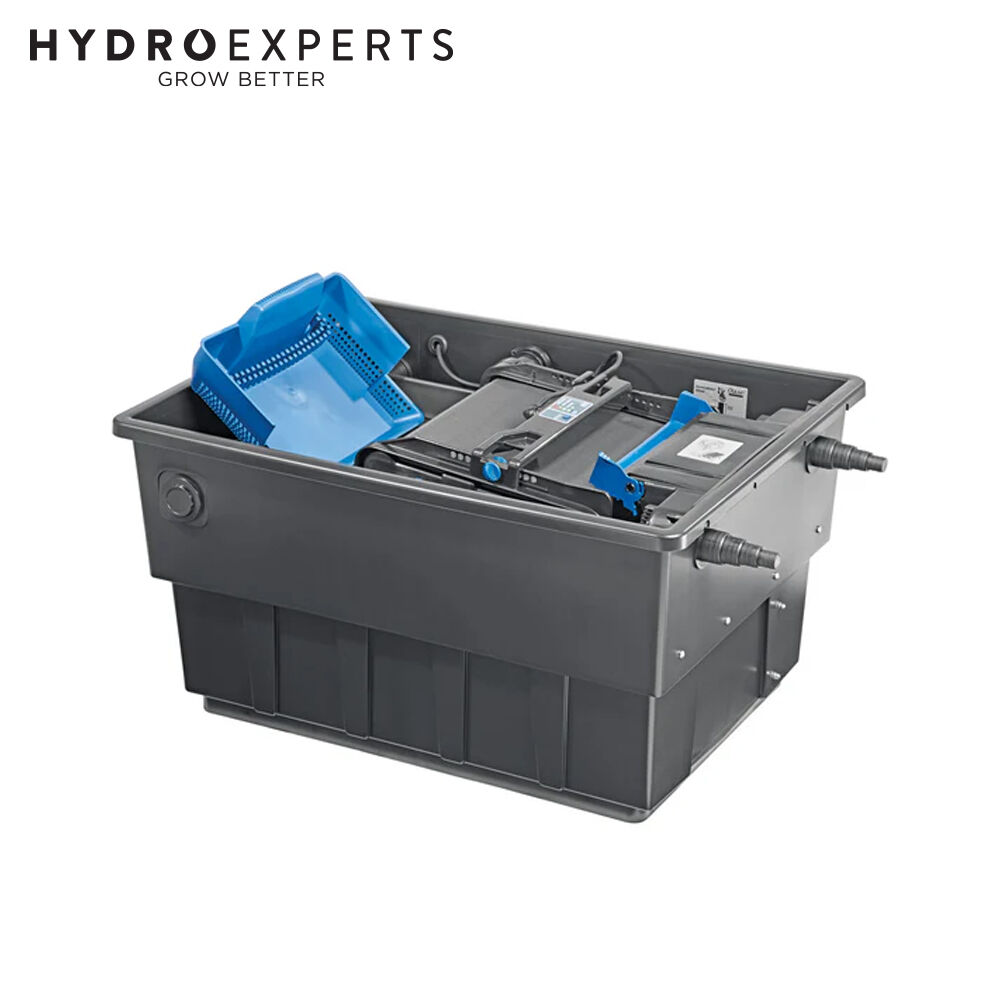

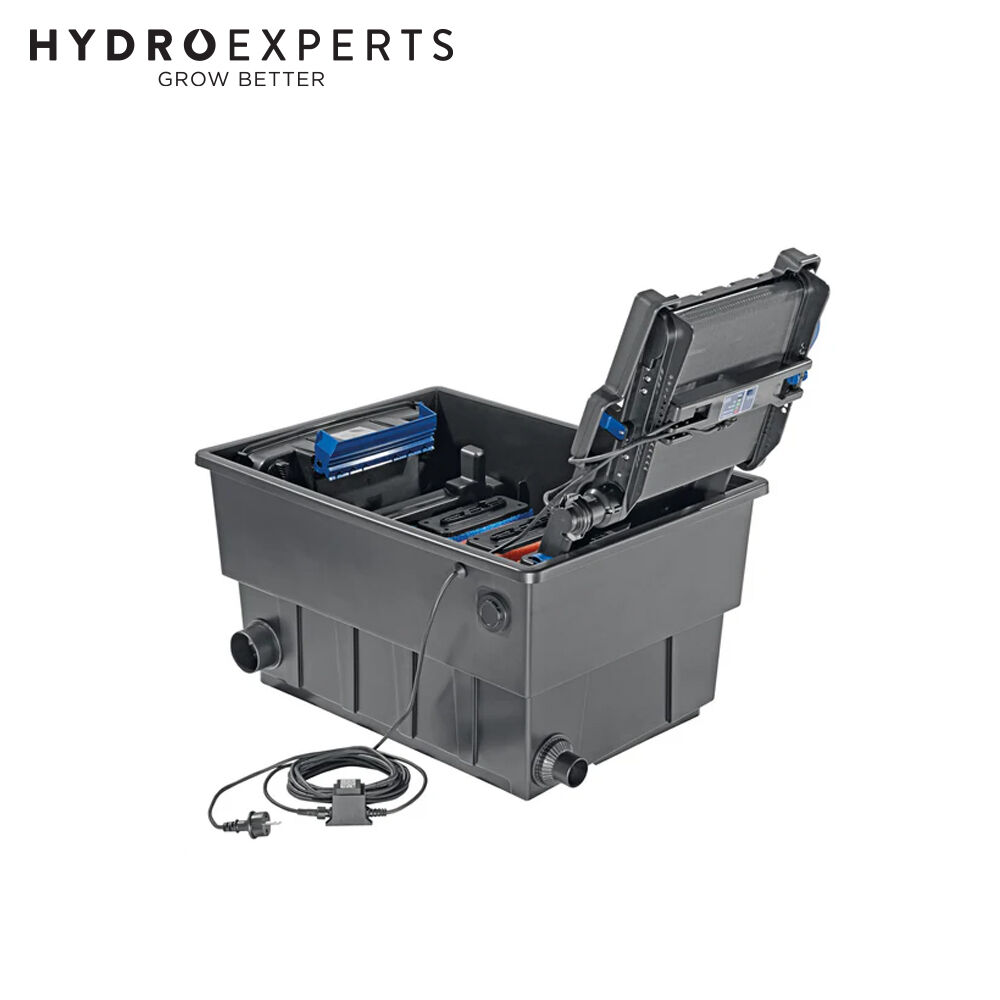

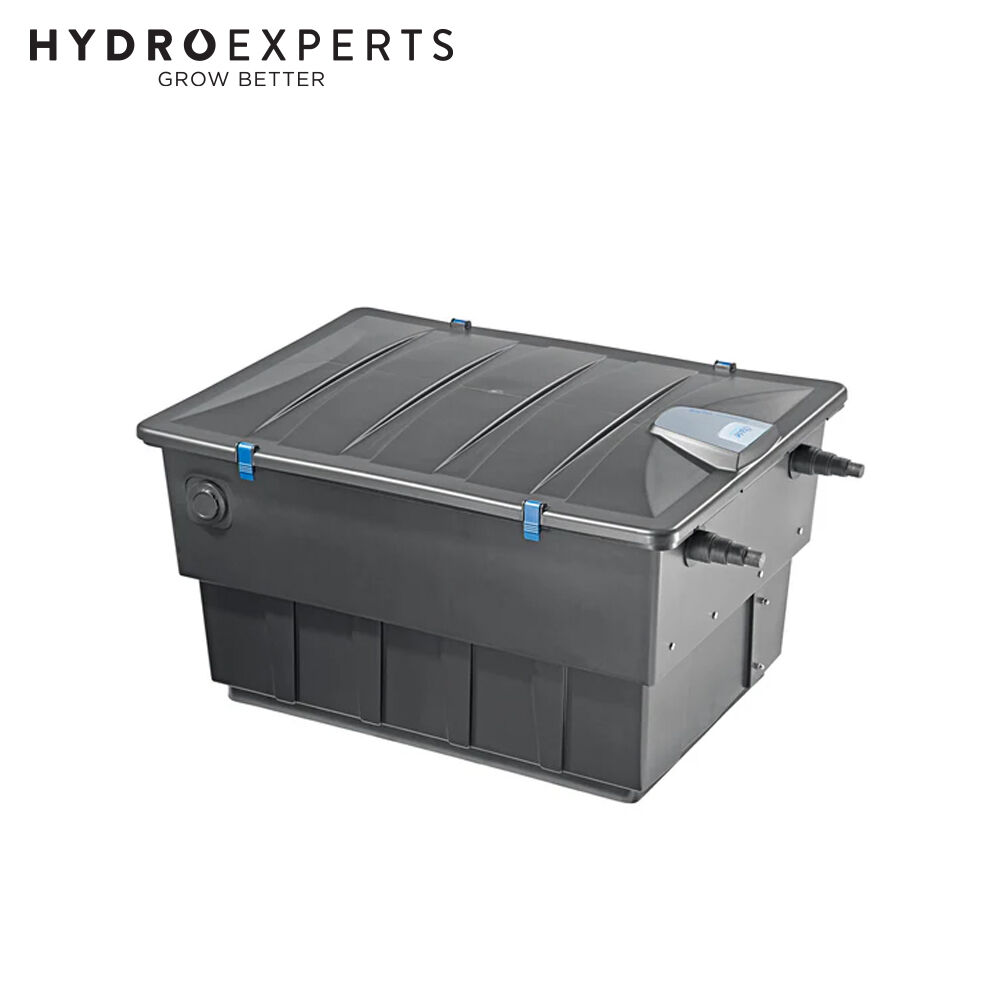

OASE BioTec ScreenMatic Flow-Through Filter - 40000 / 60000 / 90000 / 140000
SKU: PND-ACES50010
|
IN STOCK
POSTAGE APPLIES
Pick up at store Not Available
In-store pickup not available.
Delivery Options:
If cart total is less than $499*
Freight applies
If cart total is $499* & above
Freight applies
*This item is bullky so freight applies.
Calculate shipping
International shipping
Click hereSECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER
Highly effective flow-through filter designed for ponds up to 140 m³, requiring minimal maintenance due to its advanced coarse dirt separation before filtering and its extended service life. The double-sealed motor offers a much longer lifespan, and the adjustable automatic cleaning system ensures efficient debris separation. A bottleneck-free water distributor prevents blockages, while innovative dirt barriers stop the filter from being washed out. Cleaning is highly convenient: the filter belt is self-cleaning, and filter sponges are cleaned directly within the filter.
Features
- Clear and healthy pond water with minimum maintenance requirements
- Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
- Continuous belt filter at an affordable price
Characteristics
- Includes OASE Clear Water Guarantee
- Significantly less maintenance required thanks to coarse debris extraction

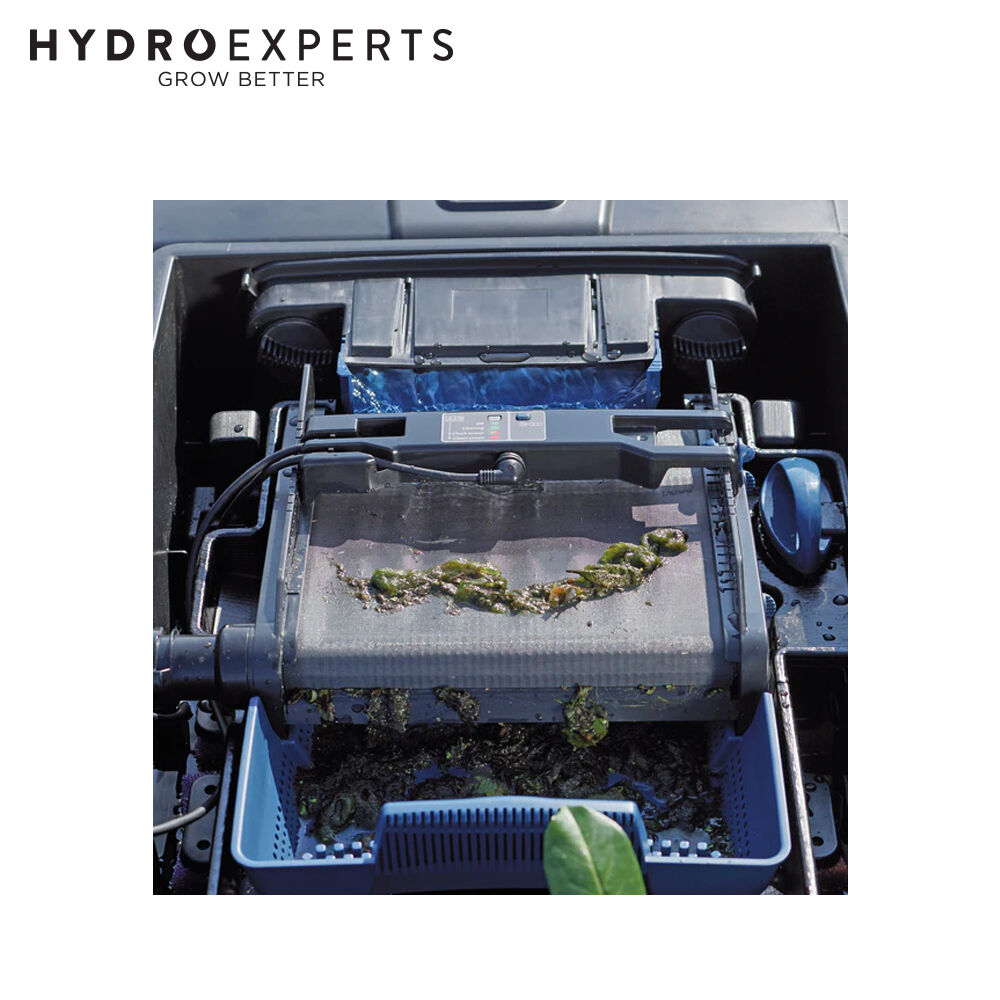

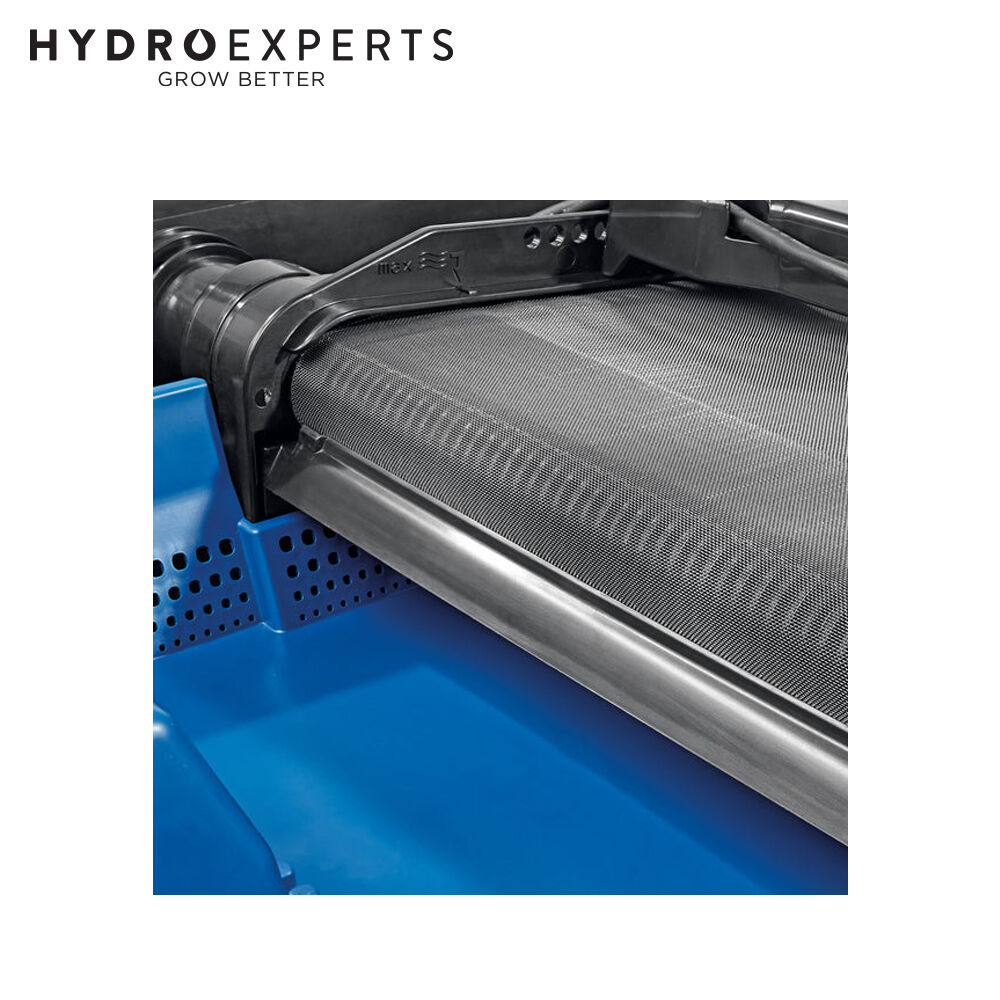

- Convenient, automatic self-cleaning of the belt filter
- Adjustable cleaning sensor controls the belt run based on pollution level
- Includes LED function check
- Cleaning of filter sponges directly in the filter, no removal needed
- Sludge drain with slide valve for removing debris from the filter system
- Different filter media support optimal development of filter bacteria
- Optionally use PhosLess filter media tubes for string algae reduction
- Optimally matched to OASE AquaMax Eco filter pumps
- Direct connection option for Bitron C and Eco UVC clarifiers
- Reinforced strap material for an extended service life
- Double-sealed motor for enhanced durability

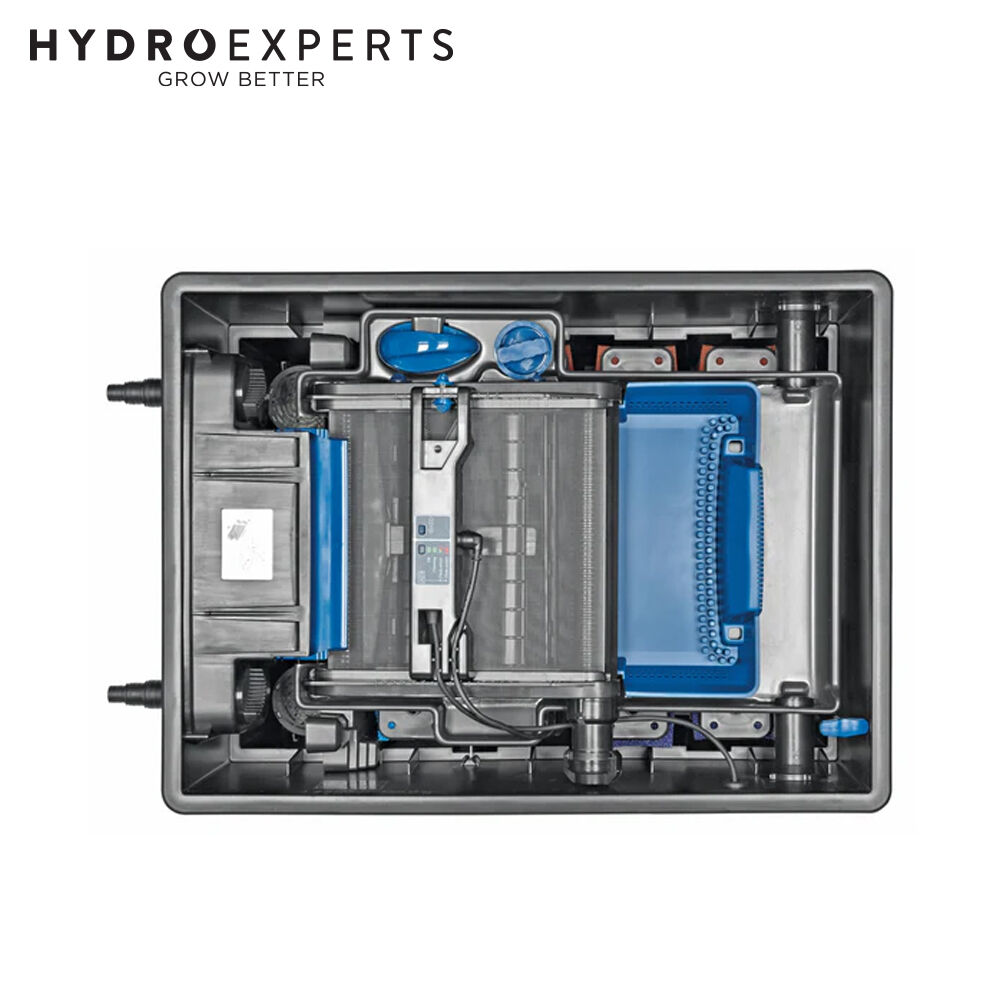

- Clog-resistant water distributor ensures uniform distribution on the belt filter
- Sludge basket with larger volume and simplified handling
- Rubberized separating lip for excellent separation results
- Includes free brush for occasional cleaning of the belt filter
- Manual belt run possible via button
- Highly effective flow-through filter for ponds up to 40.0 m³
- Lids of models 40,000 and 60,000 equipped with storm-safe fastening clips
Specifications
Specification of 40000
- Product Number: 03OG003 | 57694
- Rated voltage (primary, secondary): 230 V / 50 Hz, 12 V / AC
- Power consumption - W: 5 W
- Cable length 12 V device: 2.10 (Power unit) + 5.00 m
- Net weight: 20.000 kg
- Guarantee (+ request guarantee) - years: 2 + 1 Years
- Total number of filter foams – pc.: 8 Units
- Number of blue filter foams – pc.: 2 Units
- Number of red filter foams – pc.: 3 Units
- Number of purple filter foams – pc.: 3 Units
- Special filter granulate – kg: 2.5 kg
- Temperature display: No
- Coarse dirt separation – micrometres: 300 µm
- Connection inlet - mm: 25 / 32 / 38 mm
- Connection inlet: 1", 1 ¼", 1 ½"
- Connections outlet: DN 75
- Connections, sludge discharge: DN 50
- Min. flow rate - l/h: 4000 l/h
- Max. flow rate - l/h: 9000 l/h
- Suitable for ponds up to max. – m³: 40 m³
- Suitable for ponds with fish stock – m³: 20 m³
- Suitable for ponds with koi – m³: 10 m³
- Connection to: Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
Specification of 60000
- Product Number: 03OG004 | 57695
- Rated voltage (primary, secondary): 230 V / 50 Hz, 12 V / AC
- Power consumption - W: 5 W
- Cable length 12 V device: 2.10 (Power unit) + 5.00 m
- Net weight: 23.500 kg
- Guarantee (+ request guarantee) - years: 2 + 1 Years
- Total number of filter foams – pc.: 8 Units
- Number of blue filter foams – pc.: 2 Units
- Number of red filter foams – pc.: 3 Units
- Number of purple filter foams – pc.: 3 Units
- Special filter granulate – kg: 3.5 kg
- Temperature display: No
- Coarse dirt separation – micrometres: 300 µm
- Connection inlet - mm: 25 / 32 / 38 mm
- Connection inlet: 1", 1 ¼", 1 ½"
- Connections outlet: DN 75
- Connections, sludge discharge: DN 50
- Min. flow rate - l/h: 6000 l/h
- Max. flow rate - l/h: 11000 l/h
- Suitable for ponds up to max. – m³: 60 m³
- Suitable for ponds with fish stock – m³: 30 m³
- Suitable for ponds with koi – m³: 15 m³
- Connection to: Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
Specification of 90000
- Product Number: 03OG005 | 46178
- Rated voltage (primary, secondary): 230 V / 50 Hz, 12 V / AC
- Power consumption - W: 5 W
- Cable length 12 V device: 2.10 (Power unit) + 5.00 m
- Net weight: 27.000 kg
- Guarantee (+ request guarantee) - years: 2 + 1 Years
- Total number of filter foams – pc.: 16 Units
- Number of blue filter foams – pc.: 4 Units
- Number of red filter foams – pc.: 6 Units
- Number of purple filter foams – pc.: 6 Units
- Special filter granulate – kg: 5 kg
- Temperature display: No
- Coarse dirt separation – micrometres: 300 µm
- Connection inlet - mm: 25 / 32 / 38 / 50 mm
- Connection inlet: 1", 1 ¼", 1 ½", 2"
- Connections outlet: DN 110
- Connections, sludge discharge: DN 50
- Min. flow rate - l/h: 8000 l/h
- Max. flow rate - l/h: 12500 l/h
- Suitable for ponds up to max. – m³: 90 m³
- Suitable for ponds with fish stock – m³: 45 m³
- Suitable for ponds with koi – m³: 22.5 m³
- Connection to: Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
Specification of 140000
- Product Number: 03OG006 | 57696
- Rated voltage (primary, secondary): 230 V / 50 Hz, 12 V / AC
- Power consumption - W: 5 W
- Cable length 12 V device: 2.10 (Power unit) + 5.00 m
- Net weight: 105.000 kg
- Guarantee (+ request guarantee) - years: 2 + 1 Years
- Total number of filter foams – pc.: 18 Units
- Number of blue filter foams – pc.: 4 Units
- Number of red filter foams – pc.: 7 Units
- Number of purple filter foams – pc.: 7 Units
- Special filter granulate – kg: 14.5 kg
- Temperature display: No
- Coarse dirt separation – micrometres: 300 µm
- Connection inlet - mm: 25 / 32 / 38 / 50 mm
- Connection inlet: 1", 1 ¼", 1 ½", 2"
- Connections outlet: DN 110
- Connections, sludge discharge: DN 75
- Min. flow rate - l/h: 8000 l/h
- Max. flow rate - l/h: 17500 l/h
- Suitable for ponds up to max. – m³: 140 m³
- Suitable for ponds with fish stock – m³: 70 m³
- Suitable for ponds with koi – m³: 35 m³
- Connection to: Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
In The Box
- [1] x OASE BioTec ScreenMatic Flow-Through Filter - 40000 / 60000 / 90000 / 140000
Documents
Download PDF brochure
