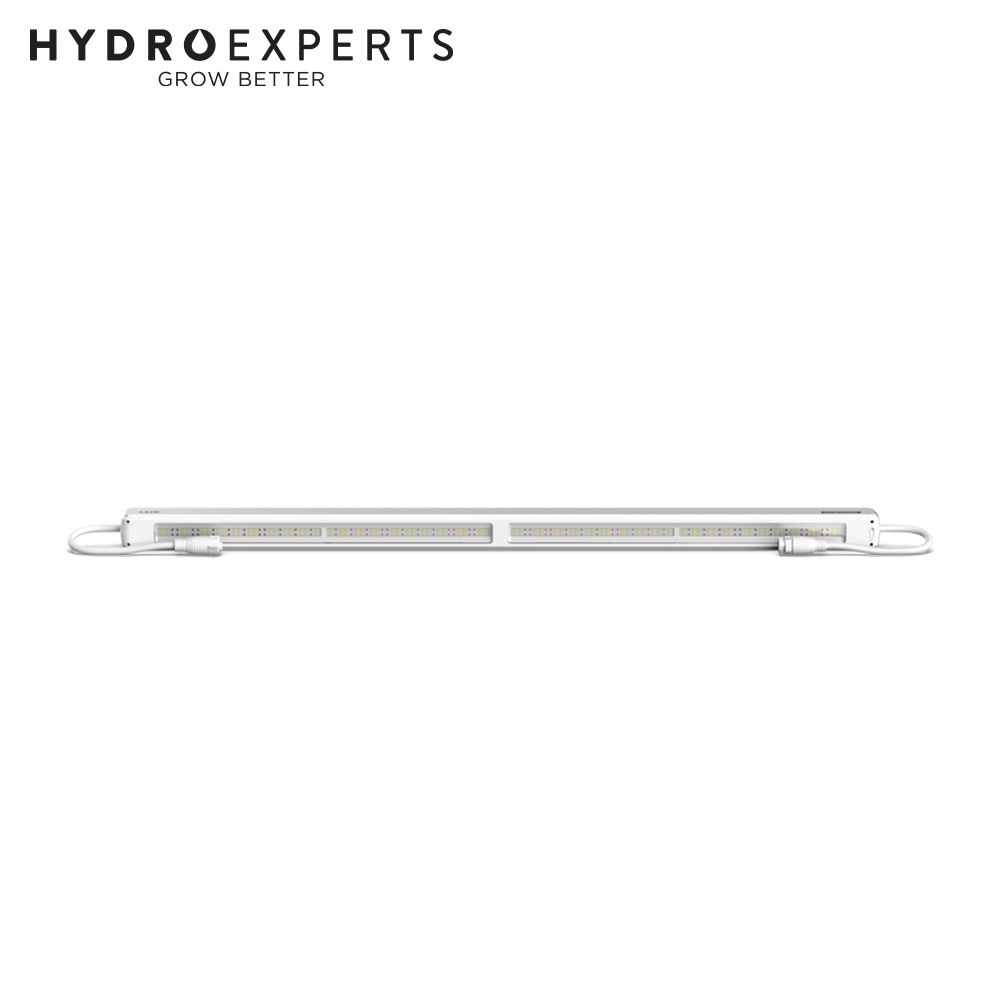

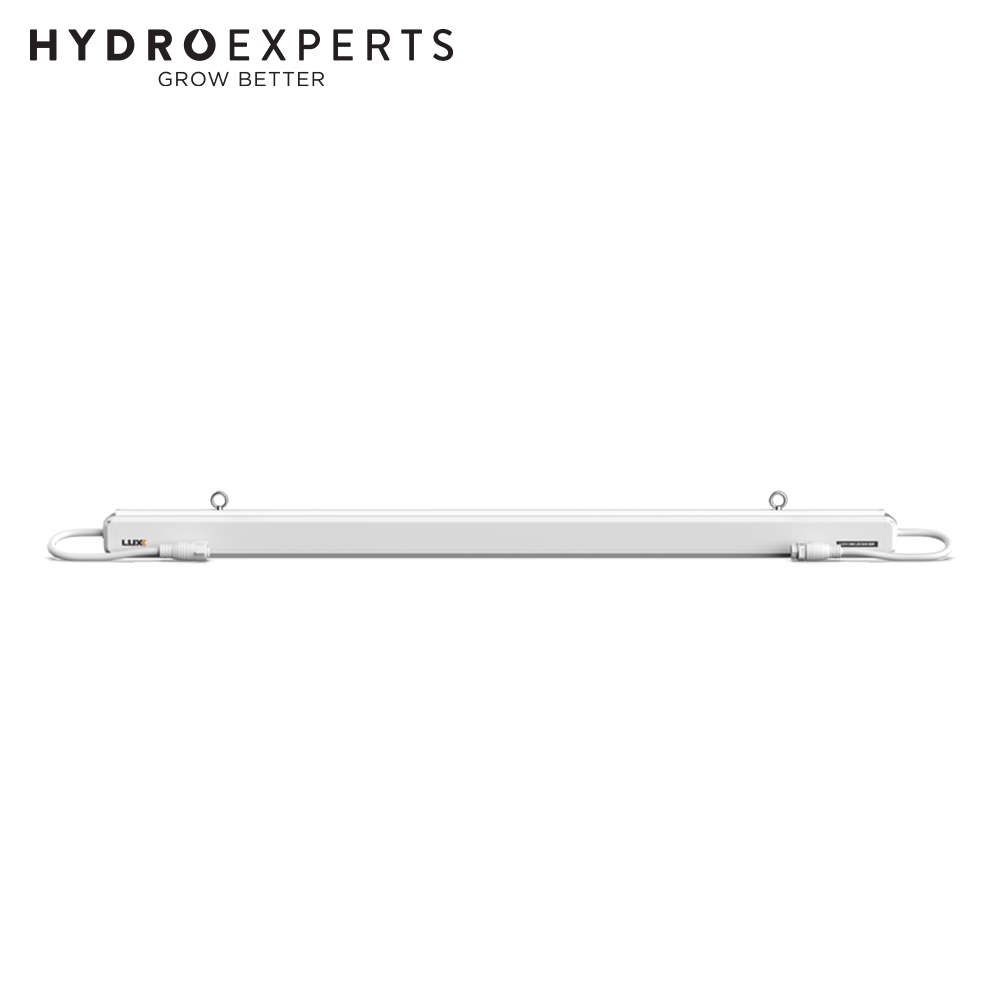

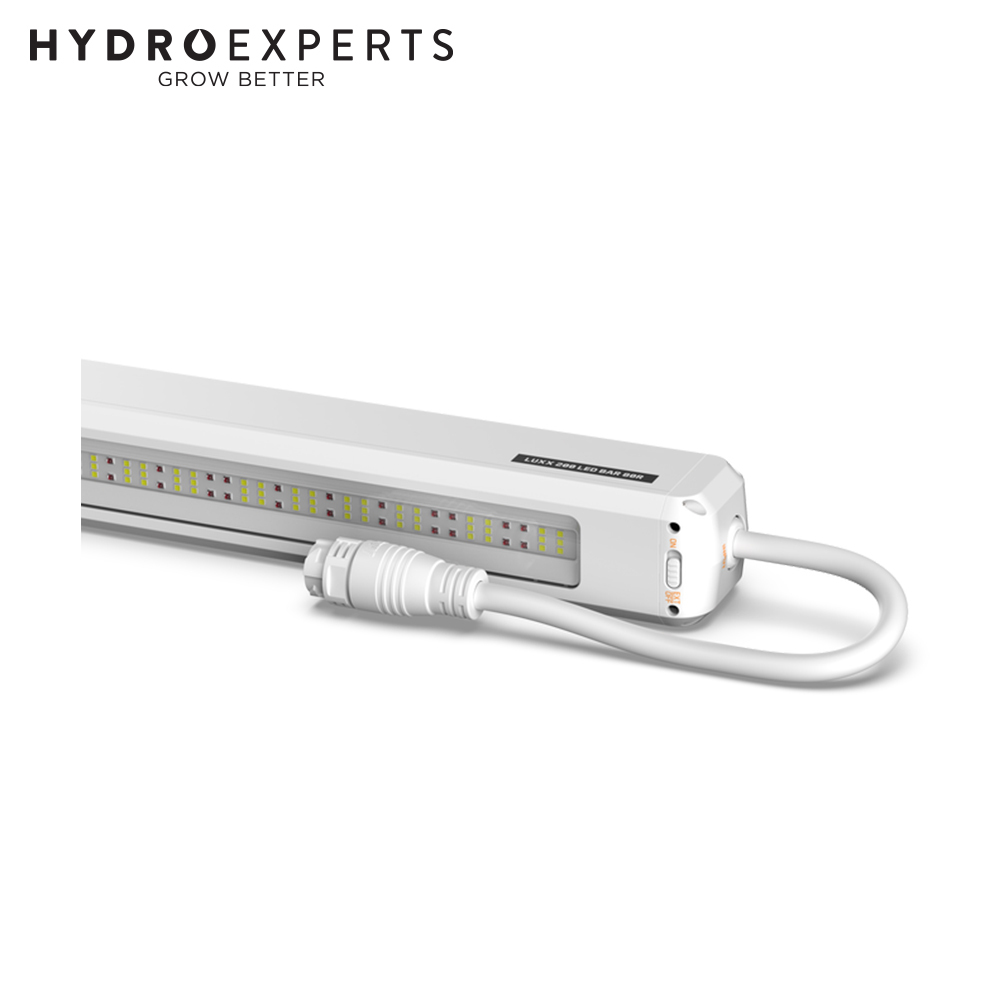

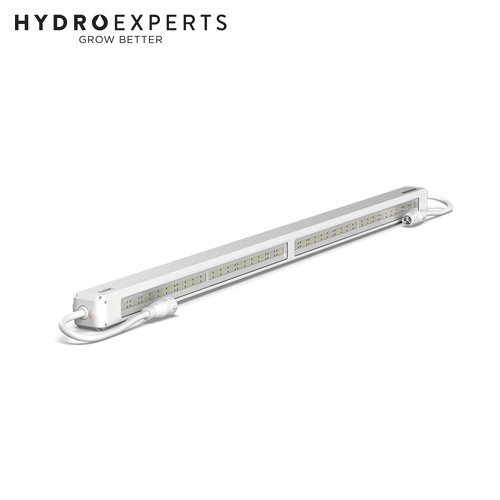

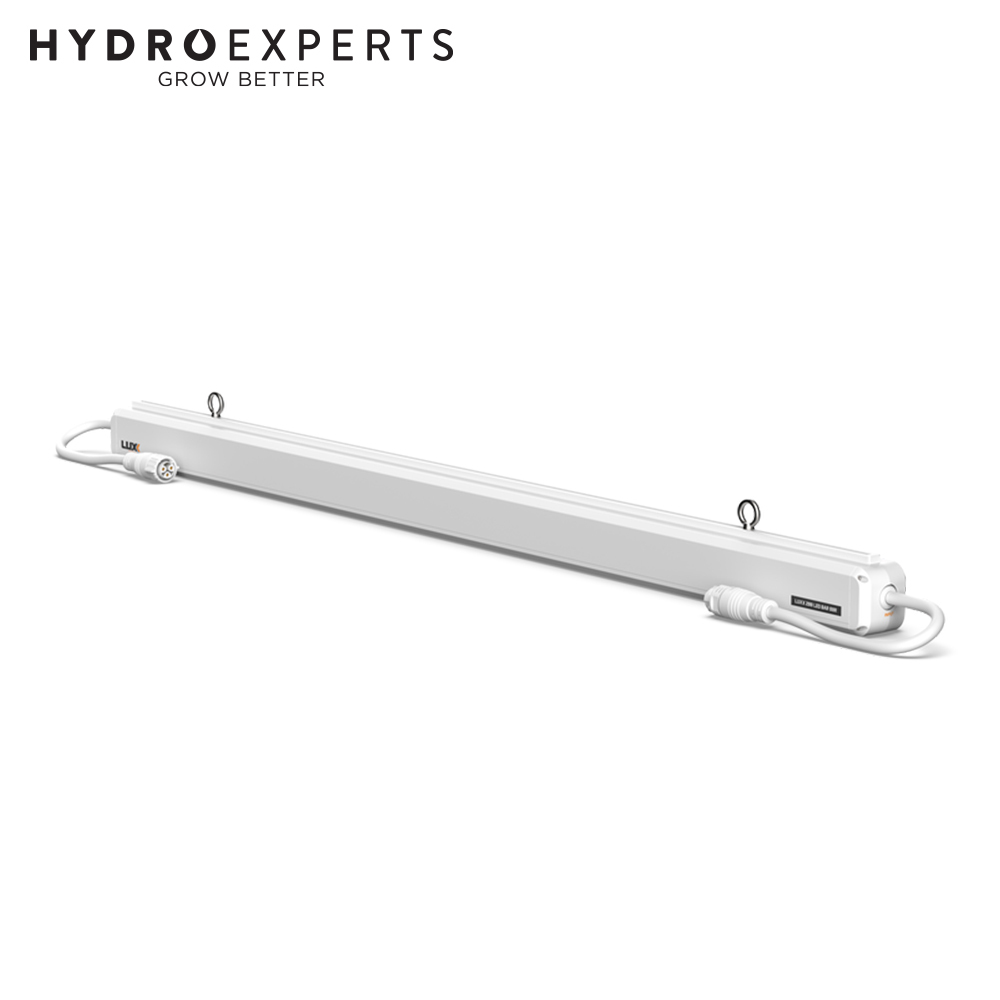

Luxx Lighting LED Grow Light Bar - 200W | 90R | 90% Red | Dimmable | 124CM

Power cable is required to be purchased separately

SKU: LEDL80302
|

IN STOCK

FREE SHIPPING

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Luxx 200W LED Bar is designed and built using top quality components including top bin diodes that produce a plant loving Veg Spectrum. The 200w LED Bar form factor is adaptive to any cultivation environment by being able to select your wattage and footprint. The 200w LED Bars can be run in single stacked, multi-stacked, or a greenhouse grow setting. The modular design allows you to customize and scale up your 200w LED Bar system to fit your operation needs.

The 90R spectrum is a high efficiency, blue-red spectral combination specifically designed for stacked grow architectures. In the vegetative growth phase the 90R spectrum achieves healthy, fast growing plants with shorter stature perfect for stacked growth.

Specifications

  • Size: 1240MM (length) x 60MM (Width) x 72MM (Height)
  • Weight: 3.26KG
  • Input Power: 200W
  • Min Power Factor: >0.95
  • Rated Mains Voltage: 200V - 277V
  • Voltage Range: 200V - 305V
  • Mains Frequency: 50/60Hz
  • THD: <10%
  • Thermal Management: Passive
  • Dimming:
    • 40% to 100% - EXT/OFF
    • If using our NX-1, it only dims down to 50%.

In The Box

  • [1] x Luxx Lighting LED Grow Bar - 200W | 90R | 90% Red | Full Spectrum
  • 10ft 240V (HGC906341) and 277V (HGC906342) cords, connectors, and splitters SOLD SEPARATELY
  • 1 bar
  • ETL Listed
  • Modular design
  • Mounts to Unistrut
  • Bar bracket (HGC906320) SOLD SEPARATELY, strongly recommended to provide a fully modular fixture to fit both 4’ and 5’ footprints. One kit includes two brackets.
  • Configure a 200W, 400W, 600W, 800W, or 1000W
  • Available in 80% red or 90% red
  • All in one design
  • Plug & Play
  • 5-year warranty

INSTALLATION WARNING!

READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING OR WORKING WITH THE 200W LED BAR.

  • The 200w LED Bar contains a glass lens over the LEDs. Please handle it with care.
  • Always gently place the 200w LED Bar on a clean, soft surface to avoid damaging the glass.
  • In order to mount your 200w LED Bar properly, start by identifying a suitable support structure in which you can mount your 200w LED bar.
  • Common support structures include pallet racks, trusses, structural channels, Unistrut, and rolling tables. • The user is responsible for correct and safe installation and usage.
  • Please have two or more experienced, certified service personnel mount and install this device, in accordance with the applicable local laws and regulations.
  • The best practice is to have a licensed electrician install your 200w LED Bar.
  • Ensure the existing electrical system can support the voltage and current requirements of the 200w LED Bar.
  • When daisy chaining the 200w LED Bars together, make sure that you’re not attempting to connect more than the maximum amount of 200w LED Bars based on the voltage that your power cable and electrical system are rated for. Read the product specifications to see the maximum amount of 200w LED Bars that can be daisy-chained together.
