Lumatek LED Driver Remote Use Extension Cables - 5M | For Zeus 1000w Xtreme

2x5m Extension Power & 1x5m Extension Dimming Cable

SKU: ACES90307
|

ETA: 4-7 Days

Product main image

OUT OF STOCK

FREE SHIPPING OVER $499*

Products You May Need

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

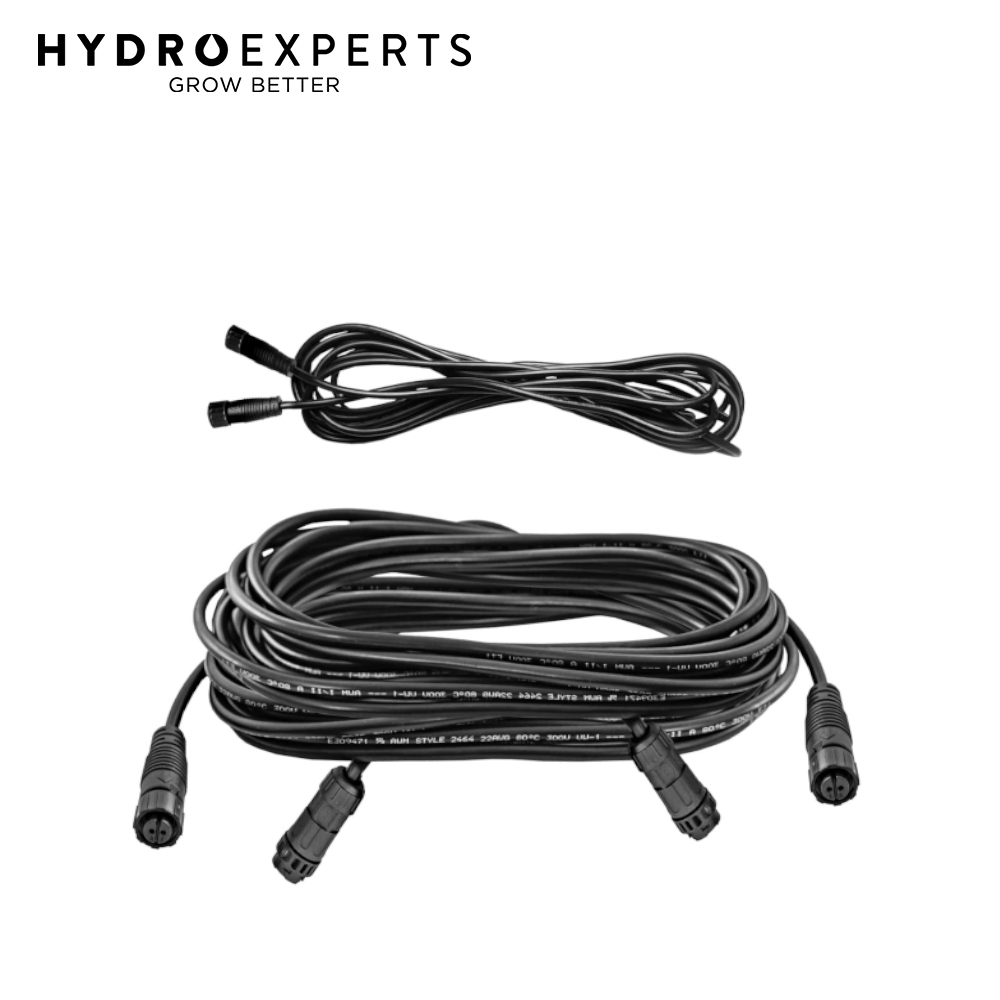

These three 5m long Extension Cables are designed to connect the Lumatek driver and LED fixture, in case the driver is used remotely and away of the fixture. Allowing a stable and precise connection without any interference this product is composed of 3 elements:

2 x 5m Extension Power Cable for LED driver

5 m Extension Dimming Cable

Specifications

2 x 5M EXTENSION POWER CABLES FOR LED DRIVER

  • M19-2 Self-locking male and female injection moulding with 5m extension cable
  • Withstand voltage between any two poles is 500 VAC, 2mA, test time 3S, no breakdown or leakage current occurs
  • The withstand voltage between the outer cover and the electrode is 500 VAC, 2mA, the test time is 3S, and no breakdown or leakage current occurs
  • Insulation Resistance:100MΩ@100V
  • Temperature Resistance:105℃
  • Working temperature: -20℃-105℃
  • Storage temperature: -25℃-105℃
  • IP65
  • Comply RoHS

1 x 5M EXTENSION DIMMING CABLE FOR LED DRIVER

  • M19-2 Self-locking male and female injection moulding with 5m extension cable
  • Withstand voltage between any two poles is 500 VAC, 1mA, test time 3S, no breakdown or leakage current occurs
  • The withstand voltage between the outer cover and the electrode is 500 VAC, 1mA, the test time is 3S, and no breakdown or leakage current occurs
  • Insulation Resistance:100MΩ@100V
  • Temperature Resistance:105℃
  • Working temperature: -20℃-105℃
  • Storage temperature: -25℃-105℃
  • Comply RoHS

In The Box

  • [2] x 5m Extension Power Cable for LED driver
  • [1] x 5m Extension Dimming Cable
