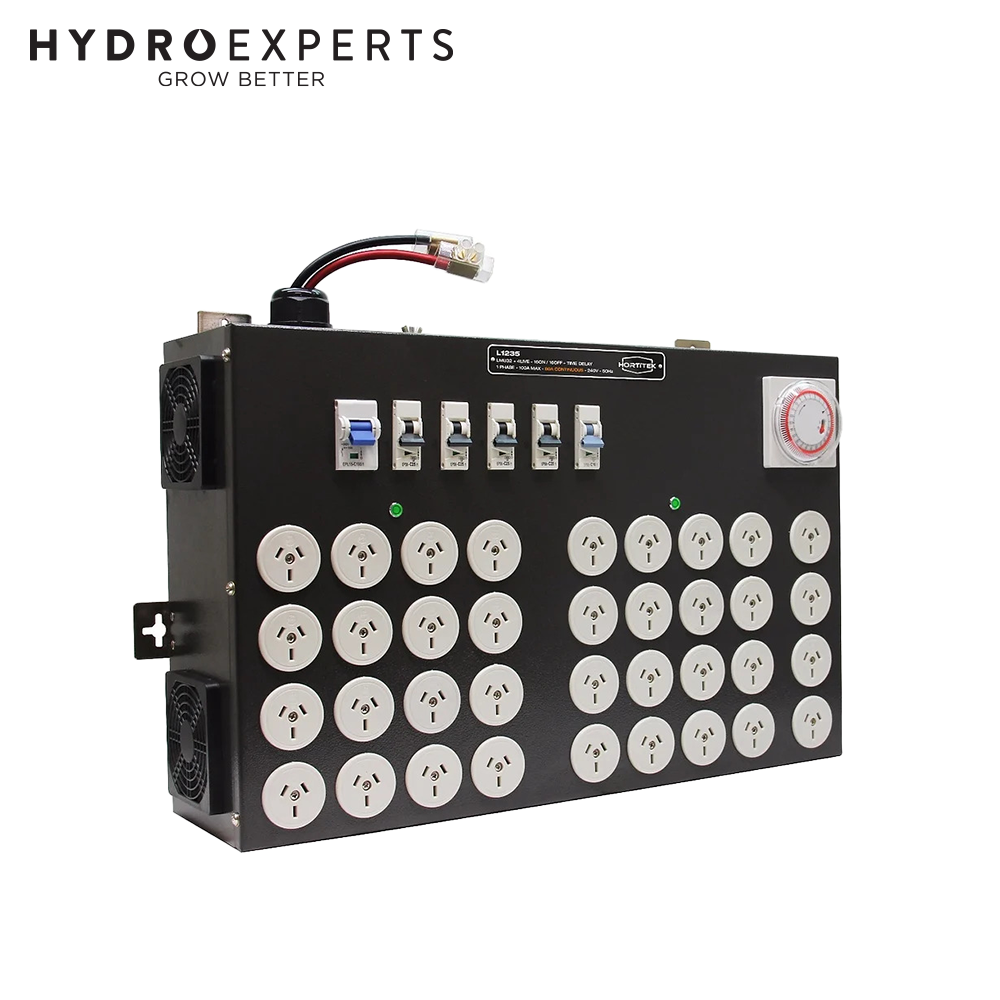

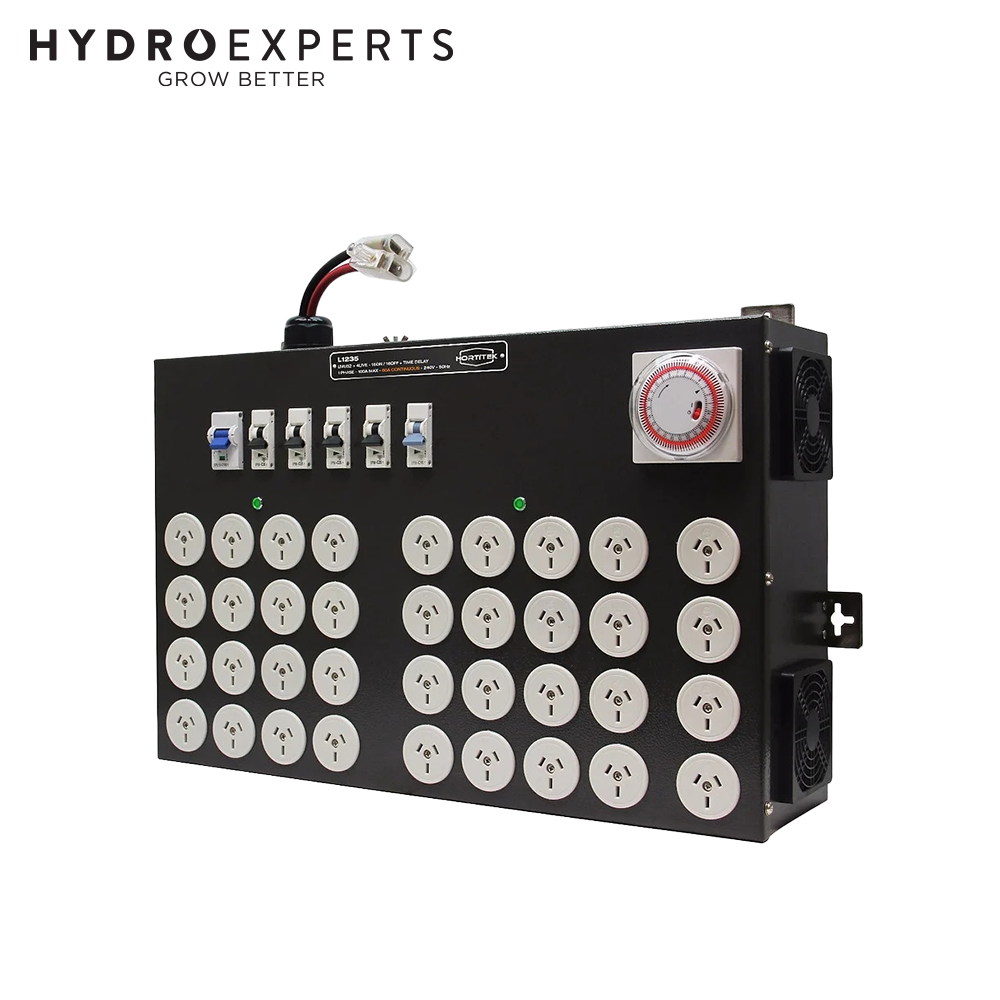

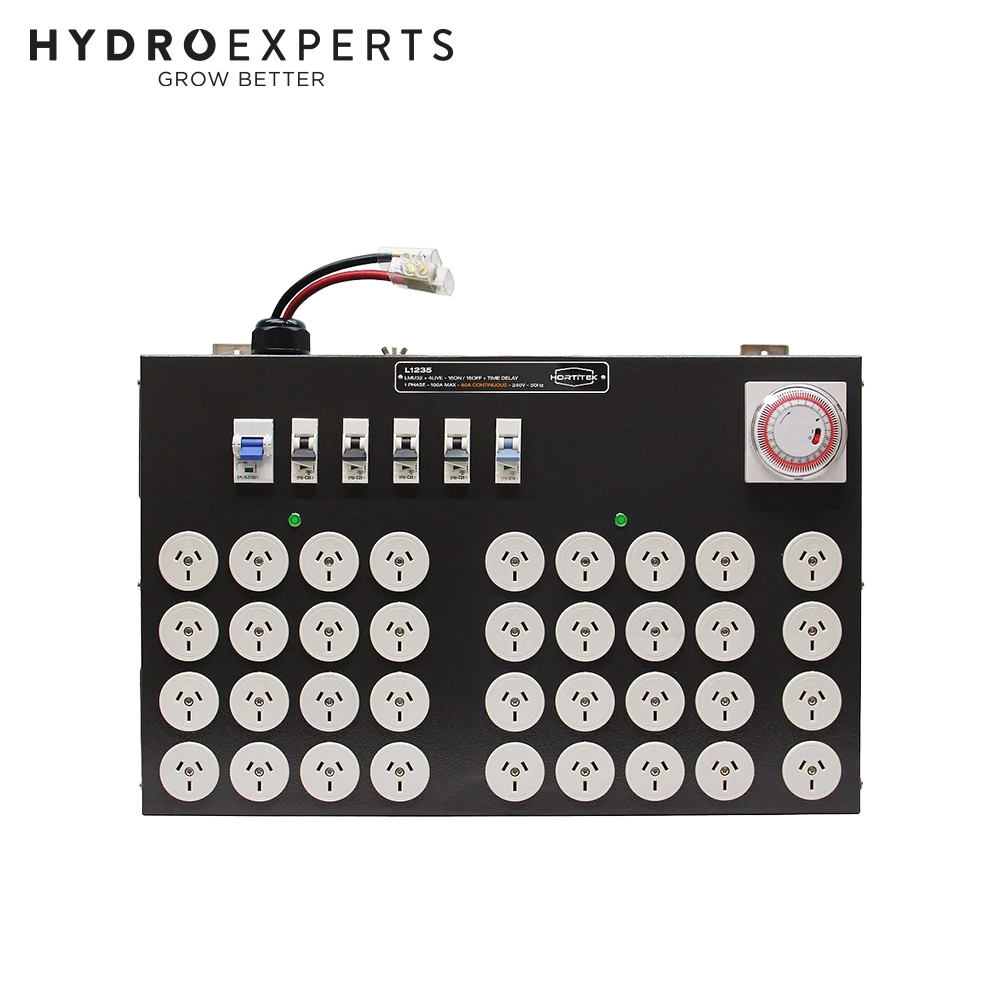

Hortitek Light Management Unit (LMU) - 32 Outlet + 4 Live | 16 On / 16 Off | 100A

Time Delay & Soft Start Unit

SKU: CTRL10108
|

ETA: 1-3 Weeks

Hortitek Light Management Unit (LMU) - 32 Outlet + 4 Live | 16 On / 16 Off | 100A

FREE SHIPPING

REG. PRICE: $1,675.00
$1,149.95
Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Hortitek Light Management Units are a secure and effective solution for controlling your lighting system. It is important to note that these units must be installed by a licensed electrician, and come in various sizes to fit your particular requirements. These units are constructed with premium components, ensuring durability and long-lasting performance when used properly. Additionally, they are housed in an enclosure that is resistant to ultraviolet light and is equipped with a timer to adjust the operating hours to your desired schedule, as well as a safety switch for added protection.

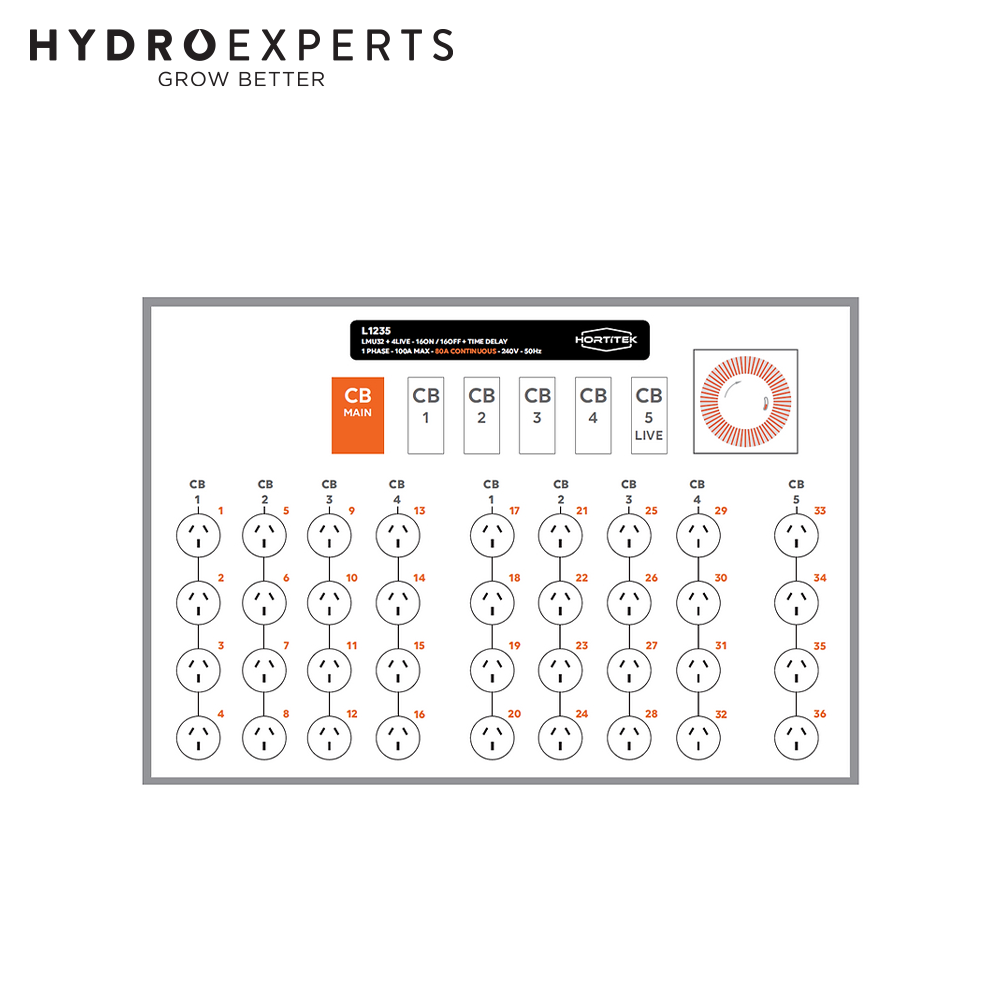

The LMU serves 3 main functions:

  • Time Control: Hortitek LMU can simulate any light cycle by using the 24-Hour timer.
  • Power Control: Hortitek LMU can control, distribute and protect the load by using the circuit breakers.
  • Time Delay: This feature reduces the startup current and prevents voltage drop in the network by staggering the ignition of the load.

Recommendation:

  • 315/400W Lamp - Max Qty: 40 On/40 Off
  • 600/630W Lamp - Max Qty: 27
  • 800W Lamp - Max Qty:20
  • 1000W Lamp - Max Qty: 16 On/16 Off

Specifications

  • Phase: 1
  • Max Amps: 100
  • Continuous Amps: 80
  • Note: This LMU can supply up to 80 A load for 24 hrs operation
  • Voltage: 240 VAC
  • Frequency: 50 Hz

In The Box

  • [1] x Hortitek Light Management Unit (LMU) - 32 Outlet + 4 Live | 16 On / 16 Off | 100A
  • Top-quality components
  • Built-in timer
  • UV protected enclosure

Installation Instructions:

  1. All electrical items must be installed by a licensed electrical contractor.
  2. Check LMU Voltage and Wattage Rating before connecting to any supply.
  3. Loosen screws for each of the joiners. Connect the Neutral (Black wire) from the LMU to the supply Neutral and RED wires to Active Ensure that no bare copper wire protrudes from outside of the joiner. If so, shorten the stripped wire prior to tightening.
  4. Ensure that the joiner is generously taped and that wires are double insulated with tape and each wire is individually taped away from each other.
  5. Connect the supply earth (green and yellow wire) to earth terminal provided on the top of the LMU.
  6. Prior to commissioning, plug in the auxiliary lead (grey lead) into a 10 Amp socket and test the LMU.
  7. Set 24 Hrs Timer to desired ON/OFF time before switching Auxiliary supply.
  8. Read all the warnings on LMU before commissioning.

1-Year Replacement Warranty

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.
