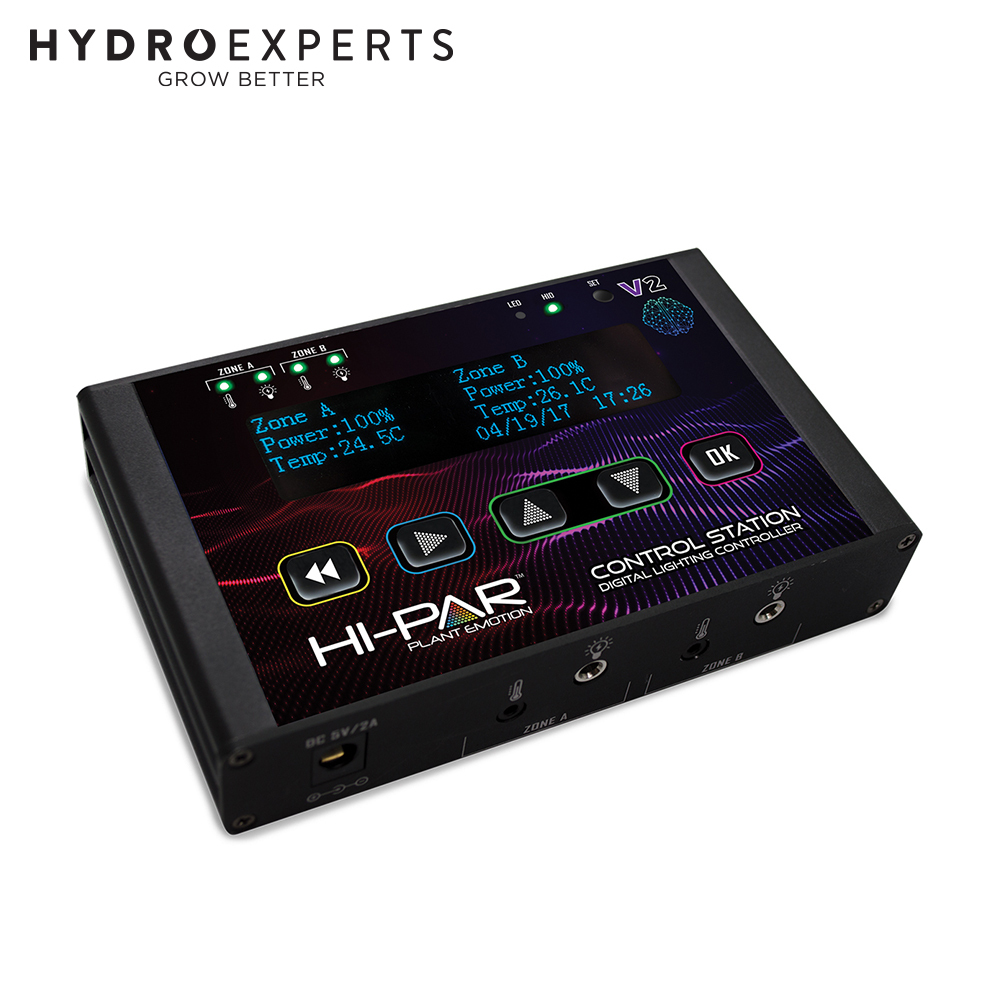

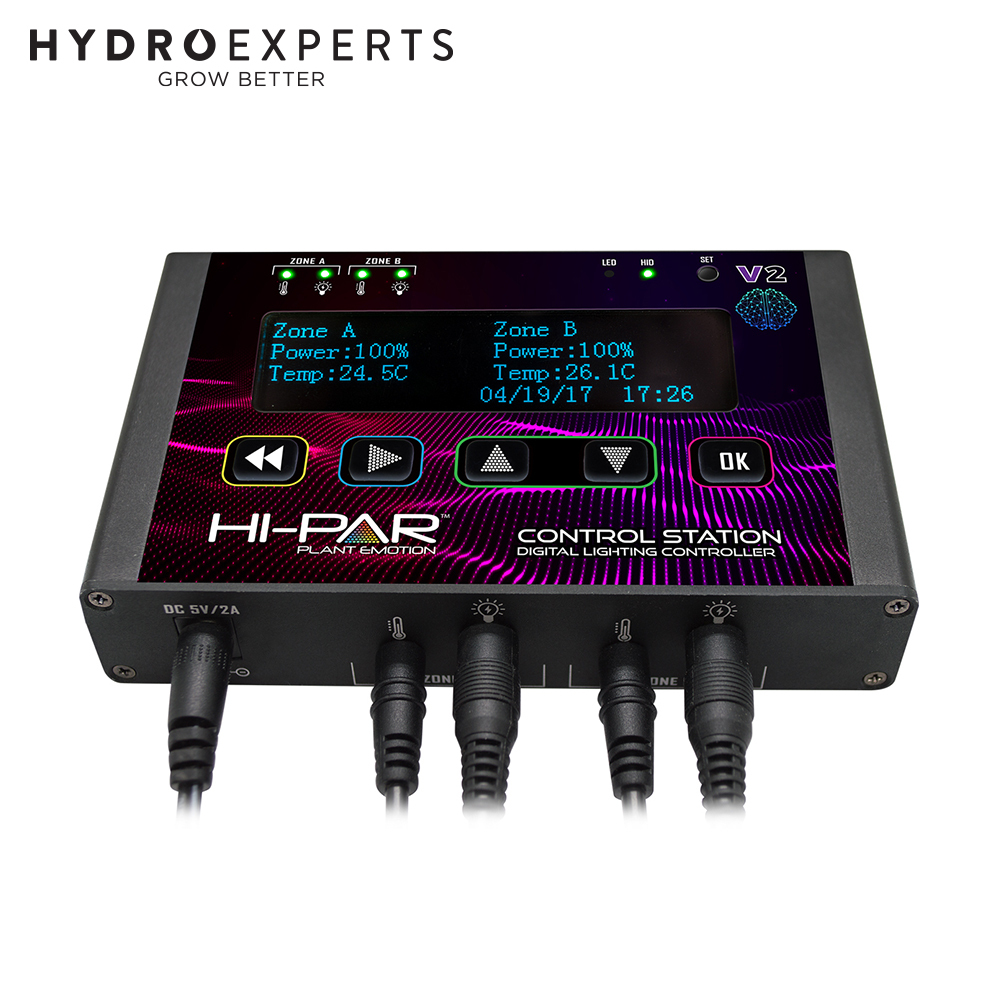

Hi-Par Digital Lighting Control Station V2 - LED / HID

Suitable for HI-PAR Control Ballasts (HPS & CMH) & LEDs

SKU: CTRL50702
|

PRICE DROP

Hi-Par Digital Lighting Control Station V2 - LED / HID

IN STOCK

FREE SHIPPING

Qty:

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

Version 2 of the HI-PAR Control Station is capable of operating LED fixtures and HID (HPS or CMH) fixtures simultaneously. The Control Station gives you unprecedented control over your horticultural lighting fixtures. Utilising next-generation programmable technology; the HI-PAR Control Station will precisely monitor and automate your cultivation lighting. The Intelligent Control Station is the ultimate agricultural illumination solution for hobby and commercial farmers!

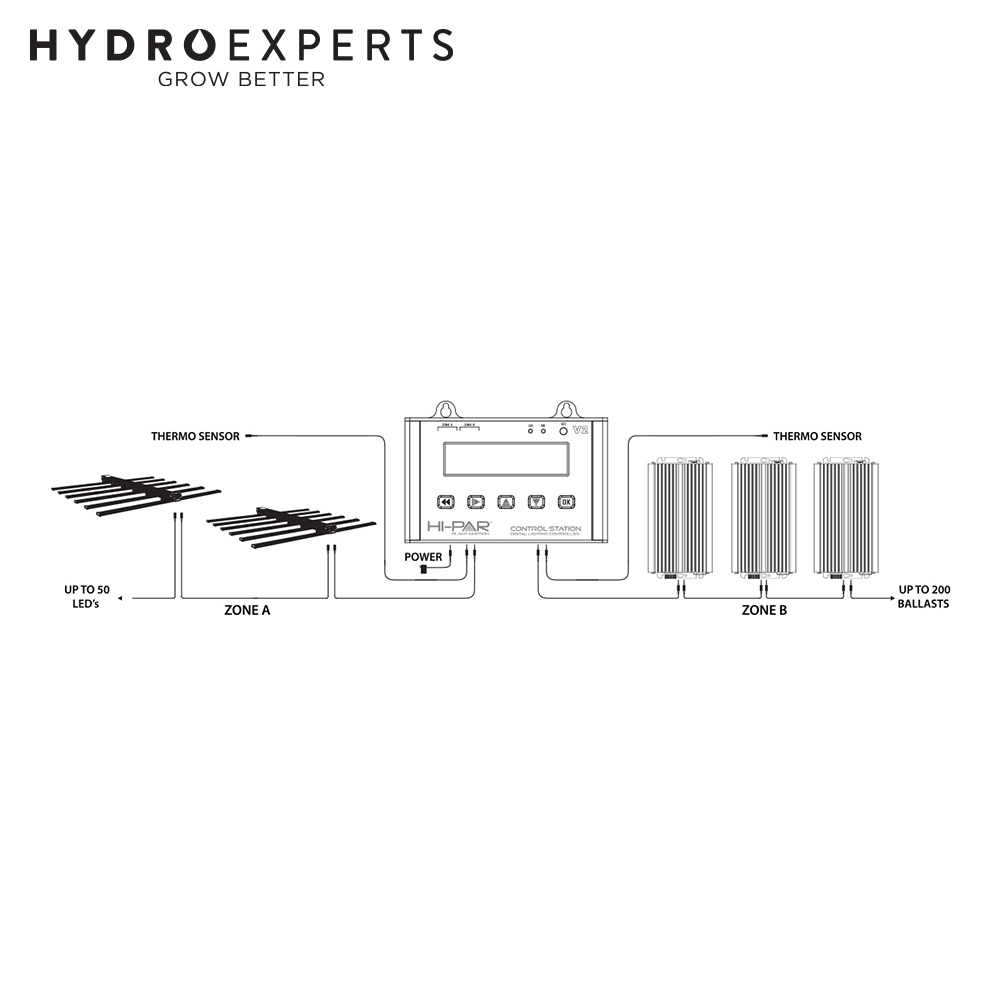

The unique smart-technology allows your HI-PAR Control Station to regulate the operation of HI-PAR Controllable ballasts. The Control Station cleverly monitors your room temperatures, light timing, automation, dimming and safety control. Plug and Play! Simply plug the Control Station into your HI-PAR Controllable Ballast for incredibly easy usability! Controllable Ballasts can be daisy-chained together using the TRS “Link” port, giving you control of up to 400 ballasts in two separate rooms!

Specifications

  • Control Station for up to 400 lighting kits
  • 2-Channels (Zone A & Zone B)
  • Thermo Sensor monitoring and control
  • 24 hr Light timing
  • Digital dimming control (1% increments)
  • Specialised Control TRS link cables
  • Customisable sunrise & sunset
  • Safety and Thermostat control mechanisms
  • Smart room maintenance
  • Power = DC5V/2A
  • Match Ballasts = 250w, 315w, 400w, 600w, 630w, 750w, 1000w
  • Control Command Time Interval = 2S
  • Power Dimming Scope = 60% – 110%
  • Power Regulation Accuracy = 1%
  • Temperature-controlled Adjustable Inspection Scope = 0ºC-40ºC
  • Temperature-controlled Protection Inspection Scope = 10ºC-50ºC
  • Sunrise and Sunset Duration = 0-30min

In The Box

  • [1] x HI-PAR Control Station
  • [1] x Power cable
  • [2] x Thermo Sensor cable
  • [2] x Control ‘Link’ cable

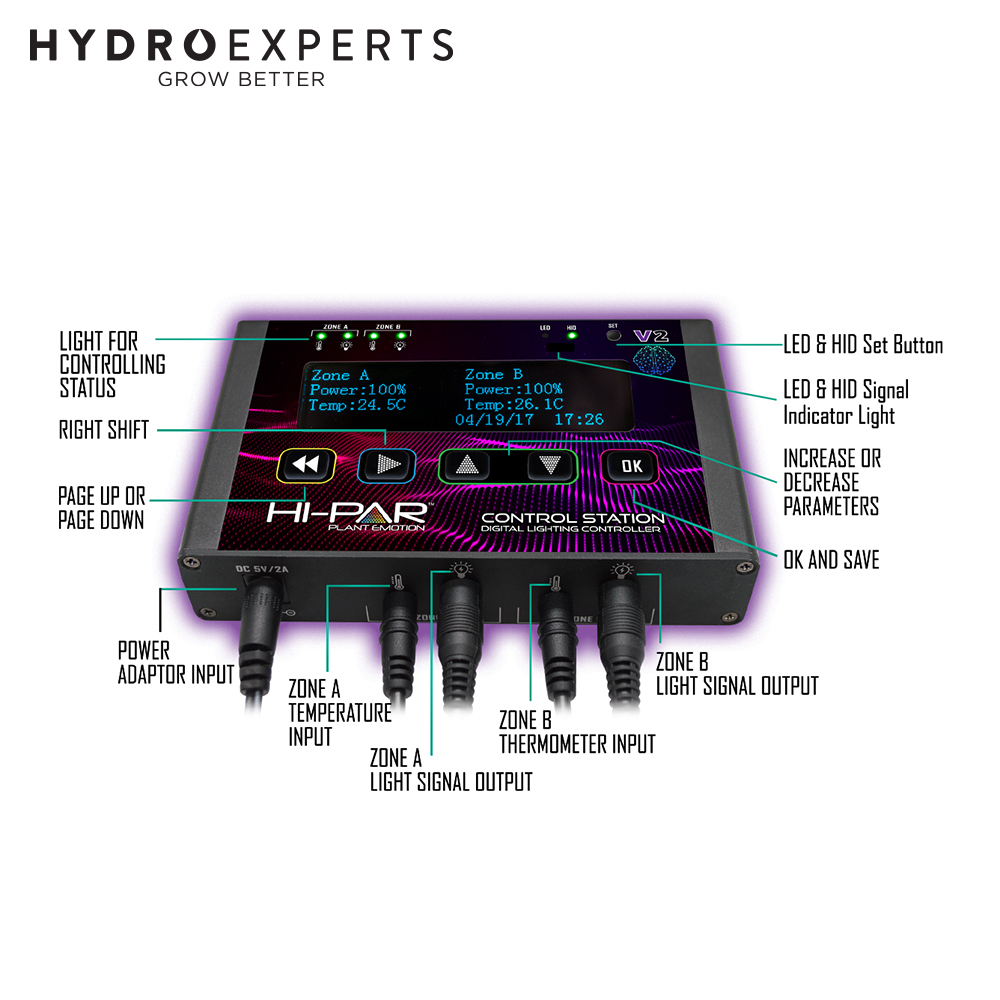

Smart Features

  • Digital timing, automation and safety control
  • Smart room temperature maintenance

Control Capabilities

  • Suitable for HI-PAR Control Ballasts
  • Operate up to 400 lights from 1 Control Station (2 Zones)

Precision Cultivation

  • Automatic sunrise/sunset feature
  • Digital dimming control (1% increments)

1-Year Replacement Warranty

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.
