Fontana Smooth Bore Jet - Ø 8MM / 14MM / 10MM / 12MM | 304 Stainless Steel

SKU: 68891
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Qty:

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

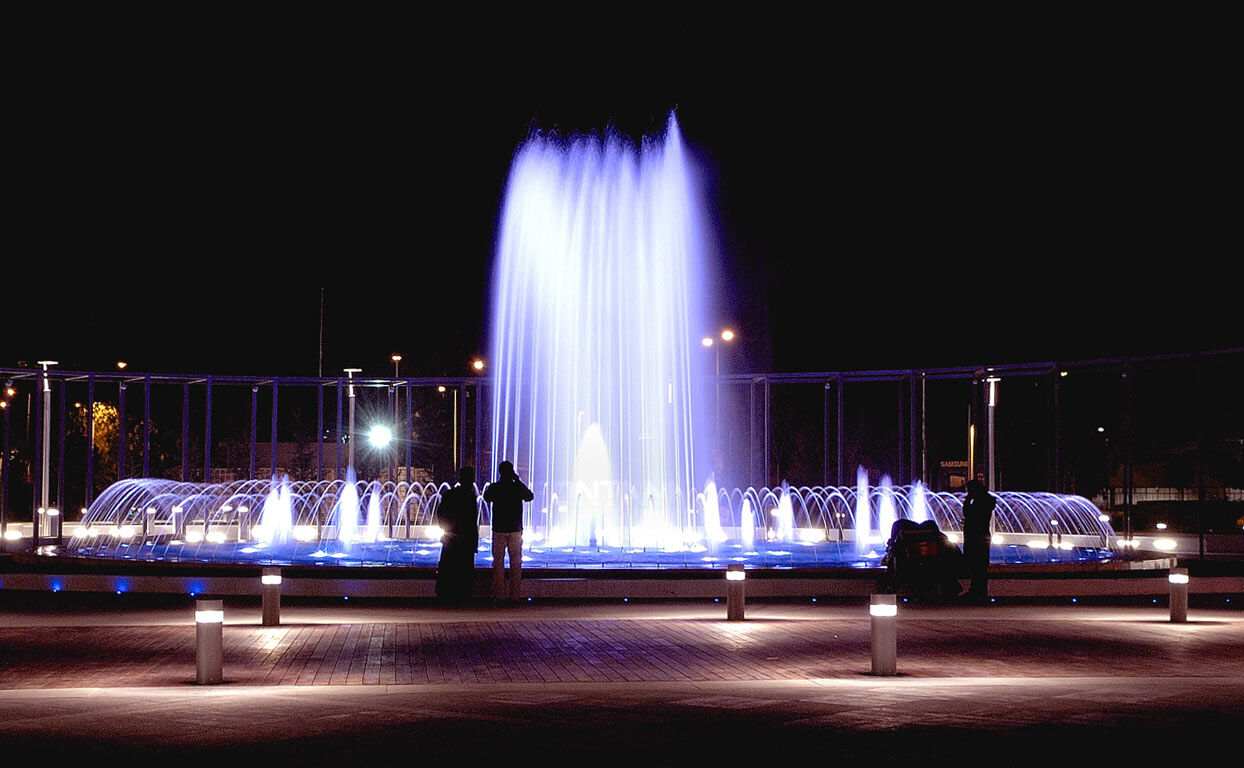

Smooth Bores are the most versatile and value-for-money nozzles. They produce a crystal-clear water effect with exceptional results when illuminated at night.

Every Smooth Bore nozzle can be adjusted by 15° off center axis for installation flexibility and water pattern design versatility. Smooth Bores are usually arranged in groups or on spray rings & lines.

An internal flow straightener now comes standard for nozzles ranging from ⅜” up to 1½” inlets. This little accessory aligns water molecules flowing through it, resulting in a more solid looking water stream and more efficient use of the pump’s head. As water flows more aligned, there is less friction, and thus greater spray heights can be achieved with less pressure applied.

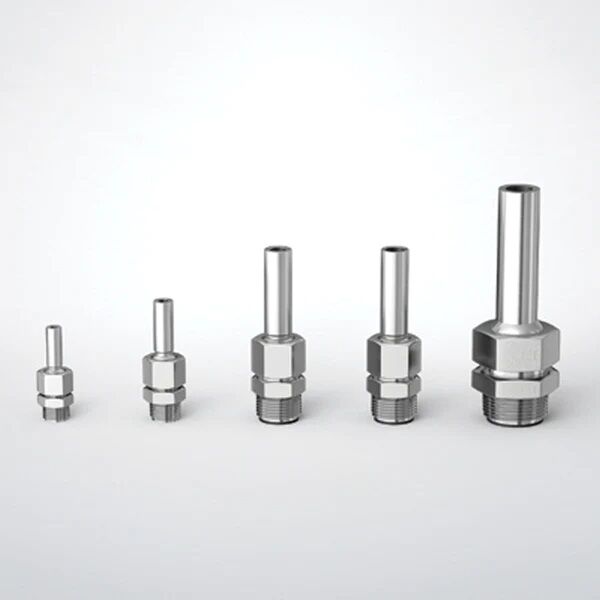

  MS 0204 MS 0305 MS 0306 MS 0508 MS 0510
Material Brass Nickel Plated
Stainless Steel AISI 304 or 316 on Request
Inlet BSP/NPT ¼″ ⅜″ ⅜″ ½″ ½″
Nozzle Orifice 4 mm 5 mm 6 mm 8 mm 10 mm
Dimensions
A x B in mm
18 x 50 22 x 62 22 x 62 28 x 88 28 x 88
Integrated Swivel Ball Joint ±15° ±15° ±15° ±15° ±15°
Spray Height ▼ Flow | Head
[Lpm] | [m]
Flow | Head
[Lpm] | [m]
Flow | Head
[Lpm] | [m]
Flow | Head
[Lpm] | [m]
Flow | Head
[Lpm] | [m]
0.5 m 2.3 | 0.6 3.7 | 0.7 5.4 | 0.7 9.3 | 0.7 15.5 | 0.8
0.75 m 2.8 | 1.0 4.9 | 1.0 6.6 | 1.0 11.3 | 0.9 18.8 | 1.2
1.0 m 3.3 | 1.2 5.6 | 1.3 7.5 | 1.2 13.2 | 1.2 21.8 | 1.4
1.5 m 4.0 | 1.8 6.5 | 1.8 9.3 | 1.8 16.4 | 1.8 27.3 | 2.1
2.0 m 4.6 | 2.5 7.5 | 2.4 10.9 | 2.5 19.2 | 2.5 31.3 | 2.9
2.5 m 5.2 | 3.1 8.3 | 2.9 12.2 | 3.0 21.7 | 3.2 34.9 | 3.6
3.0 m 5.8 | 3.8 9.2 | 3.6 13.5 | 3.7 23.8 | 3.8 38.0 | 4.2
3.5 m 6.3 | 4.5 10.0 | 4.1 14.8 | 4.4 25.9 | 4.6 41.5 | 5.0
4.0 m 6.9 | 5.2 10.8 | 4.8 15.9 | 5.1 27.7 | 5.2 46.8 | 5.7
5.0 m   12.3 | 6.1 18.0 | 6.5 31.0 | 6.4 51.3 | 7.4
6.0 m         57.1 | 9.0

In The Box

  • [1] x Fontana Nickel Plated Smooth Bore Jet - Ø4mm
  • Crystal Clear, Lively Water Effect
  • Very Versatile Water Shape
  • Ideal for Programmable and Constant Flow Features
  • Adjustable by 15° in every direction
  • Stainless Steel AISI 304 & Brass Models (Available in 316)
  • Internal Flow Straightener
  • Models from ⅜” up to 1½”
  • Water Level Independent
