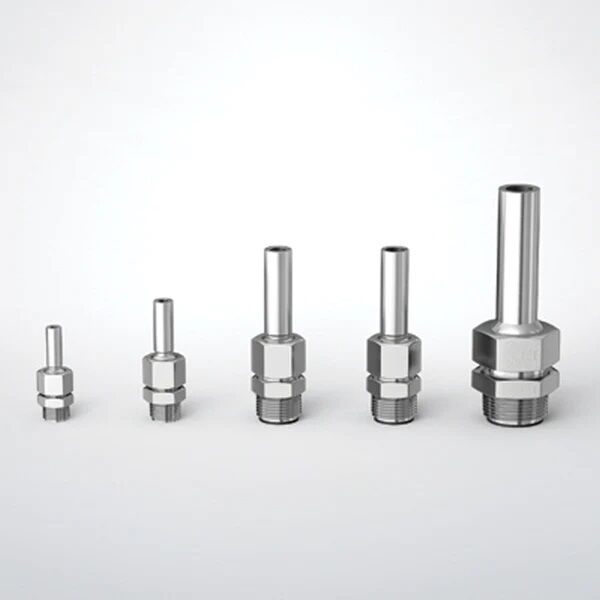

![Fontana 316 S/S Smooth Bore Jet - [Diameter Size: 8MM] | MS0508.L](/assets/full/NEW14FL109.jpg?20250113164524)
OUT OF STOCK
FREE SHIPPING OVER $499*
Pick up at store Free
Delivery Options:
If cart total is less than $499*
Freight applies
If cart total is $499* & above
Free
*excluding bulky items
Calculate shipping
International shipping
Click hereSECURE PAYMENTS WITH
BUY NOW, PAY LATER
Pay in 4, interest-free. Afterpay it.
ZIP NOW, PAY LATER
Repay on a convenient weekly, fortnightly or monthly schedule.
ENJOY NOW, PAY LATER
Smooth Bores are the most versatile and value-for-money nozzles. They produce a crystal-clear water effect with exceptional results when illuminated at night.
Every Smooth Bore nozzle can be adjusted by 15° off center axis for installation flexibility and water pattern design versatility. Smooth Bores are usually arranged in groups or on spray rings & lines.
An internal flow straightener now comes standard for nozzles ranging from ⅜” up to 1½” inlets. This little accessory aligns water molecules flowing through it, resulting in a more solid looking water stream and more efficient use of the pump’s head. As water flows more aligned, there is less friction, and thus greater spray heights can be achieved with less pressure applied.
Specifications
MS 0204
- Material: Brass Nickel Plated (Stainless Steel 304 or 316 on request)
- Inlet BSP/NPT: ¼"
- Nozzle Orifice (D in mm): 4
- Dimensions (AxB in mm): 18 x 50
- Swivel Ball Joint: ±15°
- Spray Height:
- 0.5 m: Flow 2.3 L/min, Head 0.6 m
- 0.75 m: Flow 2.8 L/min, Head 1.0 m
- 1.0 m: Flow 3.3 L/min, Head 1.2 m
- 1.5 m: Flow 4.0 L/min, Head 1.8 m
- 2.0 m: Flow 4.6 L/min, Head 2.5 m
- 2.5 m: Flow 5.2 L/min, Head 3.1 m
- 3.0 m: Flow 5.8 L/min, Head 3.8 m
- 3.5 m: Flow 6.3 L/min, Head 4.5 m
- 4.0 m: Flow 6.9 L/min, Head 5.2 m
MS 0305
- Material: Brass Nickel Plated (Stainless Steel 304 or 316 on request)
- Inlet BSP/NPT: ⅜"
- Nozzle Orifice (D in mm): 5
- Dimensions (AxB in mm): 22 x 62
- Swivel Ball Joint: ±15°
- Spray Height:
- 0.5 m: Flow 3.7 L/min, Head 0.7 m
- 0.75 m: Flow 4.9 L/min, Head 1.0 m
- 1.0 m: Flow 5.6 L/min, Head 1.3 m
- 1.5 m: Flow 6.5 L/min, Head 1.8 m
- 2.0 m: Flow 7.5 L/min, Head 2.4 m
- 2.5 m: Flow 8.3 L/min, Head 2.9 m
- 3.0 m: Flow 9.2 L/min, Head 3.6 m
- 3.5 m: Flow 10.0 L/min, Head 4.1 m
- 4.0 m: Flow 10.8 L/min, Head 4.8 m
- 5.0 m: Flow 12.3 L/min, Head 6.1 m
MS 0306
- Material: Brass Nickel Plated (Stainless Steel 304 or 316 on request)
- Inlet BSP/NPT: ⅜"
- Nozzle Orifice (D in mm): 6
- Dimensions (AxB in mm): 22 x 62
- Swivel Ball Joint: ±15°
- Spray Height:
- 0.5 m: Flow 5.4 L/min, Head 0.7 m
- 0.75 m: Flow 6.6 L/min, Head 1.0 m
- 1.0 m: Flow 7.5 L/min, Head 1.3 m
- 1.5 m: Flow 9.3 L/min, Head 1.8 m
- 2.0 m: Flow 10.9 L/min, Head 2.4 m
- 2.5 m: Flow 12.2 L/min, Head 3.0 m
- 3.0 m: Flow 13.5 L/min, Head 3.7 m
- 3.5 m: Flow 14.8 L/min, Head 4.4 m
- 4.0 m: Flow 15.9 L/min, Head 5.1 m
- 5.0 m: Flow 18.0 L/min, Head 6.5 m
MS 0508
- Material: Brass Nickel Plated (Stainless Steel 304 or 316 on request)
- Inlet BSP/NPT: ½"
- Nozzle Orifice (D in mm): 8
- Dimensions (AxB in mm): 28 x 88
- Swivel Ball Joint: ±15°
- Spray Height:
- 0.5 m: Flow 9.3 L/min, Head 0.7 m
- 0.75 m: Flow 11.3 L/min, Head 1.0 m
- 1.0 m: Flow 13.2 L/min, Head 1.2 m
- 1.5 m: Flow 16.4 L/min, Head 1.8 m
- 2.0 m: Flow 19.2 L/min, Head 2.5 m
- 2.5 m: Flow 21.7 L/min, Head 3.0 m
- 3.0 m: Flow 23.8 L/min, Head 3.7 m
- 3.5 m: Flow 25.9 L/min, Head 4.4 m
- 4.0 m: Flow 27.7 L/min, Head 5.1 m
- 5.0 m: Flow 31.0 L/min, Head 6.4 m
MS 0510
- Material: Brass Nickel Plated (Stainless Steel 304 or 316 on request)
- Inlet BSP/NPT: ½"
- Nozzle Orifice (D in mm): 10
- Dimensions (AxB in mm): 28 x 88
- Swivel Ball Joint: ±15°
- Spray Height:
- 0.5 m: Flow 15.5 L/min, Head 0.7 m
- 0.75 m: Flow 18.8 L/min, Head 0.9 m
- 1.0 m: Flow 21.8 L/min, Head 1.2 m
- 1.5 m: Flow 27.3 L/min, Head 1.8 m
- 2.0 m: Flow 31.3 L/min, Head 2.5 m
- 2.5 m: Flow 34.9 L/min, Head 3.2 m
- 3.0 m: Flow 38.0 L/min, Head 3.8 m
- 3.5 m: Flow 41.5 L/min, Head 4.6 m
- 4.0 m: Flow 46.8 L/min, Head 5.2 m
- 5.0 m: Flow 51.3 L/min, Head 6.4 m
MS 1012
- Material: Brass (Chrome Plated, Stainless Steel 304 or 316 on Request)
- Inlet BSP/NPT: 1"
- Nozzle Orifice (D in mm): 12
- Dimensions (AxB in mm): 46 x 118
- Swivel Ball Joint: ±15°
- Spray Height:
- 0.5 m: Flow 20.8 L/min, Head 0.8 m
- 0.75 m: Flow 26.5 L/min, Head 0.9 m
- 1.0 m: Flow 30.2 L/min, Head 1.1 m
- 1.5 m: Flow 37.8 L/min, Head 1.8 m
- 2.0 m: Flow 43.1 L/min, Head 2.3 m
- 2.5 m: Flow 47.7 L/min, Head 2.9 m
- 3.0 m: Flow 52.3 L/min, Head 3.5 m
- 3.5 m: Flow 58.8 L/min, Head 4.1 m
- 4.0 m: Flow 60.8 L/min, Head 4.7 m
- 5.0 m: Flow 68.2 L/min, Head 5.9 m
- 6.0 m: Flow 76.8 L/min, Head 7.4 m
- 7.0 m: Flow 83.3 L/min, Head 8.4 m
- 8.0 m: Flow 89.3 L/min, Head 9.6 m
- 10.0 m: Flow 100.3 L/min, Head 12.1 m
MS 1014
- Material: Brass (Chrome Plated, Stainless Steel 304 or 316 on Request)
- Inlet BSP/NPT: 1"
- Nozzle Orifice (D in mm): 14
- Dimensions (AxB in mm): 46 x 118
- Swivel Ball Joint: ±15°
- Spray Height:
- 0.5 m: Flow 31.8 L/min, Head 0.7 m
- 0.75 m: Flow 38.2 L/min, Head 1.0 m
- 1.0 m: Flow 43.4 L/min, Head 1.3 m
- 1.5 m: Flow 53.2 L/min, Head 1.9 m
- 2.0 m: Flow 60.7 L/min, Head 2.4 m
- 2.5 m: Flow 69.3 L/min, Head 3.1 m
- 3.0 m: Flow 75.2 L/min, Head 3.7 m
- 3.5 m: Flow 82.2 L/min, Head 4.4 m
- 4.0 m: Flow 87.1 L/min, Head 4.9 m
- 5.0 m: Flow 98.9 L/min, Head 6.3 m
- 6.0 m: Flow 108.7 L/min, Head 7.7 m
- 7.0 m: Flow 120.8 L/min, Head 9.0 m
- 8.0 m: Flow 133.0 L/min, Head 10.0 m
- 10.0 m: Flow 150.2 L/min, Head 12.6 m
In The Box
- [1] x Fontana Smooth Bore Jet - Ø 5MM / 8MM / 10MM / 12MM | 316 Stainless Steel
- Crystal Clear, Lively Water Effect
- Very Versatile Water Shape
- Ideal for Programmable and Constant Flow Features
- Adjustable by 15° in every direction
- Stainless Steel AISI 316 & Brass Models
- Internal Flow Straightener
- Models from ⅜” up to 1½”
- Water Level Independent
