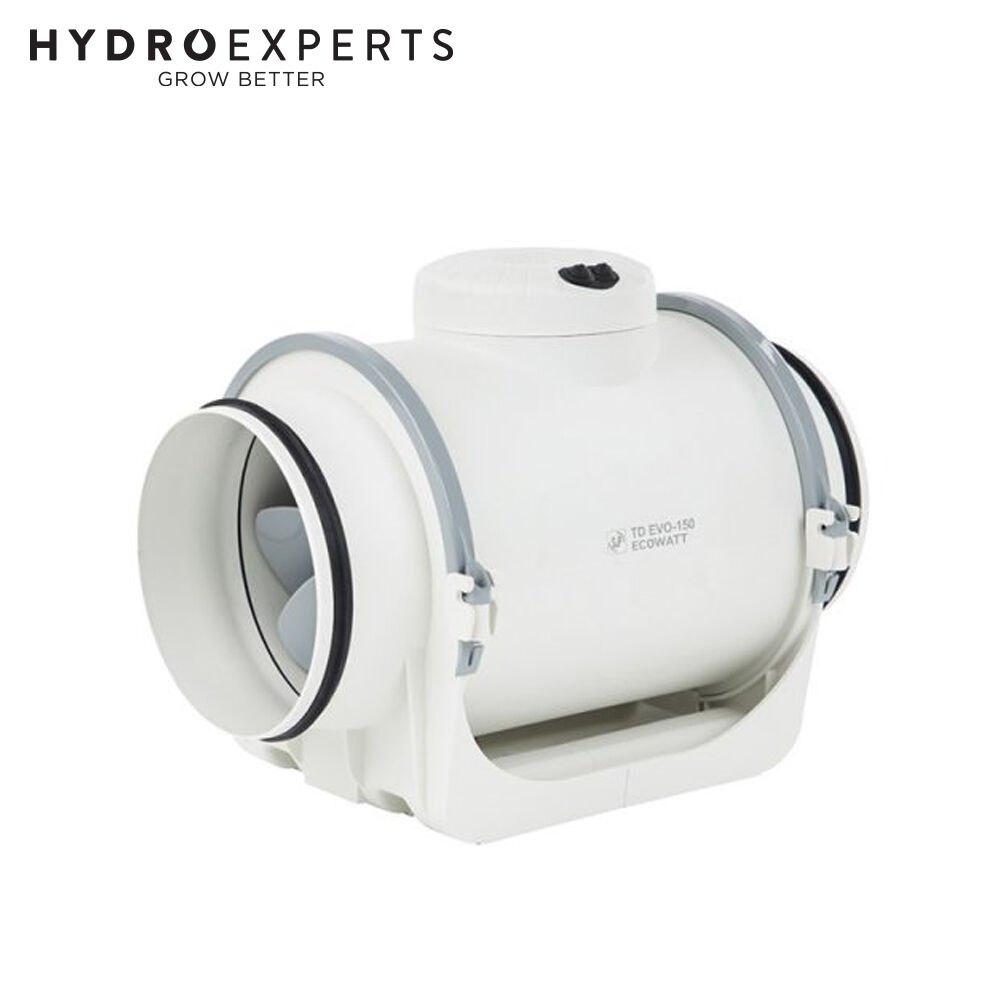

Fantech TD Evo Var Dual Control In-line Duct Mounted EC Fan w/ Run-On Timer - 125MM (5" Inch) | 29W | 310 M³/H | IP44

SKU: XFANS51012
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Not Available

In-store pickup not available.

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech TD EVO VAR in-line fan is designed for exceptional performance and energy efficiency, making it an ideal choice for both residential and commercial ventilation systems. With variable speed control, it can be adjusted via an on-board potentiometer or remotely through a 0-10V or 4-20mA analogue input signal, offering enhanced flexibility for different applications.

Equipped with a built-in, adjustable run-on timer (1 to 30 minutes), the TD EVO VAR ensures effective extraction of steam and odors even after the room is vacated. Its versatile design makes it suitable for toilets, bathrooms, ensuites, laundries, and kitchens in homes, hotels, apartments, and commercial buildings. The range includes six models, accommodating standard duct sizes from 100mm to 315mm in diameter.

Features

  • High-Performance Mixed-Flow Impeller – Delivers powerful airflow with optimal efficiency.
  • Low-Noise Operation – Advanced impeller, guide vanes, and outlet diffuser minimize noise levels.
  • Easy Maintenance – The main fan body can be removed without dismantling ductwork.
  • Energy-Efficient Motor – Features a highly efficient single-phase AC motor for reliable performance.
  • Flexible Installation – Can be mounted in any position to suit various ventilation setups.
  • Adjustable Junction Box – Rotates to any position for convenient wiring access.
  • Integrated Run-On Timer – Selectable 0, 1, 5, 15, or 30-minute delay for continued ventilation after use.

Specifications

Model No. M³/h† L/s† Fan Speed Rev/Sec AVG. dB(A) @ 3m* 1PH Watts AMPS MAX. AMB °C Volts
TD-EVO-100VAR 210 58 41 31 16 0.1 60 220-240
TD-EVO-125VAR 310 86 39 36 29 0.1 60 220-240
TD-EVO-150VAR 560 156 44 44 45 0.2 60 220-240
TD-EVO-200VAR 900 250 45 47 107 0.5 60 220-240
TD-EVO-250VAR 1400 389 45 52 181 0.8 60 220-240
TD-EVO-315VAR 1840 511 44 56 273 1.1 60 220-240

In The Box

  • [1] x Fantech TD Evo Var Dual Control In-line Duct Mounted EC Fan w/ Run-On Timer - 125MM (5" Inch) | 29W | 310 M³/H | IP44
