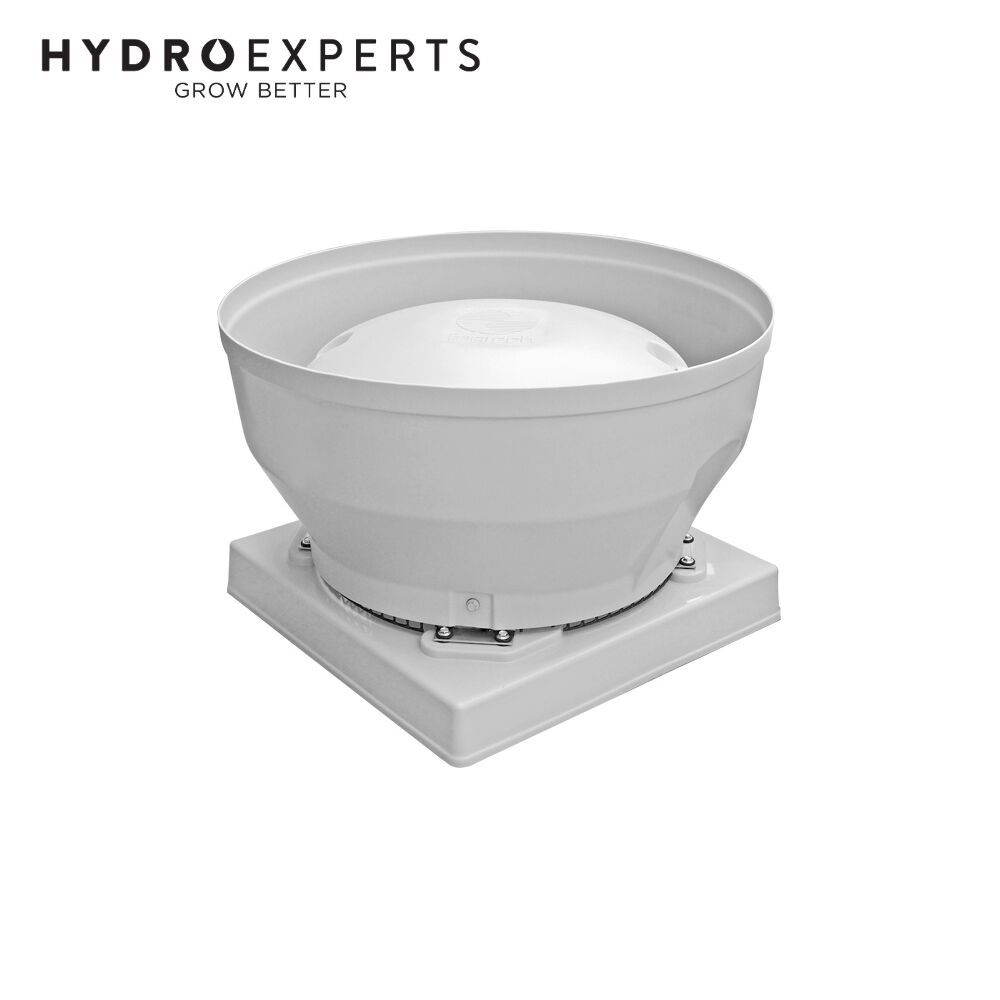

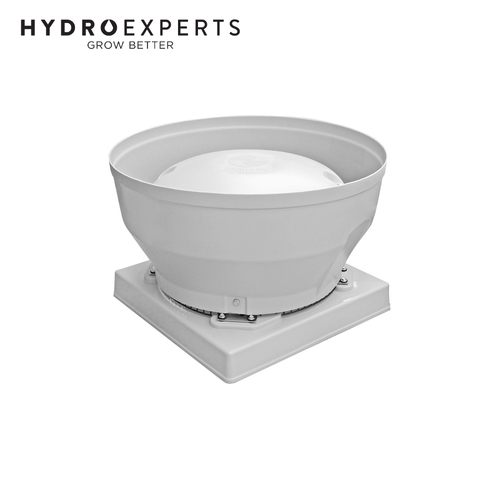

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - IP44 | 240V

For use in commercial ducted exhaust applications

SKU: FANS82000
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

The Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan is a robust and efficient solution tailored for commercial ducted exhaust applications. Engineered with a compact, low-profile design, the Gamma Series ensures reliable performance while maintaining discreet rooftop aesthetics. Built with lightweight yet durable materials and fitted with UV-stabilised cowls, this unit is ideal for long-term exposure in harsh Australian conditions. The integrated bird mesh offers additional protection by preventing unwanted entry of birds and vermin into the ventilation system. Its IP44 rating and capability to be mounted at angles of up to 30° make it a versatile option for varied installation requirements.

Features

  • Robust, lightweight construction: Ensures durability while allowing ease of installation and handling.
  • UV-stabilised cowls: Offers protection against sun damage, ensuring longevity in outdoor environments.
  • Compact, low-profile design: Ideal for installations where rooftop aesthetics and space constraints are considerations.
  • Bird mesh included: Prevents birds and vermin from entering the building or ductwork system.
  • Versatile mounting: Can be installed on slopes up to 30°, offering flexibility in various roof designs.
  • Compatible with ducted systems: Designed specifically for commercial ducted exhaust applications.
  • Single phase, 240V operation: Easily integrates with standard electrical systems.

Specifications

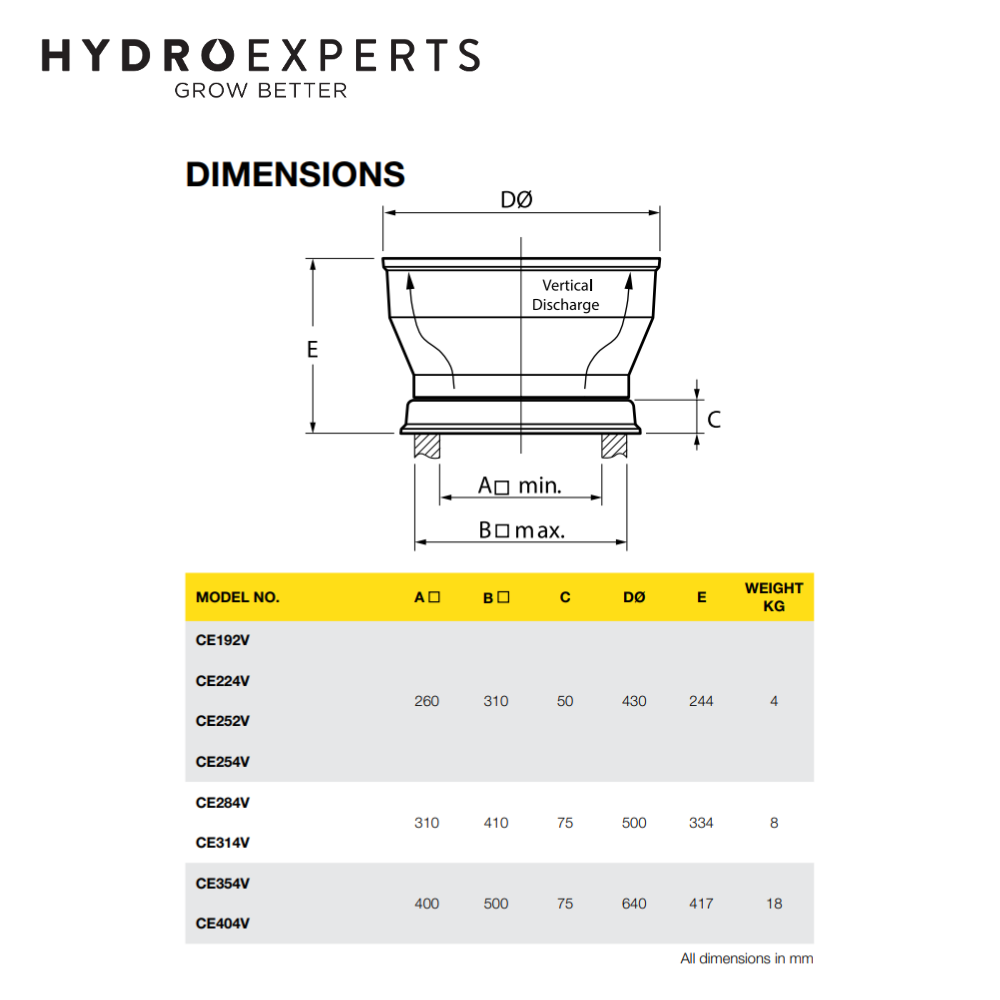

Dimension

Model No. A□ (mm) B□ (mm) C (mm) DØ (mm) E (mm) Weight (kg)
CE192V 260 310 50 430 244 4
CE224V 260 310 50 430 244 4
CE252V 260 310 50 430 244 4
CE254V 260 310 50 430 244 4
CE284V 310 410 75 500 334 8
CE314V 310 410 75 500 334 8
CE354V 400 500 75 640 417 18
CE404V 400 500 75 640 417 18



Specification

Model No. m³/hr L/sec Nom. Speed r/s Avg. dB(A) @ 3m (Inlet)
Low Air Flow
Avg. dB(A) @ 3m (Inlet)
High Air Flow
kW Amps
CE192V 443 123 42 45 47 0.07 0.30
CE224V 594 165 23 38 39 0.05 0.26
CE252V 972 270 42 56 58 0.19 0.83
CE254V 893 248 23 41 42 0.08 0.37
CE284V 1080 300 23 44 45 0.09 0.40
CE314V 1314 365 23 47 48 0.15 0.66
CE354V 2311 642 23 52 51 0.28 1.25
CE404V 3460 961 23 56 54 0.49 2.20

In The Box

  • [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - IP44 | 240V
