Bluelab PowerPod - 4 IEC Outputs | 8.5A | 100~240V | 50/60Hz

Compatible with Bluelab Pro Controller

SKU: CTRL50110
|

ETA: 1-3 Weeks

Bluelab PowerPod - 4 IEC Outputs | 8.5A | 100~240V | 50/60Hz

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

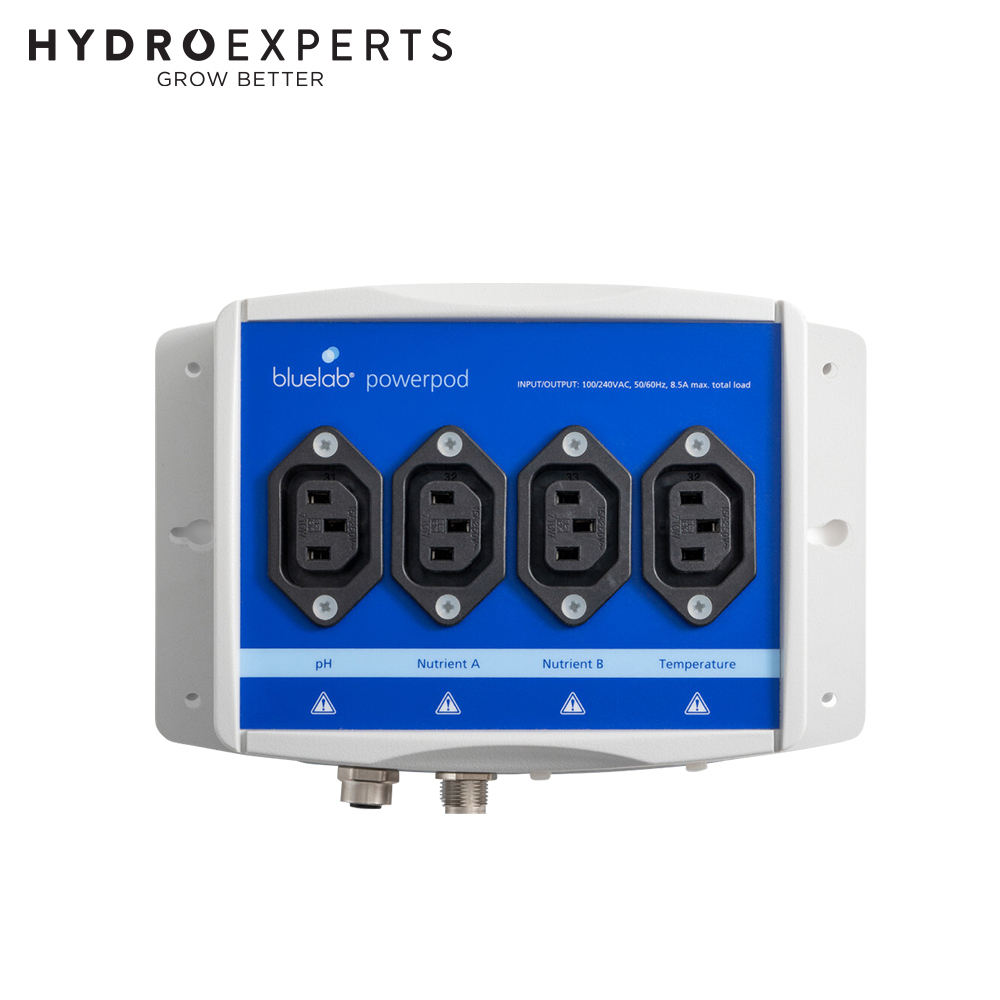

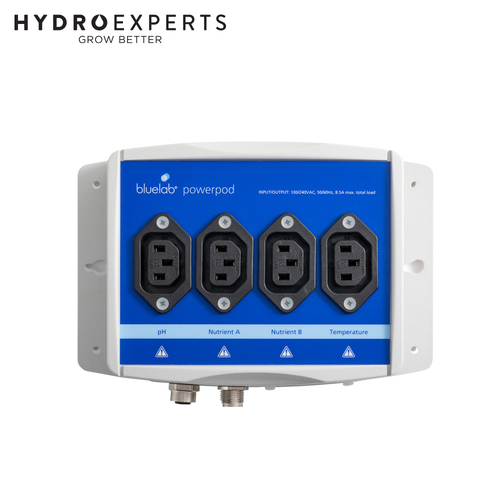

This great new product from Bluelab plugs directly into the base of the Bluelab Pro Controller. It allows you to operate any type of solenoid valve, peristaltic pump, or dosing pump. Just plug the correct power adapter into the Bluelab Power Pod to suit the voltage of the dosing valve or pump you are operating and the Powerpod will turn the device on and off via a dosing signal from the Bluelab Pro Controller.

Each Powerpod has 1 x output for pH dosing, 2 x outputs for nutrient dosing (A &B) and 1 x output for temperature control. If a grower has multiple pumps or devices for dosing pH, nutrient, and temperature control then they can attach a multi board to each output on the Powerpod or they can purchase an additional power pod and link that to the base of their existing power pod in a daisy chain.

The use of the Powerpod allows a grower to massively increase their dosing capacity so they can dose tanks over 20,000 litres in size or they can rapidly dose batching tanks in a Batched Dosing Drip Fertigation style system.

Specifications

Bluelab Powerpod output sockets

  • Type IEC C13 female mains OUTPUT socket
  • Output voltage range 110 - 240 V~ (same as input voltage applied at 4)
  • Output frequency range 50 - 60 Hz (same as input voltage applied at 4)
  • Total rated load 8.5A (maximum total load for all sockets 1)

Control input (to controller)

  • Type M12 type connector in an 8 female pin configuration
  • Output voltage range 24 Vdc (maximum)
  • Output frequency range n/a
  • Total rated load 20 mA (maximum)

Control output (to next)

  • Type M12 type connector in an 8 male pin configuration
  • Output voltage range 24 V ac/dc (maximum)
  • Output frequency range n/a
  • Total rated load 500mA (maximum)

Mains power input

  • Type IEC C14 male mains INPUT socket
  • Output voltage range 110 – 240 V~
  • Output frequency range 50 – 60 Hz
  • Total rated load 8.5A (maximum)

Bluelab Powerpod environmental

  • Operating Temperature 0°C to 50°C
  • Storage Temperature -20°C to +80°C
  • Operating Humidity < 90% (Relative humidity: non-condensing)
  • Storage Humidity < 95% (Relative humidity: non-condensing)
  • Enclosure Rating Designed to meet IP43, when ALL the mains output plugs are in place.
  • Water cover provided to give extra protection
  • Certifications CE, FCC, IC, IEC 61010-1:2010

In The Box

  • [1] x Bluelab PowerPod - 4 IEC Outputs | 8.5A | 100~240V | 50/60Hz
  • 4 x IEC mains outputs (15A max inrush current)
  • 100 V~-240 V~, 50/60 Hz compatible
  • Adds temperature control to Bluelab Pro Controller and some Bluelab Dosetronic models
