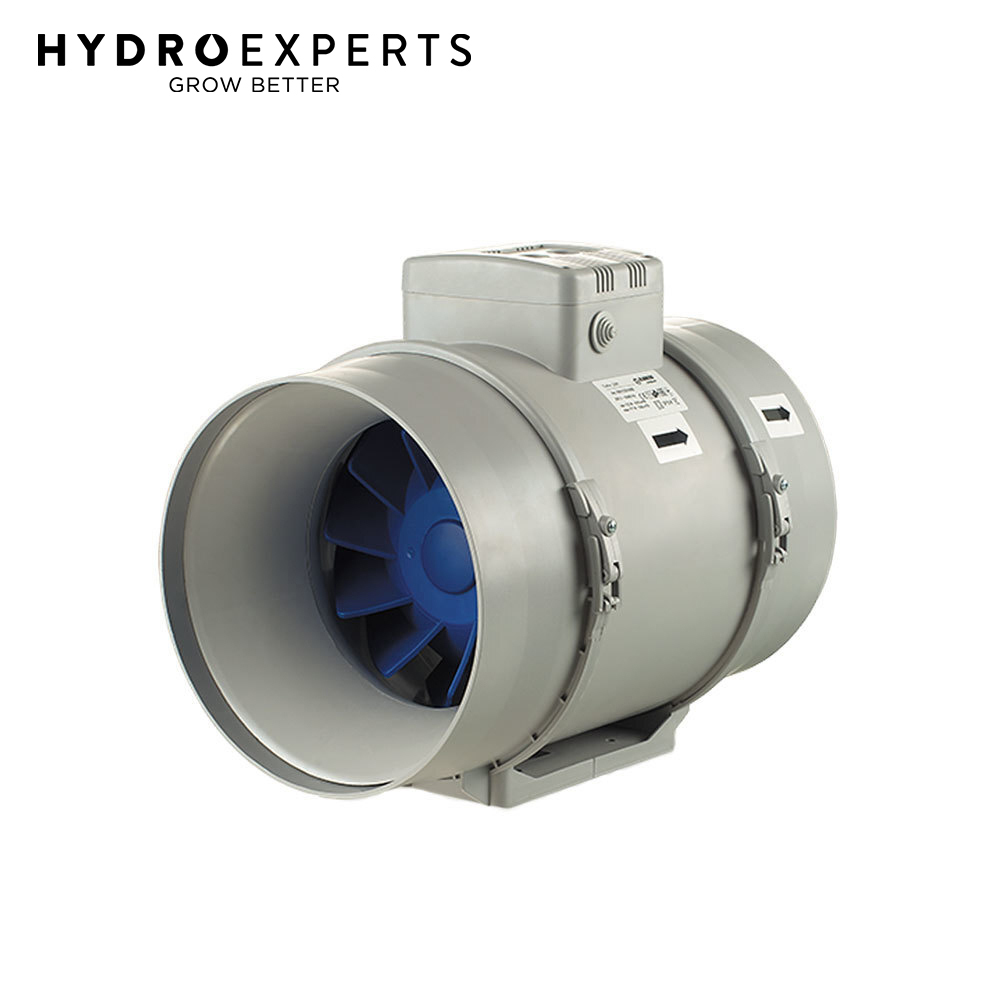

Blauberg Turbo Mixed Flow Fan - 315MM (12" Inch) | 1750CFM | 2 Speed Switch

SKU: FANS35104
|
Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

ENJOY NOW, PAY LATER

The Blauberg Turbo G Mixed Flow Fan is the best ventilation solution for premises requiring permanent temperature control as greenhouses, orangeries, etc.

Specifications

  • Phase, [˜]: 1
  • Voltage, [V]: 230
  • Frequency, [Hz]: 50/60
  • Power, [W] (min): 227
  • Power, [W] (max): 315
  • Current, [A] (min): 0.99
  • Current, [A] (max): 1.42
  • Maximum air capacity, [m³/h] (min): 1420
  • Maximum air capacity, [m³/h] (max): 11750
  • RPM, [min-¹] (min): 2115
  • RPM, [min-¹] (max): 2505
  • Sound pressure level at 3 m distance, [dBA] (min): 52
  • Sound pressure level at 3 m distance, [dBA] (max): 60
  • Max. operating temperature, [°C]: 60
  • Ingress protection rating: IP X4

Turbo 250 Dimensions

  • D1: 323MM
  • B: 362MM
  • H: 408MM
  • L: 445MM
  • Weight: 12KG

In The Box

  • [1] x Blauberg Turbo Mixed Flow Fan - 315MM (12" Inch) | 1750CFM | 2 Speed Switch

These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings
  • Equipped with thermal overload protection with automatic restart
  • Supply and extraction ventilation of offices, bathrooms, toilets, laundries, kitchens, ensuites in apartments, hotels, homes and commercial buildings.
  • Ventilation air ducts requiring high pressure, powerful air flow and low noise level.
  • Compatible with ∅ 100 up to 315 mm round air ducts.

Mounting

  • Due to compact design the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
  • The fan can be installed in any section of the ventilation system from intake to the end of the ductworks.
  • Wall or ceiling mounting with a mounting plate.







1-Year Replacement Warranty

  • If the product is faulty within the 1 year warranty period, Hydro Experts will offer a replacement.

5 Years Manufacturer Warranty

  • The customer needs to ship the item back to the manufacturer for support.
