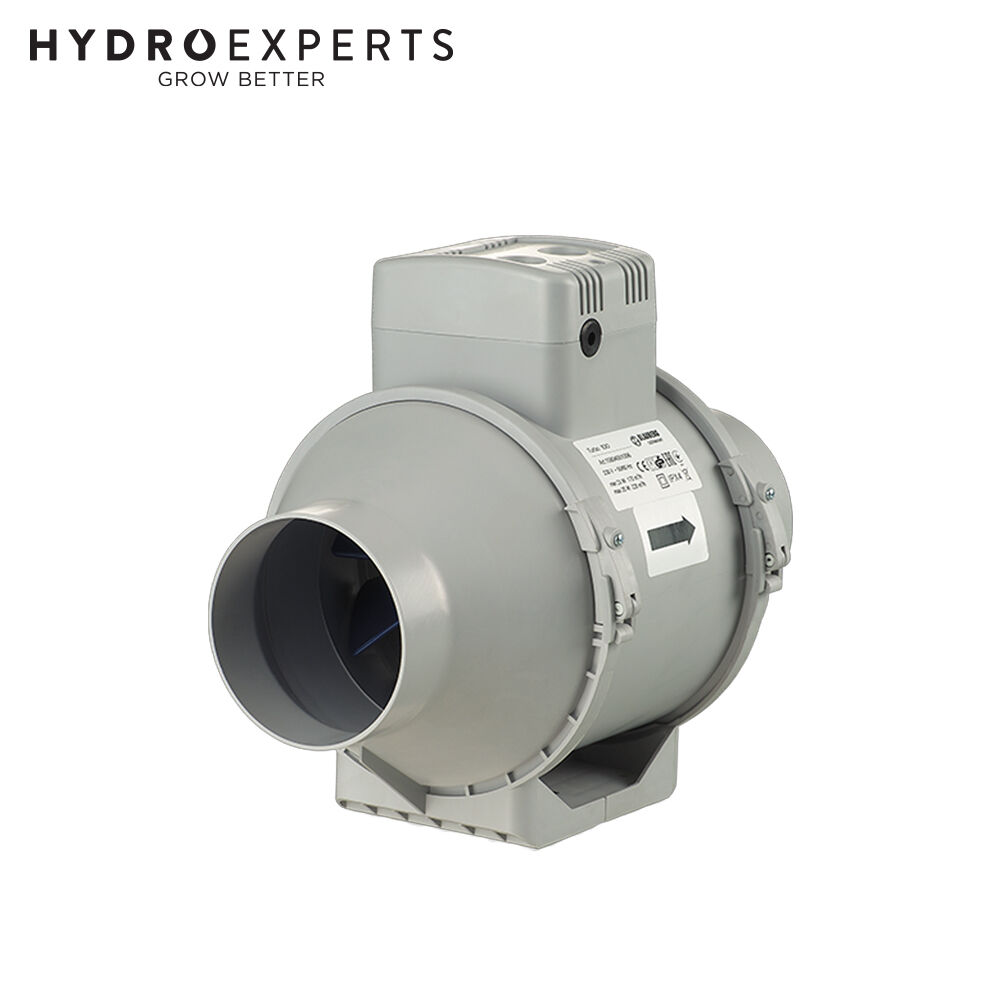

Blauberg Turbo Mixed Flow Fan - 100MM (4" Inch) | 130CFM | 2 Speed

SKU: FANS35105
|

OUT OF STOCK

FREE SHIPPING OVER $499*

Pick up at store Free

Delivery Options:

If cart total is less than $499*

Freight applies

If cart total is $499* & above

Free

*excluding bulky items

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

USE

  • Supply and exhaust ventilation systems installed in various premises. Mounting in kitchens, bathrooms and other humid premises. Ventilation air ducts requiring high pressure, powerful airflow and low noise level. Compatible with Ø 100 up to 315 mm round air ducts.

DESIGN

  • Casing made of low-flammable polypropylene. Ventilation unit with terminal box. Can be turned to any position. Special casing design permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct.

MOTOR

  • Double-speed single-phase motor on ball bearings. Equipped with thermal overload protection.

SPEED CONTROL

  • The control (minimum speed, maximum speed and shutdown) is executed with the integrated three-position switch (US modification) or with the external switch for multi-speed fans (specially ordered accessory).
  • Smooth speed control is possible with a built-in speed controller (FR1 modification) or an external thyristor speed controller (available upon separate order).

Specifications

  • Duct Size (mm): 100
  • Extract Capacity (m3/h): 170-220
  • Noise Level (dBA): 27-32
  • Power (watts): 23-25
  • RPM: 1980-2545
  • Width (mm): 196
  • Height (mm): 241
  • Depth (mm): 303
  • Material: Polypropylene



In The Box

  • [1] x Blauberg Turbo Mixed Flow Fan - 100MM (4" Inch) | 130CFM | 2 Speed

These Blaubergs mixed flow fans offer a range of features including;

  • Casing made of low flammable polypropylene
  • Single-phase motor on ball bearings

Mounting

  • Due to compact design, the fan is the ideal solution for mounting in limited spaces, including space behind a false ceiling.
  • The fan can be installed in any section of the ventilation system from intake to the end of the ductworks.
  • Wall or ceiling mounting with a mounting plate.







1-Year Replacement Warranty

  • If the product is faulty within the 1 year warranty period, Hydro Experts will offer a replacement.

5 Years Manufacturer Warranty

  • The customer needs to ship the item back to the manufacturer for support.
