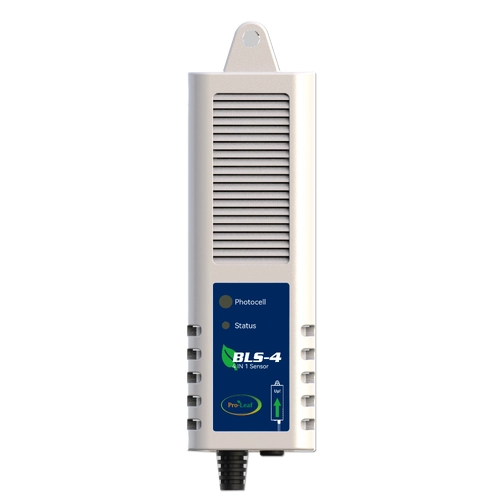

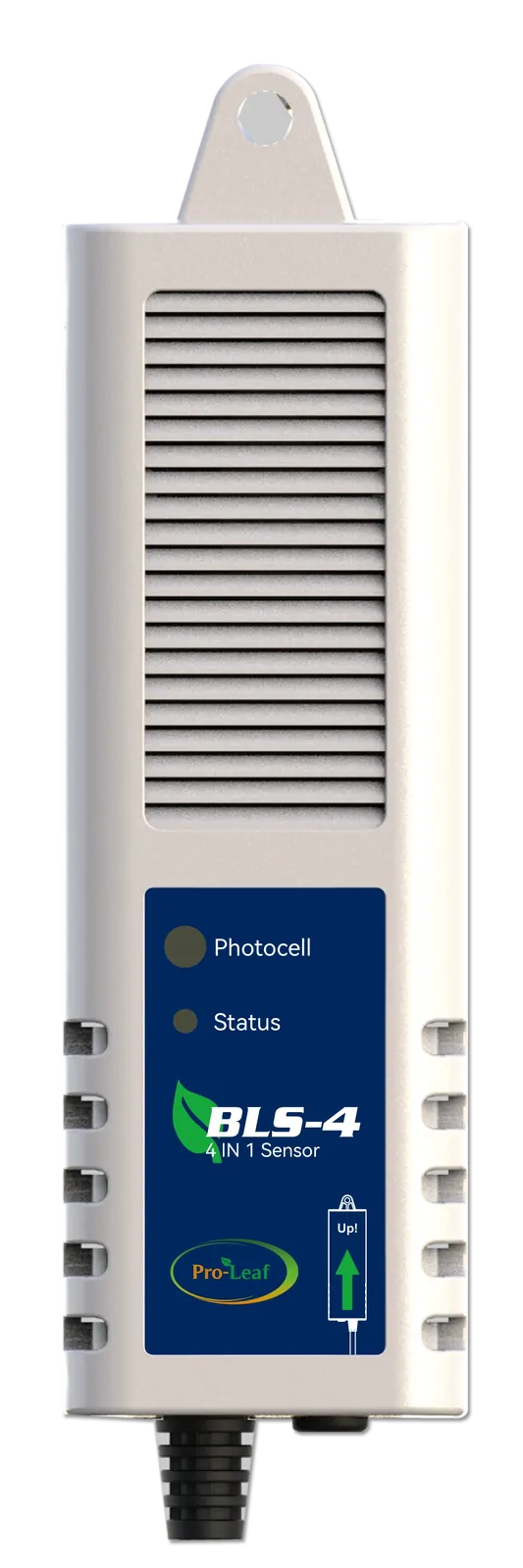

Pro Leaf BeLeaf BeHive-E 4-IN-1 Sensor - BLS-4 | CO2 | Temperature | Humidity | Light

SKU: NEWBLS-4
|

OUT OF STOCK

FREE SHIPPING

Qty:

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

Afterpay Logo

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

Zip Logo

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Paypal Logo

ENJOY NOW, PAY LATER

CO2, Temperature, Humidity and Light /4IN1 Sensor

Precautions:

  • Note 1: The sensor is designed to measure the concentration in the range of 400 to 2000ppm, and has the accuracy specified in the table. However, exposure to concentrations below 400 ppm may cause the ABC algorithm to misoperate, so for the ABC model, this should be avoided.
  • Note 2: The accuracy of the data in the extended range will be reduced compared with the specification.
  • Note 3: In normal IAQ applications, the accuracy can only be determined after 3 weeks of continuous operation of the AFC.
  • Note 4: The accuracy is stable at room temperature +25 degrees and normal pressure below 101.3 kPa.

Specifications

  • Name: 4 IN1 Sensor
  • Model: BLS-4
  • Size: 160*44*34mm, with 0.5m data cable
  • Protection Level: IP20
  • Operating Temperature: 0–50°C
  • Operating Humidity: <90%, non-condensing
  • Operating Voltage: DC24V
  • Operating Current: Average 10mA, peak 60mA (every 4 seconds, last 0.3 seconds)
  • CO2 Measuring Range: 400 to 2000 ppm (Note 1), extended range 0 to 5000 ppm (Note 2)
  • CO2 Precision: ±50ppm ±3% of reading (Note 3 and 4)
  • Temperature Measuring Range: 0–50°C
  • Temperature Measuring Accuracy: ±0.5°C
  • Long-term Temperature Drift: <0.05°C/year
  • Humidity Measuring Range: 0–90 %RH
  • Humidity Measuring Accuracy: 5 %RH
  • Illumination: Identify day/night
  • Communication Port: RJ12 crystal plug, 6P6C, with DC24 power supply
  • Communication Parameters: RS485 slave, baud rate of 9600, no parity, 8 data bits and 1 stop bit.

In The Box

  • [1] x BeLeaf BeHive-E 4IN1 Sensor(BLS-4)
  • [1] x Splitter
  • [1] x 5m Data Cable
