[1]x SMSCOM Hybrid Controller 4A MKII + [2] x Max-Fan Pro 200MM 718CFM + 5M Duct

SKU: FAN-CTRL-SET1002

Can-Fan

[1]x SMSCOM Hybrid Controller 4A MKII + [2] x Max-Fan Pro 200MM 718CFM + 5M Duct

Pick up at store Free

Delivery Charge: Free

International shipping

Click here

SECURE PAYMENTS WITH

BUY NOW, PAY LATER

Pay in 4, interest-free. Afterpay it.

ZIP NOW, PAY LATER

Repay on a convenient weekly, fortnightly or monthly schedule.

Are you having issues with heat?
Problems with humidity control?
Sick and tired of the humming noise of your standard fan controllers?
Want the perfect air flow?

We've got the perfect package for you. This package is the ideal solution for those looking for the quietest running extractor fans as it creates No Buzzing or Humming from any type of extractor GUARANTEED!!!!

[1] x SMSCOM Hybrid Pro Controller 4A - MKII
[2] x Max-Fan Pro - 200MM (8" Inch) | 718CFM | Made In Germany
[1] x Black PVC Coated Dual Layer Air Duct - 5 Meters | 203MM (8" Inch) | Ventilation
[4] x Quick Release Clamp Jubilee - 203MM (8" Inch)

SMSCOM Hybrid Pro Controller 4A - MKII

The new Hybrid Controller Pro combines mechanical and digital fan speed control to drastically reduce the noise from your fans, and also provide a perfectly controlled environment to your crop.

Using the latest digital temperature sensing technology, the result is a completely silent, twin fan speed controller with highly accurate temperature control. These units have been engineered to maintain a constant temperature and controlled airflow at all times, whilst also reducing nighttime humidity.

The Hybrid Pro features a nighttime humidity function that will remove excess humidity. When lights turn off, plants are still transpiring quite heavily and this can cause a sudden spike in humidity (leading to problems with rot or mould). The SMSCOM Pro units will remove this excess humidity during the dark period.

Supplies power to intake and exhaust fan
Built-in heavy duty thermostat control with NTC temperature sensor
Smart Motion Flow technology
Light Sensor equipped
5 step fan speed control plus digital regulation
Maintains negative air pressure
Rated to 4A (900w)
Regulates intake and exhaust fans
AU 240v Plug fitting
The QUIETEST fan speed controller on the market
5 year warranty
Model shown may be EU/US plug, all stock sold from Stealth will be AU Power plug.

Max-Fan Pro - 200MM (8" Inch) | 718CFM | Made In Germany

Introducing the next generation of the highly successful Max-Fan series. The two-speed easy operation button makes the pro series the best value fans in our market.

The new tough polymer casing adds a new degree to the product durability.
The all new 3D rotor stator motor is even more efficient, higher air flow, and yet quieter
The contrasting yellow and black colours make a statement of quality and reliability comparable to high-end machinery.

Max. Flow Rate:
- High: 1220 m³/h (718CFM)
- Low: 793 m³/h (466CFM)
RPM: 3288
Watts: 117
Amps: 0.6
Duct Size: 200mm
Blade Design: Diagonal / Mix Flow
Housing: Plastic
Weight: 4.4 kg

Black PVC Coated Dual Layer Air Duct - 5 Meters | 203MM (8" Inch) | Ventilation

Durable construction for long lasting performance
Length: 5 Meters

Quick Release Clamp Jubilee - 203MM (8" Inch)

Quick release stainless steel hose clamps. Just release the tension on the screw and flip up to instantly release the clamp. Allows for easy removal of the clamp for quicker flex duct removal when cleaning the glass in your air cooled fixture or accessing your lamp.

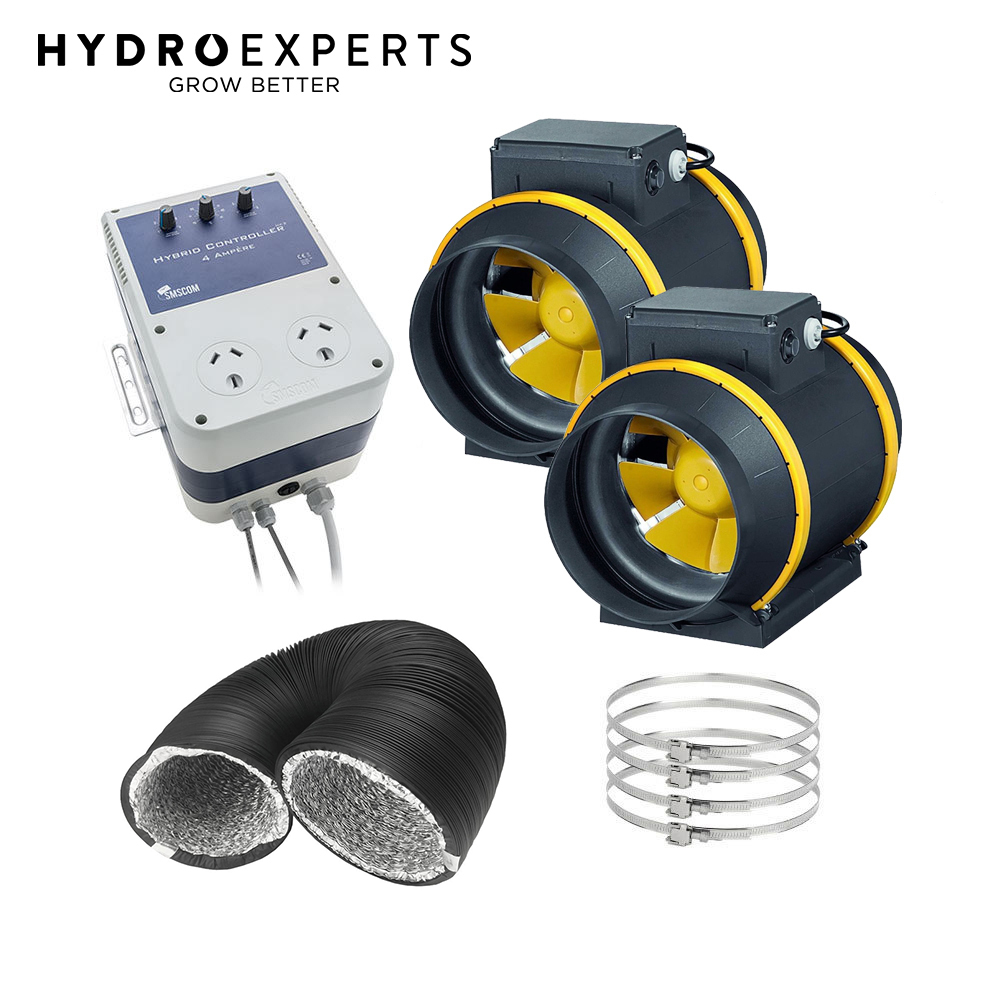

In The Box

[1] x SMSCOM Hybrid Pro Controller 4A - MKII
[2] x Max-Fan Pro - 200MM (8" Inch) | 718CFM
[1] x Black PVC Coated Dual Layer Air Duct - 5 Meters | 203MM (8" Inch) | Ventilation
[4] x Quick Release Clamp Jubilee - 203MM (8" Inch)

Setting the Hybrid Controller

Automatic Setting:

The 4 ampere regulator will automatically choose between 5 different speed settings to maintain your set temperature.

Position the controller in a convenient location and put the Temperature Sensor in the centre of the growing area. Avoid putting the Temperature Sensor somewhere where it will take a false temperature reading like in direct sunlight or in the cool incoming air from the ventilation system.
Connect the input fan to the left side and the output fan to the right side of the controller.
Plug the controller into an electrical socket and switch on.
Set the desired temperature using dial 1.
Set the minimum fan speed
The 4, 8 and 16 ampere controller will now automatically adjust the fans speed between speed 1 and 5. The 2 ampere controller will automatically choose the high or low speed, depending on the ambient temperature.

Manual Setting for the 4 amp

Adjust the fans speed manually between speeds 1-5.

Set dial 1 to its highest setting (45 degrees).
Using dial 2, you can now adjust the speed manually between speeds 1 – 5. Manual setting can only be used if the ambient temperature of the room is 45 degrees C or below.

In operation:

The Hybrid Controller uses a heavy duty relay to regulate the power as the controller switches between the different speeds. You will hear a small ‘click’ as the relay switches between speeds. The heavy duty relay ensures the controller is robust and reliable in operation at all times.

Minimum Fan Speed**only applies to the 4, 8 and 16 ampere controllers. When you set the minimum fan speed on a Hybrid Controller in the automatic mode, you are setting the range the controller can operate between. You are not turning the fans to that speed immediately For example, if set at speed 1, the controller will automatically adjust the fans speed anywhere between speed 1 and 5 to keep the temperature constant. If set at speed 2, the controller will operate anywhere between speed 2 and 5 and so on… We recommend setting the minimum fan speed to the lowest setting, position 1, as this gives the greatest range of operation for the controller.

Max Load**: Hybrid Controller 4A: 4A or 900W

**Total maximum wattage that can be taken from the whole devise. Either split between or from a single socket.
